SB Acoustics

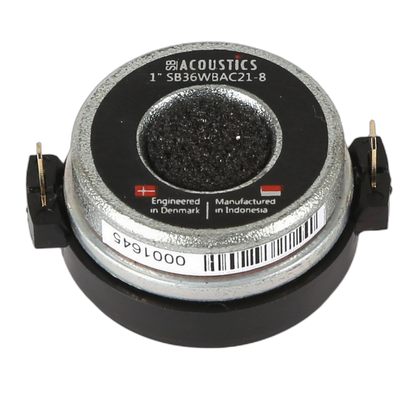

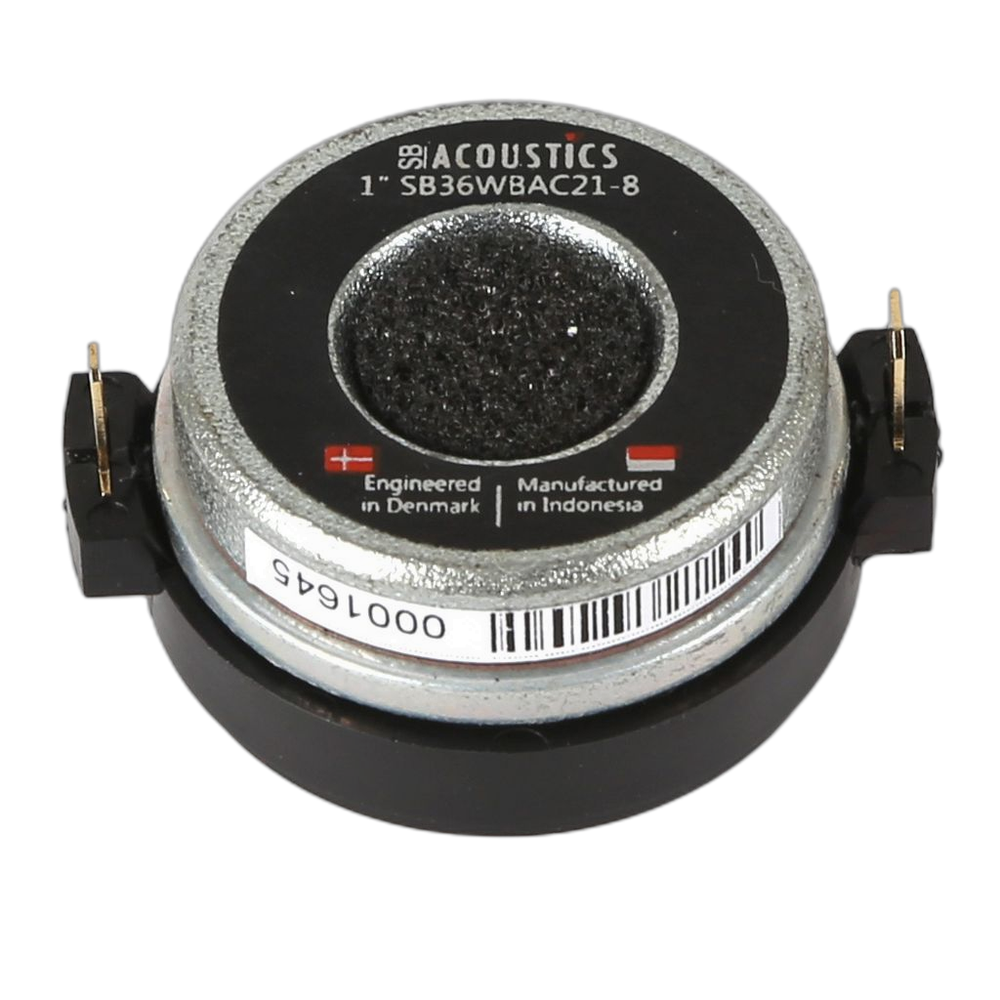

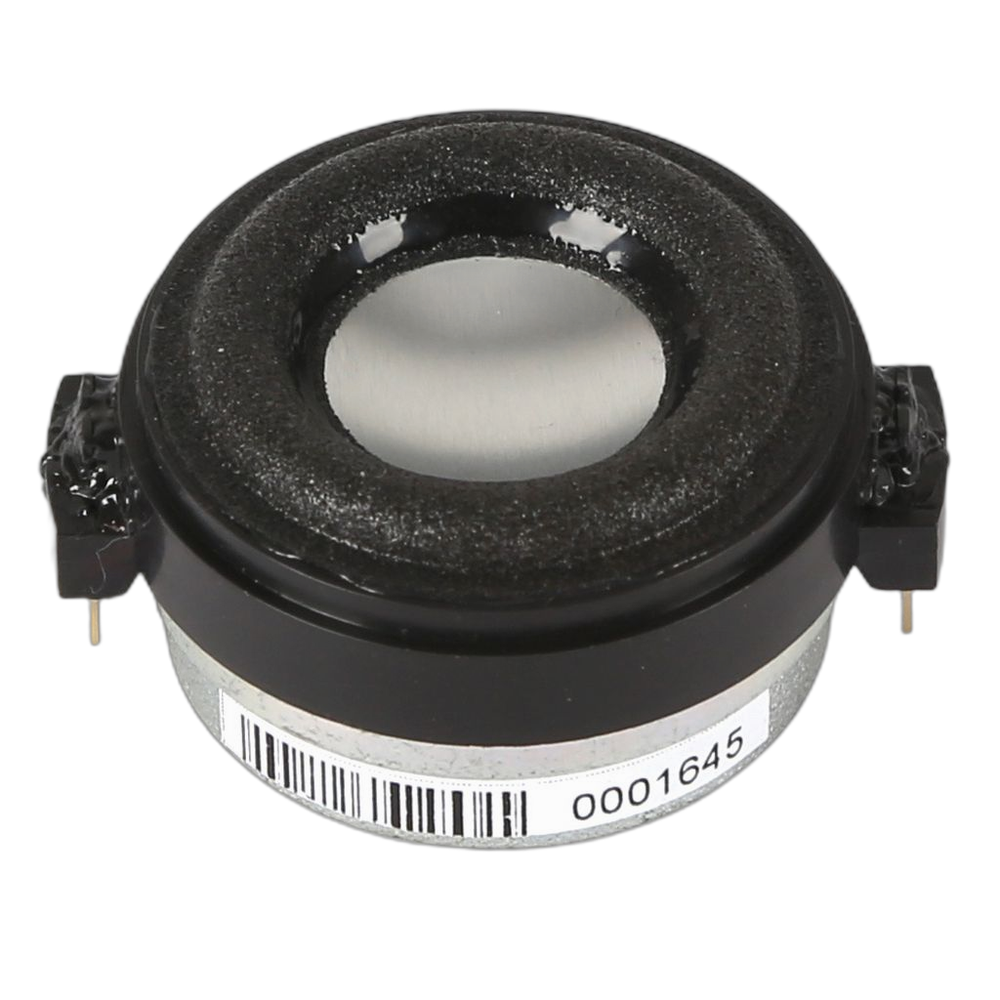

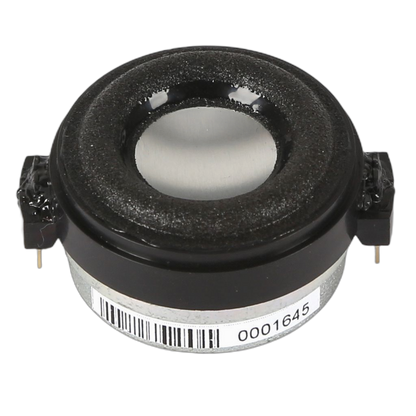

SB Acoustics - 1" WBAC Full Range - SB36WBAC21-4

SB Acoustics - 1" WBAC Full Range - SB36WBAC21-4

$25.95 AUD
$25.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Long stroke low damping surround. Vented low compression design. Resonance and break-up control. Low resonance frequency. Prepared for rear mounting. Long life silver lead wires.

Features

  • Long stroke low damping surround
  • Vented low compression design
  • Resonance and break-up control
  • Low resonance frequency
  • Prepared for rear mounting
  • Long life silver lead wires

Specifications

Power 5Wrms
Coil 20.4mmØ
Width 36mmØ
Mag. 0.01kg
Sens. 77dB
Re 3.4Ω
Qms 0.68
Qes 1.05
Qts 0.41
Sd 4.2cm²
Fs 200Hz
Mms 0.76g
Zn 4Ω
Le 0.12mH
Diam. 25mmØ
Vas 0.021L
Cms 0.83mm/N
Bl 1.76Tm
Rms 1.4kg/s
Xmax 3.5mm
