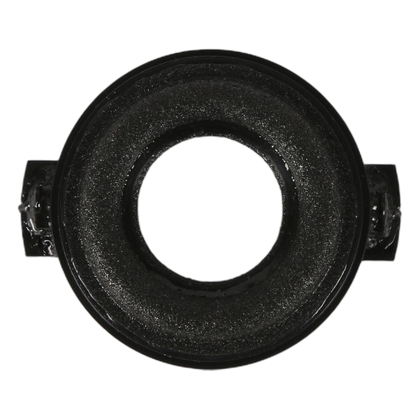

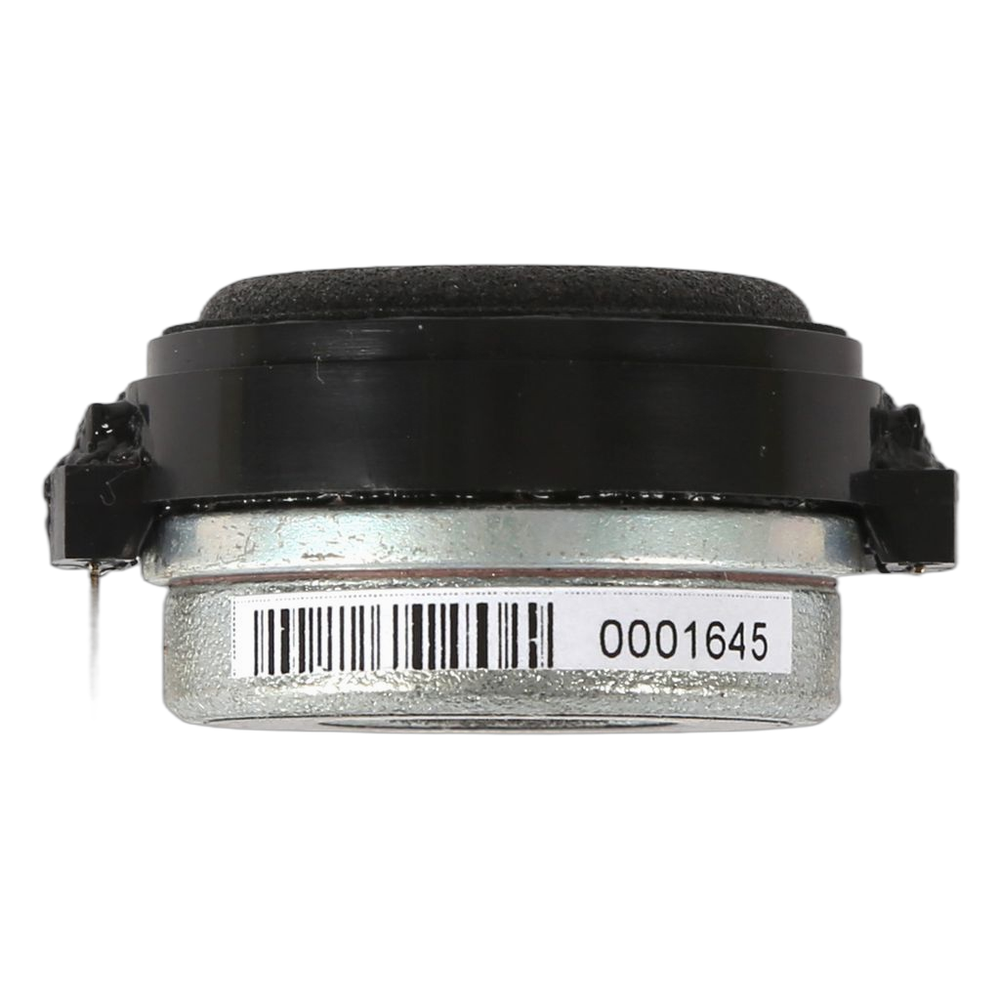

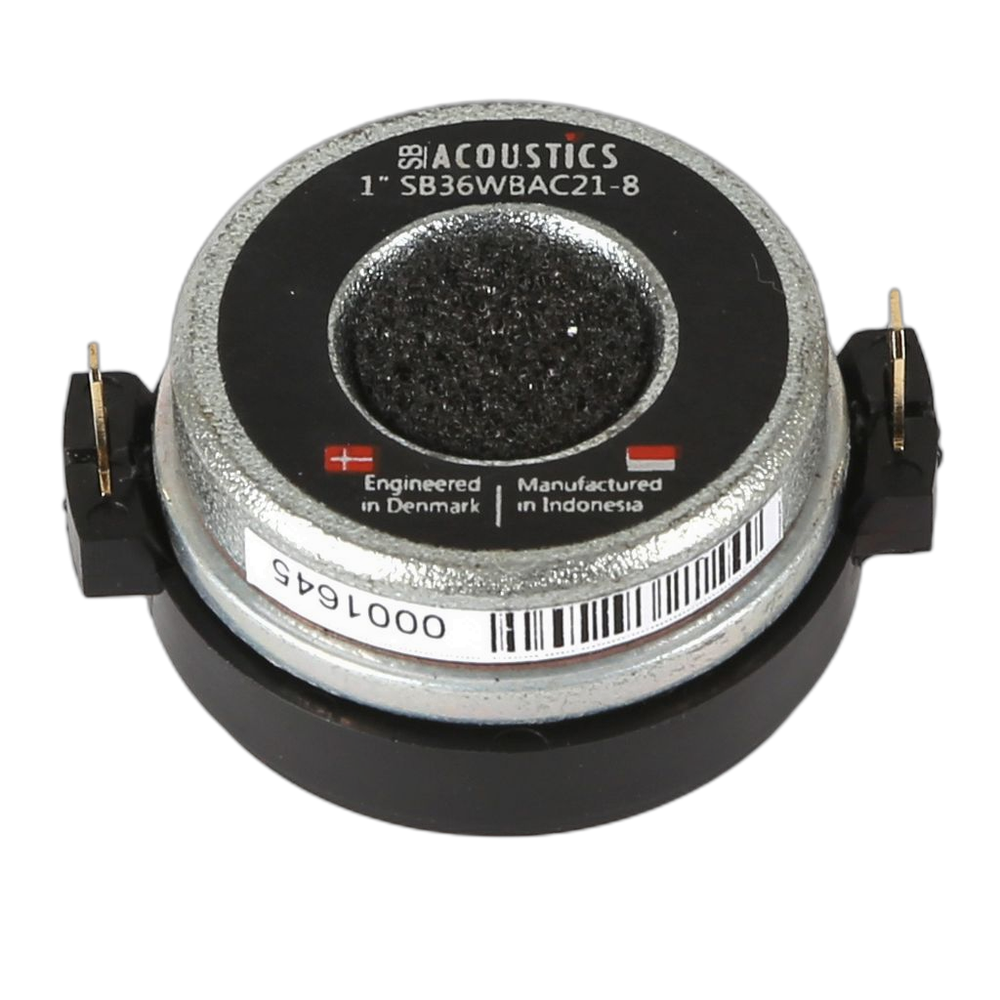

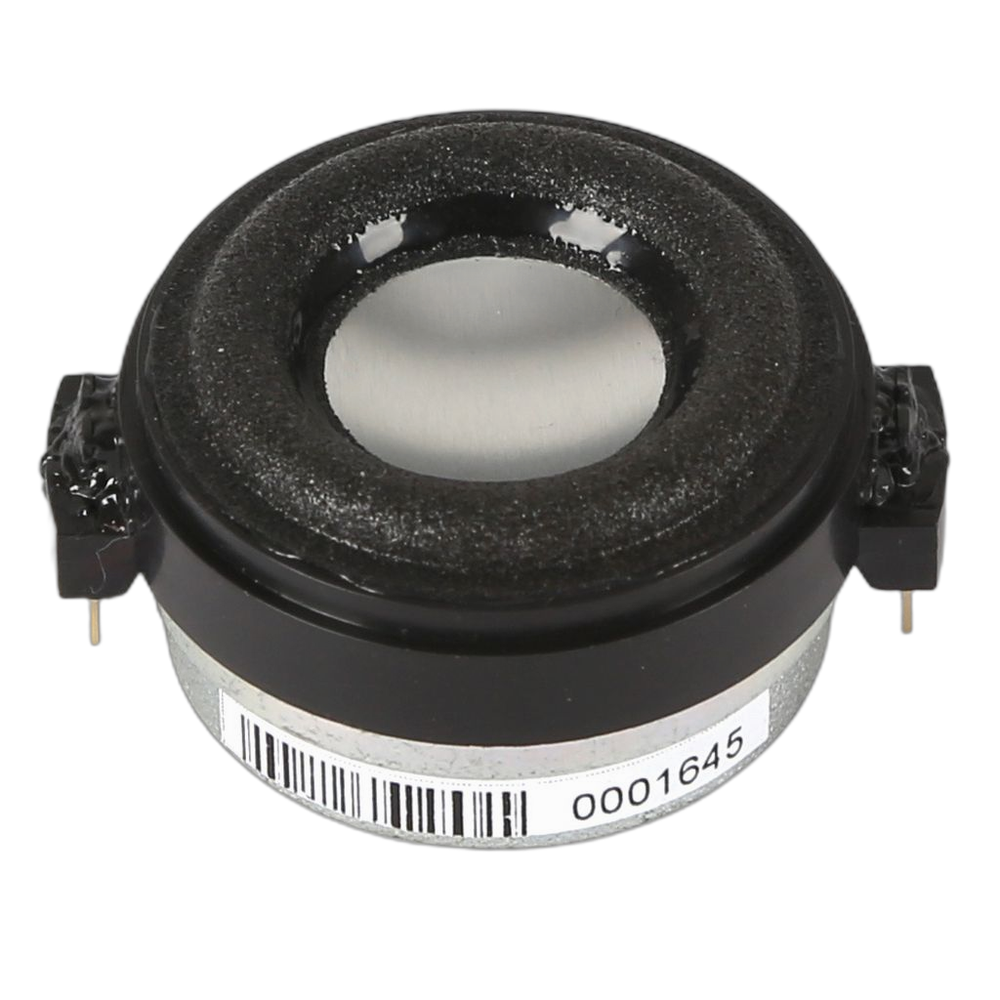

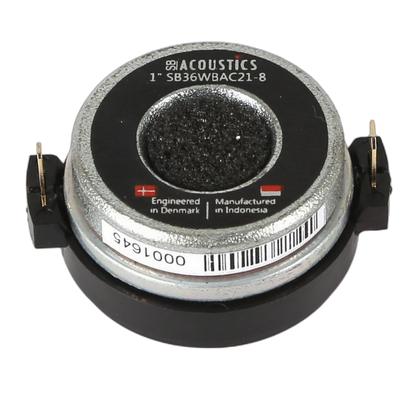

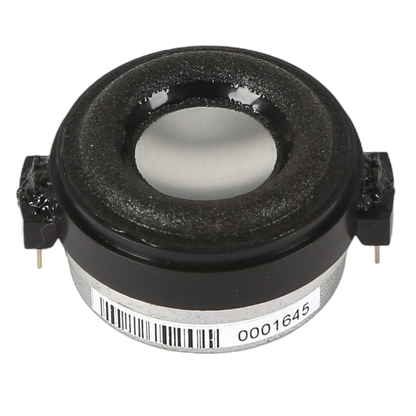

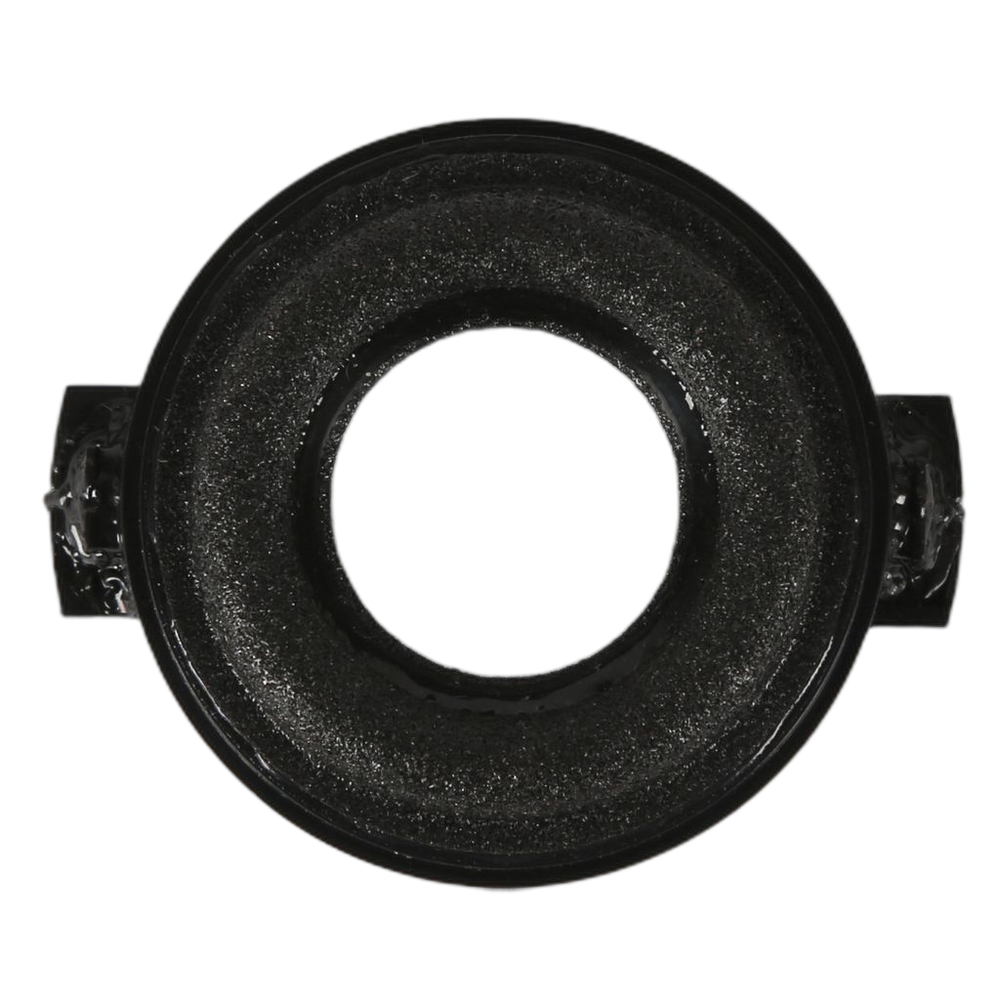

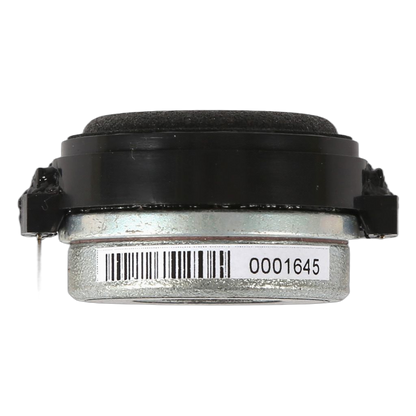

SB Acoustics - 1" WBAC Full Range - SB36WBAC21-8

SB Acoustics - 1" WBAC Full Range - SB36WBAC21-8

$25.95 AUD
$25.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Long stroke low damping surround. Vented low compression design. Resonance and break-up control. Low resonance frequency. Prepared for rear mounting. Long life silver lead wires.

Features

  • Long stroke low damping surround
  • Vented low compression design
  • Resonance and break-up control
  • Low resonance frequency
  • Prepared for rear mounting
  • Long life silver lead wires

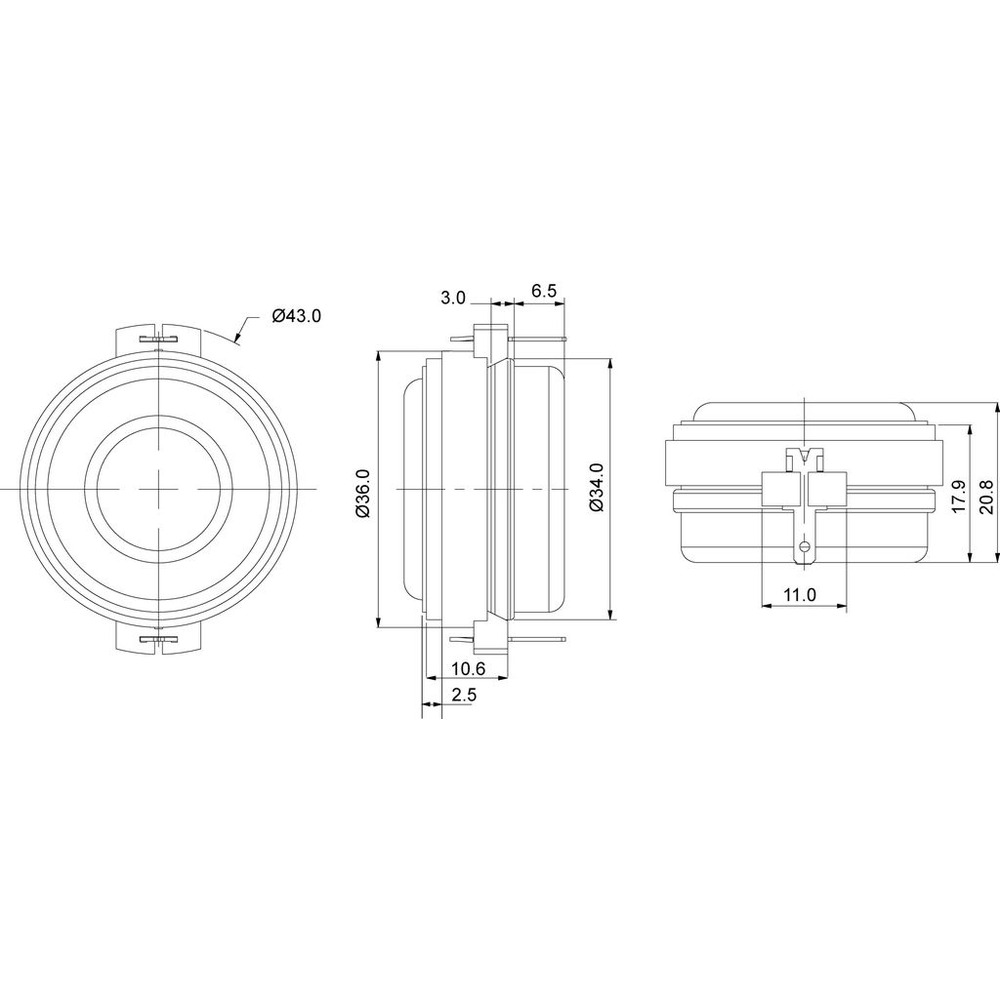

Specifications

Power 5Wrms
Coil 20.4mmØ
Width 36mmØ
Mag. 0.01kg
Sens. 75dB
Re 5.8Ω
Qms 1.75
Qes 0.92
Qts 0.61
Vas 0.035L
Sd 4.2cm²
Cms 1.39mm/N
Fs 160Hz
Mms 0.7g
Zn 8Ω
Le 0.13mH
Rms 0.4kg/s
Diam. 25mmØ
Bl 2.1Tm
Xmax 3.5mm
