SB Acoustics - 10" DAC Passive Radiator - SW26DAC-00

SB Acoustics - 10" DAC Passive Radiator - SW26DAC-00

$254.95 AUD
$254.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

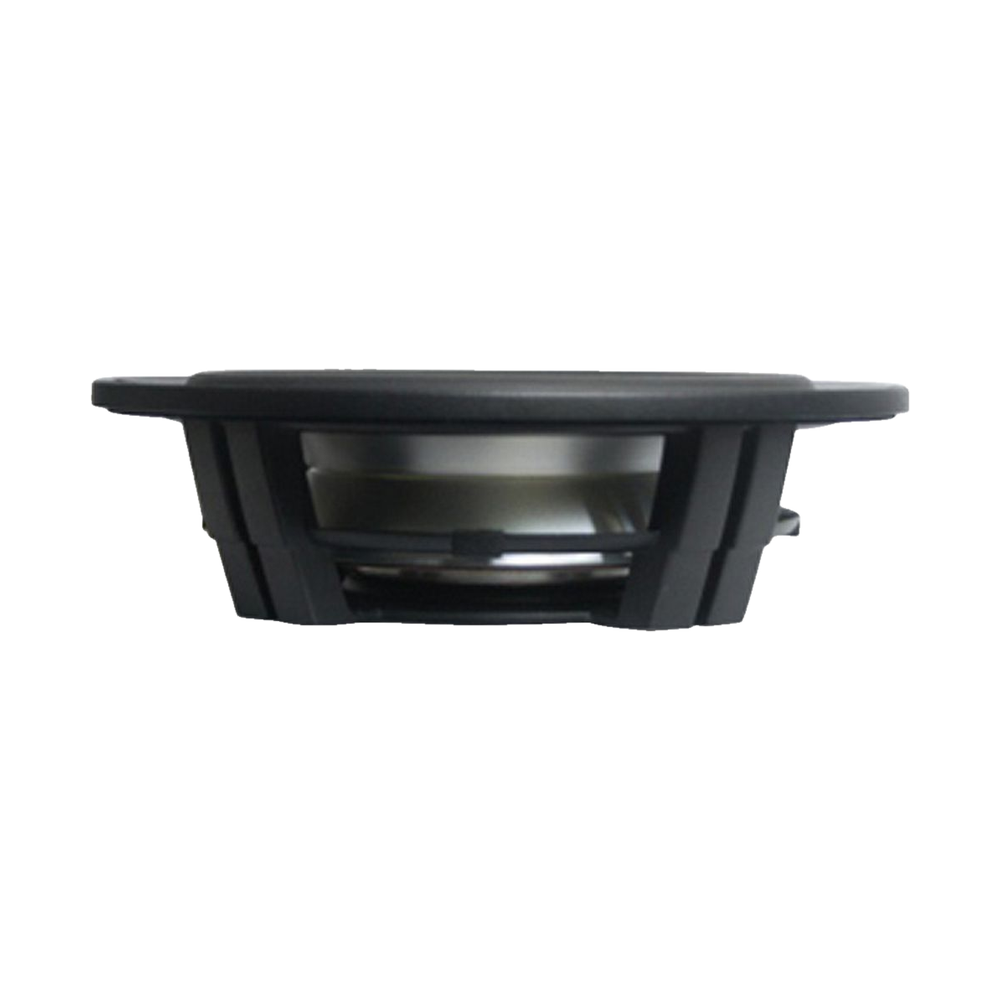

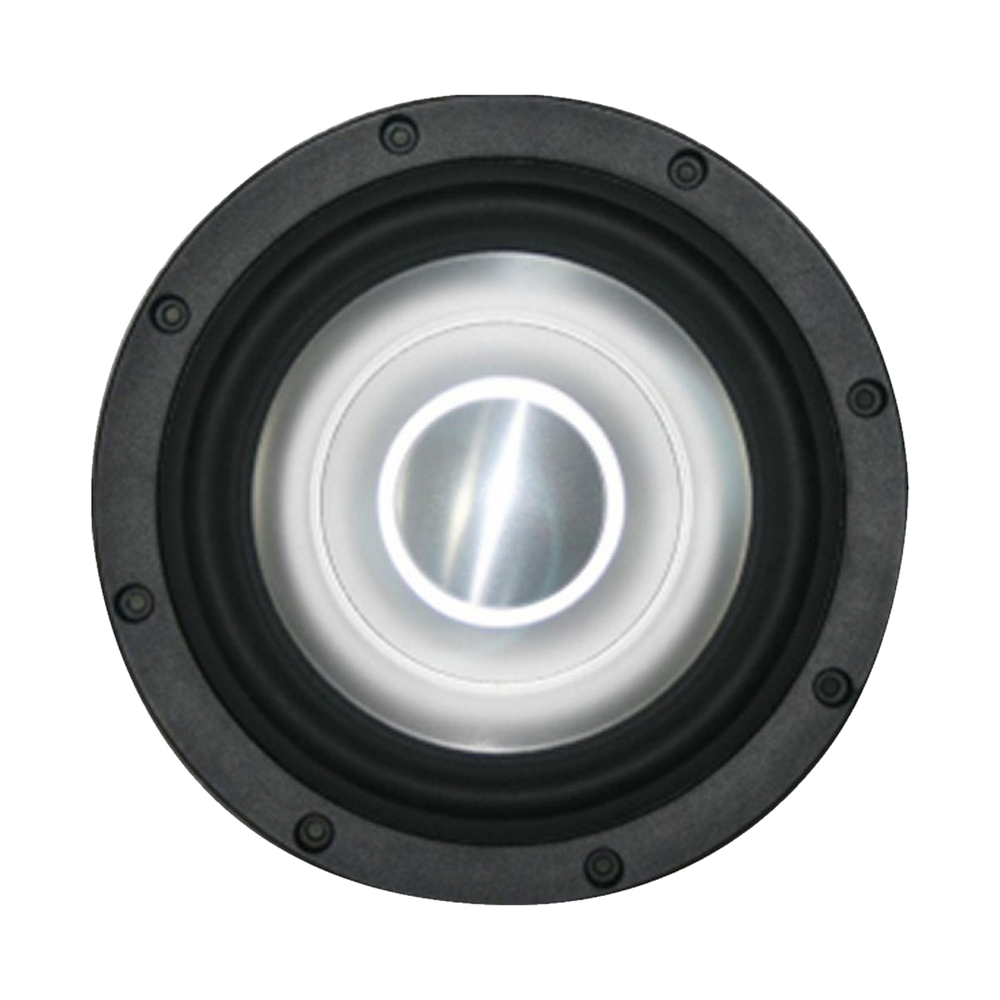

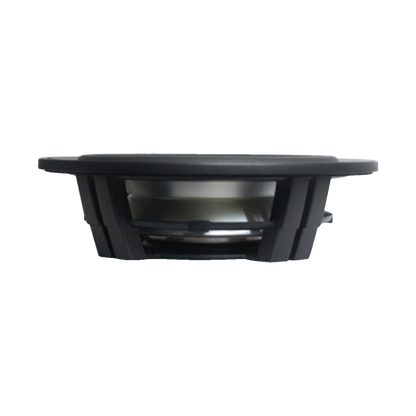

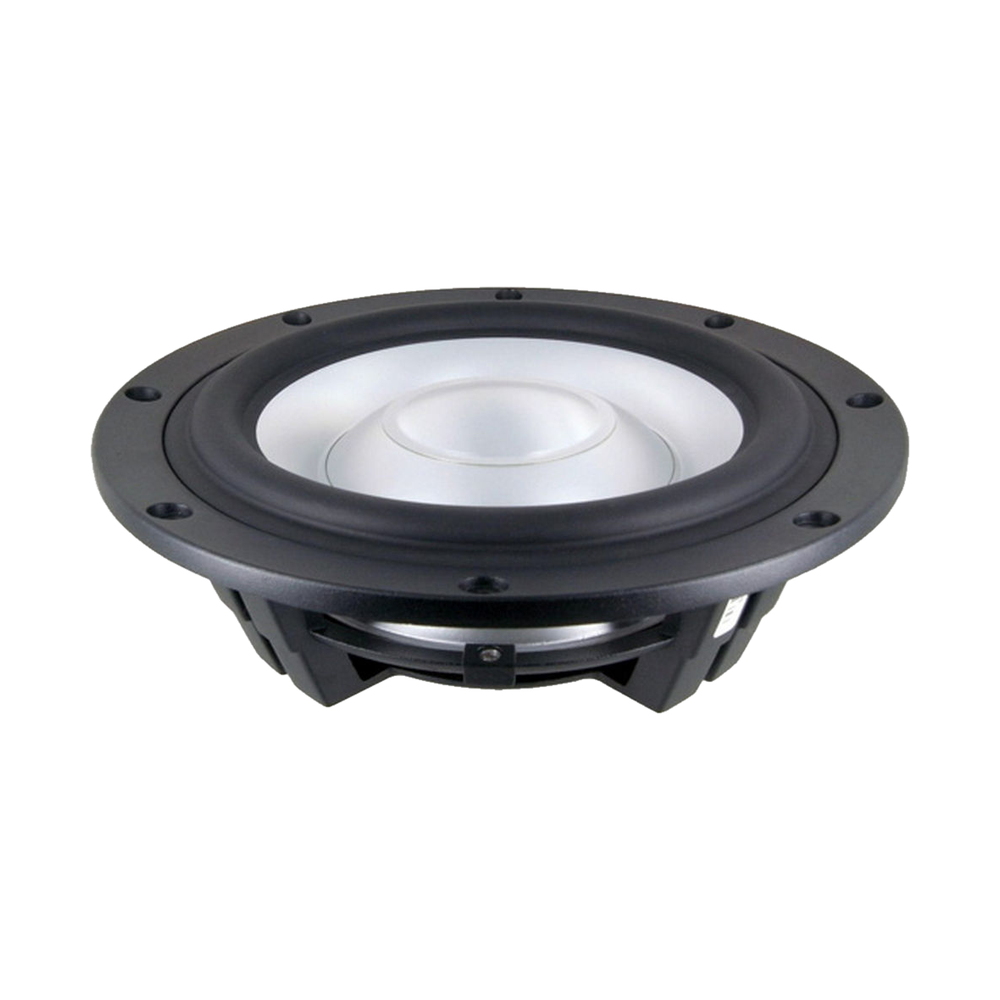

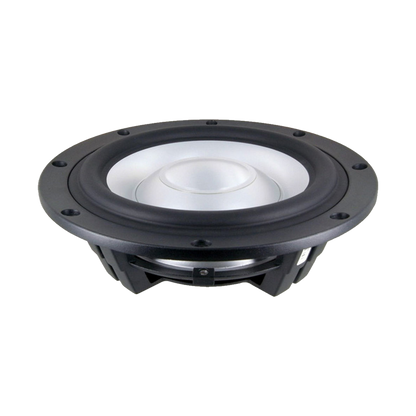

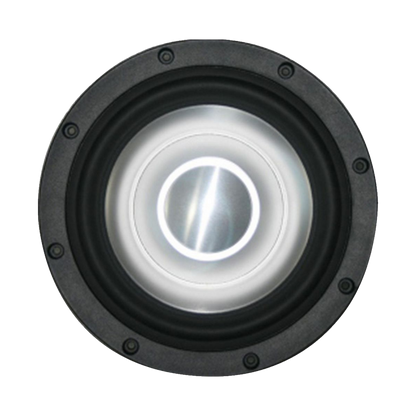

A 10" passive radiator with a dual rigid aluminium cone and a cast aluminium chassis. The low-damping, medium-hardness rubber surround improves dynamic linearity and mechanical stability, and the moving mass is easy to adjust with DW-50 50g weights on an M8 bolt. It has the same silver aluminium cone as SB's SW26DAC76 subwoofers.

Features

  • Dual rigid aluminium cone structure
  • Cast aluminium chassis for optimum strength
  • Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
  • Easily adjustable moving mass

Specifications

General

Driver type Passive Radiator
Nominal size 10"

Thiele/Small parameters

Resonant frequency (Fs) 13 Hz
Mechanical Q (Qms) 8.8
Equivalent volume (Vas) 54 L
Compliance (Cms) 0.39 mm/N
Moving mass (Mms) 400 g
Mechanical resistance (Rms) 3.7 kg/s
Effective piston area (Sd) 312 cm²
Mechanical excursion (Xmech) 17 mm

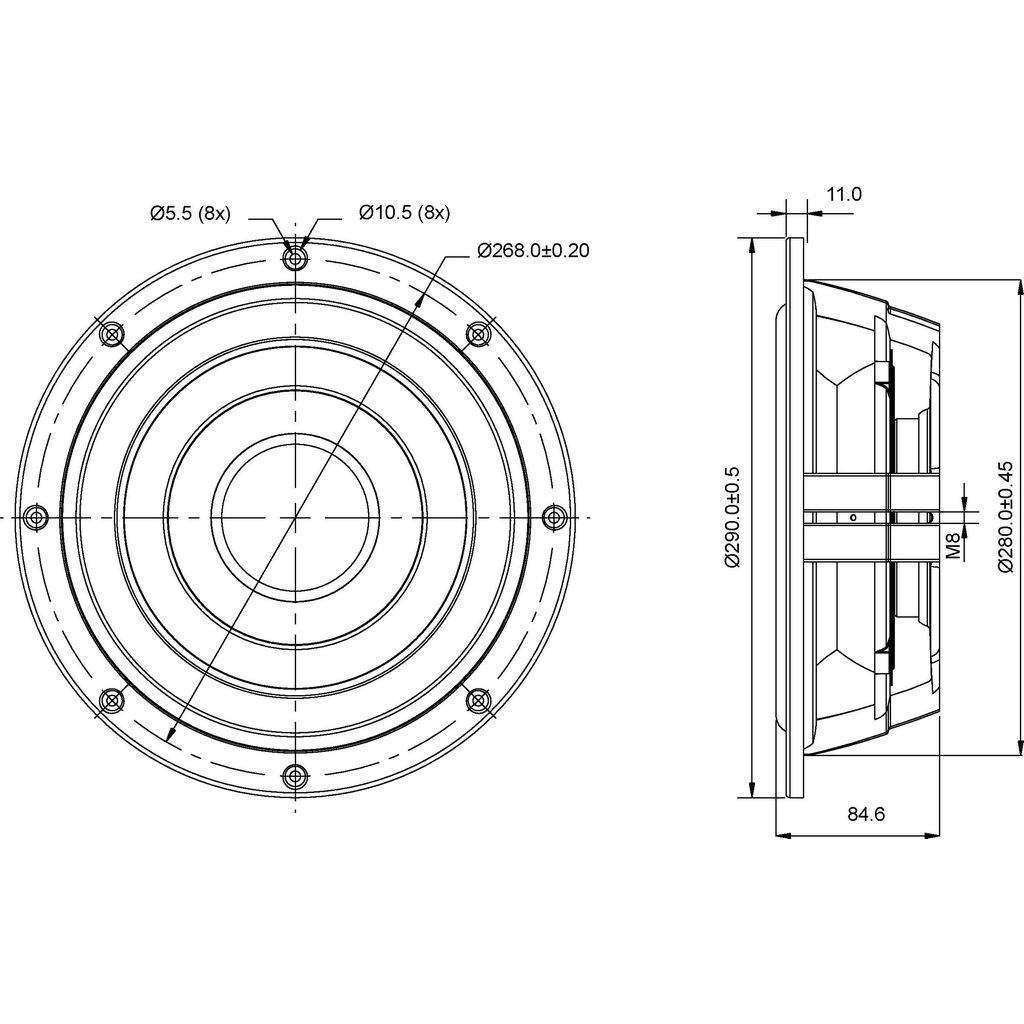

Mounting

Overall diameter 290 mm
Mounting depth 73.6 mm
Flange thickness (estimate) ≈ 9.0 mm
Bolt circle diameter 268 mm
Mounting holes 8
Mounting hole diameter 5.5 mm
Weight 1.87 kg

Materials

Cone Aluminium
