SB Acoustics - 10" NRX Passive Radiator - SB29NRX-00
SB Acoustics - 10" NRX Passive Radiator - SB29NRX-00
Regular price
$174.95
Regular price
Sale price
$174.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
This driver is built similar to the active woofer and is a good match to the SB29SWNRX-S75 10" subwoofer. In 0.75 to 1.0 cubic foot with that woofer you have an F3 of about 35Hz. It also mates well with the SB29NRX75-6 10" woofer. In 1.0 to 1.3 cubic foot, your F3 is 38Hz. Using a plate amp with a low frequency boost, you would go even lower. (see DW-50 for additional 50g weights).
Features
- Hard paper cone for improved piston operation (made in-house)
- Cast aluminium chassis for optimum strength
- Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
- Easily adjustable moving mass
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 10" |
Thiele/Small parameters
| Resonant frequency (Fs) | 10.2 Hz |
|---|---|
| Mechanical Q (Qms) | 10.8 |
| Equivalent volume (Vas) | 66 L |
| Compliance (Cms) | 0.48 mm/N |
| Moving mass (Mms) | 505 g |
| Mechanical resistance (Rms) | 3 kg/s |
| Effective piston area (Sd) | 312 cm² |
| Mechanical excursion (Xmech) | 17 mm |

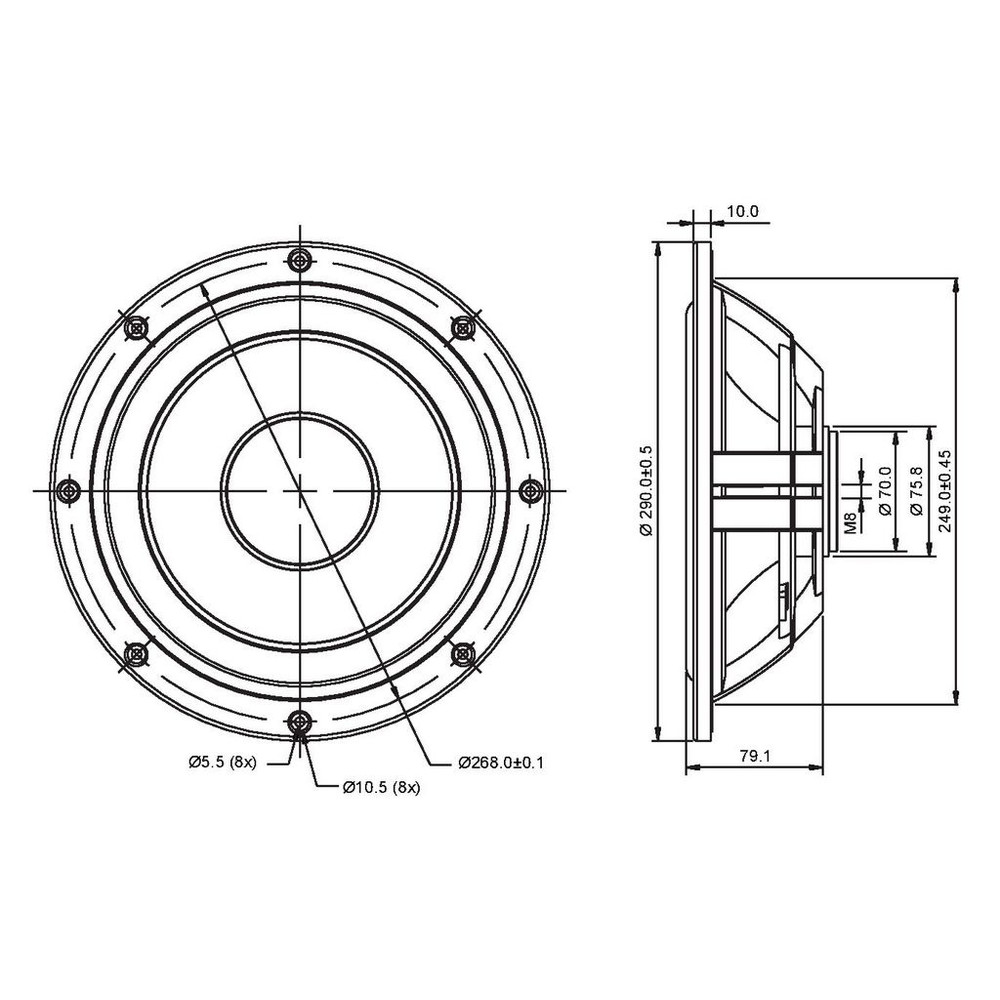

Mounting
| Overall diameter | 290 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 250.5 mm |
| Mounting depth (estimate) | ≈ 73.5 mm |
| Flange thickness | 10 mm |
| Bolt circle diameter | 268 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Weight | 1.75 kg |
Materials
| Cone | Norex |
|---|---|
| Surround | Rubber |
| Basket | Cast Aluminium |
Downloads
- 10″ SB29NRX-00 Datasheet
- SB29NRX-00 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
