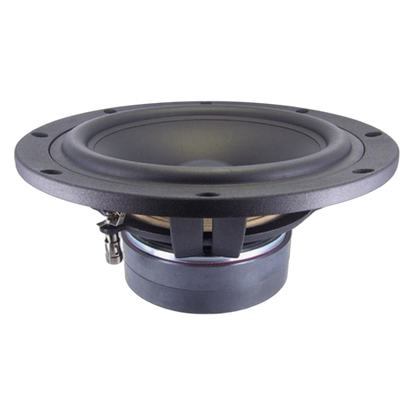

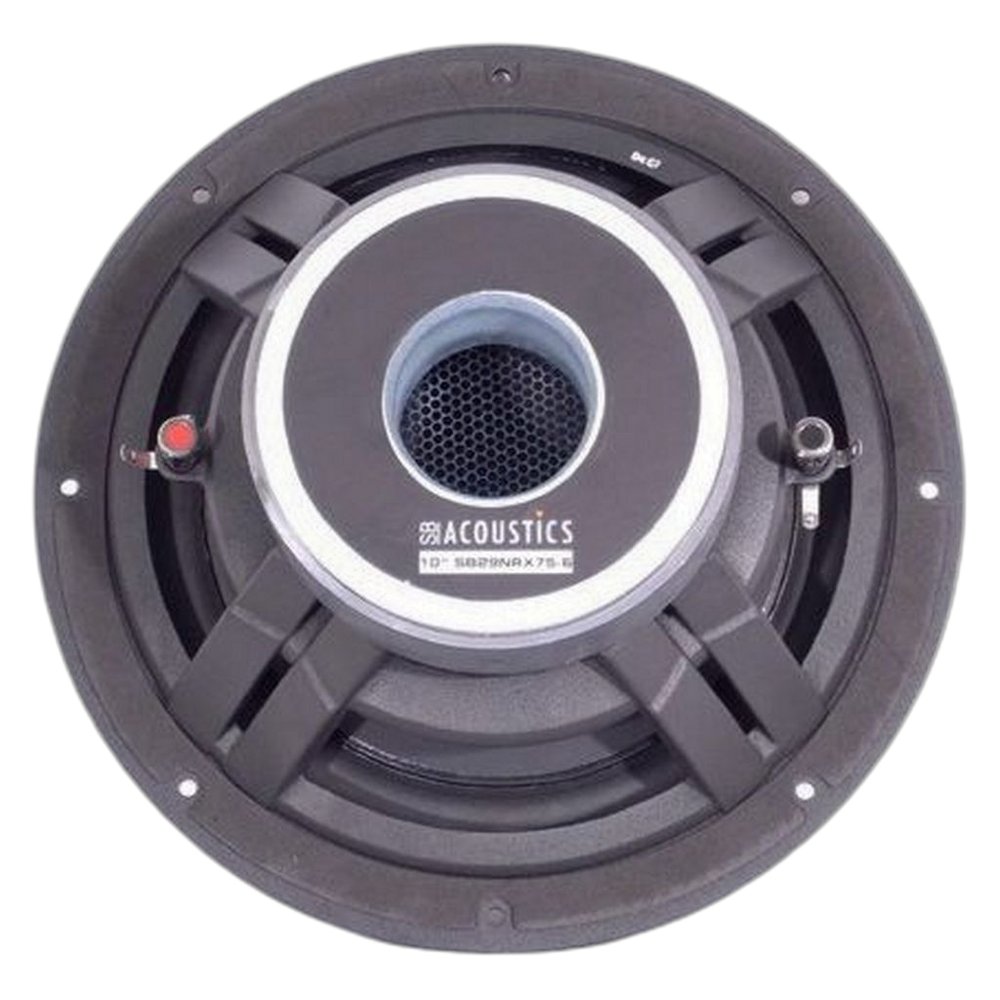

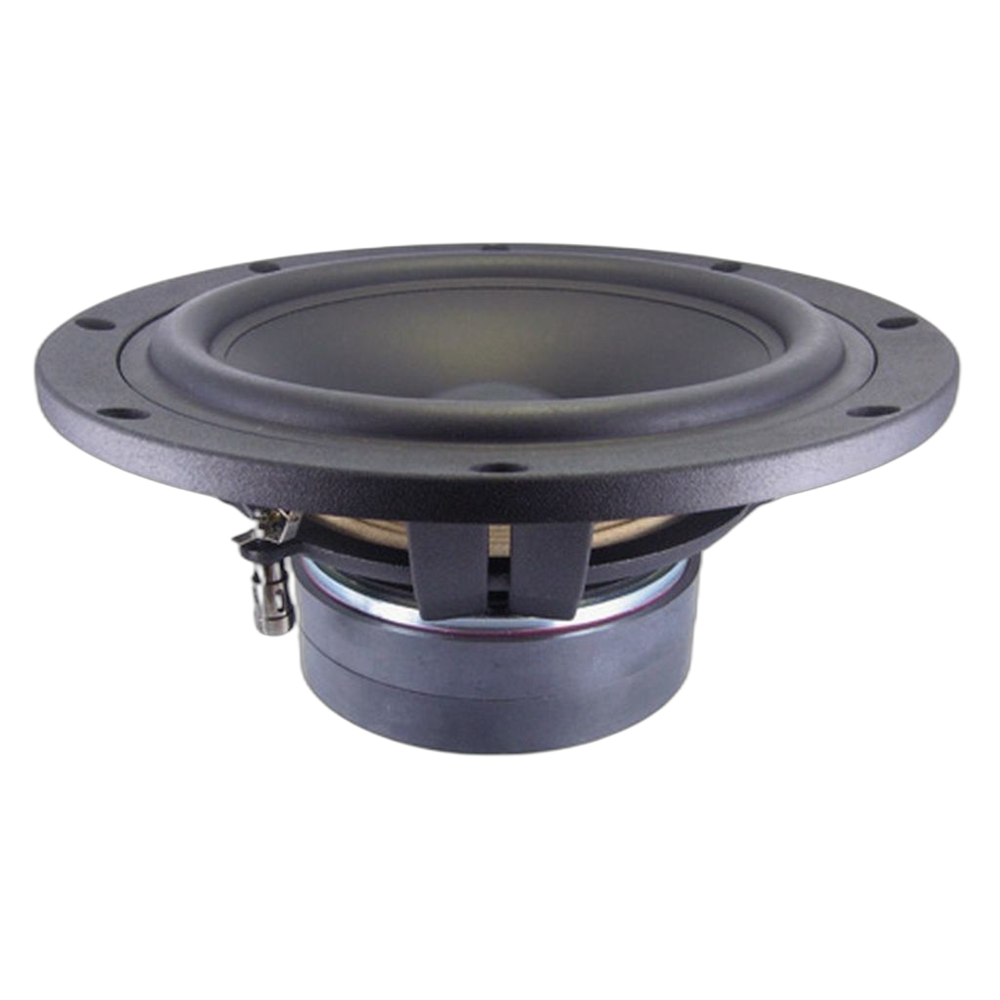

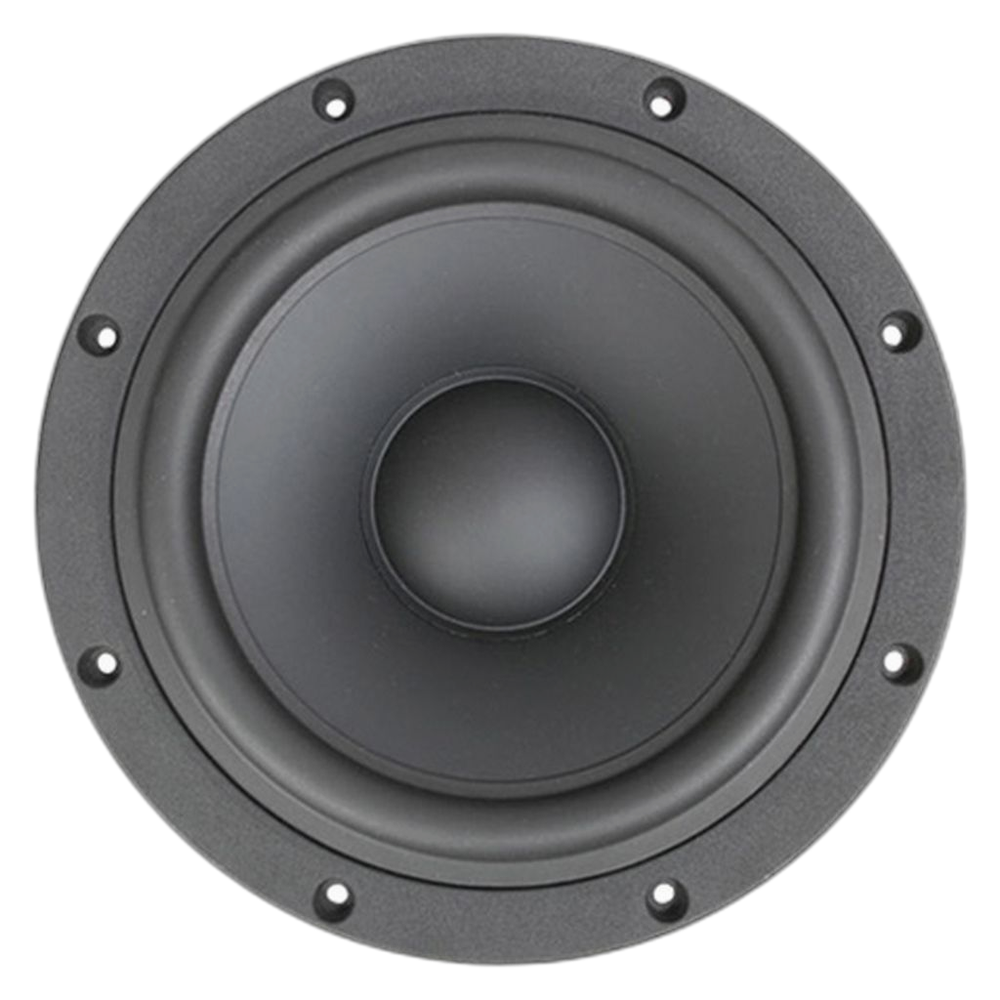

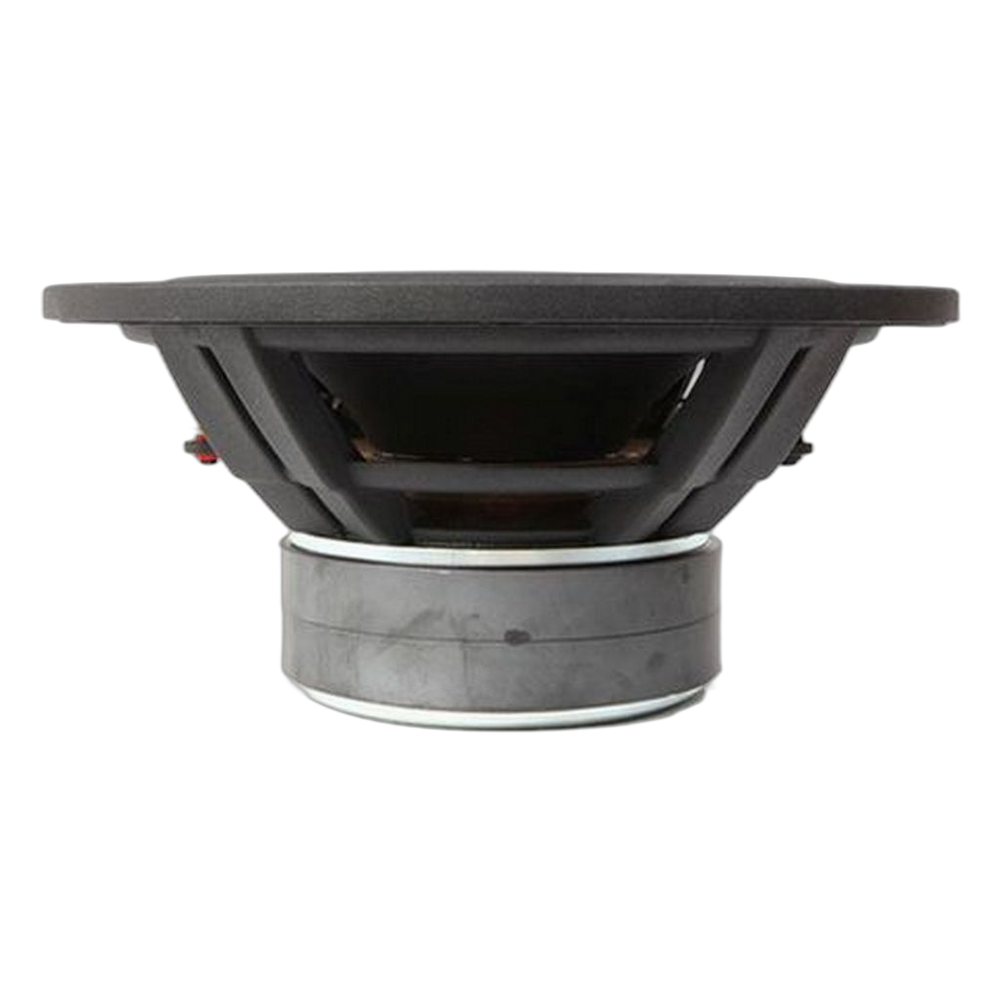

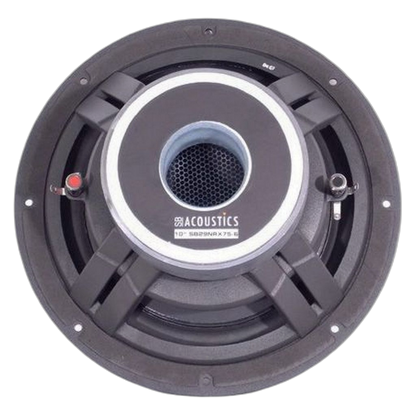

SB Acoustics - 10" NRX Woofer - SB29NRX75-6
SB Acoustics - 10" NRX Woofer - SB29NRX75-6
Regular price
$294.95 AUD
Regular price
Sale price
$294.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former.
Features
- Hard paper cone for improved piston operation (made in-house)
- Vented pole piece for minimum compression
- Vented cast aluminium chassis for optimum strength and low compression
- 3 copper voice coil for improved power handling
- Long life silver lead wires
- Low damping rubber surround for improved dynamic linearity
- Non-conducting fiber glass voice coil former for minimum damping
- Raised spider
- 75mm Voice Coil diameter

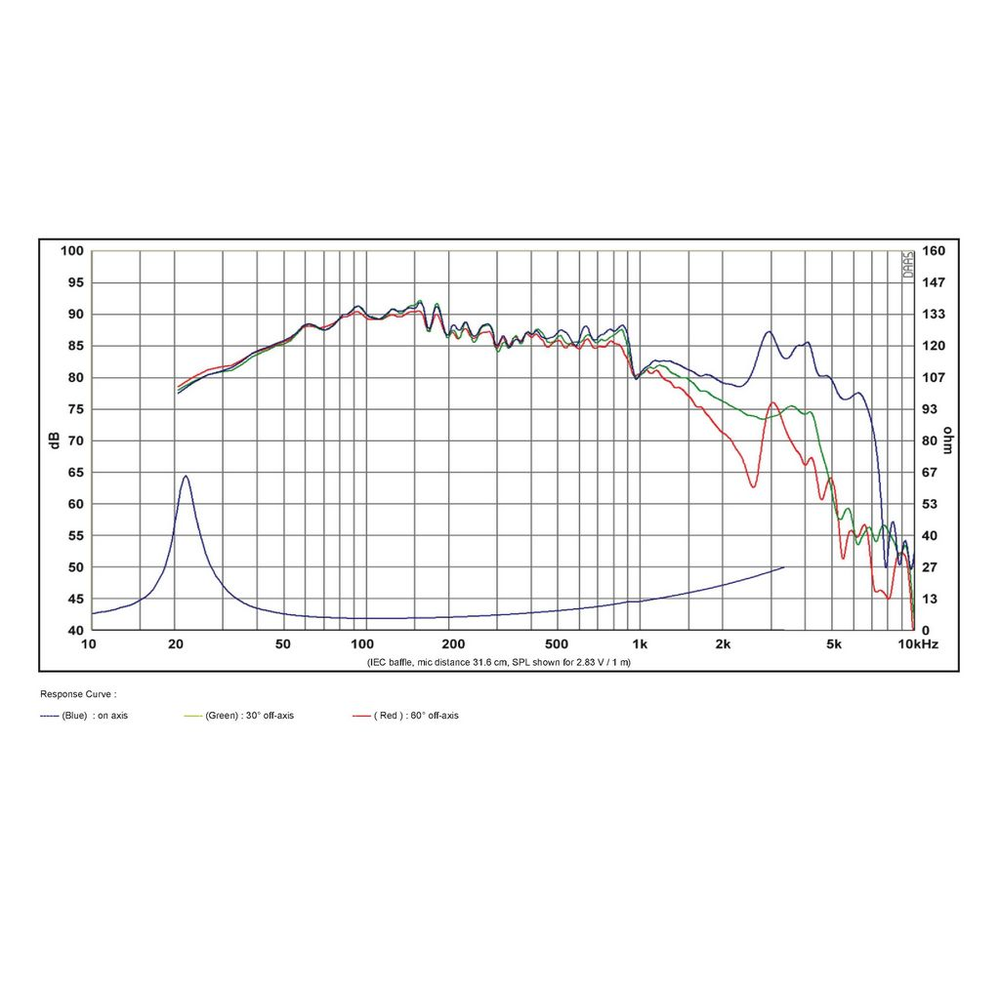

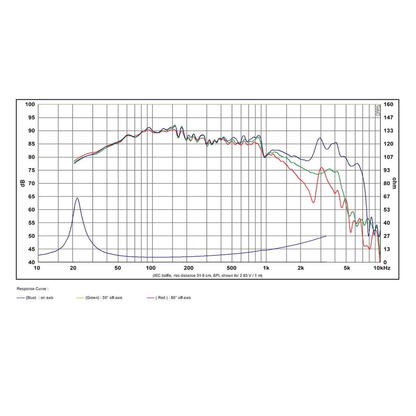

- Frequency range 22Hz to 900Hz
Specifications
| Power | 200Wrms |
|---|---|
| Coil | 75.6mmØ |

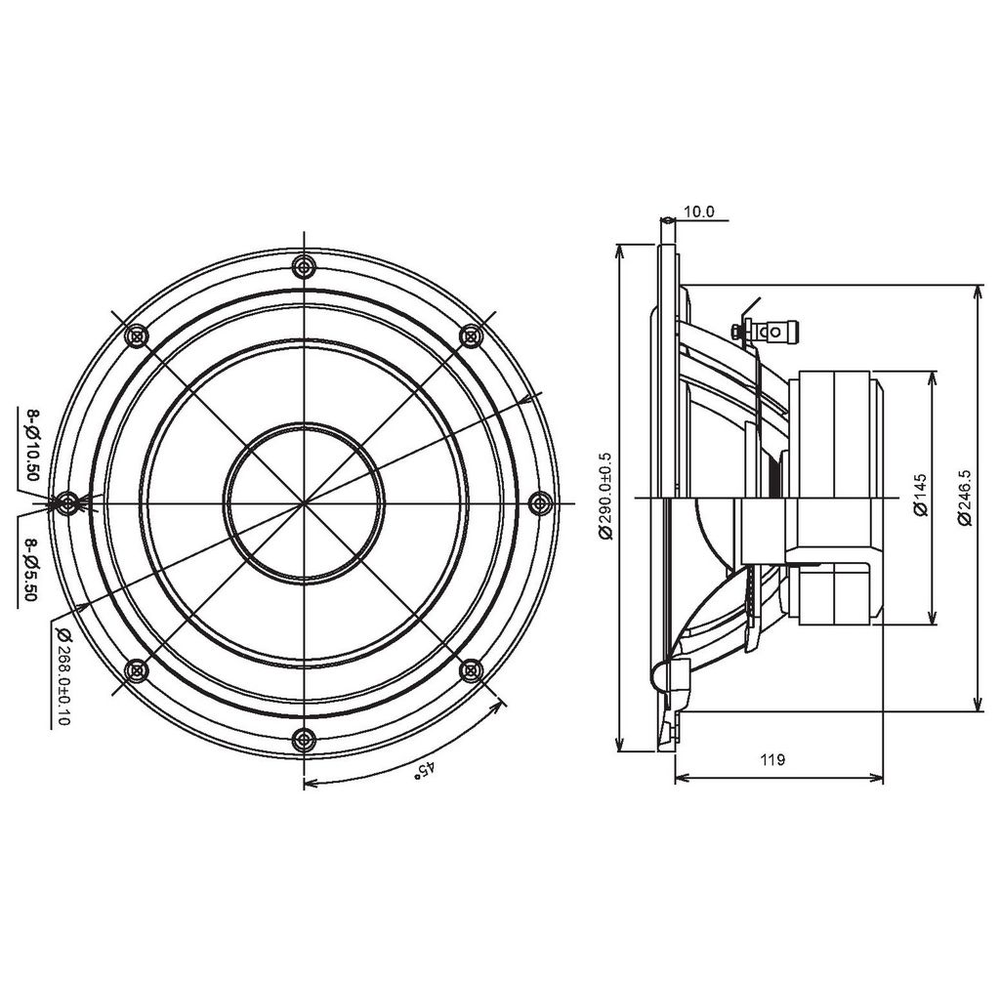

| Width | 290mmØ |
| Mag. | 2.1kg |
| Sens. | 88dB |
| Re | 4.2Ω |
| Qms | 5.7 |
| Qes | 0.38 |
| Qts | 0.35 |
| Vas | 102L |
| Sd | 312cm² |
| Cms | 0.74mm/N |
| Fs | 21Hz |
| Mms | 78g |
| Zn | 6Ω |
| Le | 1.8mH |
| Rms | 1.8kg/s |
| Diam. | 290mmØ |
| Bl | 10.7Tm |
| Xmax | 22mm |
