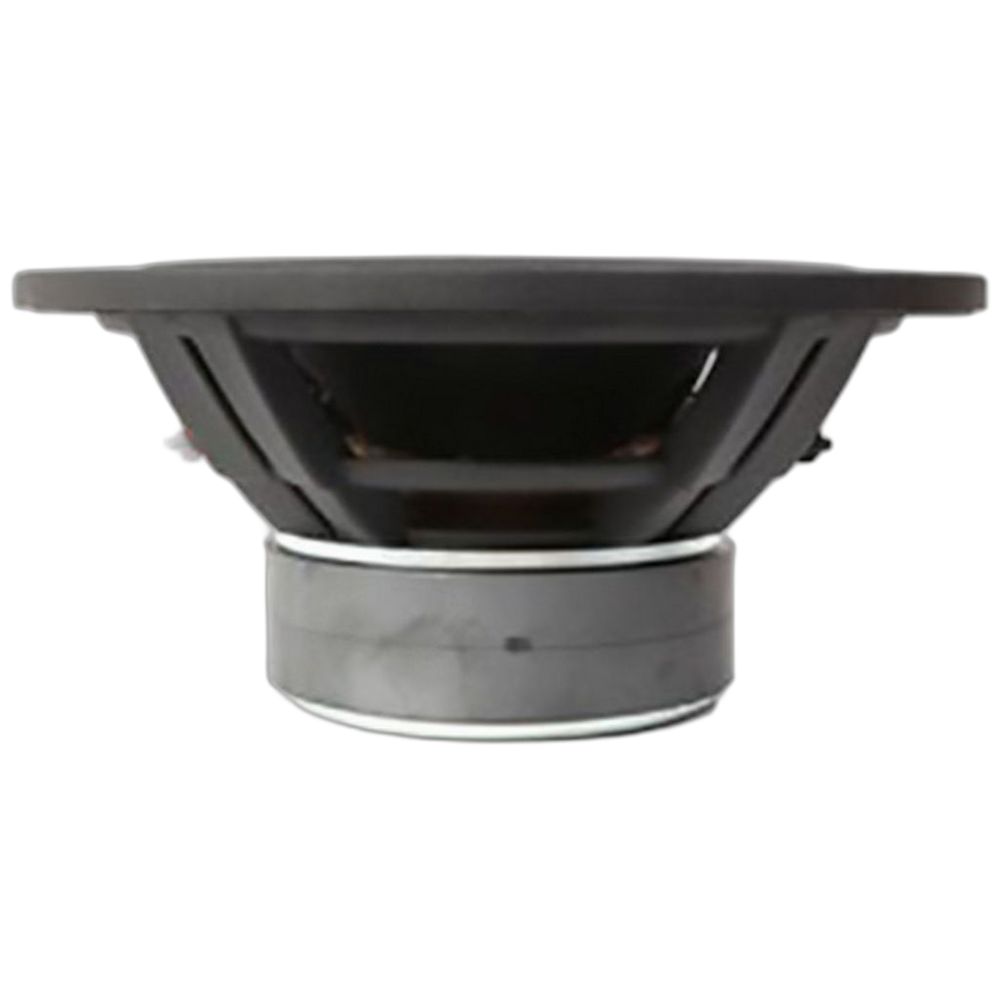

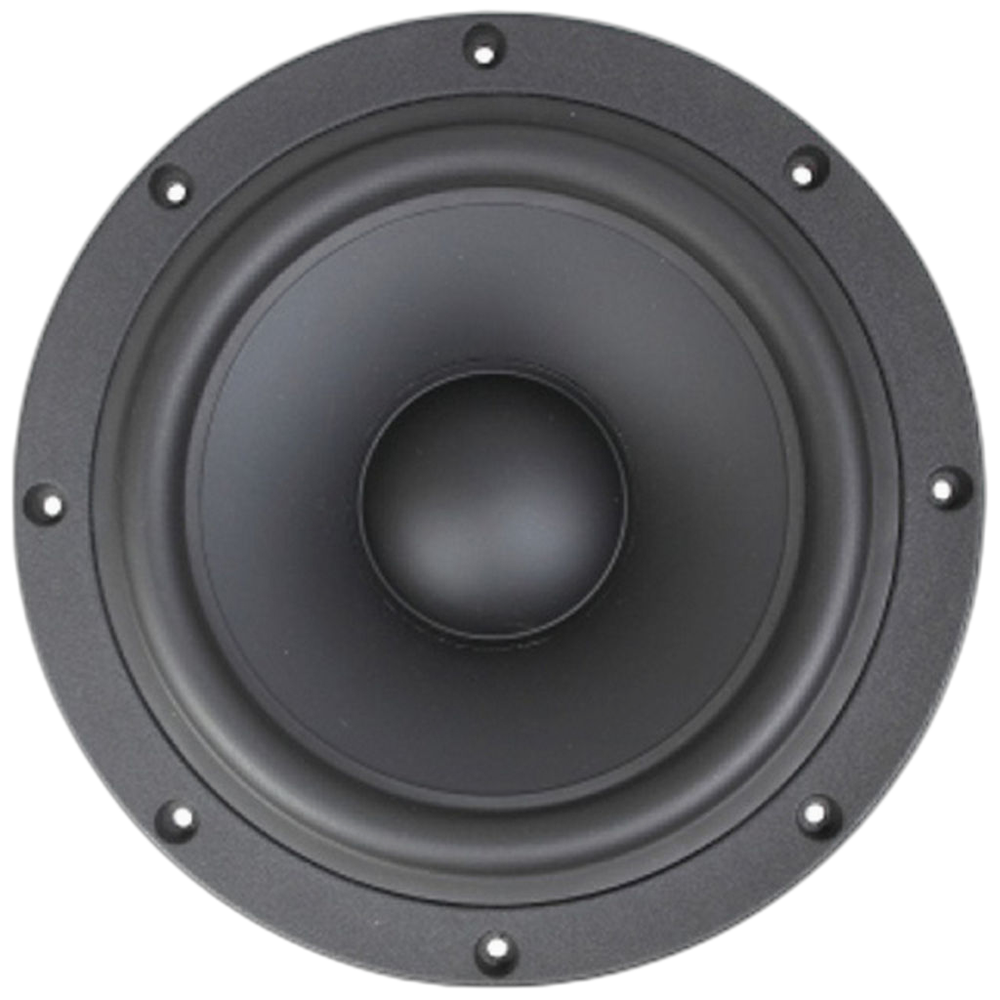

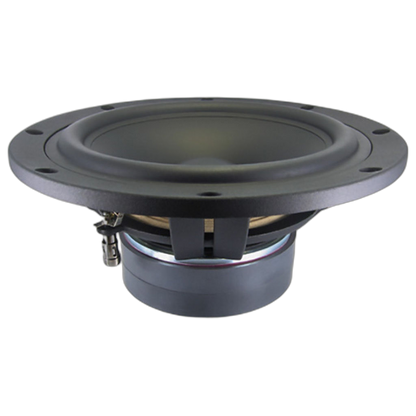

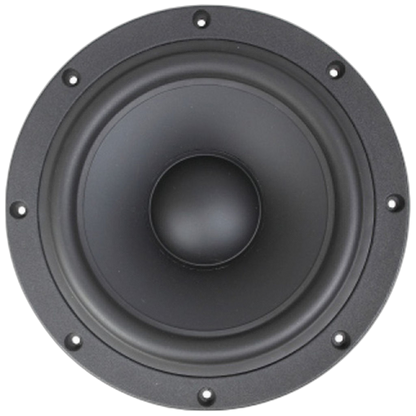

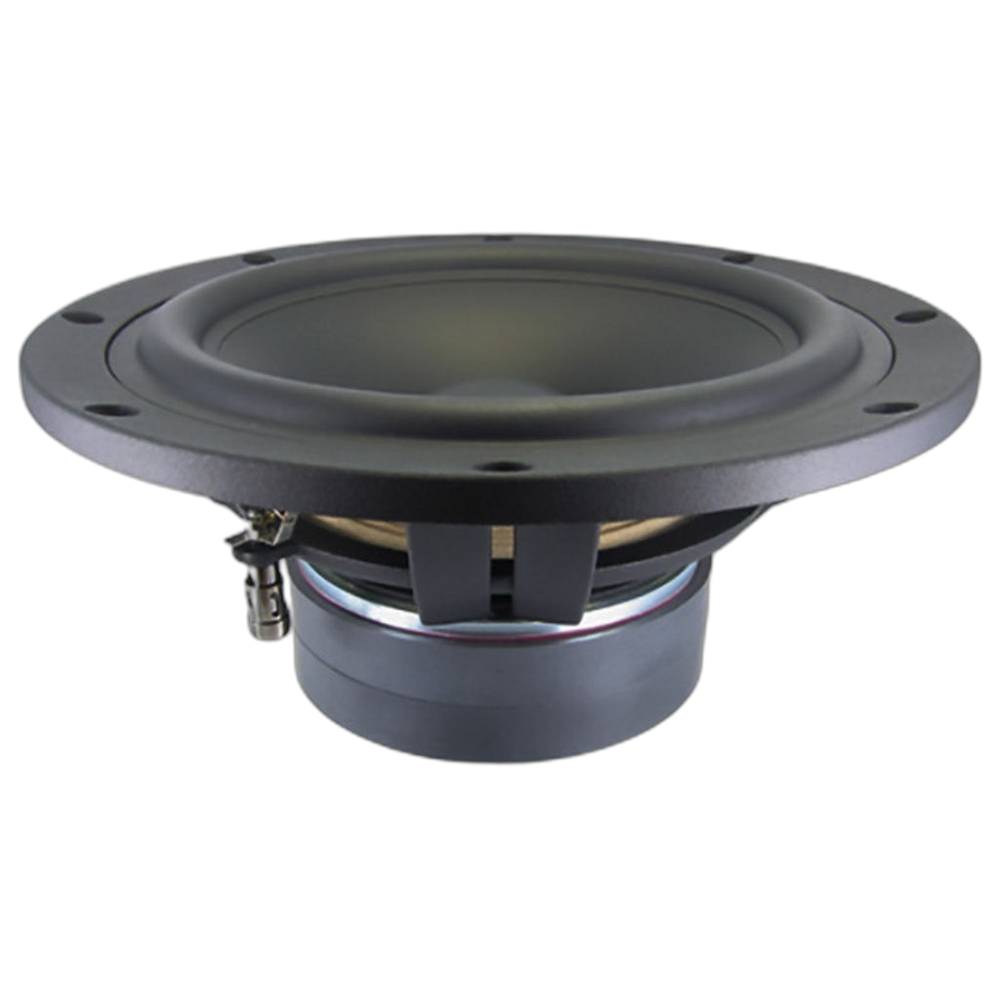

SB Acoustics - 10" NRX Woofer - SB29NRX75-8
SB Acoustics - 10" NRX Woofer - SB29NRX75-8
Regular price
$294.95
Regular price
Sale price
$294.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former.
Features
- Hard paper cone for improved piston operation (made in-house)
- Vented pole piece for minimum compression
- Vented cast aluminium chassis for optimum strength and low compression
- 3″ copper voice coil for improved power handling
- Long life silver lead wires
- Low damping rubber surround for improved dynamic linearity
- Non-conducting fibre glass voice coil former for minimum damping
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 200 W |

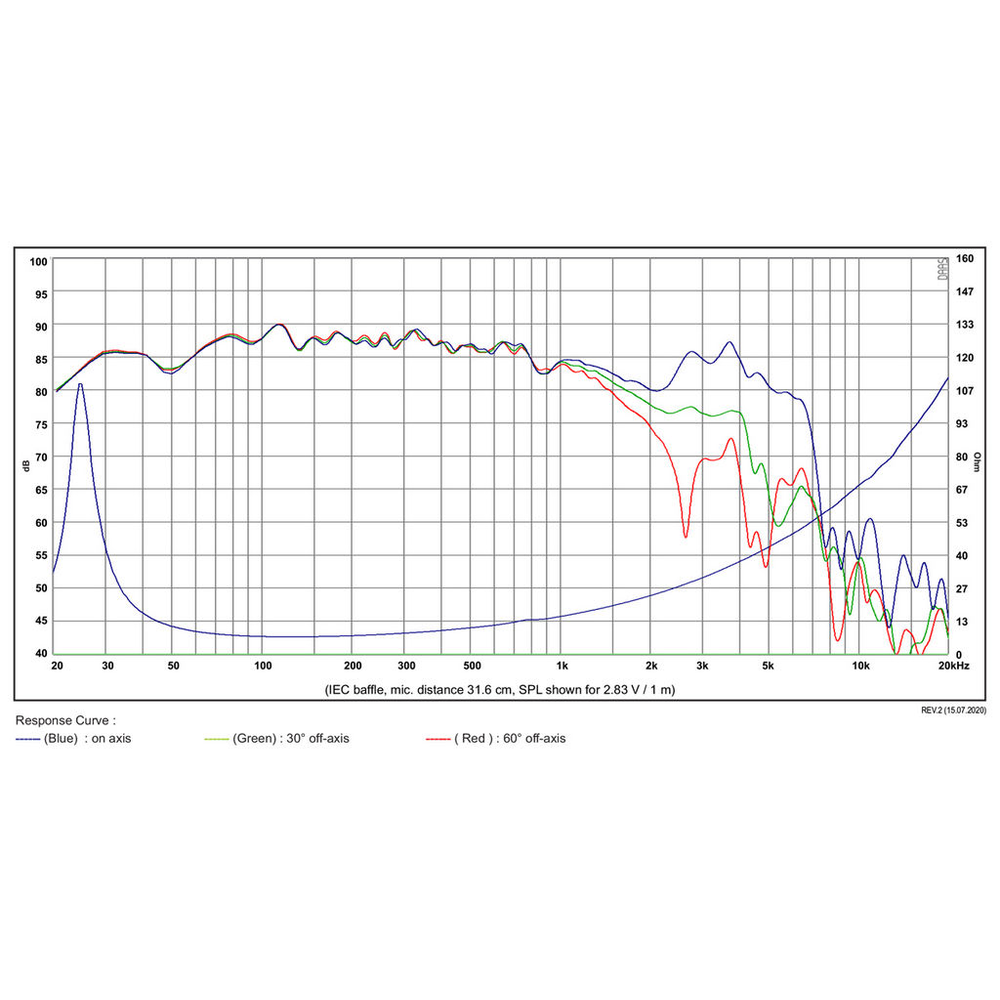

| Sensitivity | 88 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 26 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Voice coil inductance (Le) | 2.3 mH |
| Mechanical Q (Qms) | 7.06 |
| Electrical Q (Qes) | 0.39 |
| Total Q (Qts) | 0.37 |
| Equivalent volume (Vas) | 85.6 L |
| Compliance (Cms) | 0.63 mm/N |
| Moving mass (Mms) | 58.9 g |
| Mechanical resistance (Rms) | 1.4 kg/s |
| Force factor (Bl) | 12.4 T·m |
| Effective piston area (Sd) | 312 cm² |
| Linear excursion (Xmax, one-way) | 11 mm |
| Displacement volume (Vd) | 343.2 cm³ |
| Efficiency bandwidth product (EBP) | 66.67 |
Motor
| Voice coil height | 28 mm |
|---|---|
| Air gap height | 6 mm |
| Magnetic flux density | 0.9 T |
| Magnet weight | 2.1 kg |

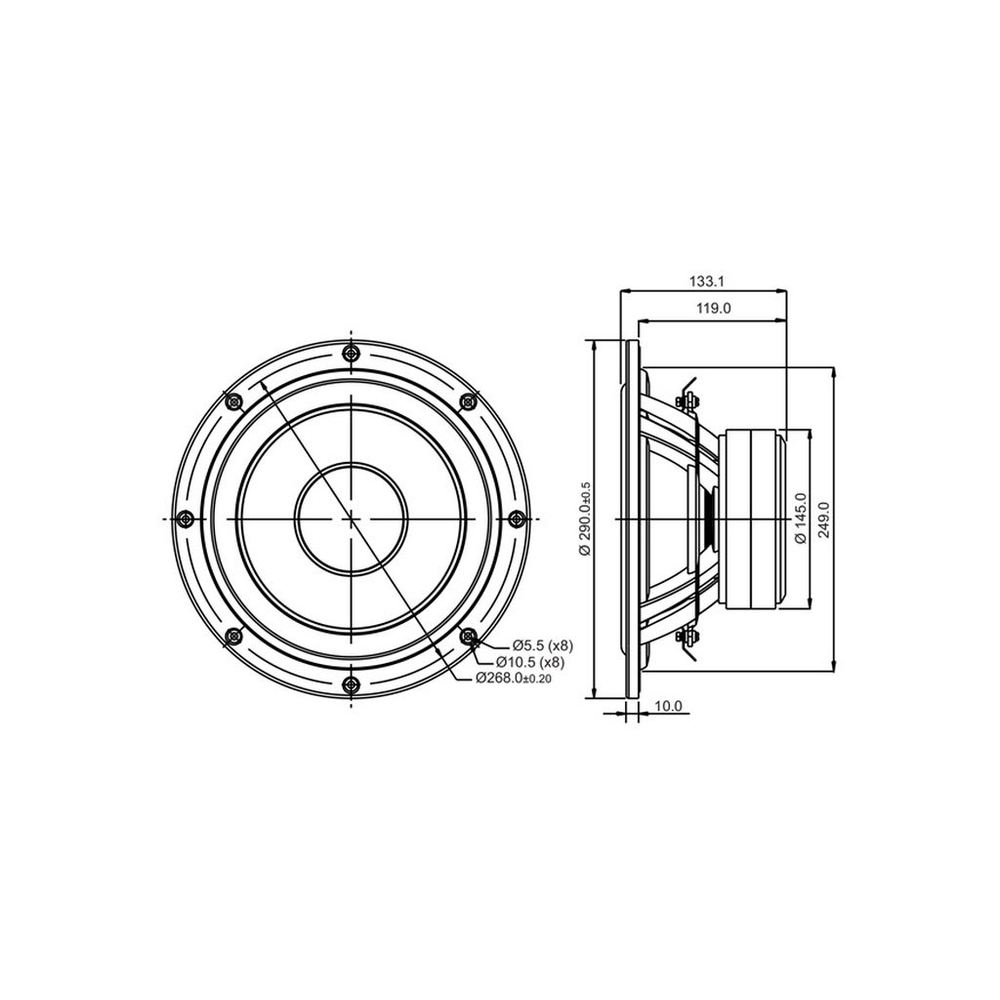

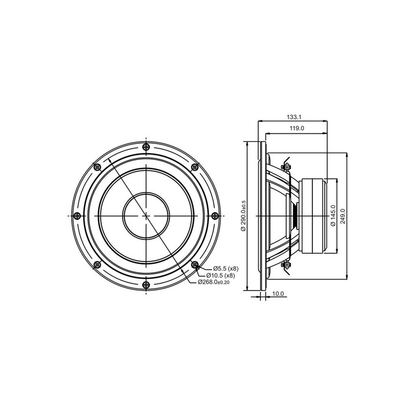

Mounting
| Overall diameter | 290 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 250.5 mm |
| Mounting depth | 119 mm |
| Flange thickness | 10 mm |
| Bolt circle diameter | 268 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 75.6 mm |
| Weight | 5.4 kg |
Materials
| Cone | Norex |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 10″ SB29NRX75-8 Datasheet
- SB29NRX75-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
