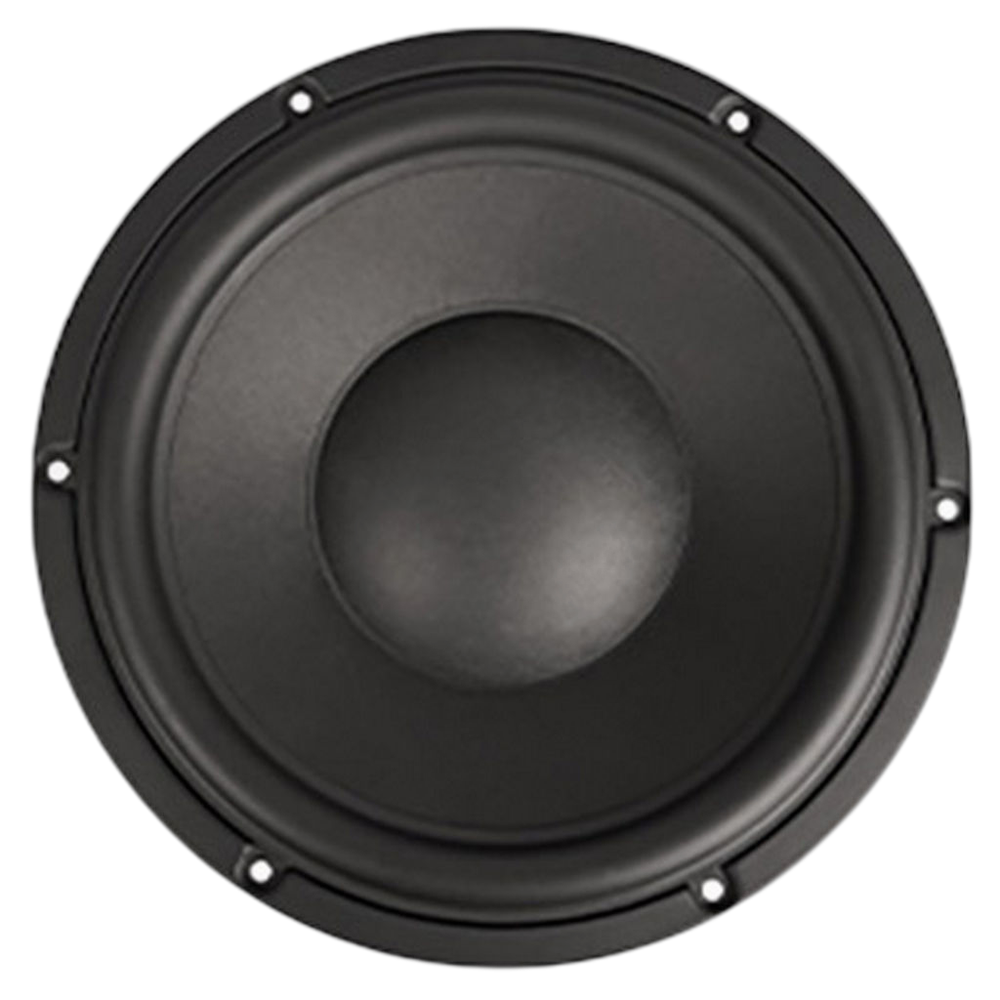

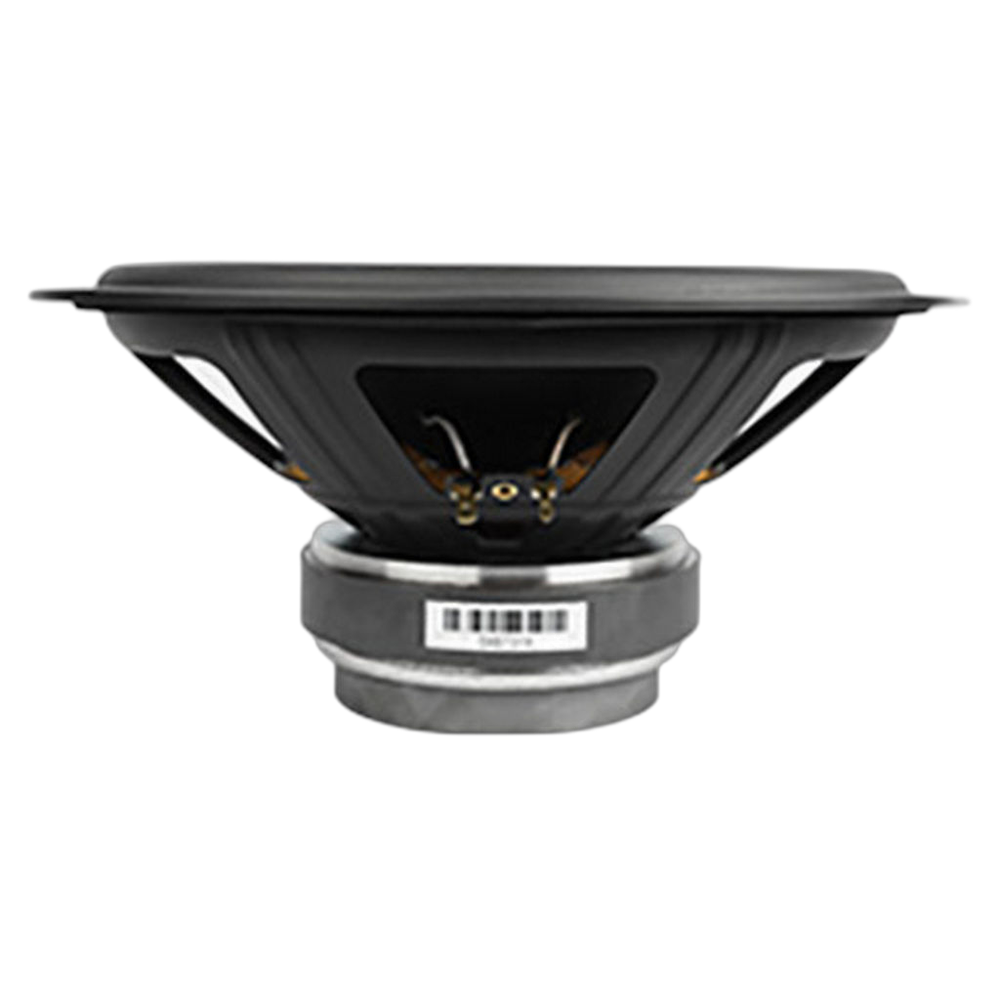

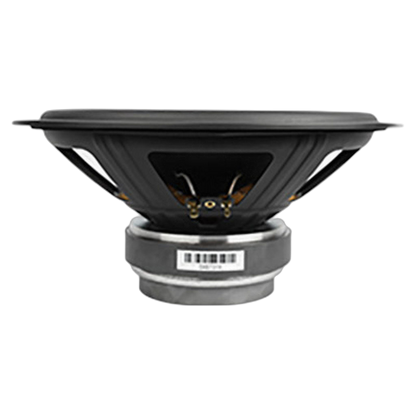

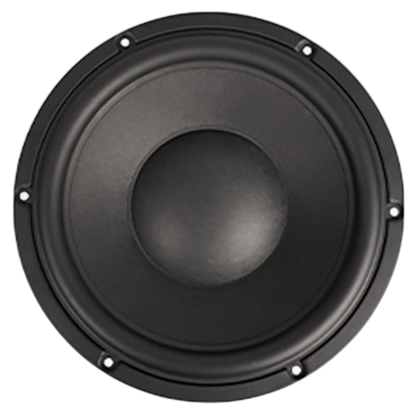

SB Acoustics - 10" SFCL Woofer - SB26SFCL38-8
SB Acoustics - 10" SFCL Woofer - SB26SFCL38-8
Regular price
$124.95
Regular price
Sale price
$124.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Hard pressed vented paper cone woofer with durable rubber surround. Symmetric suspension design for improved dynamic performance. Light weight and vented chassis.
Features
- Hard pressed vented paper cone
- Durable rubber surround
- Symmetric suspension
- Non-conductive coil former
- Long life litz wires
- Vented chassis
- Bucking magnet
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 80 W |
| Sensitivity | 88 dB |
| Suggested alignment | Sealed |
Thiele/Small parameters
| Resonant frequency (Fs) | 27.5 Hz |
|---|---|
| DC resistance (Re) | 6 Ω |
| Voice coil inductance (Le) | 1.6 mH |
| Mechanical Q (Qms) | 5.09 |
| Electrical Q (Qes) | 0.6 |
| Total Q (Qts) | 0.53 |
| Equivalent volume (Vas) | 107 L |
| Compliance (Cms) | 0.63 mm/N |
| Moving mass (Mms) | 53 g |
| Mechanical resistance (Rms) | 1.8 kg/s |
| Force factor (Bl) | 9.6 T·m |
| Effective piston area (Sd) | 346 cm² |
| Linear excursion (Xmax, one-way) | 8.2 mm |
| Displacement volume (Vd) | 283.7 cm³ |
| Efficiency bandwidth product (EBP) | 45.83 |
Motor
| Voice coil height | 22.4 mm |
|---|---|
| Air gap height | 6 mm |
| Magnetic flux density | 1.05 T |
| Magnet weight | 1.1 kg |

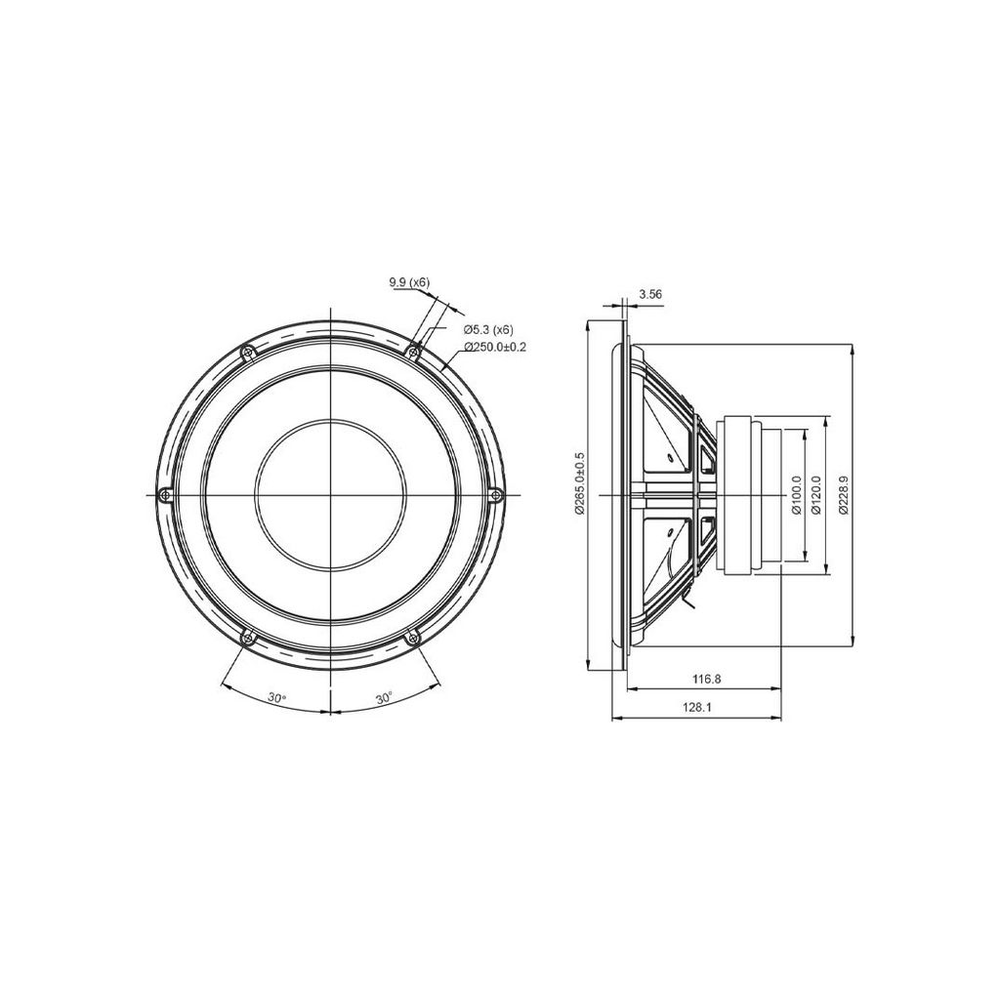

Mounting
| Overall diameter | 265 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 230.4 mm |
| Mounting depth | 116.8 mm |
| Flange thickness | 3.56 mm |
| Bolt circle diameter | 250 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 38.5 mm |
| Weight | 2.9 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
- Xmax is quoted one-way (peak), not peak-to-peak.

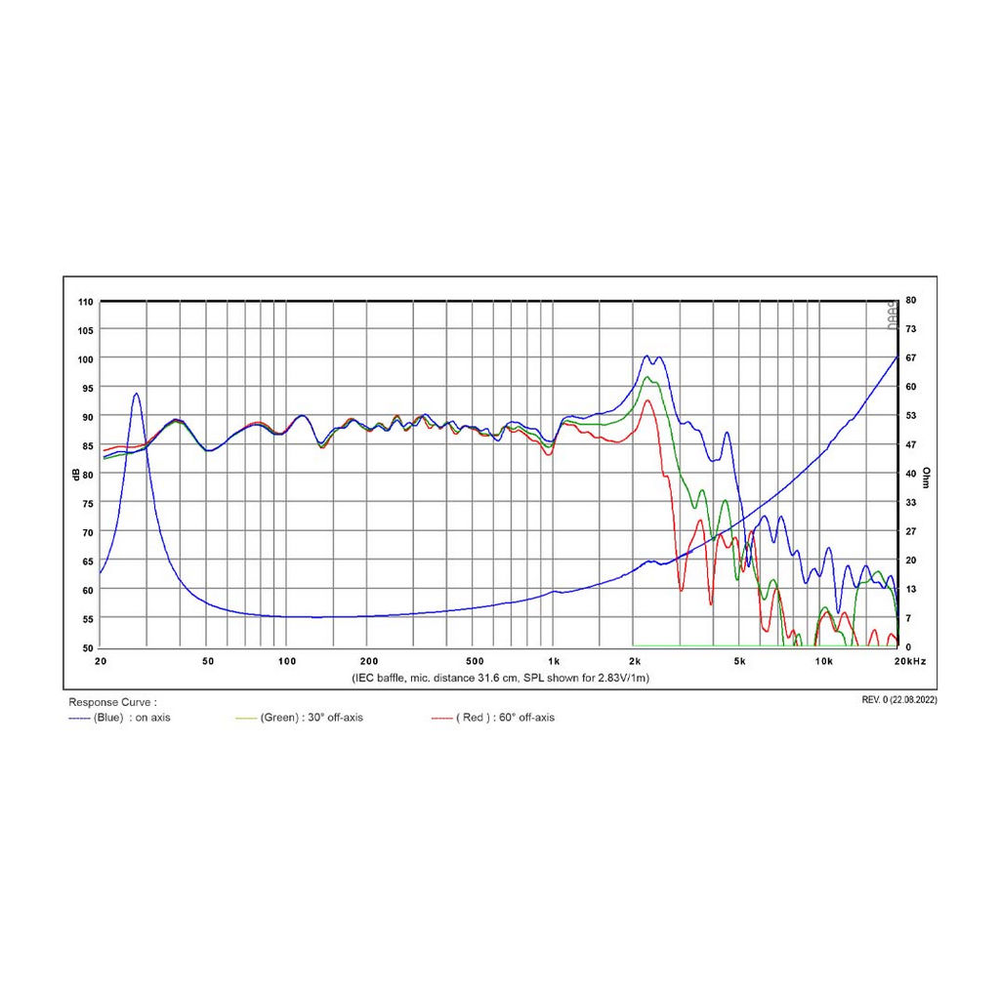

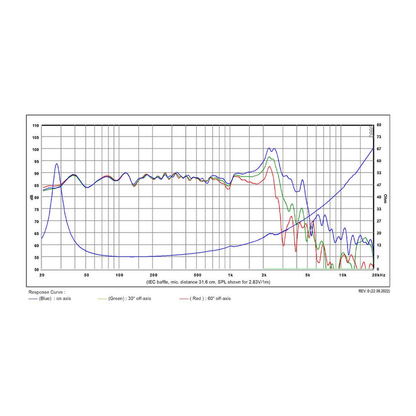

- Sensitivity measured at 2.83V/1m.
Downloads
- 10″ SB26SFCL38-8 Datasheet
- SB26SFCL38-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
