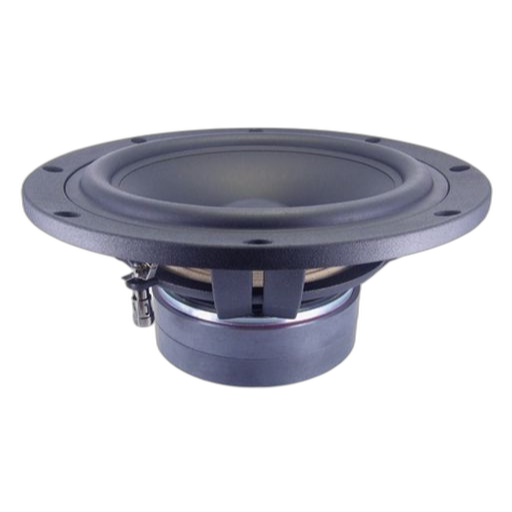

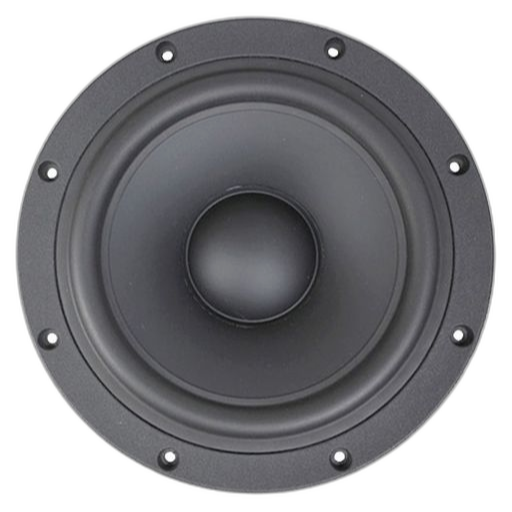

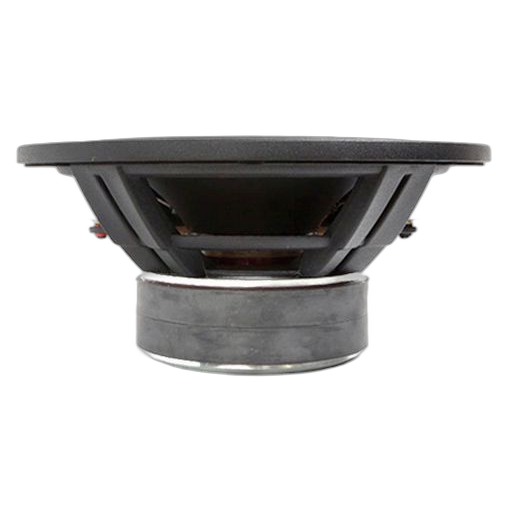

SB Acoustics - 10" WNRX Subwoofer - SB29SWNRX-S75-6
SB Acoustics - 10" WNRX Subwoofer - SB29SWNRX-S75-6
Regular price
$339.95 AUD
Regular price
Sale price
$339.95 AUD
Unit price
/
per
Description:
Hard Paper proprietary cone materials made in-house for consistency. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 75mm coil former.
Specifications:
Code | SB29SWNRX-S75-6 |
Type | Subwoofer |
Size | 10" |
Power | 200Wrms |
Coil | 75.6mmØ |
Width | 290mmØ |
Impedance | 6.0Ω (Re 4.5Ω) |
Depth | 133.1mm |
Mag. | 2.1kg |
Sens. | 86dB |
Re | 4.5Ω |
Qms | 4.5 |
Qes | 0.31 |
Qts | 0.29 |
Vas | 66L |
Sd | 312cm² |
Cms | 0.48mm/N |
Fs | 20Hz |
Mms | 132g |
Zn | 6Ω |
Le | 3.0 mH |
Rms | 3.7kg/s |
Diam. | 254mmØ |
Series | Norex Cones |
Manufacturer | SB Acoustics |
Materials | Norex |
Impedance (Ohm) | 6 ohm |
Bl | 15.4Tm |
Xmax | 22.5mm |
Flux (lm) | 0.63T |
Prms | 200W |
