SB Acoustics

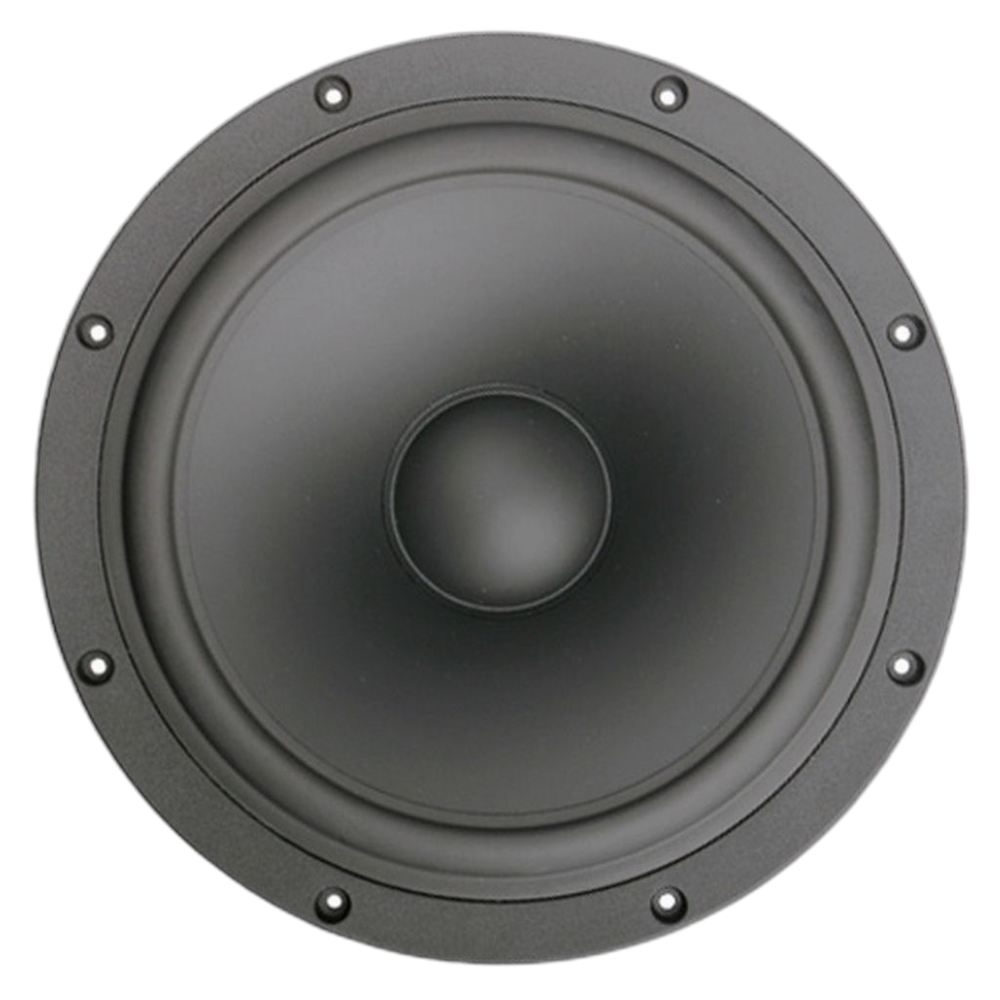

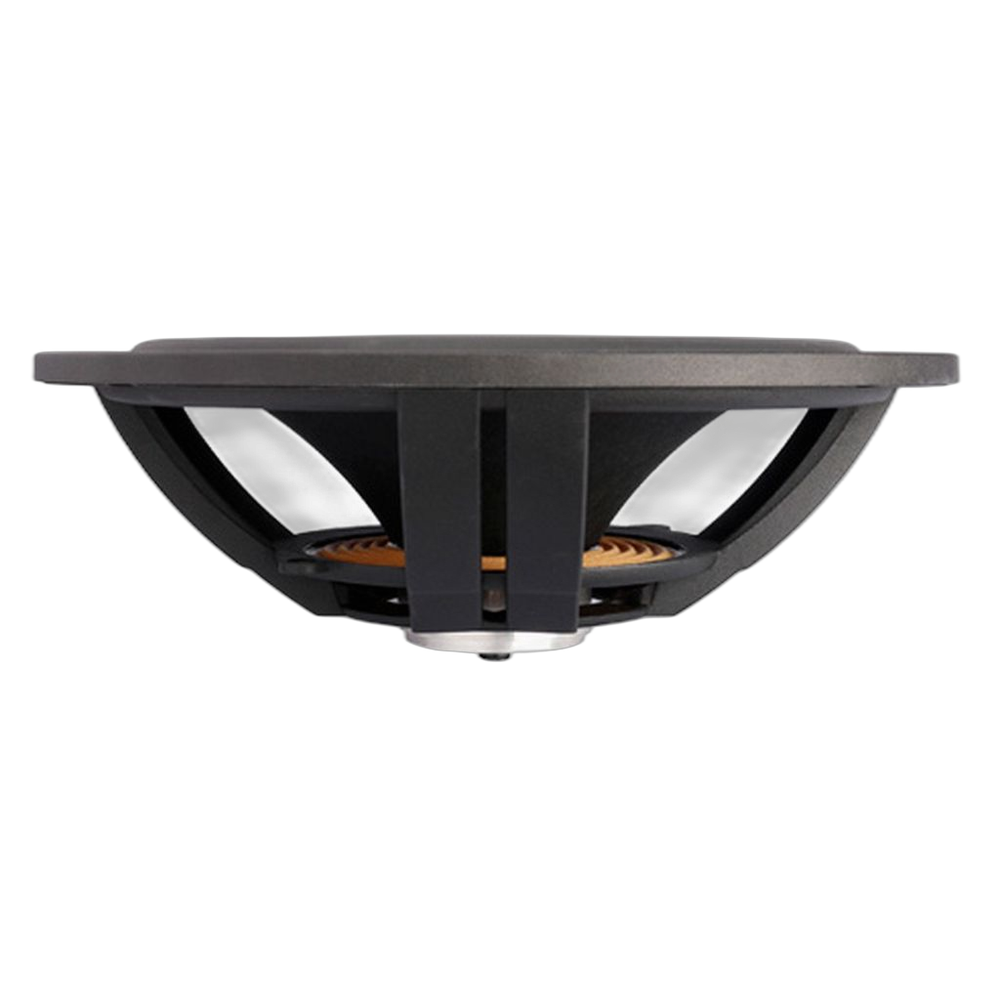

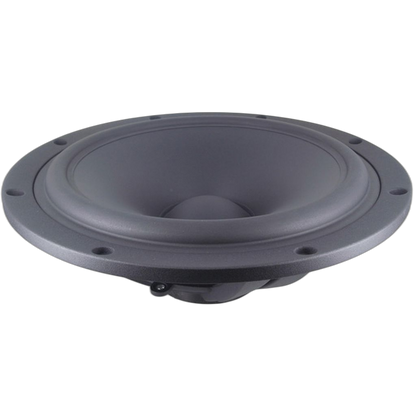

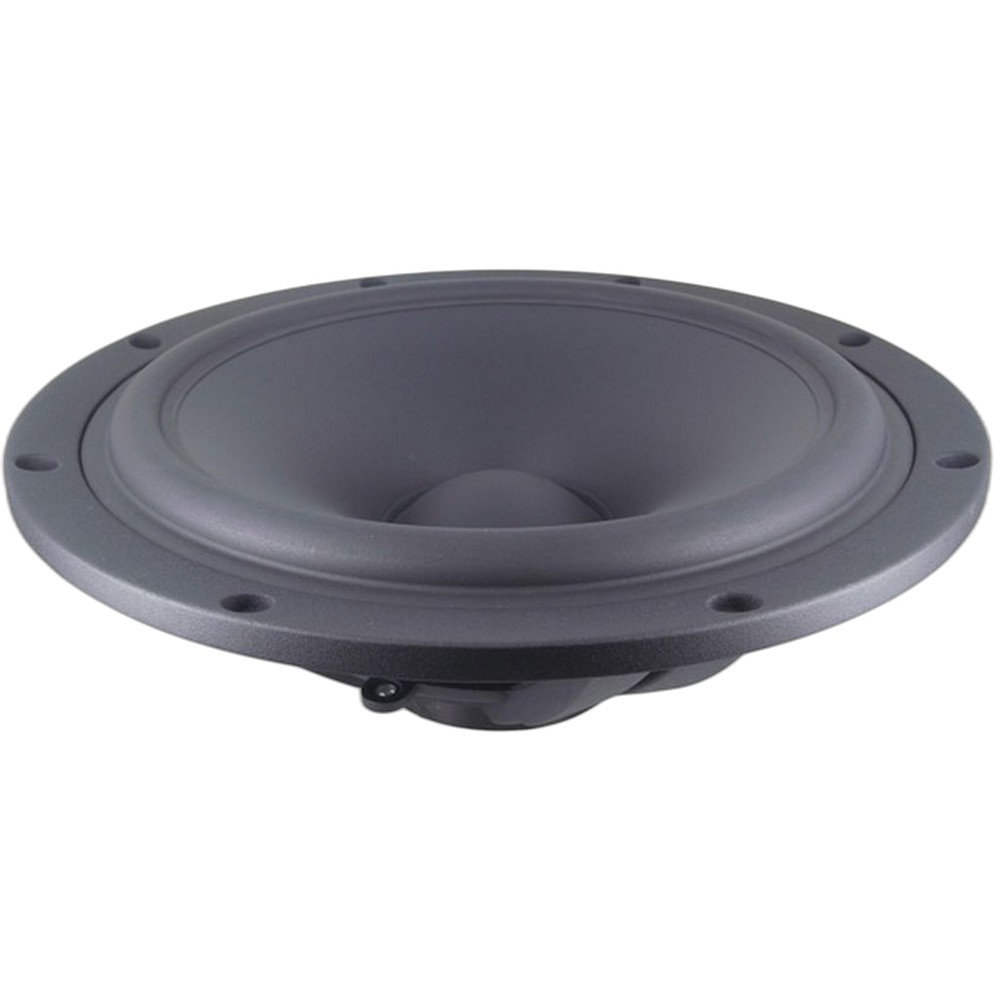

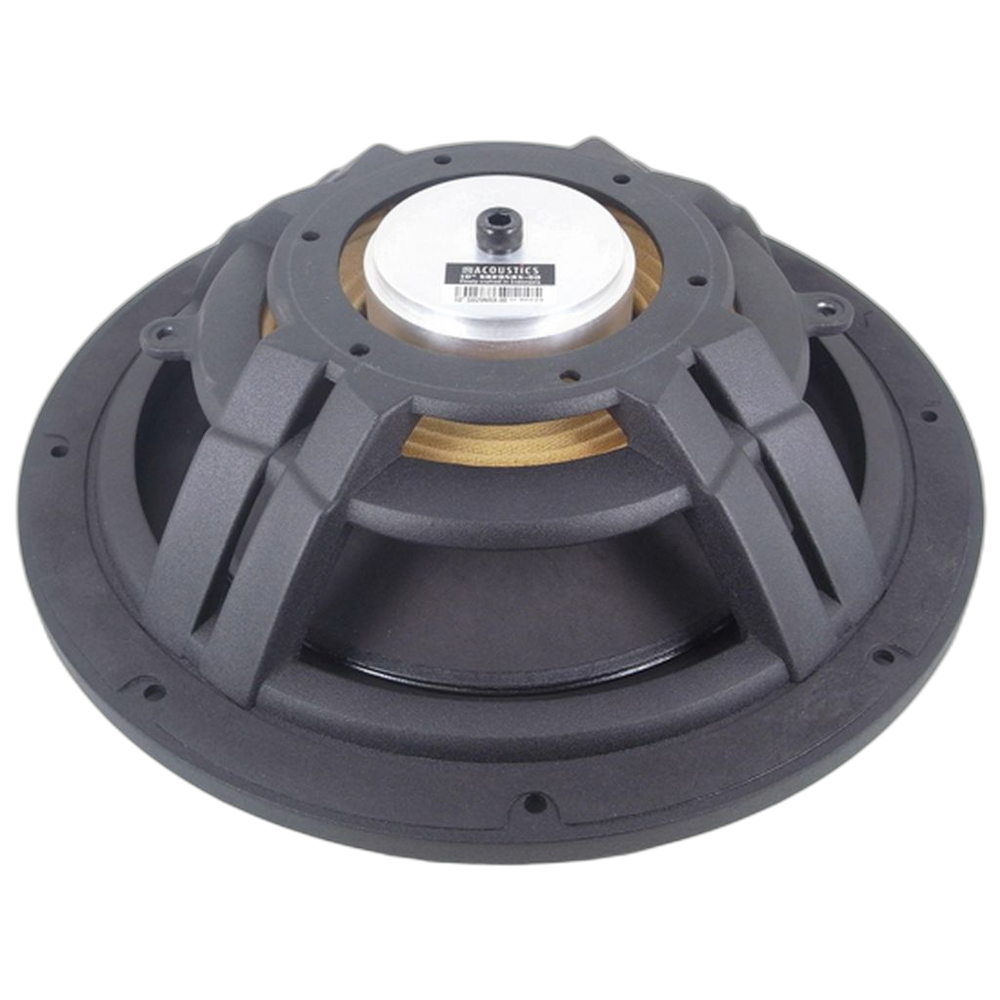

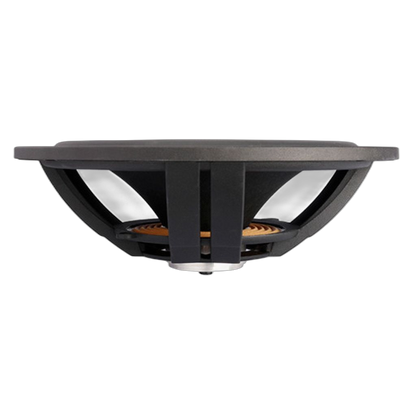

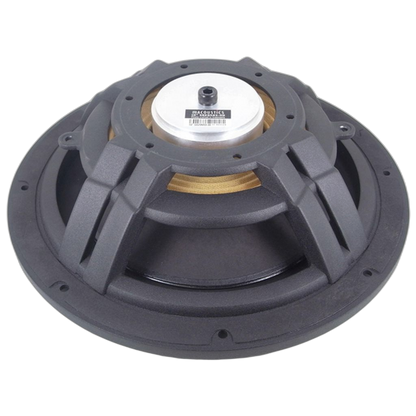

SB Acoustics - 12" NRX Passive Radiator - SB34NRX-00
SB Acoustics - 12" NRX Passive Radiator - SB34NRX-00
Regular price
$224.95 AUD
Regular price
Sale price
$224.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
This passive radiator is a good match to the SB34SWNRX-S75. Hard paper cone for improved piston operation (made in-house) with a cast aluminium chassis for optimum strength and low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability. Easily adjustable moving mass for fine tuning. The disc weight (50g Included) is used to adjust the moving mass of the passive radiators. Uses an M8 bolt for mounting (see DW-50 for additional 50g weights).
Features
- Hard paper cone for improved piston operation (made in-house)
- Cast aluminium chassis for optimum strength
- Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
- Easily adjustable moving mass
Specifications
| Cms | 0.5mm/N |
|---|---|
| Diam. | 305mmØ |
| Fs | 8.7Hz |
| Mms | 665g |
| Power | Passive |
| Qms | 12.1 |
| Re | Passive |
| Rms | 3kg/s |
| Sd | 508cm² |
| Vas | 183L |
| Width | 346mmØ |
| Zn | Passive |
