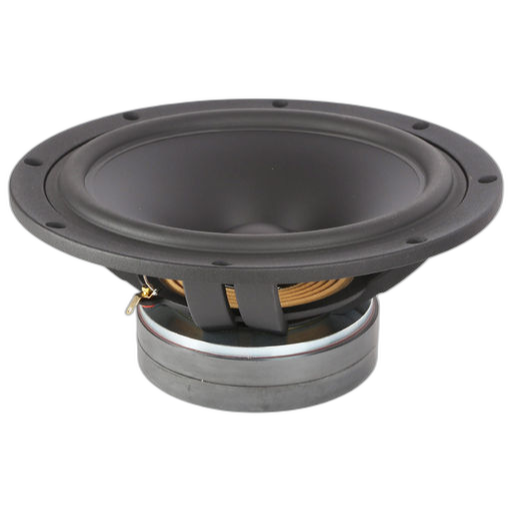

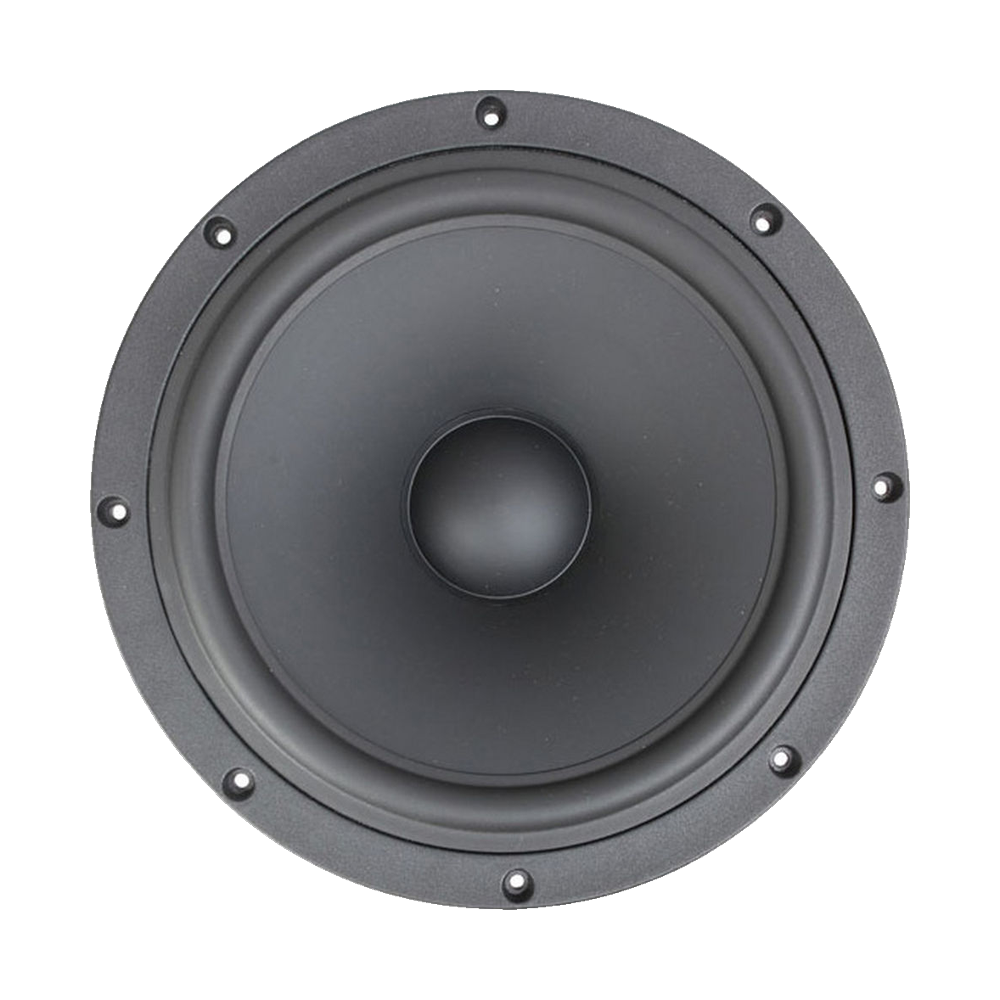

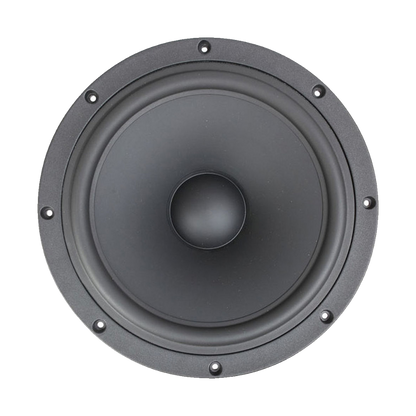

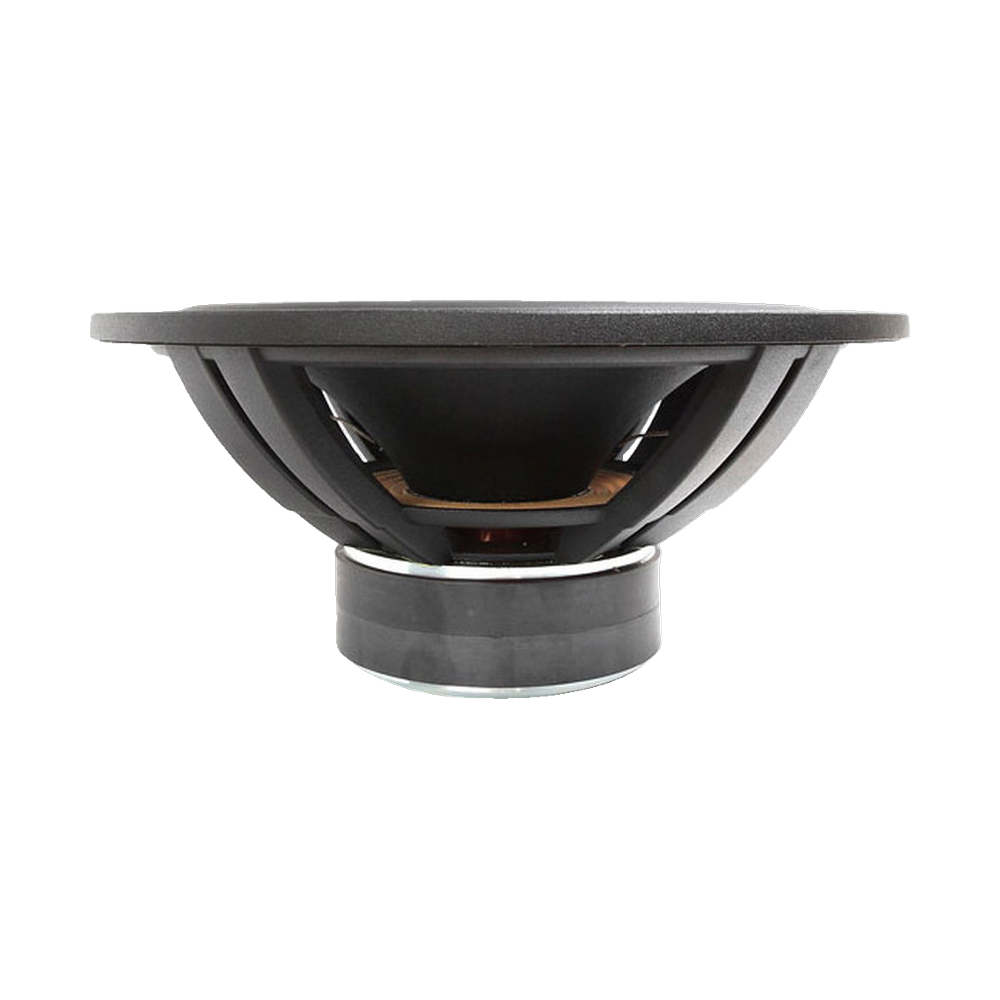

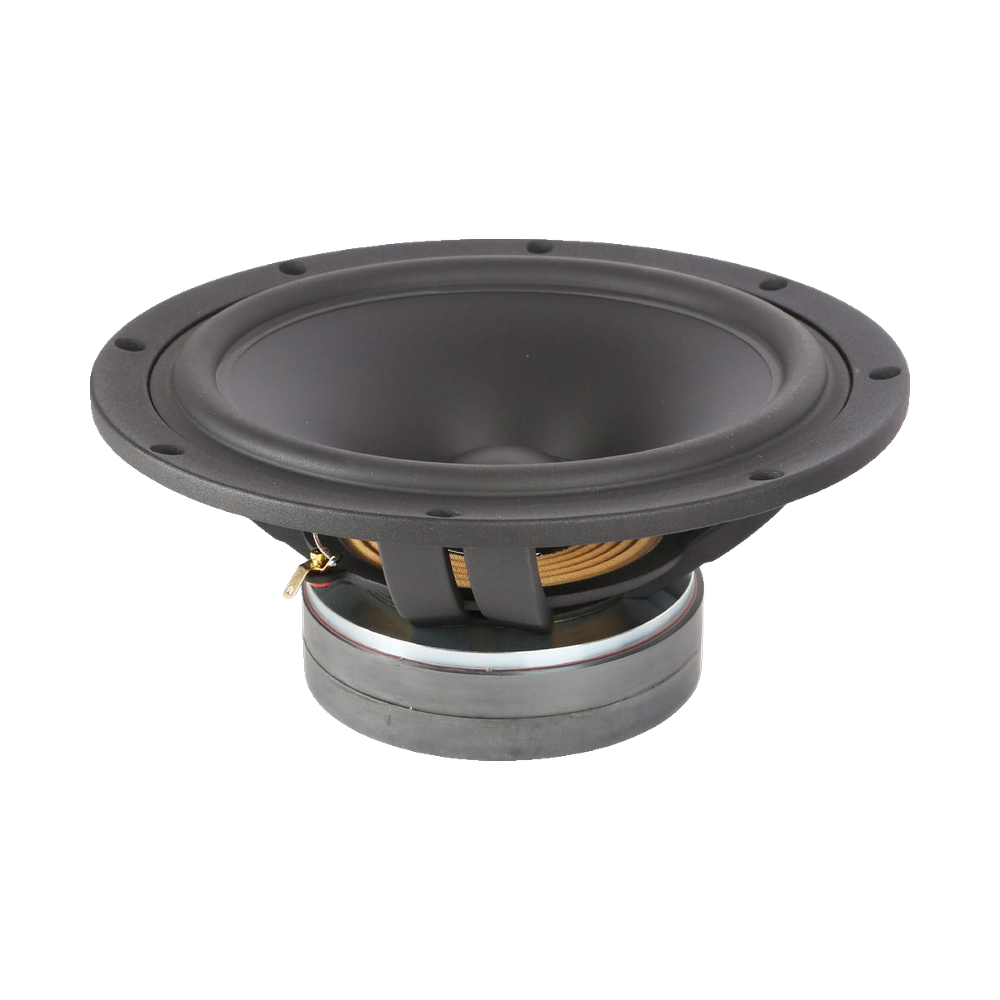

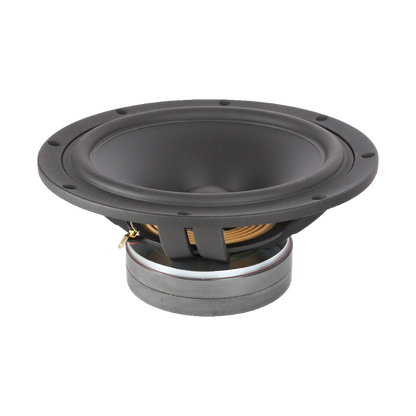

SB Acoustics - 12" NRXL Woofer - SB34NRXL75-8
SB Acoustics - 12" NRXL Woofer - SB34NRXL75-8
Regular price
$439.95
Regular price
Sale price
$439.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Hard paper cone for improved piston operation (made in-house) with large motor system with under-cut pole piece and dual shorting rings. 3″ copper voice coil for improved power handling with long life silver lead wires. Non-conducting fibre glass
Features
- Hard paper cone for improved piston operation (made in-house)
- Large motor system with under-cut pole piece and dual shorting rings
- Vented pole piece for minimum compression
- Vented cast aluminium chassis for optimum strength and low compression
- 3″ copper voice coil for improved power handling
- Long life silver lead wires
- Low damping rubber surround for improved dynamic linearity
- Non-conducting fibre glass voice coil former for minimum damping
- Optimised for vented enclosure
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 12" |
| Nominal impedance | 8Ω |
| Series | Norex Cones |
| Power handling (RMS) | 200 W |
| Sensitivity | 91 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 22 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Voice coil inductance (Le) | 1.2 mH |
| Mechanical Q (Qms) | 5.5 |
| Electrical Q (Qes) | 0.29 |
| Total Q (Qts) | 0.28 |
| Equivalent volume (Vas) | 205 L |
| Compliance (Cms) | 0.56 mm/N |
| Moving mass (Mms) | 93 g |
| Mechanical resistance (Rms) | 2.35 kg/s |
| Force factor (Bl) | 16.6 T·m |
| Effective piston area (Sd) | 508 cm² |
| Linear excursion (Xmax, one-way) | 10 mm |
| Displacement volume (Vd) | 508 cm³ |
| Efficiency bandwidth product (EBP) | 75.86 |
Motor
| Voice coil height | 28 mm |
|---|---|
| Air gap height | 8 mm |
| Magnetic flux density | 1.1 T |
| Magnet weight | 3.6 kg |

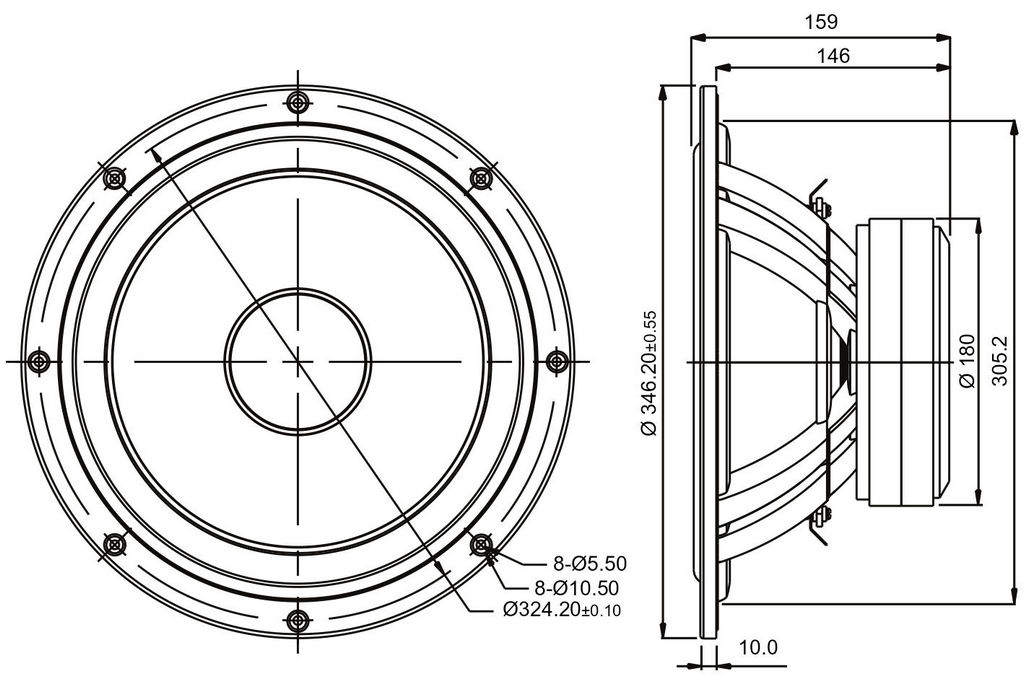

Mounting
| Overall diameter | 346.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 306.7 mm |
| Mounting depth | 146 mm |
| Flange thickness | 10 mm |
| Bolt circle diameter | 324.2 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 75.6 mm |
| Weight | 8.9 kg |
Materials
| Cone | Norex |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.

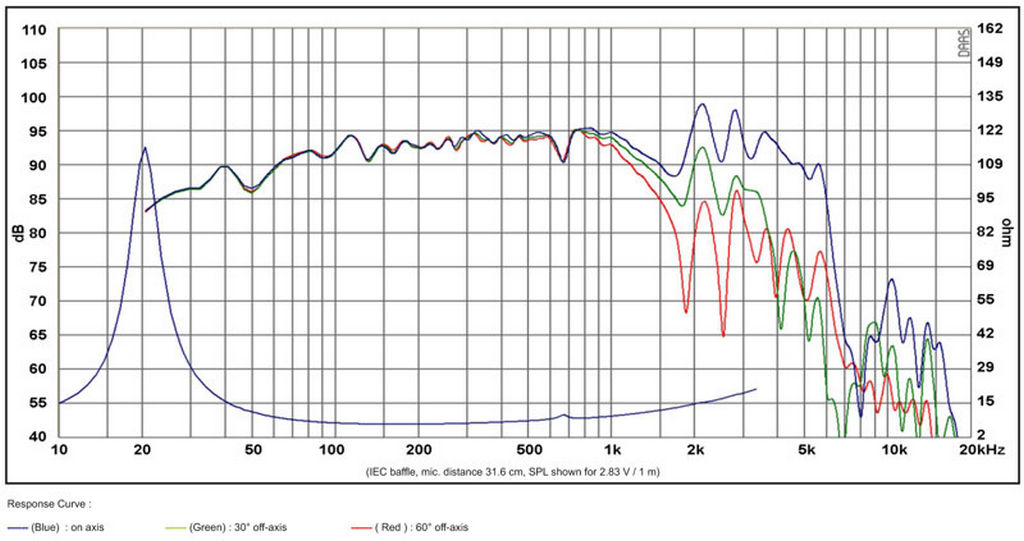

- Sensitivity measured at 2.83V/1m.
Downloads
- 12″ SB34NRXL75-8 Datasheet
- SB34NRXL75-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
