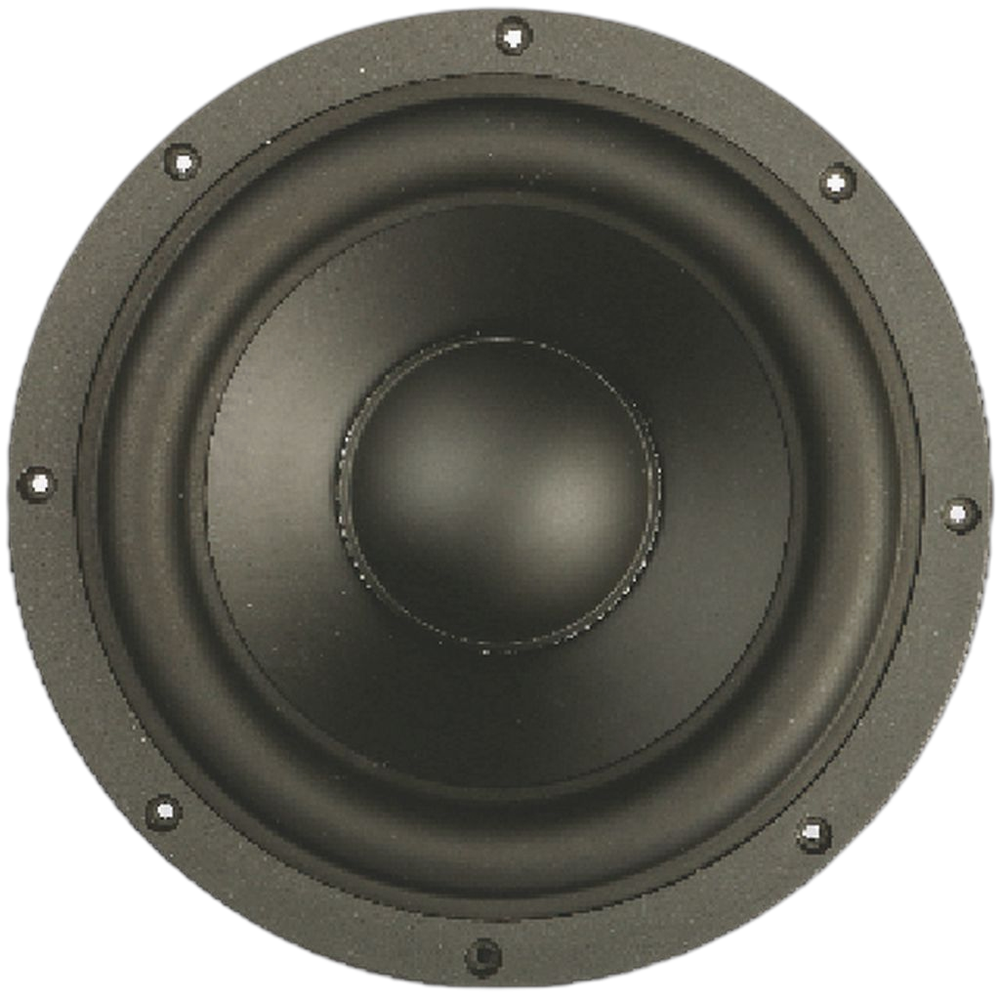

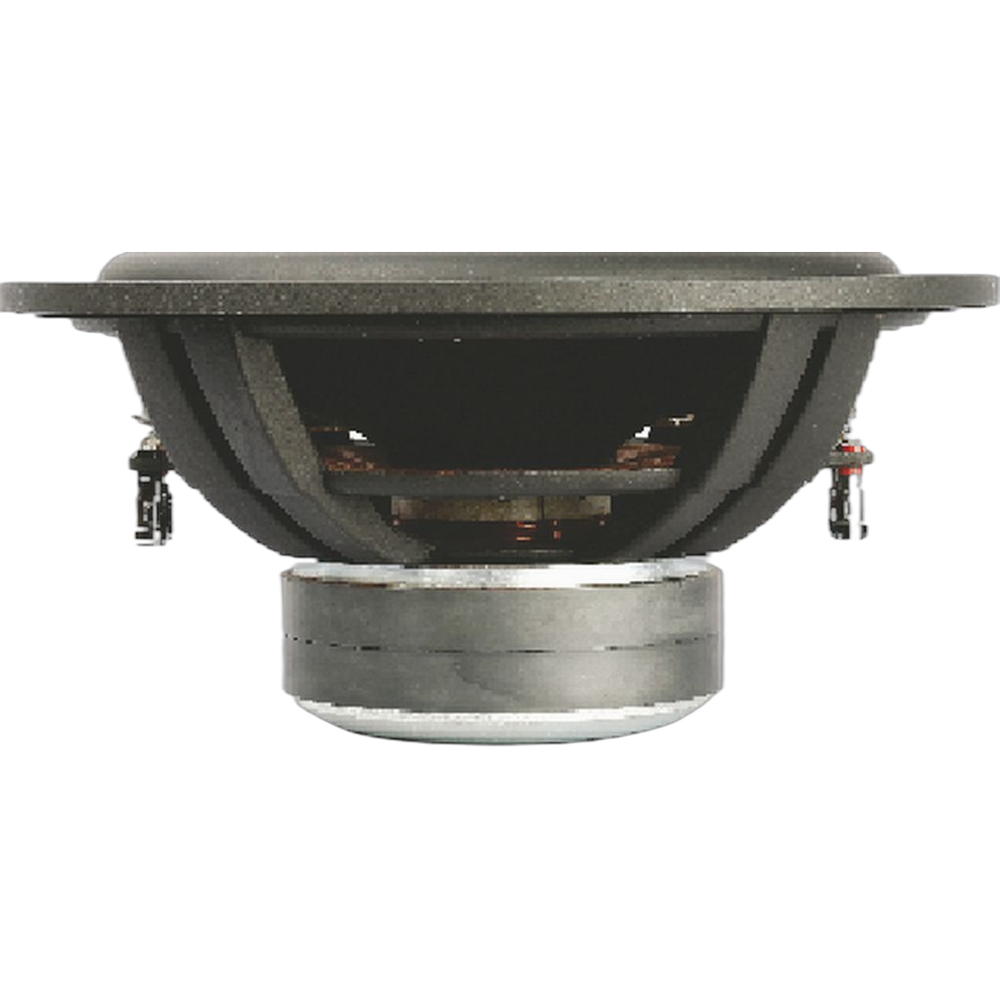

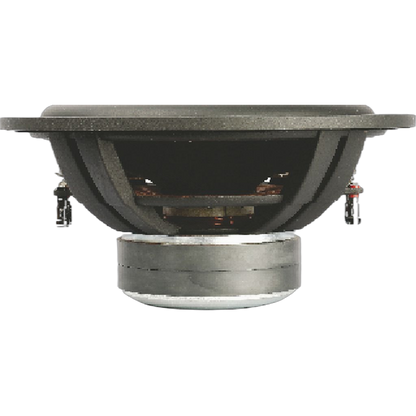

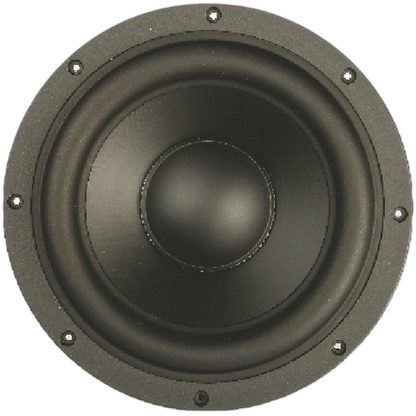

SB Acoustics - 12" SWPL Subwoofer - SB34SWPL76-3-DV

SB Acoustics - 12" SWPL Subwoofer - SB34SWPL76-3-DV

$389.95 AUD
$389.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Long stroke design. Linear high stability suspension. Low damping rubber surround. Dual 75mm copper voice coil. Non-conducting reinforced fibre glass coil former. Very stiff hard paper cone (made in-house). Vented cast aluminium chassis. Large vented motor system and vented coil former. Silver lead wires.

Features

  • Long stroke design
  • Linear high stability suspension
  • Higher shore hardness rubber surround
  • Dual 3’’ copper voice coil
  • Non-conducting reinforced fibre glass coil former
  • Very stiff hard paper cone (made in-house)
  • Vented cast aluminium chassis
  • Large vented motor system and vented coilformer
  • Long life silver lead wires

Specifications

Zn 4+4Ω
Power 300Wrms
Sens. 90/85dB
Coil 75.6mmØ
Width 346mmØ
Mag. 2.4kg
Re 2x 2.5Ω
Qms 5.62
Qes 0.52
Qts 0.48
Vas 43L
Sd 458cm²
Cms 0.14mm/N
Fs 27.5Hz
Mms 231g
Le 1.4/6.1mH
Rms 7.1kg/s
Diam. 305mmØ
Bl 9.7/19.5Tm
Xmax 30mm
