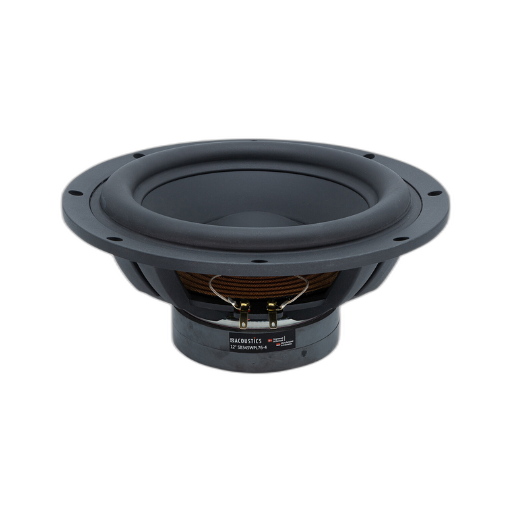

SB Acoustics - 12" SWPL Subwoofer - SB34SWPL76-4
SB Acoustics - 12" SWPL Subwoofer - SB34SWPL76-4
Regular price
$394.95
Regular price
Sale price
$394.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Large vented motor system and vented coil former.
Features
- Long stroke design
- Linear high stability suspension
- Low damping rubber surround
- 3″ copper voice coil
- Non-conducting reinforced fibre glass coil former
- Very stiff hard paper cone (made in-house)
- Vented cast aluminium chassis
- Large vented motor system and vented coilformer
- Long life silver lead wires
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 12" |
| Nominal impedance | 4Ω |
| Series | Long Stroke |
| Power handling (RMS) | 300 W |
| Sensitivity | 85 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 19 Hz |
|---|---|
| DC resistance (Re) | 3.5 Ω |
| Voice coil inductance (Le) | 5.3 mH |
| Mechanical Q (Qms) | 7.7 |
| Electrical Q (Qes) | 0.33 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 78.5 L |
| Compliance (Cms) | 0.27 mm/N |
| Moving mass (Mms) | 266 g |
| Mechanical resistance (Rms) | 4.1 kg/s |
| Force factor (Bl) | 18.3 T·m |
| Effective piston area (Sd) | 458 cm² |
| Linear excursion (Xmax, one-way) | 15 mm |
| Displacement volume (Vd) | 687 cm³ |
| Efficiency bandwidth product (EBP) | 57.58 |
Motor
| Voice coil height | 38 mm |
|---|---|
| Air gap height | 8 mm |
| Magnetic flux density | 0.62 T |
| Magnet weight | 2.4 kg |
Mounting
| Overall diameter | 346.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 306.7 mm |
| Mounting depth | 146.5 mm |
| Flange thickness | 10 mm |
| Bolt circle diameter | 324.2 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 76 mm |
| Weight | 7.68 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 12″ SB34SWPL76-4 Datasheet
- SB34SWPL76-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
