SB Acoustics

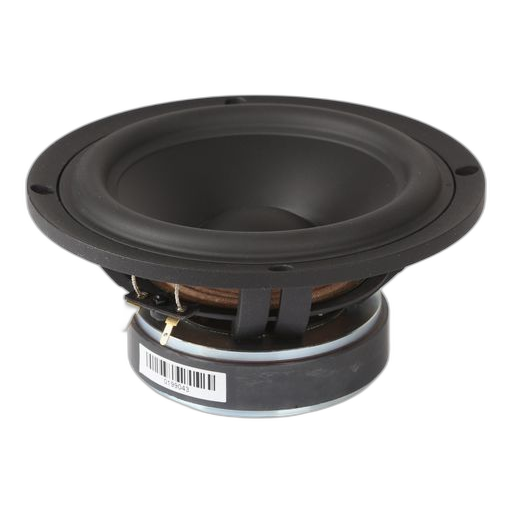

SB Acoustics - 6.5" NRXC2 Mid-Woofer - SB17NRX2C35-8

SB Acoustics - 6.5" NRXC2 Mid-Woofer - SB17NRX2C35-8

Regular price $104.95 AUD
Regular price Sale price $104.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

Newly developed Norex non-resonant poly-coated papyrus fibre cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive CCAW fibre glass 30mm coil former. Silver lead wires. Vented pole piece.

Features:

  • Vented cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for transient response
  • Non-conducting fiber glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • Vented coil former with CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression

Specifications:

Code SB17NRX2C35-8
Cms 1.45mm/N
Coil 35.5mmØ
Depth 75mm
Diam. 152mmØ
Fs 35Hz
Impedance 8Ω (Re 5.7Ω)
Impedance (Ohm) 8 ohm
Le 0.15mH
Mag. 0.54kg
Manufacturer SB Acoustics
Materials Norex Paper Cone
Mms 13.9g
Power 50Wrms
Power (RMS) 0-50 Watt
Qes 0.45
Qms 4.6
Qts 0.41
QTY 1
Re 5.7Ω
Rms 0.7kg/s
Sd 118cm²
Sens. 87dB
Series Natural fibre cone
Size 6.5"
Type Mid-Woofer
Vas 28.7L
Width 171mmØ
Zn
Bl 6.3Tm
Xmax 11mm
Flux (lm) 0.93T
Prms 50W
