SB Acoustics

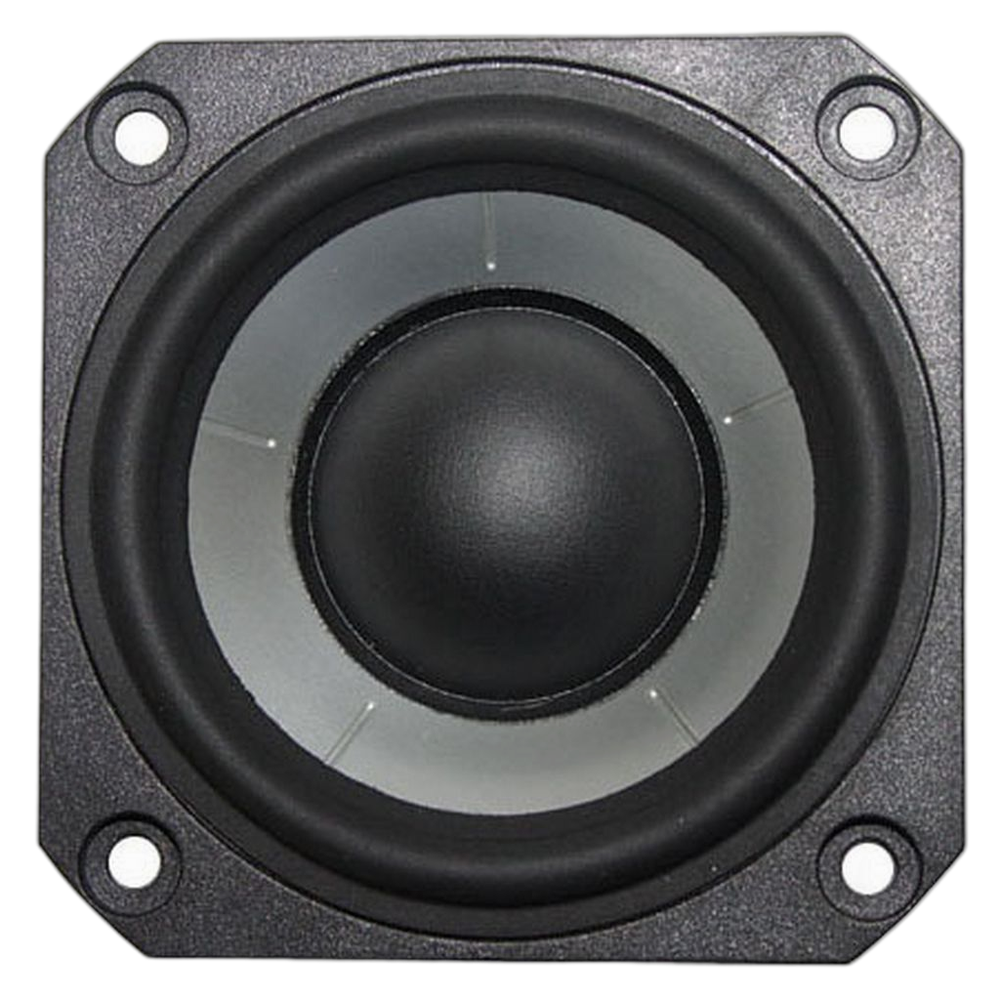

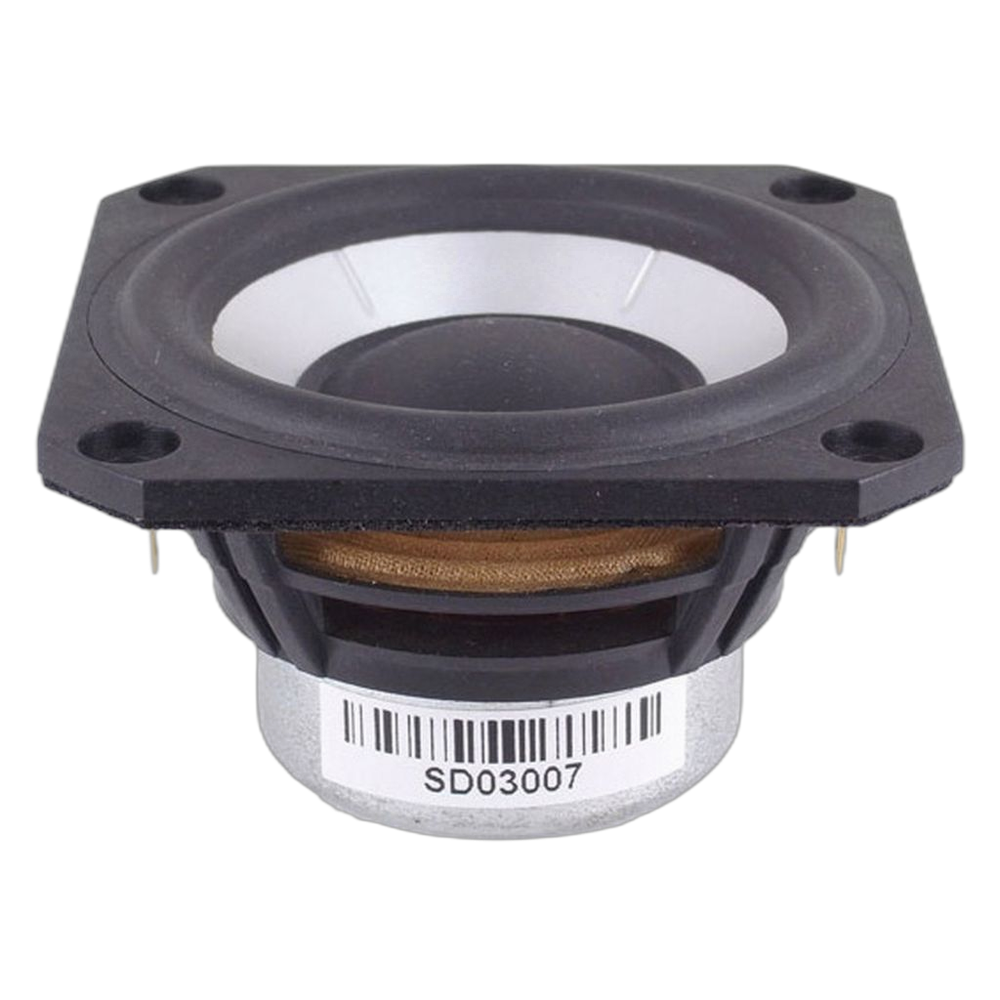

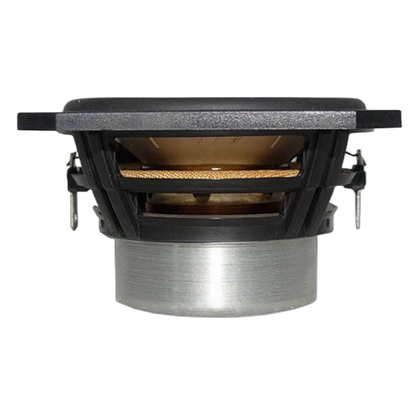

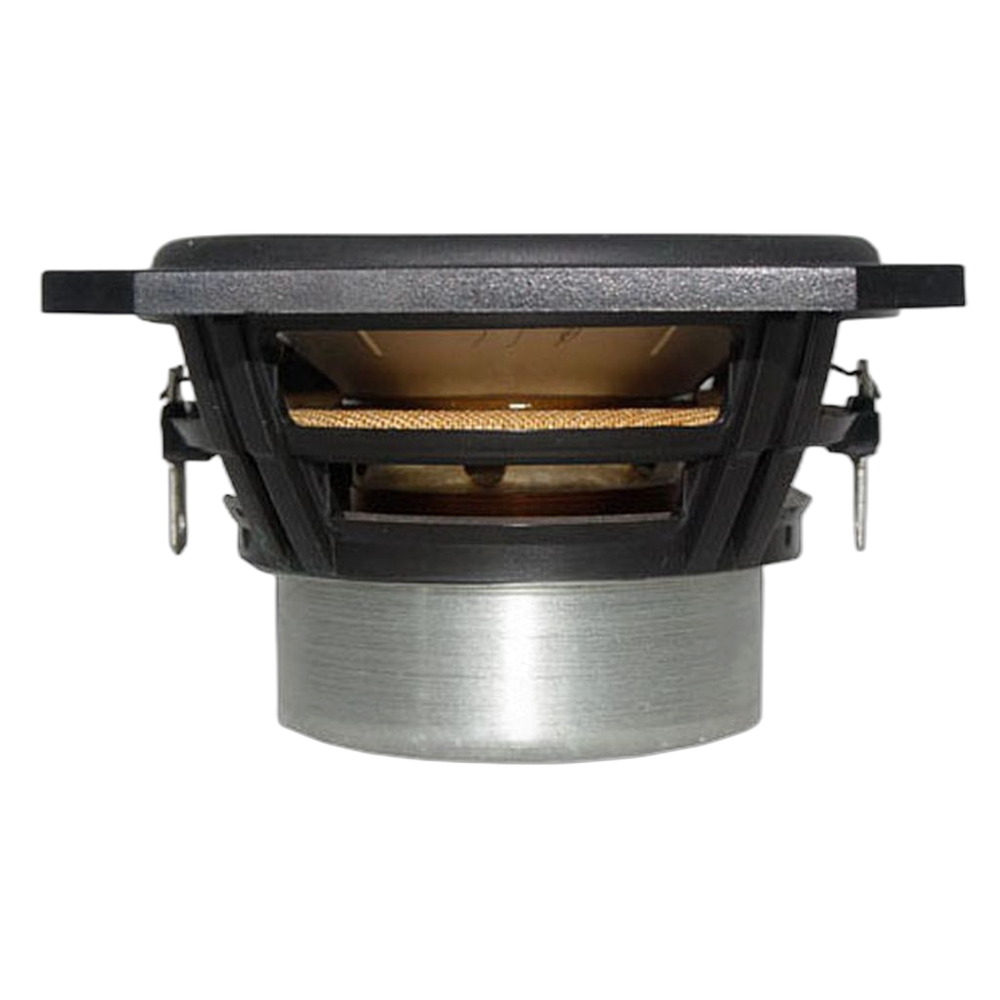

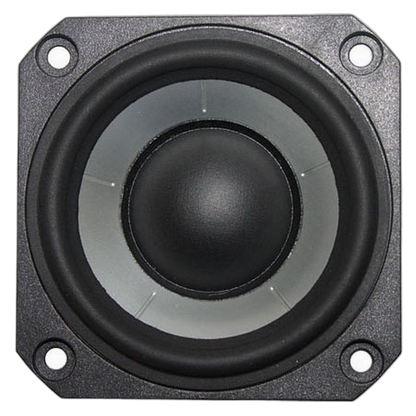

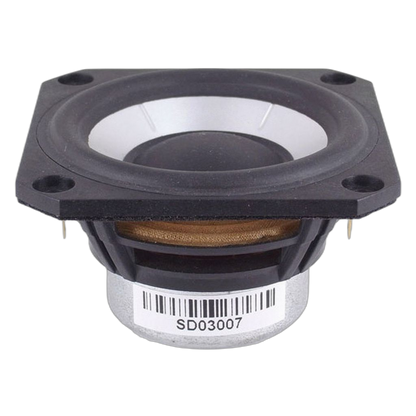

SB Acoustics - 2.5" WBAC Full Range - SB65WBAC25-4
SB Acoustics - 2.5" WBAC Full Range - SB65WBAC25-4
Regular price
$54.95 AUD
Regular price
Sale price
$54.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Geometrically furrowed aluminium cone for extended usable frequency range. Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability. Low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution. Linear neodymium motor system for reduced distortion. Vented voice coil former for reduced compression.
Features
- Geometrically furrowed aluminium cone for extended usable frequency range.
- Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability.
- Low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution.
- Linear neodymium motor system for reduced distortion.
- Vented voice coil former for reduced compression.
Specifications
| Power | 20Wrms |
|---|---|
| Coil | 25.4mmØ |
| Width | 64mmØ |
| Mag. | 0.02kg |
| Sens. | 83.5dB |
| Re | 3.0Ω |
| Qms | 6 |
| Qes | 0.77 |
| Qts | 0.68 |
| Vas | 0.43L |
| Sd | 20cm² |
| Cms | 0.77mm/N |
| Fs | 115Hz |
| Mms | 2.5g |
| Zn | 4Ω |
| Le | 0.15mH |
| Rms | 0.3kg/s |

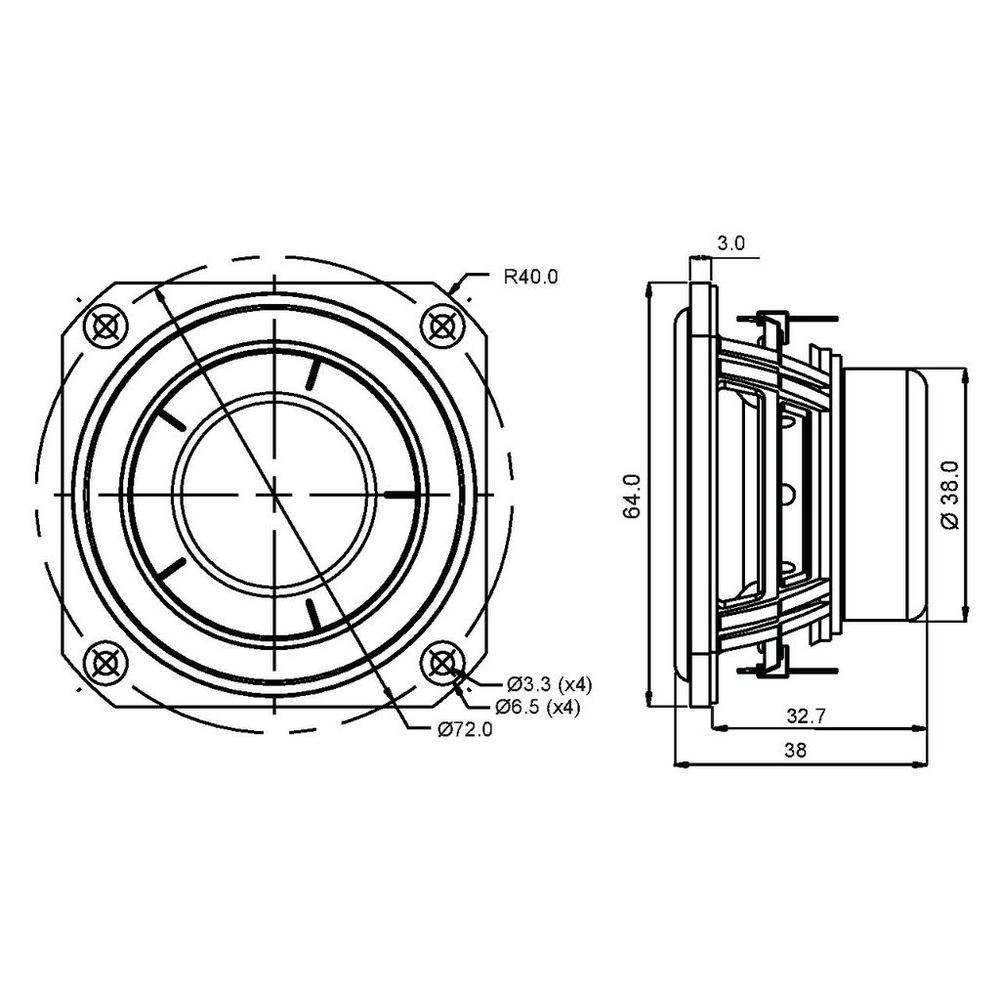

| Diam. | 64mmØ |
| Bl | 2.9Tm |
| Xmax | 5.3mm |
