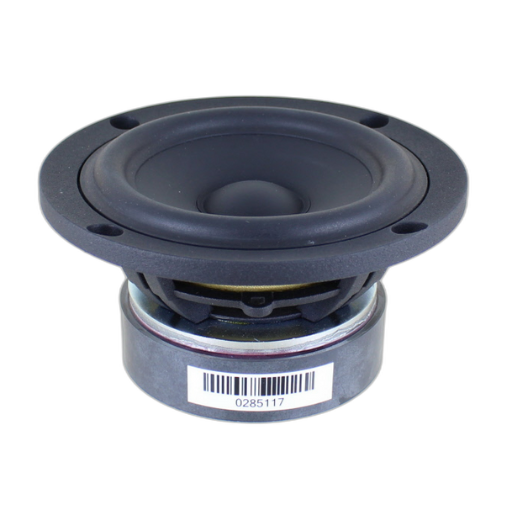

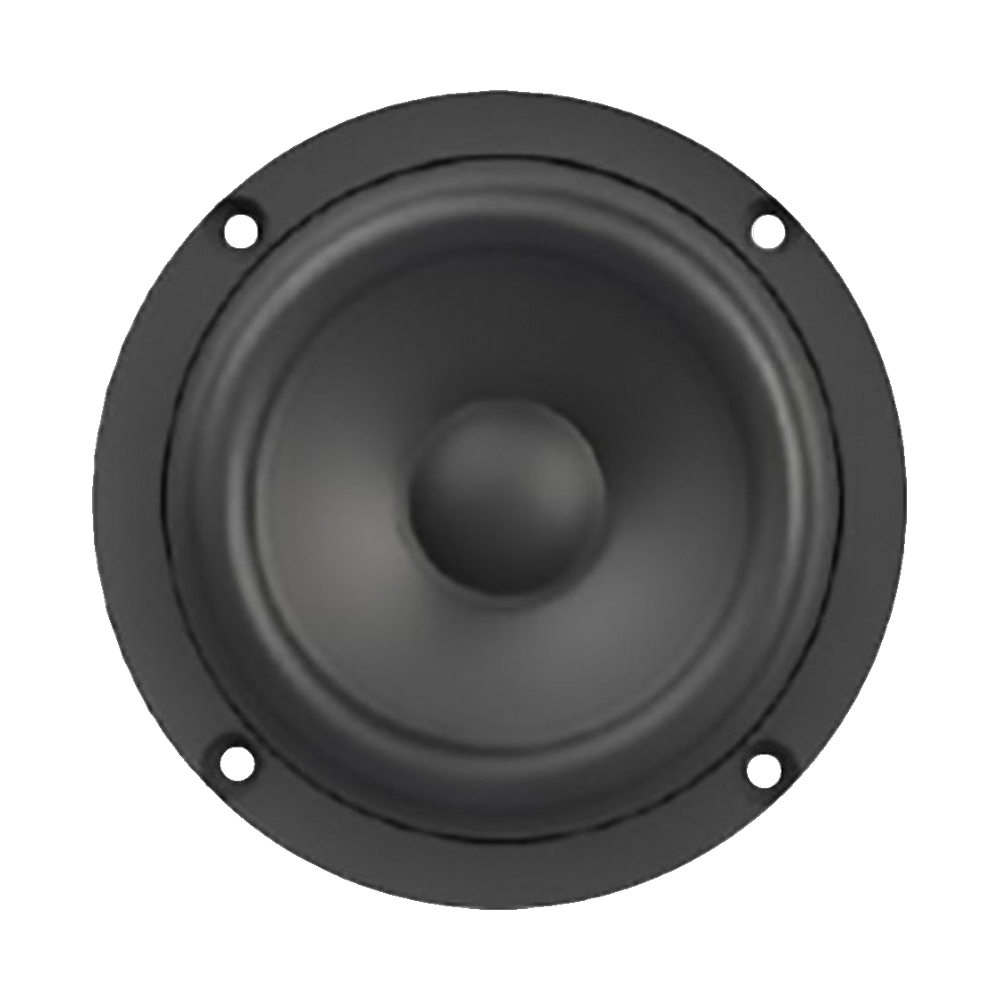

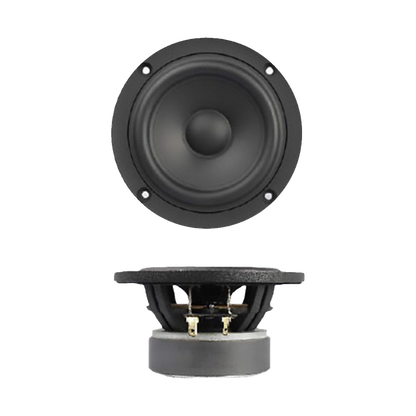

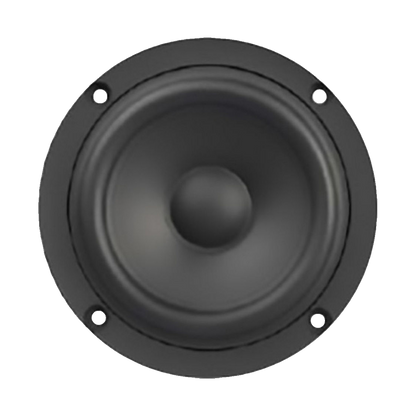

SB Acoustics - 4" MNRX2 Mid-Range - SB12MNRX2-25-4
SB Acoustics - 4" MNRX2 Mid-Range - SB12MNRX2-25-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
NRX2 is the new version of the NRX Series of speaker drivers. NRX is the "Norex" proprietary paper cone drivers by SB Acoustics. Through the development phases of some newer generation drivers with different cone materials (Carbon fibre, Polypropylene, Aluminium, Ceramic etc.) other improvements were made to the suspension system, damping, voice coil and coil former. All newer generations included a variety of subtle improvements summing-up over the years to quite a few improvements. The NRX2 takes the learning from many years of further development and brings all of that to the market as a new, but very similar driver series. NRX2 is more detailed, open, dynamic and with lower distortion. In most cases you can substitute NRX to/from NRX2 without the need for crossover or cabinet modifications.
25mm Voice coil, Norex paper cone, rubber surround, ferrite motor, aluminium chassis.
Features
- Proprietary cone material with natural fibres made in-house
- Shortened voice coil optimised for pure midrange reproduction
- High damping Butyl rubber surround for non-resonant sound character
- Vented pole piece for reduced compression
- Vented cast aluminium chassis for optimum strength and low compression
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Non-conducting fibre glass coil former for minimum damping
- Shorting ring in motor system for reduced distortion
Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 50 W |
| Sensitivity | 90.5 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 63.5 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Voice coil inductance (Le) | 0.15 mH |
| Mechanical Q (Qms) | 4.19 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 5.3 L |
| Compliance (Cms) | 1.5 mm/N |
| Moving mass (Mms) | 4.2 g |
| Mechanical resistance (Rms) | 0.4 kg/s |
| Force factor (Bl) | 3.9 T·m |
| Effective piston area (Sd) | 50 cm² |
| Linear excursion (Xmax, one-way) | 2.2 mm |
| Displacement volume (Vd) | 11 cm³ |
| Efficiency bandwidth product (EBP) | 181.4 |
Motor
| Voice coil height | 9.4 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1.03 T |
| Magnet weight | 0.4 kg |

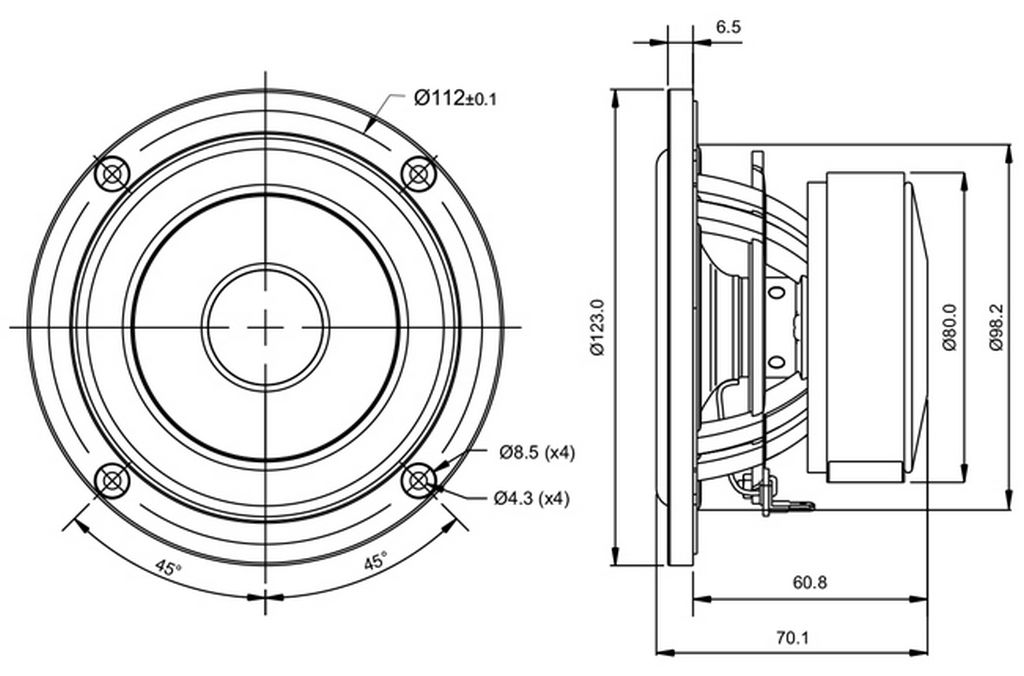

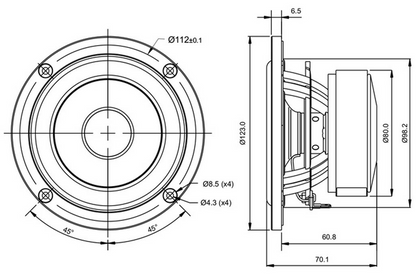

Mounting
| Overall diameter | 123 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 99.2 mm |
| Mounting depth | 60.8 mm |
| Flange thickness | 6.5 mm |
| Bolt circle diameter | 112 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.92 kg |
Materials
| Cone | Norex |
|---|---|
| Surround | Butyl Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 4″ SB12MNRX2-25-4 Datasheet
- SB12MNRX2-25-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
