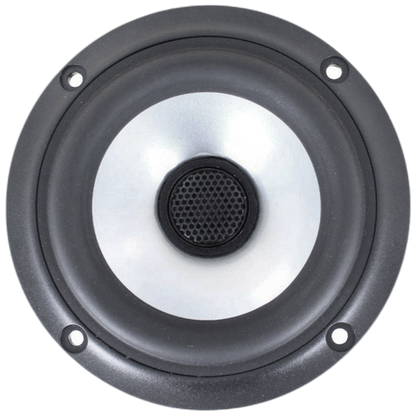

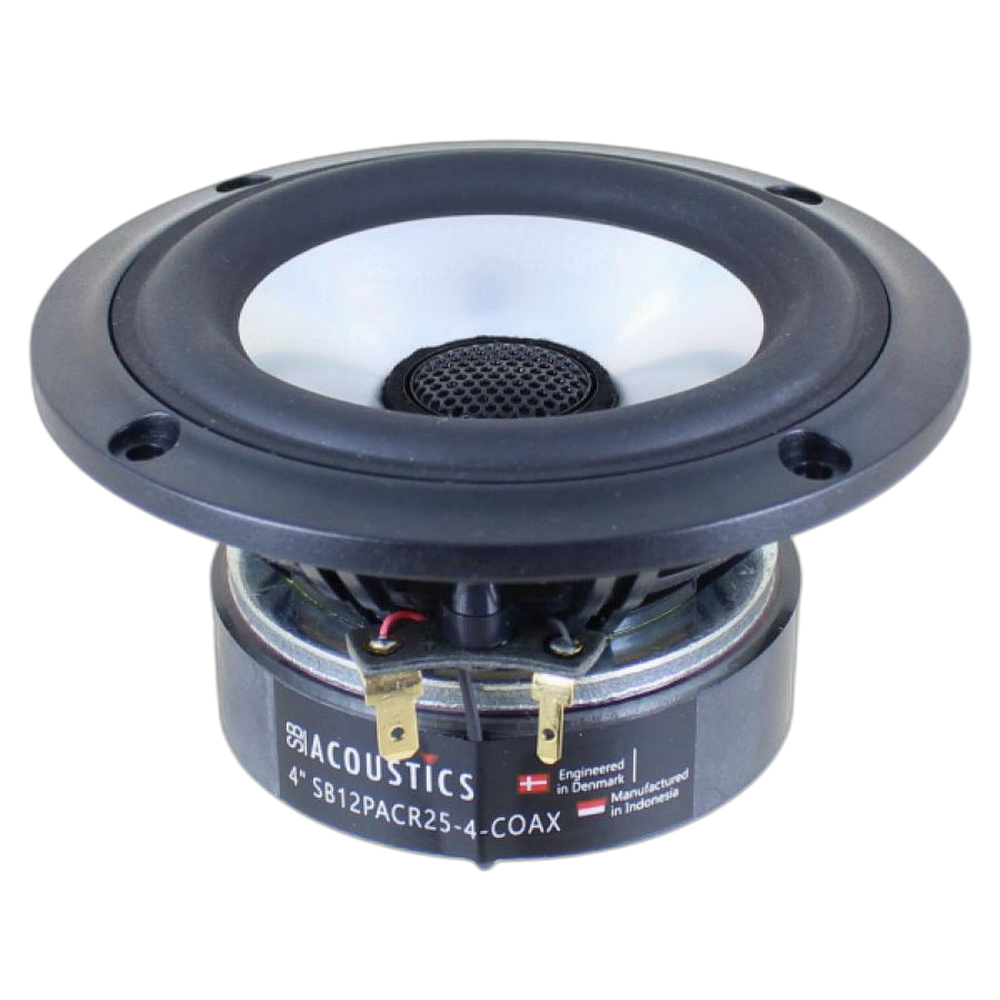

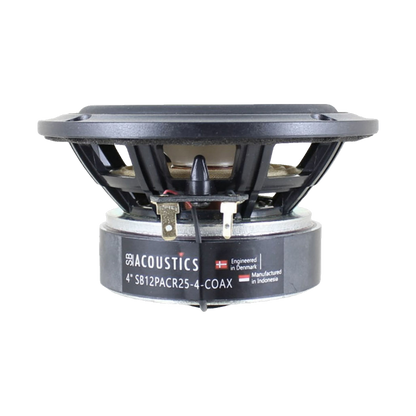

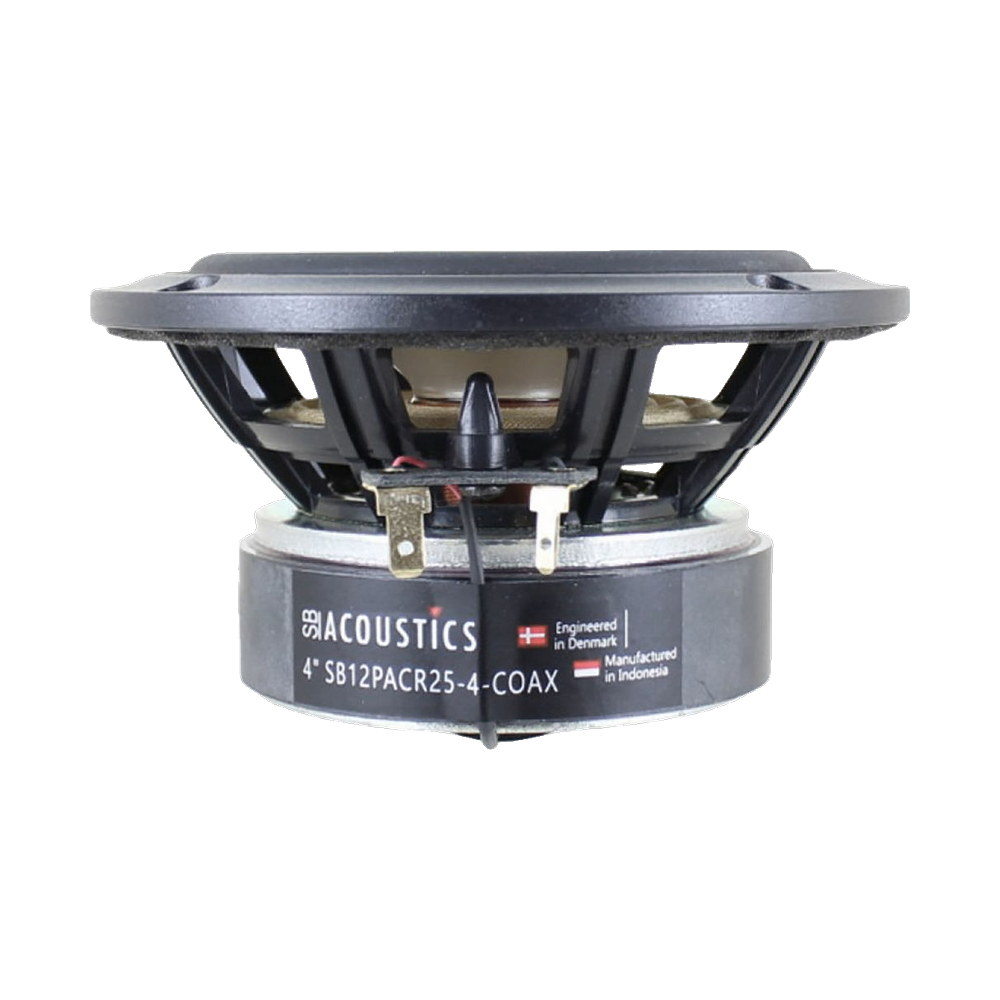

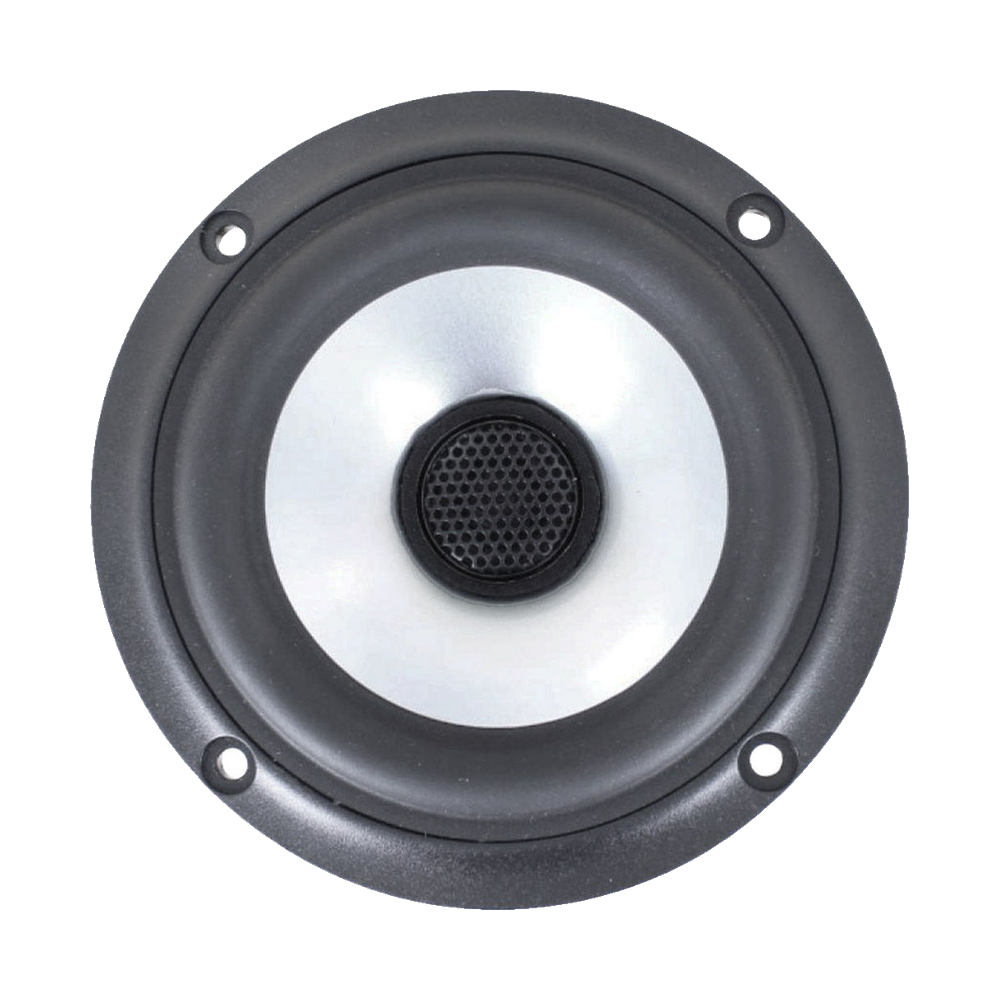

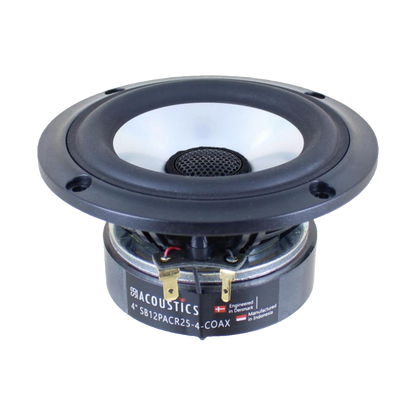

SB Acoustics - 4" PACR Coaxial - SB12PACR25-4-COAX

SB Acoustics - 4" PACR Coaxial - SB12PACR25-4-COAX

$98.95 AUD
$98.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Vented reinforced plastic chassis, aluminium cone, rubber surround. Large motor system. Long stroke linear suspension. Light weight CCAW coil on a Non-conducting fibreglass former. Non-resonant long life lead wires. Coaxial mounted dome tweeter. Requires crossover.

Features

  • Vented reinforced plastic chassis
  • Anodised aluminum cone
  • Low damping rubber surround
  • Large vented motor system
  • Long stroke linear suspension
  • Light weight CCAW voice coil
  • Non-conducting fibreglass coil former
  • Non-resonant long life lead wires
  • Compact dome tweeter coaxial mounted

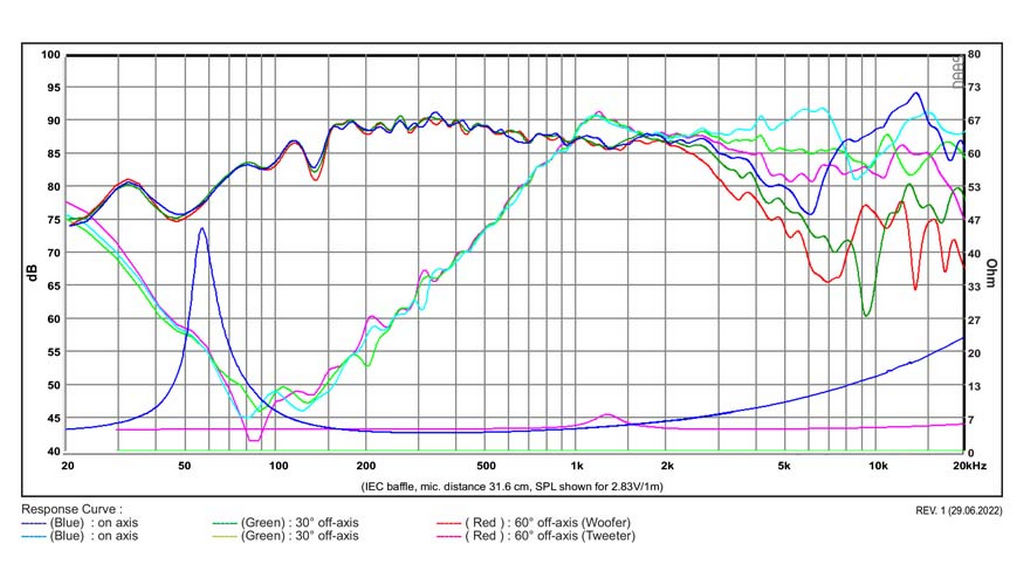

Specifications

Cms 1.49mm/N
Coil 25.4mmØ
Diam. 122mmØ
Fs 1300Hz
Le 0.25mH
Mag. 0.40kg
Mms 5.6g
Power 30Wrms
Qes 0.38
Qms 4.84
Qts 0.35
Re 3.1Ω
Rms 0.4kg/s
Sd 45cm²

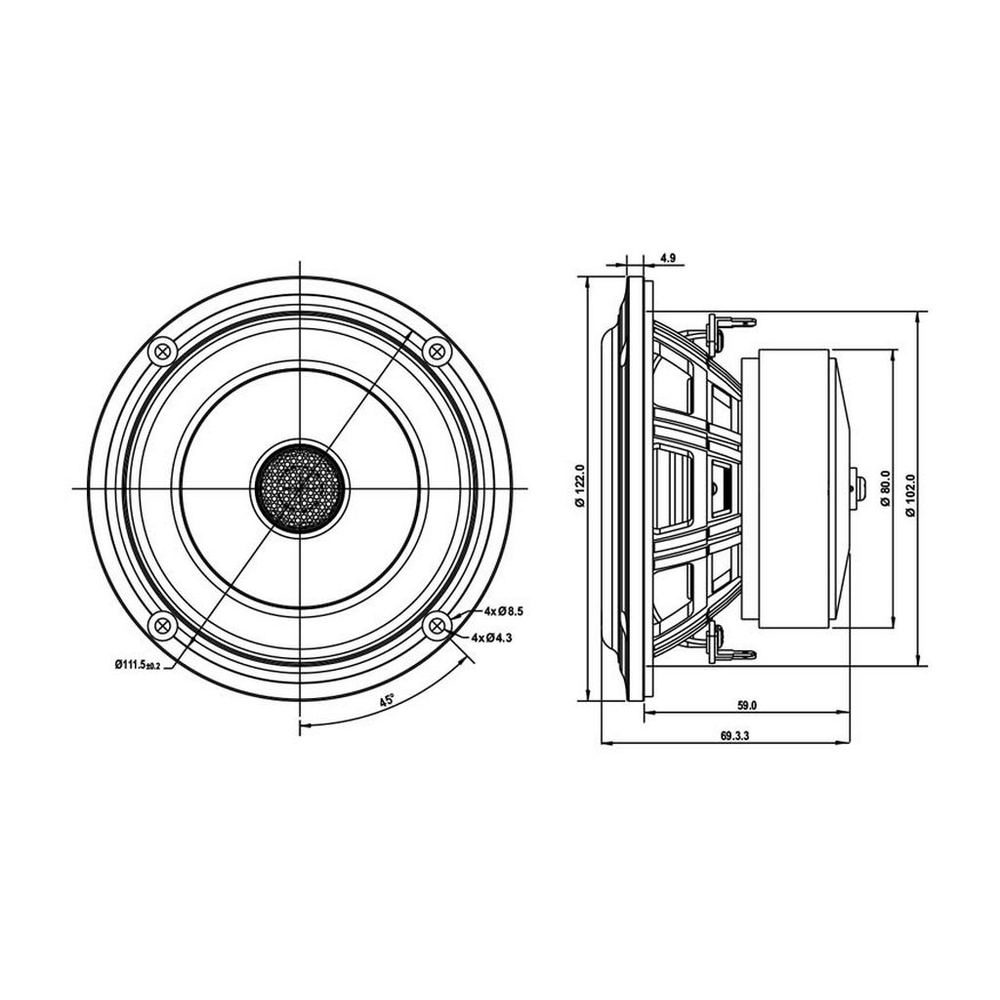

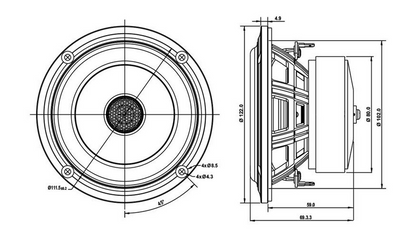

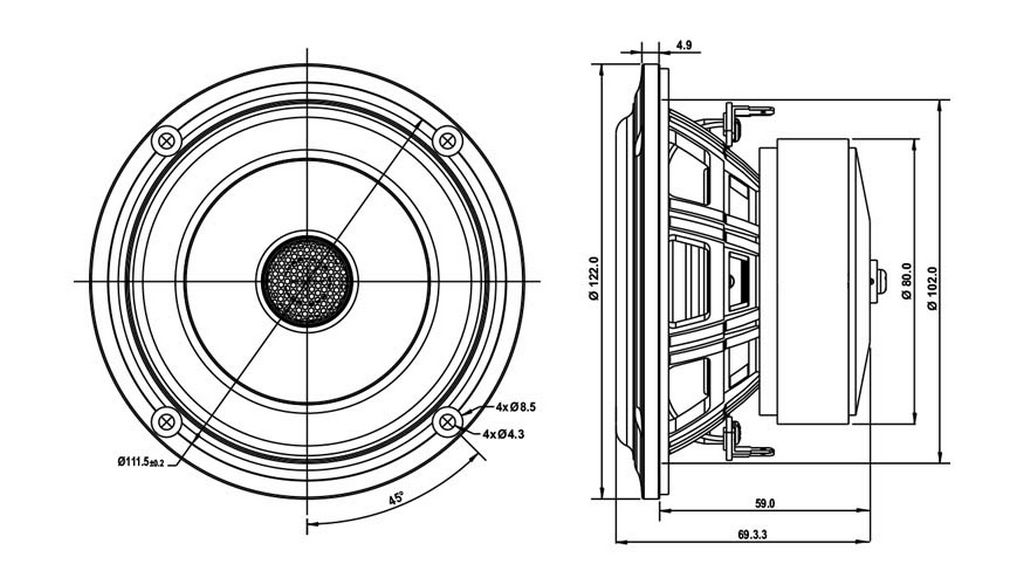

Hole 102mmØ
Sens. 87.5dB
Vas 4.3L
Width 122mmØ
Zn 4Ω

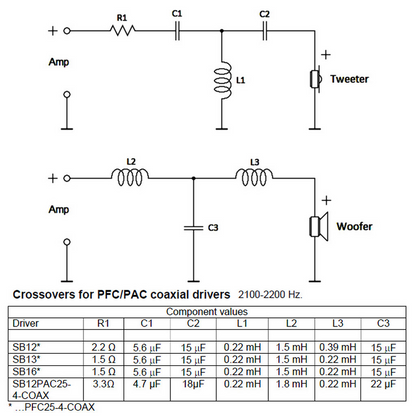

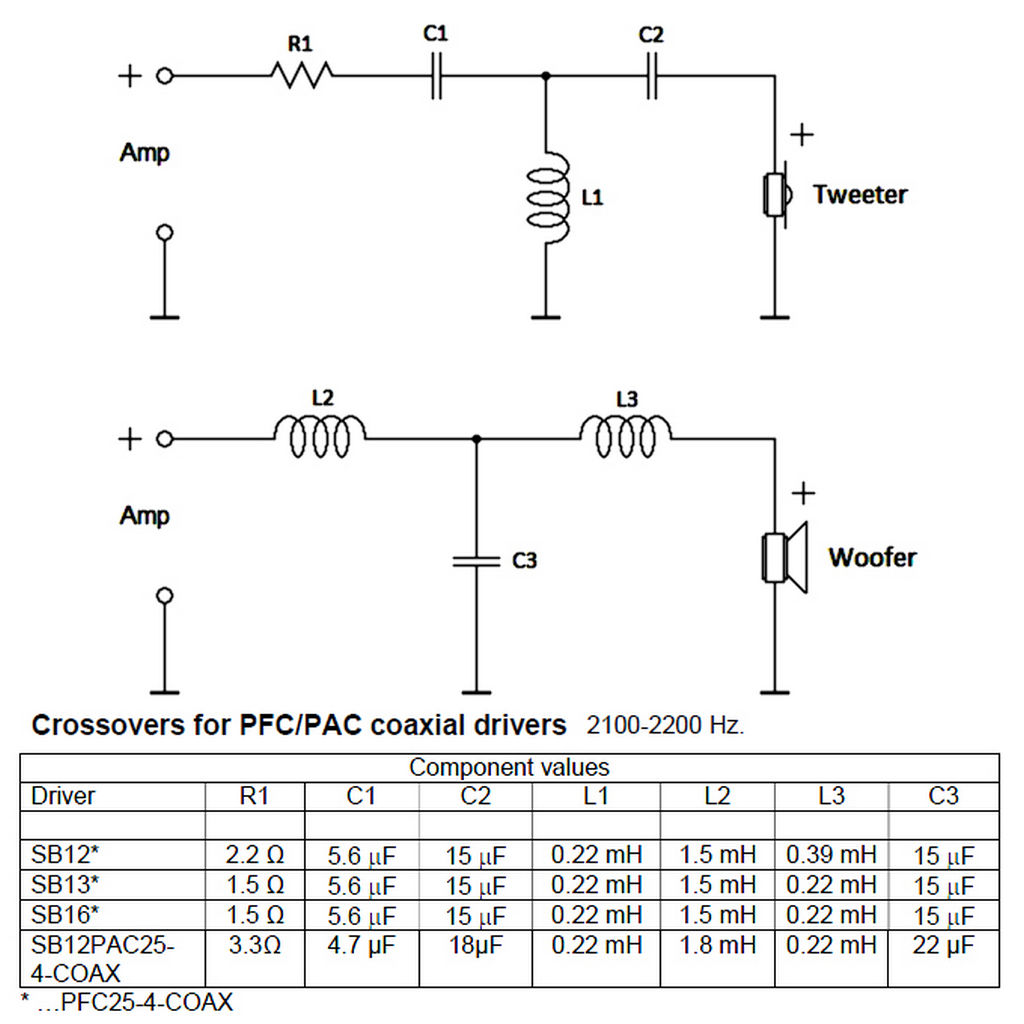

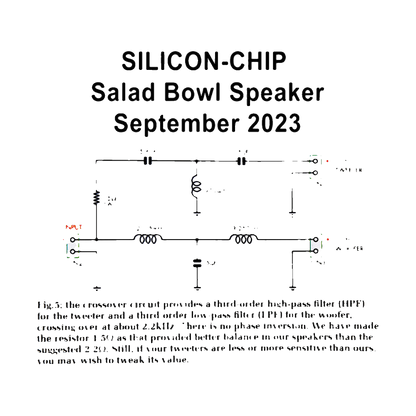

Crossover 5KHz6dB/Oct to 2.2KHz 18dB/Oct
