SB Acoustics - 4" PACR Passive Radiator - SB12PACR-00
SB Acoustics - 4" PACR Passive Radiator - SB12PACR-00
Regular price
$31.95
Regular price
Sale price
$31.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description

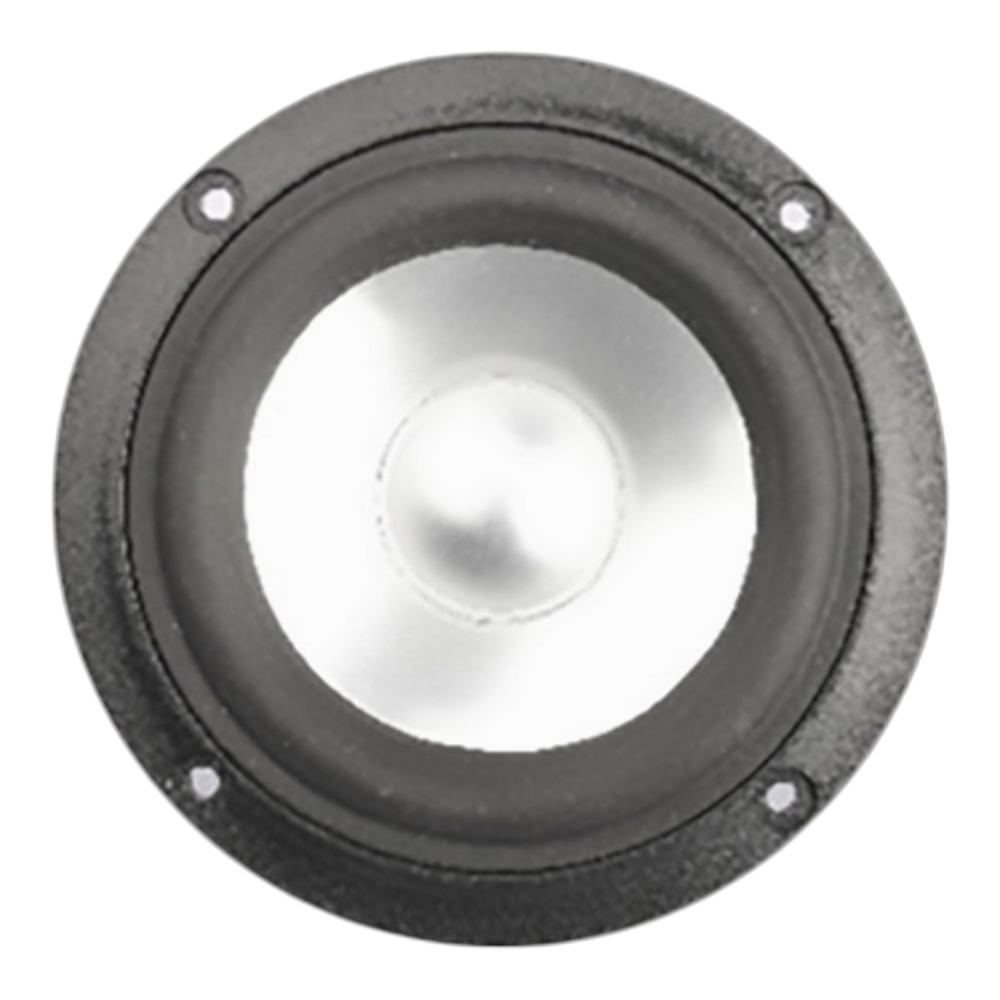

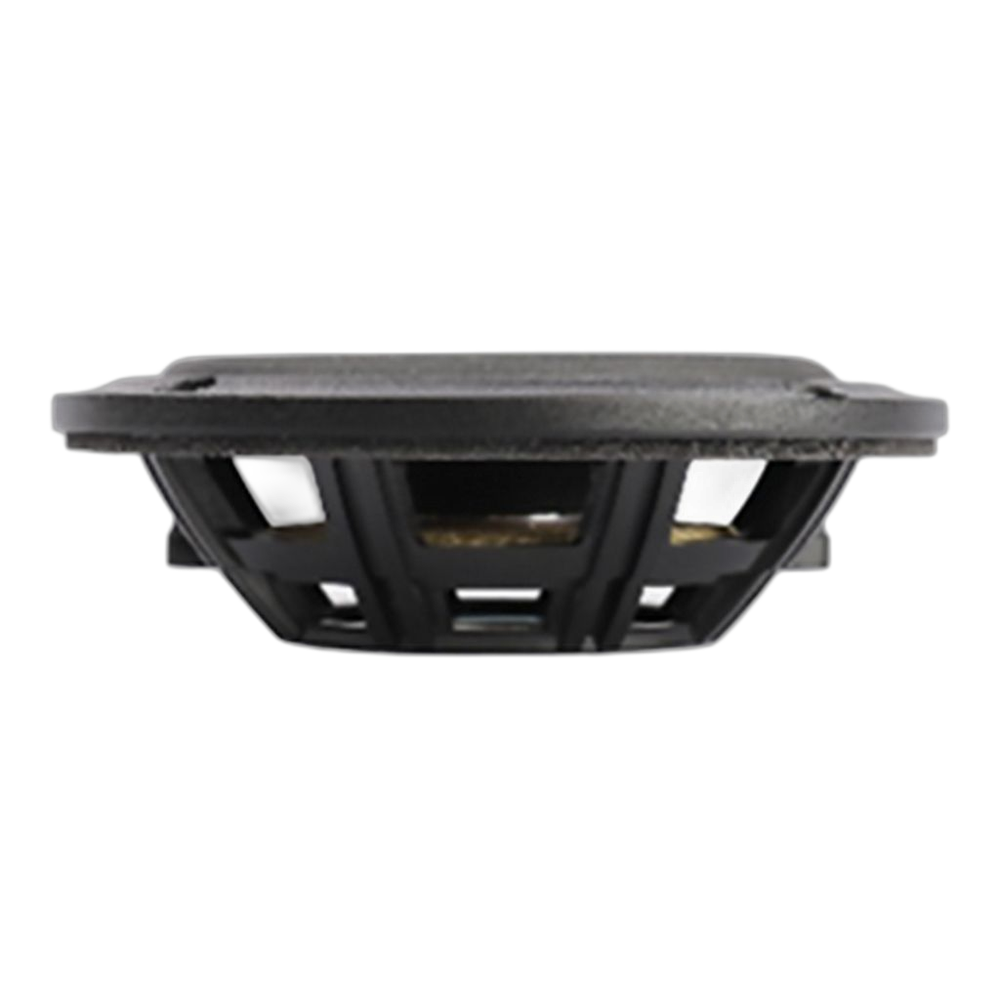

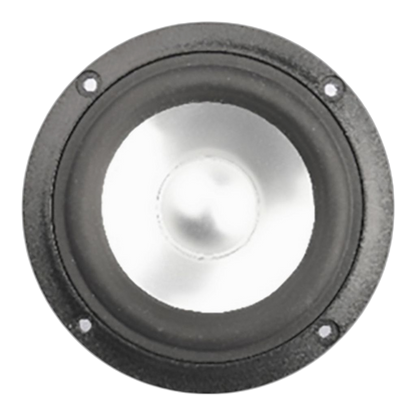

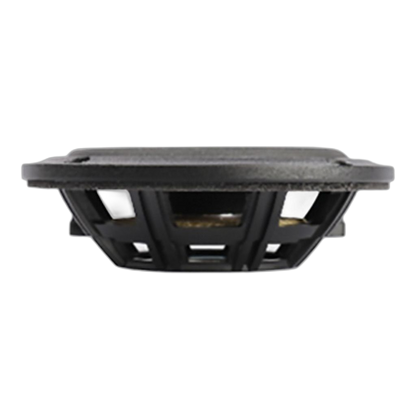

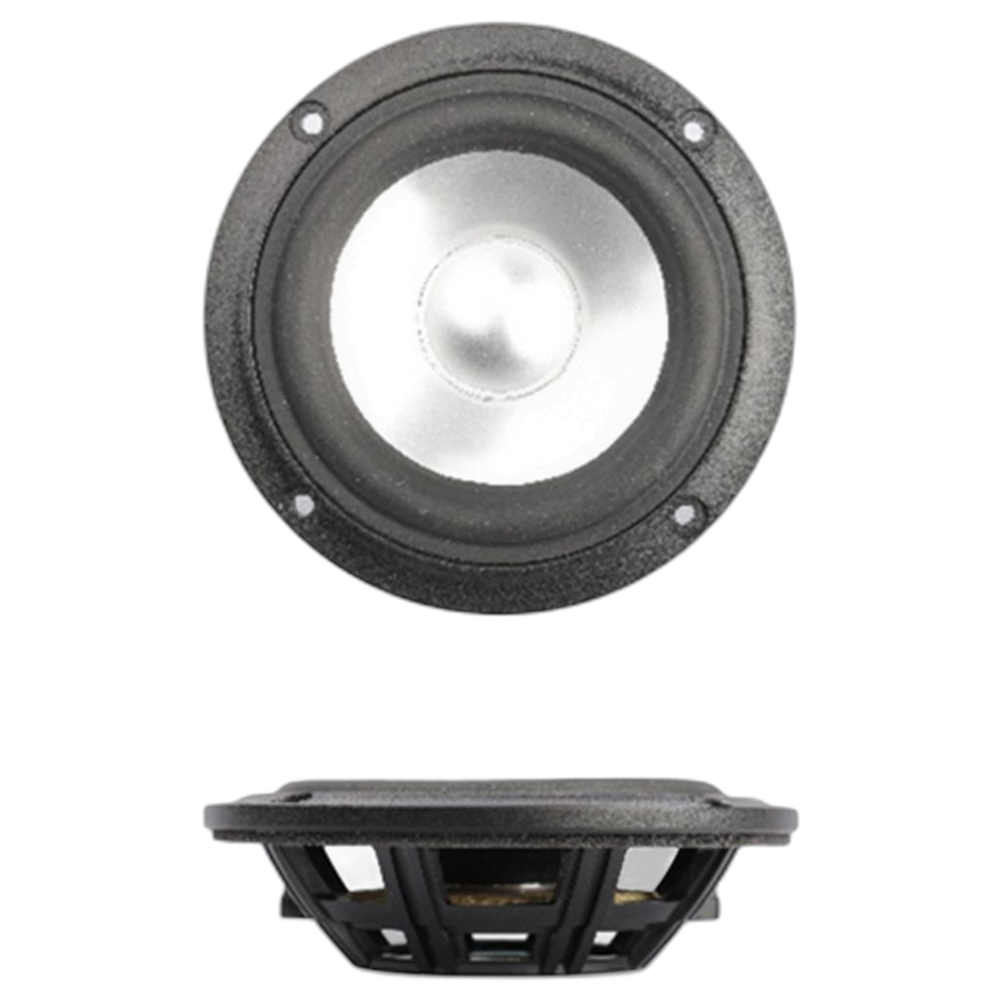

Passive radiator with aluminium cone, rubber surround, square mounting injection chassis.
Features
- Vented reinforced plastic chassis
- Anodised aluminium cone
- Low damping rubber surround
- Long stroke linear suspension
- Easily adjustable moving mass
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 4" |
Thiele/Small parameters
| Resonant frequency (Fs) | 33 Hz |
|---|---|
| Mechanical Q (Qms) | 12.4 |
| Equivalent volume (Vas) | 4.3 L |
| Compliance (Cms) | 1.21 mm/N |
| Moving mass (Mms) | 19.2 g |
| Mechanical resistance (Rms) | 0.32 kg/s |
| Effective piston area (Sd) | 50 cm² |
| Mechanical excursion (Xmech) | 9 mm |

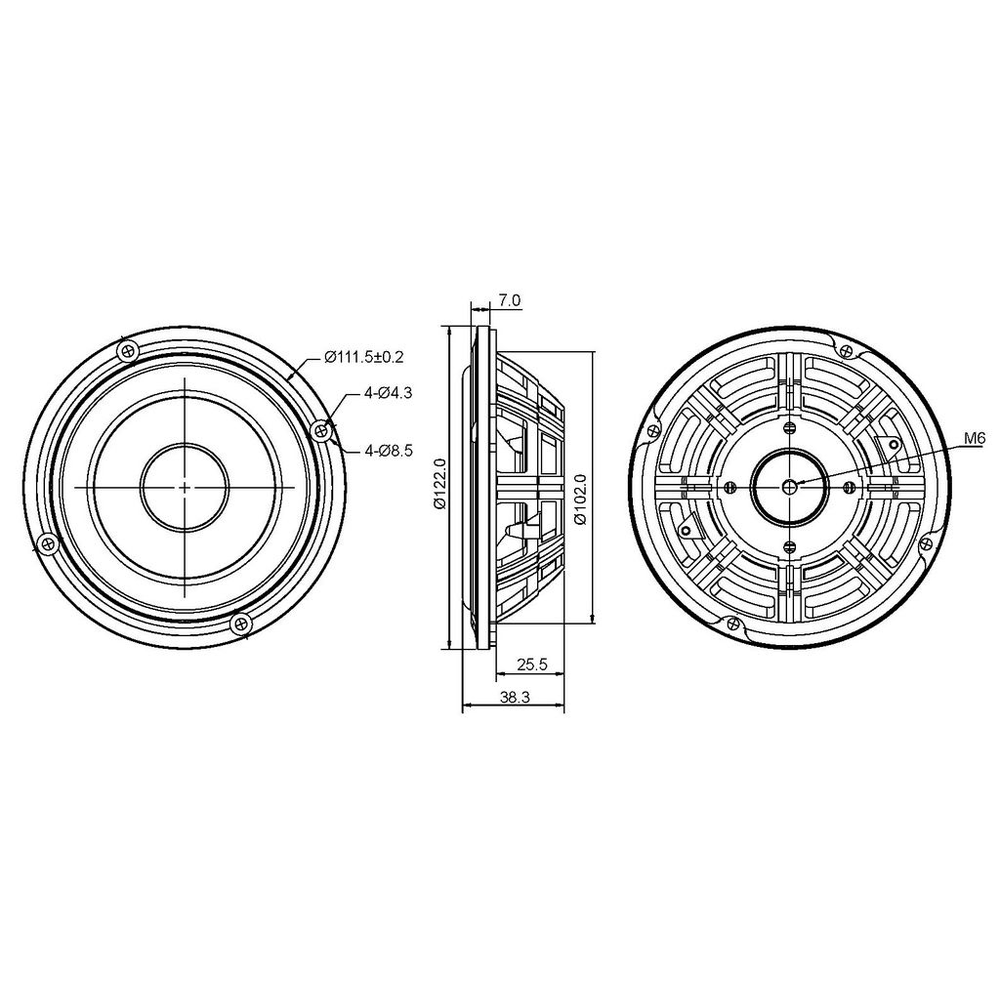

Mounting
| Overall diameter | 122 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 103.0 mm |
| Mounting depth (estimate) | ≈ 28.0 mm |
| Flange thickness | 7 mm |
| Bolt circle diameter | 111.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Weight | 0.078 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Basket | Reinforced Plastic |
Downloads
- 4″ SB12PACR-00 Datasheet
- SB12PACR-00 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
