SB Acoustics
SB Acoustics - 5" CAC Mid-Woofer - SB15CAC30-8
SB Acoustics - 5" CAC Mid-Woofer - SB15CAC30-8
Regular price
$154.95 AUD
Regular price
Sale price
$154.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

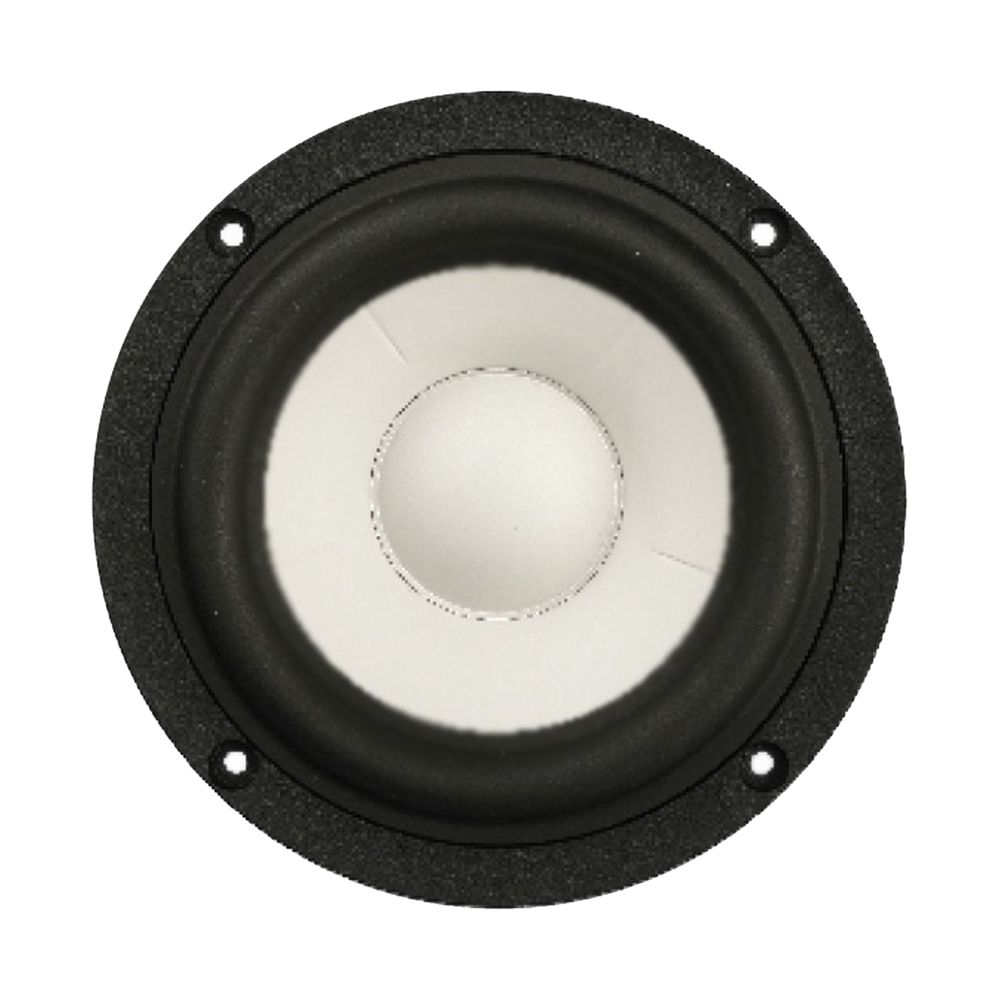

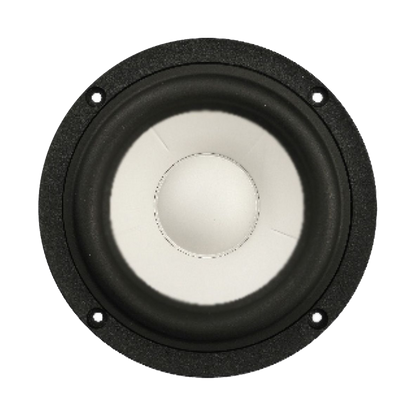

A 5" mid-woofer from SB Acoustics with a geometrically reinforced ceramic cone in a vented cast aluminium chassis. It has a soft low-damping rubber surround, a CCAW voice coil on a fibreglass former and a copper sleeve on the vented pole piece for low inductance and low distortion.
Features
- Vented cast aluminium chassis for optimum strength and low compression
- Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
- Soft low damping rubber surround for improved transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 50 W |
| Sensitivity | 86 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 35.5 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Voice coil inductance (Le) | 0.14 mH |
| Mechanical Q (Qms) | 4.77 |
| Electrical Q (Qes) | 0.42 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 17.9 L |
| Compliance (Cms) | 1.88 mm/N |
| Moving mass (Mms) | 10.7 g |
| Mechanical resistance (Rms) | 0.5 kg/s |
| Force factor (Bl) | 5.7 T·m |
| Effective piston area (Sd) | 82 cm² |
| Linear excursion (Xmax, one-way) | 5 mm |
| Displacement volume (Vd) | 41 cm³ |
| Efficiency bandwidth product (EBP) | 84.52 |
Motor
| Voice coil height | 14 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1 T |
| Magnet weight | 0.54 kg |

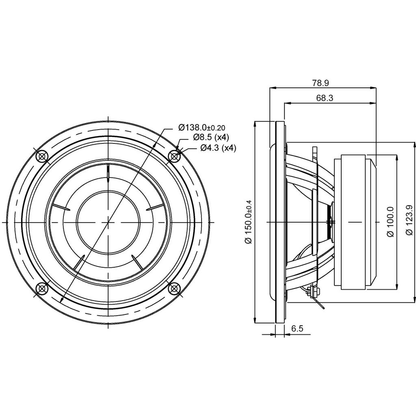

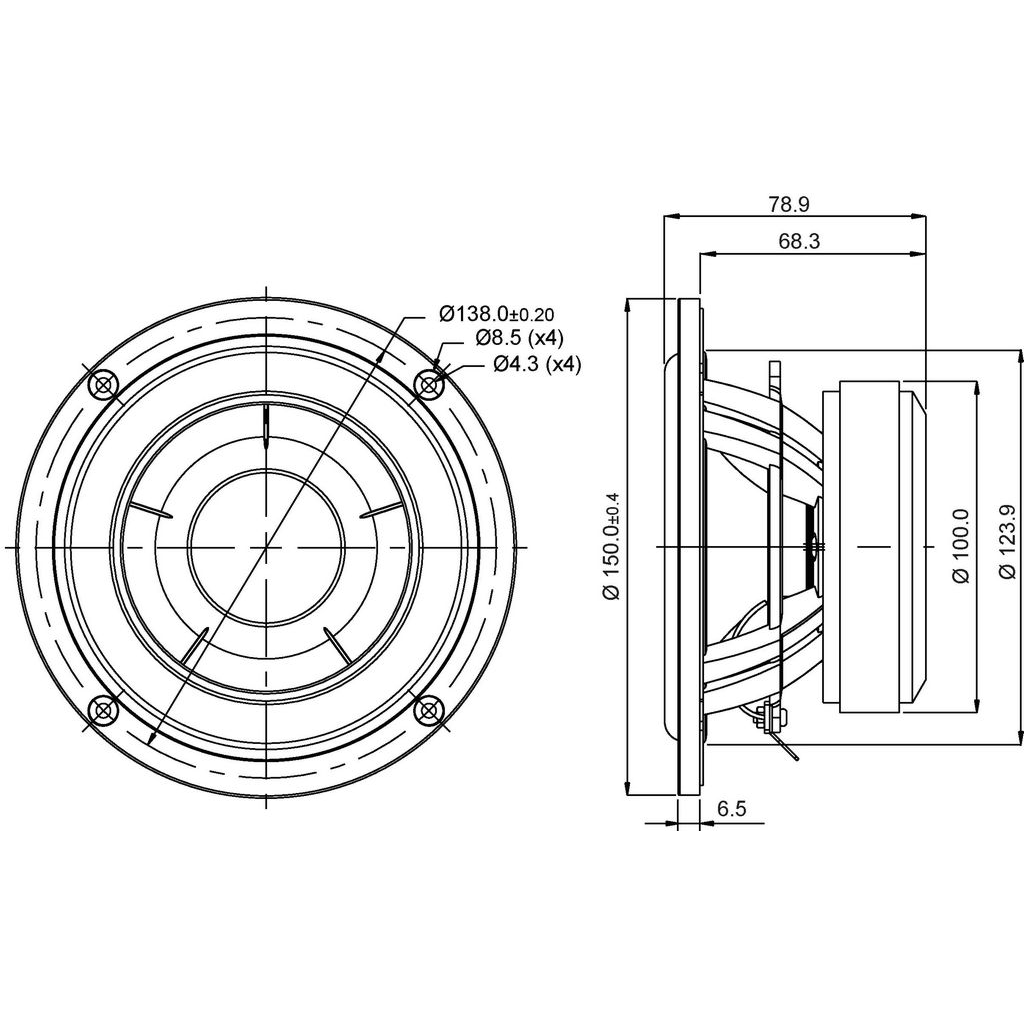

Mounting
| Overall diameter | 150 mm |
|---|---|
| Mounting depth | 68.3 mm |
| Flange thickness | 6.5 mm |
| Bolt circle diameter | 138 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 30.5 mm |
| Weight | 1.46 kg |
Materials
| Cone | Ceramic |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.

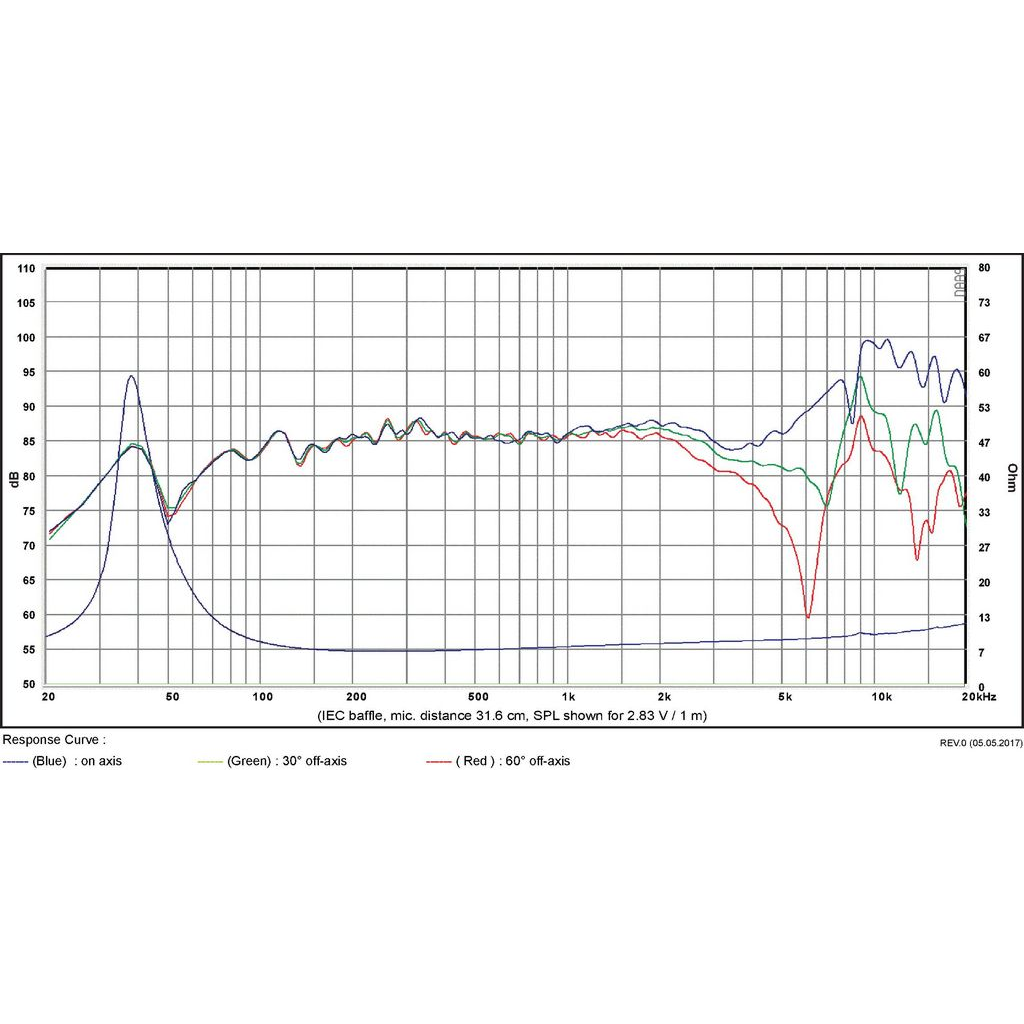

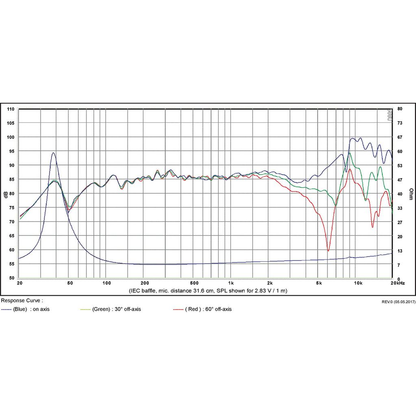

- Sensitivity measured at 2.83V/1m.
Downloads
- 5″ SB15CAC30-8 Datasheet PDF, 543 KB
