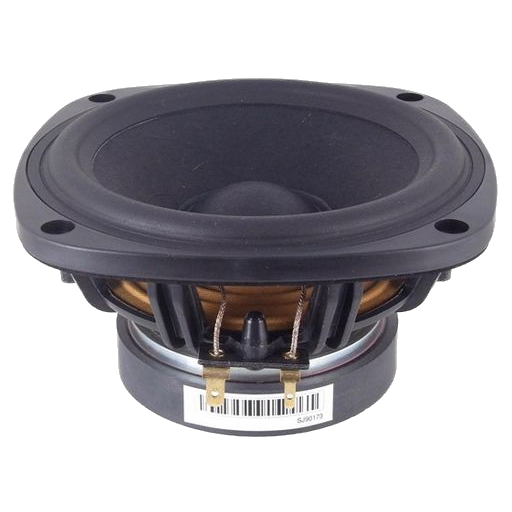

SB Acoustics - 5″ PFC Mid-Woofer - SB13PFC25-8
SB Acoustics - 5″ PFC Mid-Woofer - SB13PFC25-8
Regular price
$44.95
Regular price
Sale price
$44.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibres made in-house
- Soft low damping rubber surround for improved transient response
- Optimised motor system
- Vented coil former for low compression
- Non-resonant long life lead wires

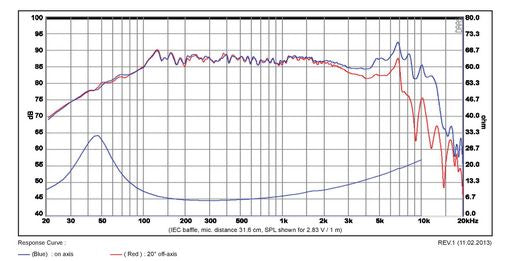

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Polymer chassis |
| Power handling (RMS) | 40 W |
| Sensitivity | 87 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 45 Hz |
|---|---|
| DC resistance (Re) | 5.6 Ω |
| Voice coil inductance (Le) | 0.77 mH |
| Mechanical Q (Qms) | 2.2 |
| Electrical Q (Qes) | 0.39 |
| Total Q (Qts) | 0.33 |
| Equivalent volume (Vas) | 13.4 L |
| Compliance (Cms) | 1.25 mm/N |
| Moving mass (Mms) | 10 g |
| Mechanical resistance (Rms) | 1.4 kg/s |
| Force factor (Bl) | 6.2 T·m |
| Effective piston area (Sd) | 87 cm² |
| Linear excursion (Xmax, one-way) | 4.5 mm |
| Displacement volume (Vd) | 39.15 cm³ |
| Efficiency bandwidth product (EBP) | 115.4 |
Motor
| Voice coil height | 14 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1.07 T |
| Magnet weight | 0.36 kg |
Mounting
| Overall diameter | 152.5 mm |
|---|---|
| Faceplate | Not round (see the maker's drawing) |
| Cutout diameter (suggested) | ≈ 123.0 mm |
| Mounting depth | 69 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.89 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
| Basket | Reinforced Plastic |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 5″ SB13PFC25-8 Datasheet
- SB13PFC25-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
