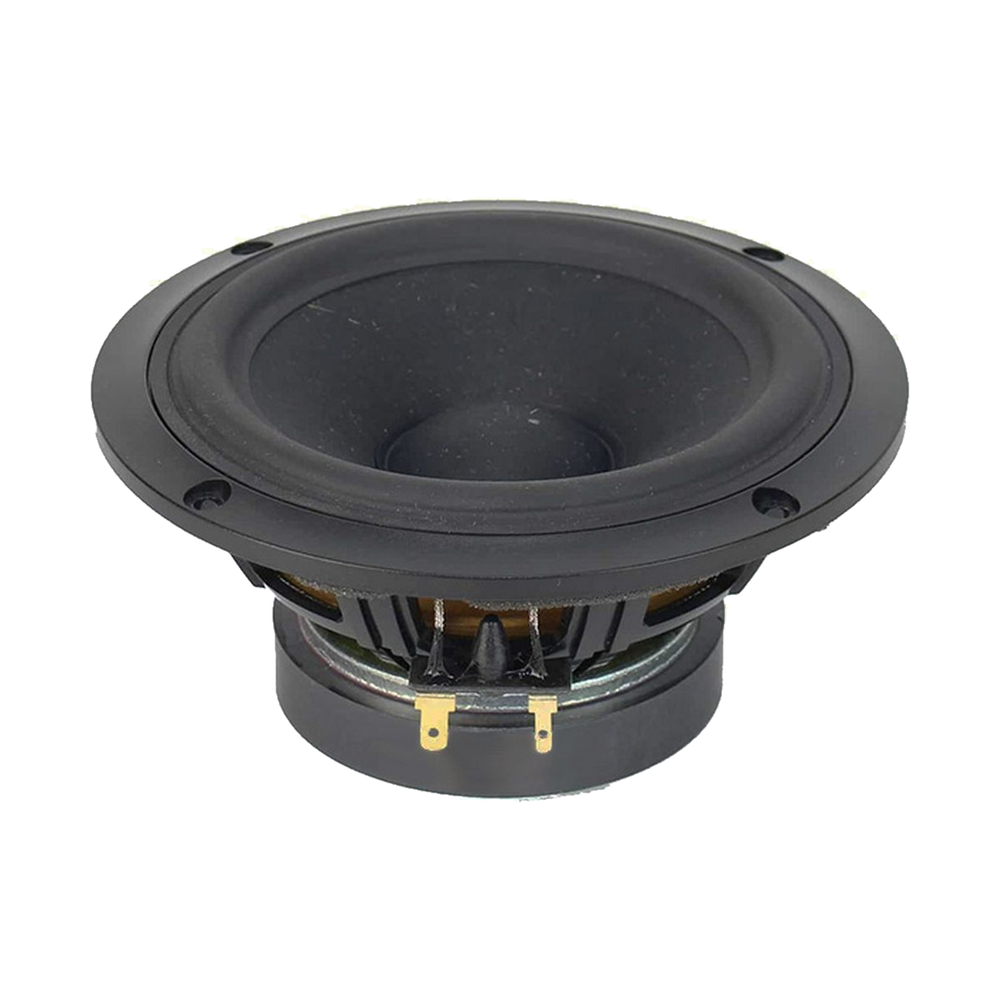

SB Acoustics - 5" PFCR Mid-Woofer - SB13PFCR25-8

SB Acoustics - 5" PFCR Mid-Woofer - SB13PFCR25-8

Regular price $48.95
Regular price Sale price $48.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

Features

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibres made in-house
  • Soft low damping rubber surround for improved transient response
  • Optimised motor system
  • Vented coil former for low compression
  • Non-resonant long life lead wires

Specifications

General

Driver type Mid-Woofer
Nominal impedance 8Ω
Power handling (RMS) 40 W
Sensitivity 87 dB

Thiele/Small parameters

Resonant frequency (Fs) 45 Hz
DC resistance (Re) 5.6 Ω
Voice coil inductance (Le) 0.77 mH
Mechanical Q (Qms) 2.2
Electrical Q (Qes) 0.39
Total Q (Qts) 0.33
Equivalent volume (Vas) 13.4 L
Compliance (Cms) 1.25 mm/N
Moving mass (Mms) 10 g
Mechanical resistance (Rms) 1.4 kg/s
Force factor (Bl) 6.2 T·m
Effective piston area (Sd) 87 cm²
Linear excursion (Xmax, one-way) 4.5 mm
Displacement volume (Vd) 39.15 cm³
Efficiency bandwidth product (EBP) 115.4

Motor

Voice coil height 14 mm
Air gap height 5 mm
Magnetic flux density 1.07 T
Magnet weight 0.36 kg

Mounting

Overall diameter 150.5 mm
Cutout diameter (suggested) ≈ 123.0 mm
Mounting depth 69 mm
Flange thickness 4.9 mm
Bolt circle diameter 140 mm
Mounting holes 4
Mounting hole diameter 5 mm
Voice coil diameter 25.4 mm
Weight 0.91 kg

Materials

Cone Paper
Surround Rubber
Basket Reinforced Plastic
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
