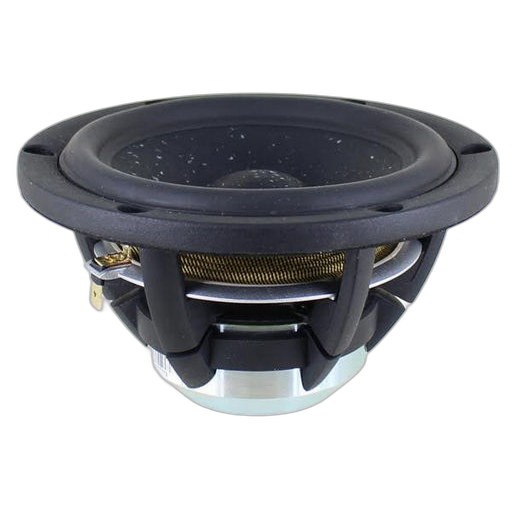

SB Acoustics - 5" Satori Mid-Range - MR13P-4
SB Acoustics - 5" Satori Mid-Range - MR13P-4
Regular price
$284.95
Regular price
Sale price
$284.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
Features
- Vented aerodynamic cast aluminium chassis for optimum strength and low compression.
- Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house.
- Soft low damping rubber surround for optimum transient response.
- Advanced BIMAX spider for improved linearity.
- Powerful optimised low distortion neodymium motor system.
- Non-conducting fibre glass voice coil former for minimum damping.
- Extended copper sleeve on pole piece for low inductance and reduced distortion.
- CCAW voice coil for reduced moving mass.
- Long life silver lead wires attached 180° apart for improved stability.
- Vented pole piece and coil former for reduced compression.
- Low piston to chassis diameter ratio.
- Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

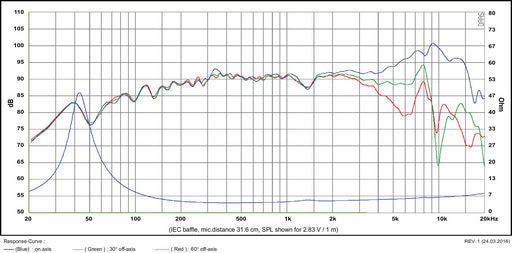

Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 4Ω |
| Series | Satori |
| Power handling (RMS) | 30 W |
| Sensitivity | 91 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 41 Hz |
|---|---|
| DC resistance (Re) | 3.3 Ω |
| Voice coil inductance (Le) | 0.11 mH |
| Mechanical Q (Qms) | 2.8 |
| Electrical Q (Qes) | 0.25 |
| Total Q (Qts) | 0.23 |
| Equivalent volume (Vas) | 19.4 L |
| Compliance (Cms) | 2.79 mm/N |
| Moving mass (Mms) | 5.4 g |
| Mechanical resistance (Rms) | 0.5 kg/s |
| Force factor (Bl) | 4.3 T·m |
| Effective piston area (Sd) | 70 cm² |
| Linear excursion (Xmax, one-way) | 3 mm |
| Displacement volume (Vd) | 21 cm³ |
| Efficiency bandwidth product (EBP) | 164 |
Motor
| Voice coil height | 11 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1.08 T |
| Magnet weight | 0.1 kg |
Mounting
| Overall diameter | 132 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 111.6 mm |
| Mounting depth | 63.5 mm |
| Flange thickness | 7.05 mm |
| Bolt circle diameter | 121 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 30.5 mm |
| Weight | 0.78 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 5″ SATORI MR13P-4 Datasheet
- MR13P-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
