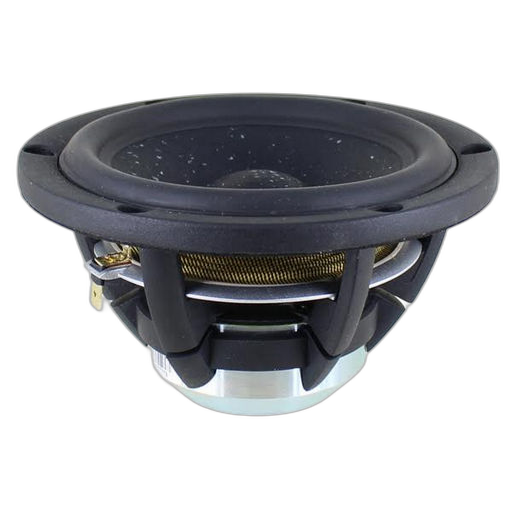

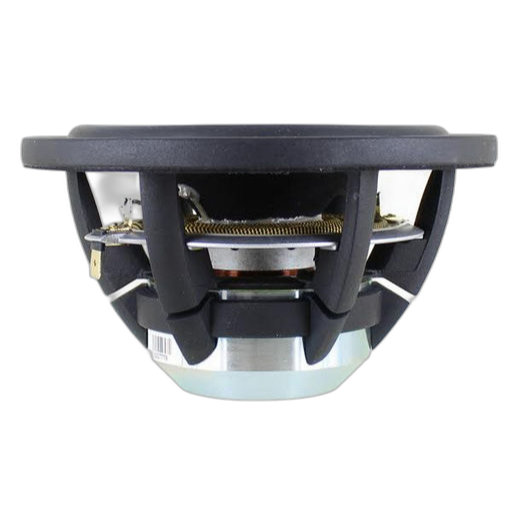

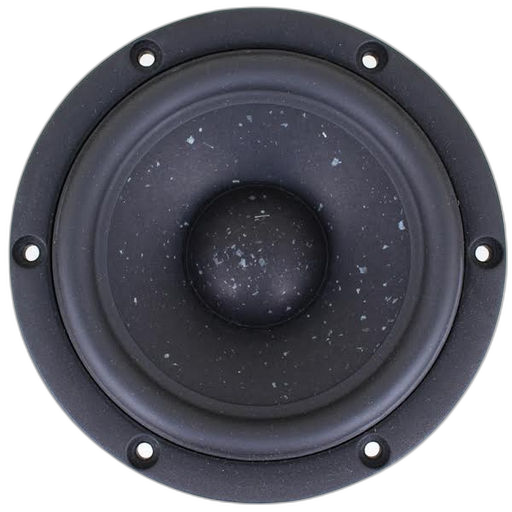

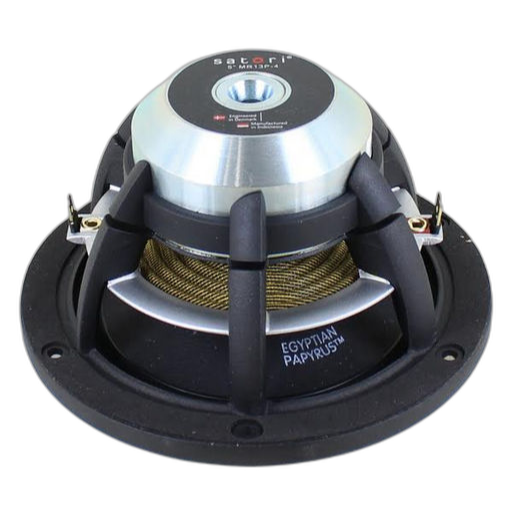

SB Acoustics - 5" Satori Mid-Range - MR13P-8

SB Acoustics - 5" Satori Mid-Range - MR13P-8

Regular price $259.95 AUD
Regular price Sale price $259.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

Features:

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression.
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house.
  • Soft low damping rubber surround for optimum transient response.
  • Advanced BIMAX spider for improved linearity.
  • Powerful optimized low distortion neodymium motor system.
  • Non-conducting fibre glass voice coil former for minimum damping.
  • Extended copper sleeve on pole piece for low inductance and reduced distortion.
  • CCAW voice coil for reduced moving mass.
  • Long life silver lead wires attached 180° apart for improved stability.
  • Vented pole piece and coil former for reduced compression.
  • High piston to chassis diameter ratio.
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

Specifications:

Code MR13P-8
Description 5" Satori midrange
Type Midrange
Size 5"
Price Type each
Power 30Wrms
Coil 30.5mmØ
Width 132mmØ
Impedance 8Ω (Re 6.8Ω)
Depth 63.5mm
Mag. 0.1kg
Sens. 88dB
Re 6.8Ω
Qms 4.25
Qes 0.33
Qts 0.31
Vas 12.5L
Sd 70cm²
Cms 1.86mm/N
Fs 45Hz
Mms 6g
Zn 0.11mH
Le 0.11mH
Rms 0.4kg/s
Diam. 127mmØ
Series Satori
Materials Papyrus
Impedance (Ohm) 8 ohm
Power (RMS) 0-50 Watt
Inch 5
Colour Black Cone
Bl 6.1Tm
Xmax 6mm
Flux (lm) 1.08T
Prms 30W
Grille SAT13-GRL
Sold As Single
