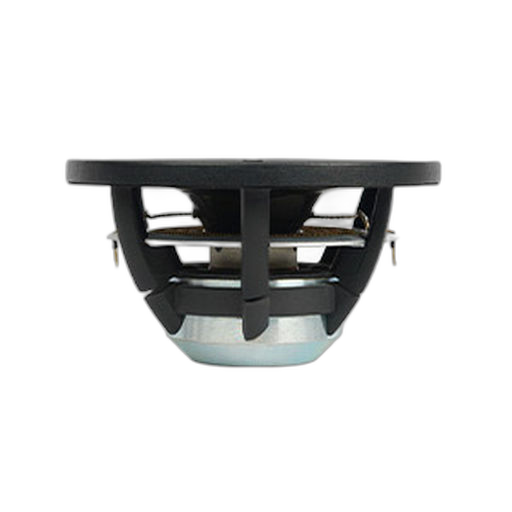

SB Acoustics - 5" Satori TeXtreme Mid-Range - MR13TX-4
SB Acoustics - 5" Satori TeXtreme Mid-Range - MR13TX-4
Regular price
$494.95
Regular price
Sale price
$494.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
Features
- Advanced TeXtreme® cone
- Vented aerodynamic cast aluminium chassis
- Inverted soft low damping rubber surround
- Advanced BIMAX spider
- Powerful optimised low distortion neodymium motor system
- Extended copper sleeve on pole piece
- Non-conducting fibreglass voice coil former
- Vented pole piece and voice coil
- Light weight CCAW voice coil
- Long life silver lead wires

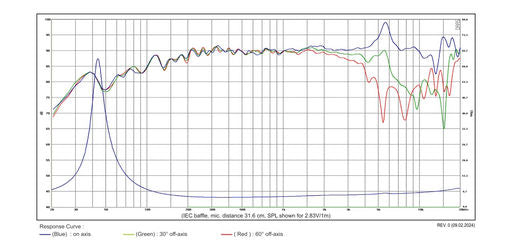

Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 4Ω |
| Series | Satori |
| Power handling (RMS) | 30 W |
| Sensitivity | 90 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 44 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Voice coil inductance (Le) | 0.11 mH |
| Mechanical Q (Qms) | 4.98 |
| Electrical Q (Qes) | 0.28 |
| Total Q (Qts) | 0.27 |
| Equivalent volume (Vas) | 12.2 L |
| Compliance (Cms) | 1.81 mm/N |
| Moving mass (Mms) | 7.2 g |
| Mechanical resistance (Rms) | 0.4 kg/s |
| Force factor (Bl) | 4.9 T·m |
| Effective piston area (Sd) | 69 cm² |
| Linear excursion (Xmax, one-way) | 3 mm |
| Displacement volume (Vd) | 20.7 cm³ |
| Efficiency bandwidth product (EBP) | 157.1 |
Motor
| Voice coil height | 11 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1.08 T |
| Magnet weight | 0.1 kg |
Mounting
| Overall diameter | 132 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 111.3 mm |
| Mounting depth | 63.5 mm |
| Flange thickness | 7.05 mm |
| Bolt circle diameter | 121 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 30.5 mm |
| Weight | 0.79 kg |
Materials
| Cone | TeXtreme |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 5″ SATORI MR13TX-4 Datasheet

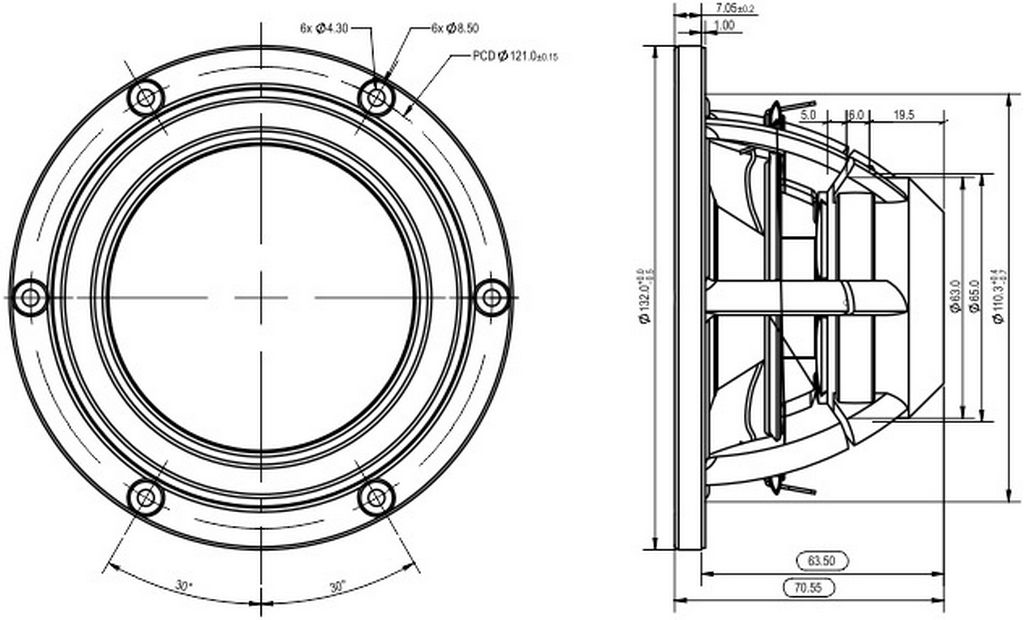

- MR13TX-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
