SB Acoustics - 5x8" SFCR Mid-Woofer - SB15SFCR39-8
SB Acoustics - 5x8" SFCR Mid-Woofer - SB15SFCR39-8
Regular price
$75.95
Regular price
Sale price
$75.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

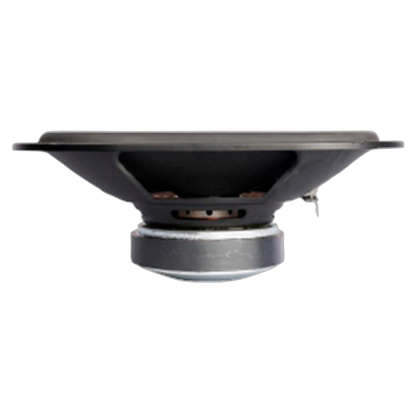

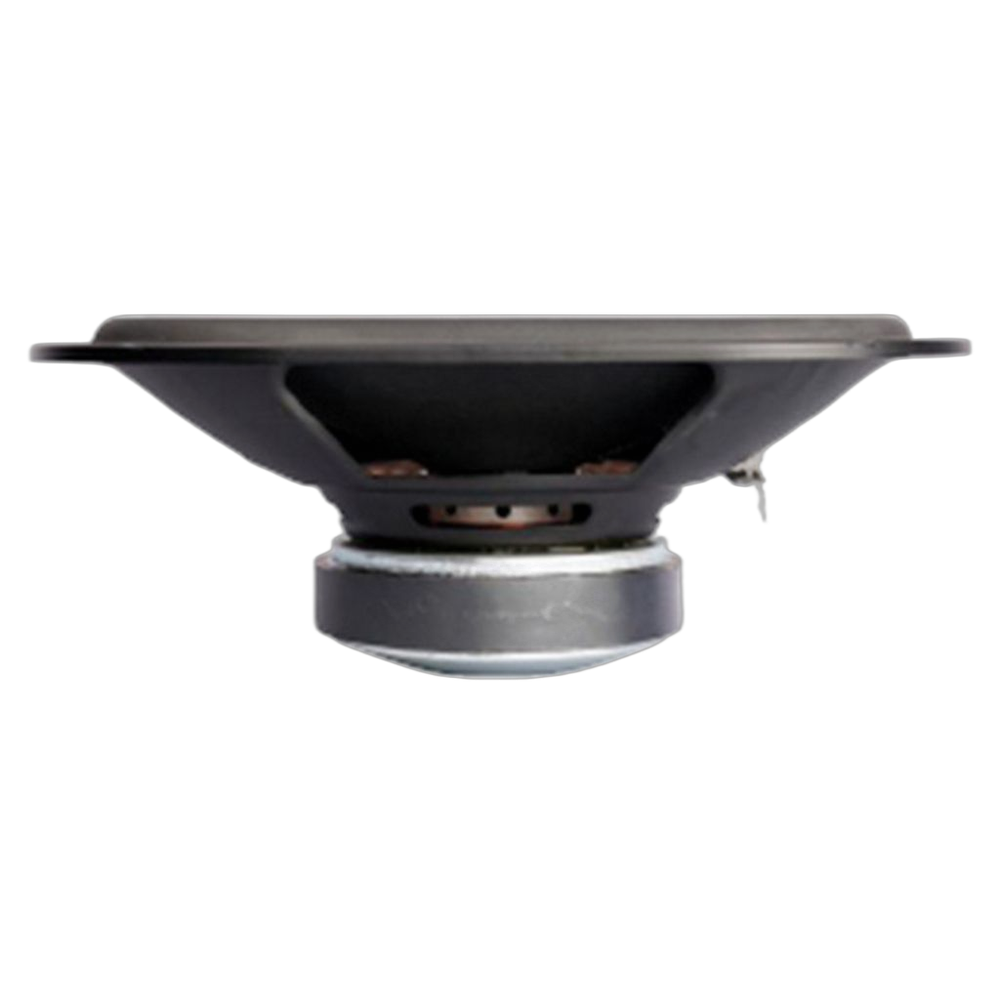

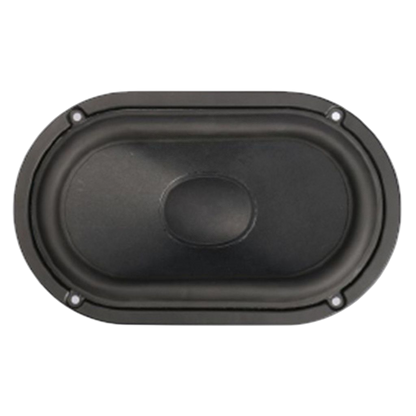

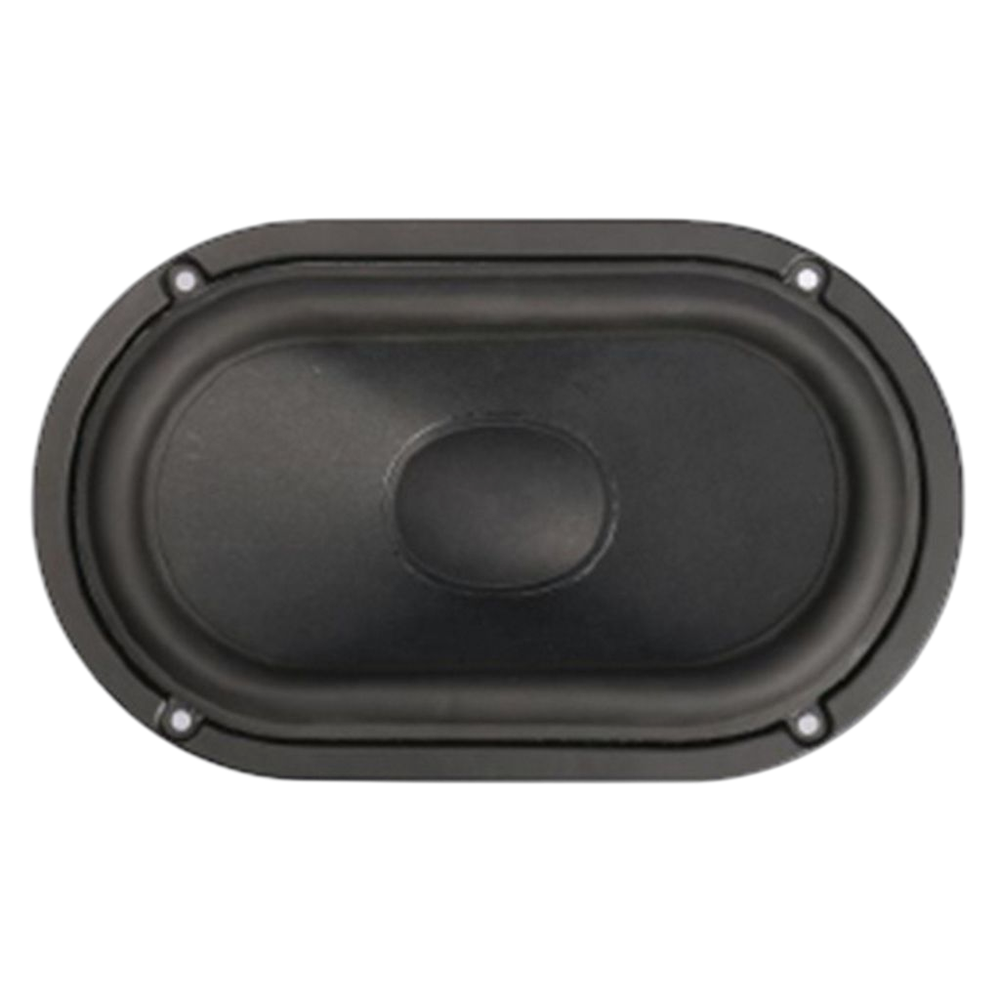

The SB Acoustics SB15SFCR39 is a unique 5x8 inch 'racetrack' style midwoofer featuring a robust vented steel chassis and a hard paper cone. This driver has that lovely warm, fast paper cone sound with good bass weight. Ideal for tall slim cabinets. A uique design for a little difference and more surface area in a smaller cabinet. Passive radiator available.
Features
- Racetrack design
- Hard paper cone (made in-house)
- Optimised motor system
- Non-conductive reinforced vented coil former
- Symmetric suspension
- Low damping rubber surround
- Long life silver lead wires
- Vented chassis
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5x8" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 80 W |
| Sensitivity | 87 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 32 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Voice coil inductance (Le) | 1.3 mH |
| Mechanical Q (Qms) | 7.11 |
| Electrical Q (Qes) | 0.45 |
| Total Q (Qts) | 0.42 |
| Equivalent volume (Vas) | 48.3 L |
| Compliance (Cms) | 1.08 mm/N |
| Moving mass (Mms) | 23 g |
| Mechanical resistance (Rms) | 0.65 kg/s |
| Force factor (Bl) | 8 T·m |
| Effective piston area (Sd) | 178 cm² |
| Linear excursion (Xmax, one-way) | 5 mm |
| Displacement volume (Vd) | 89 cm³ |
| Efficiency bandwidth product (EBP) | 71.11 |
Motor
| Voice coil height | 16 mm |
|---|---|
| Air gap height | 6 mm |
| Magnetic flux density | 0.94 T |
| Magnet weight | 0.54 kg |
Mounting

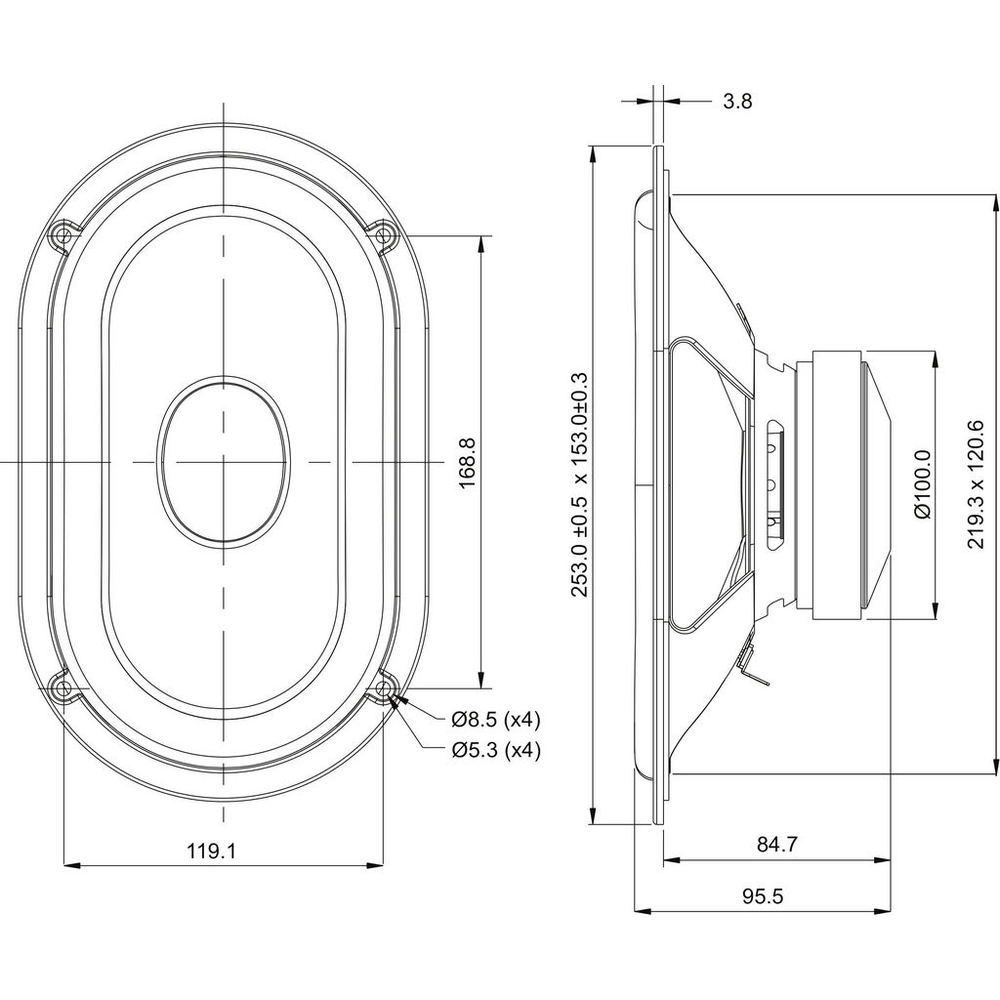

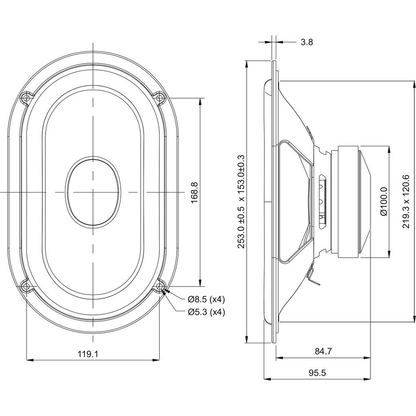

| Faceplate | Not round, 153 × 252.8 mm (see the maker's drawing) |
|---|---|
| Mounting depth | 84 mm |
| Voice coil diameter | 38.5 mm |
| Weight | 1.65 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 5×8″ SB15SFCR39-8 Datasheet
- SB15SFCR39-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Where do these figures come from? See the source of each one
