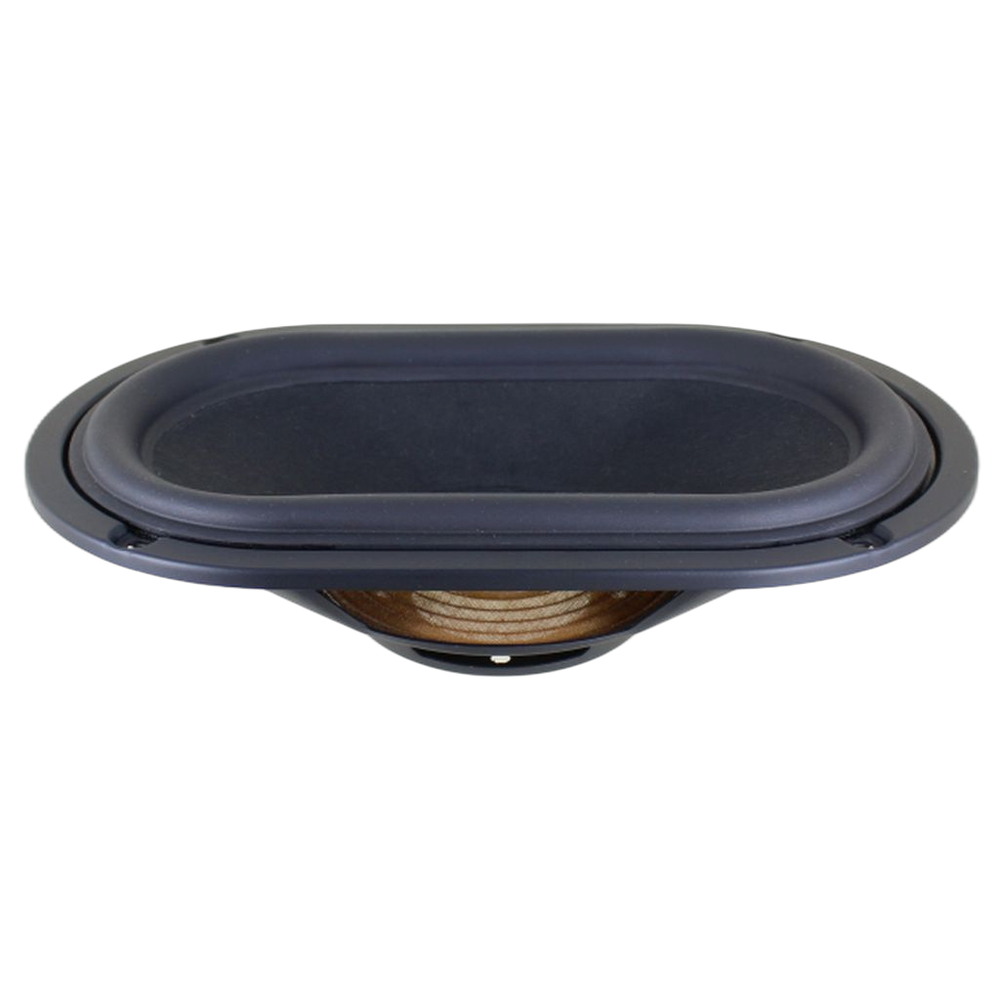

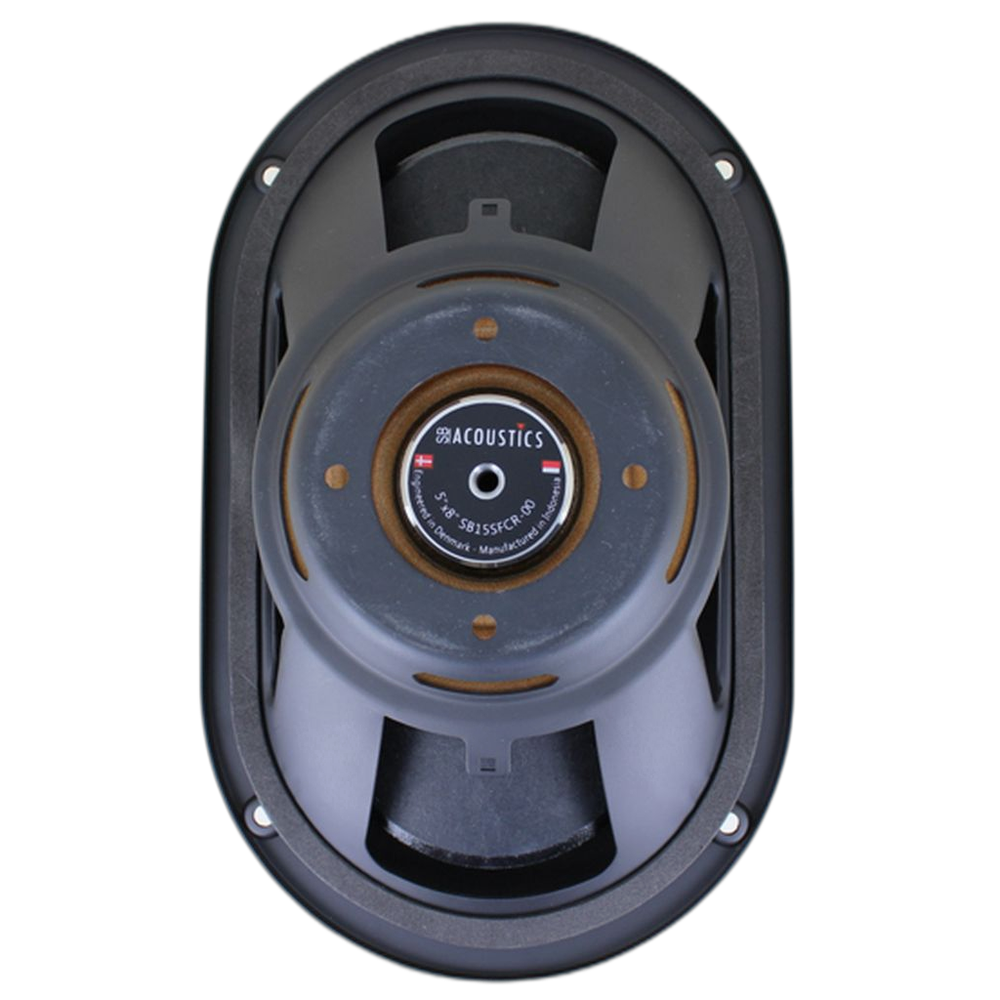

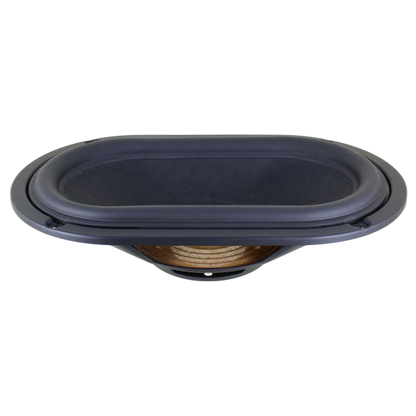

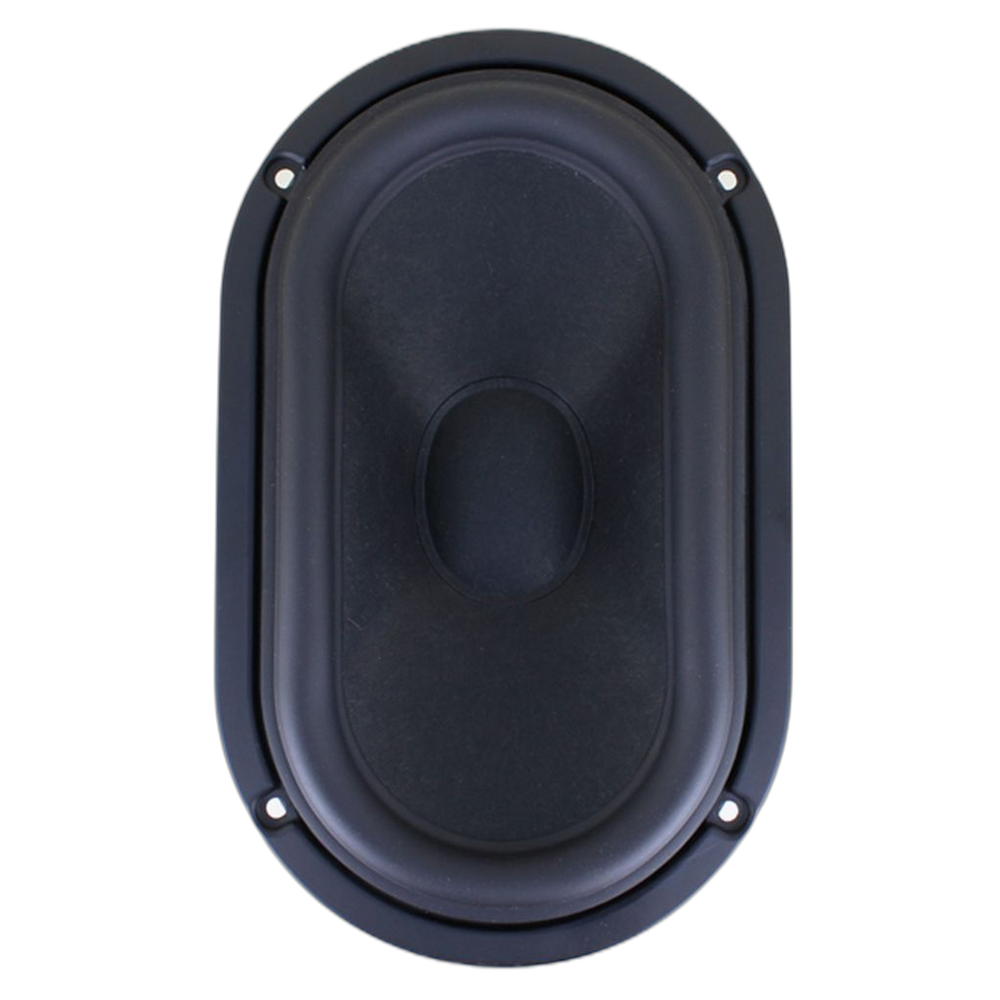

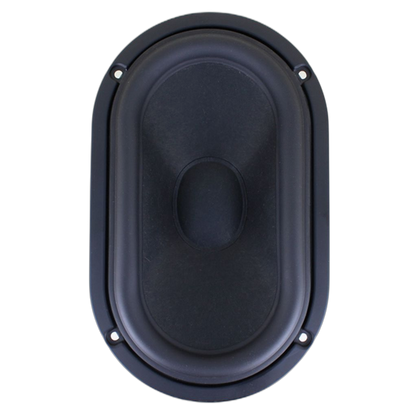

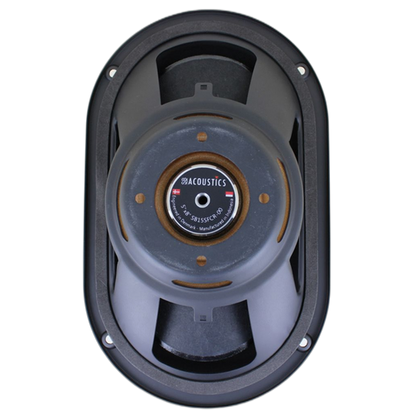

SB Acoustics - 5x8" SFCR Passive Radiator - SB15SFCR-00
SB Acoustics - 5x8" SFCR Passive Radiator - SB15SFCR-00
Regular price
$55.95
Regular price
Sale price
$55.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Designed to match the new SB15SFCR390-8 5"x 8" paper cone woofer
Features
- Racetrack design
- Hard paper cone (made in-house)
- Low damping rubber surround
- Symmetric suspension
- Easily adjustable moving mass
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 5x8" |
Thiele/Small parameters
| Resonant frequency (Fs) | 21 Hz |
|---|---|
| Mechanical Q (Qms) | 2.7 |
| Equivalent volume (Vas) | 41.8 L |
| Compliance (Cms) | 0.93 mm/N |
| Moving mass (Mms) | 62 g |
| Mechanical resistance (Rms) | 0.48 kg/s |
| Effective piston area (Sd) | 178 cm² |
| Mechanical excursion (Xmech) | 11 mm |
Mounting

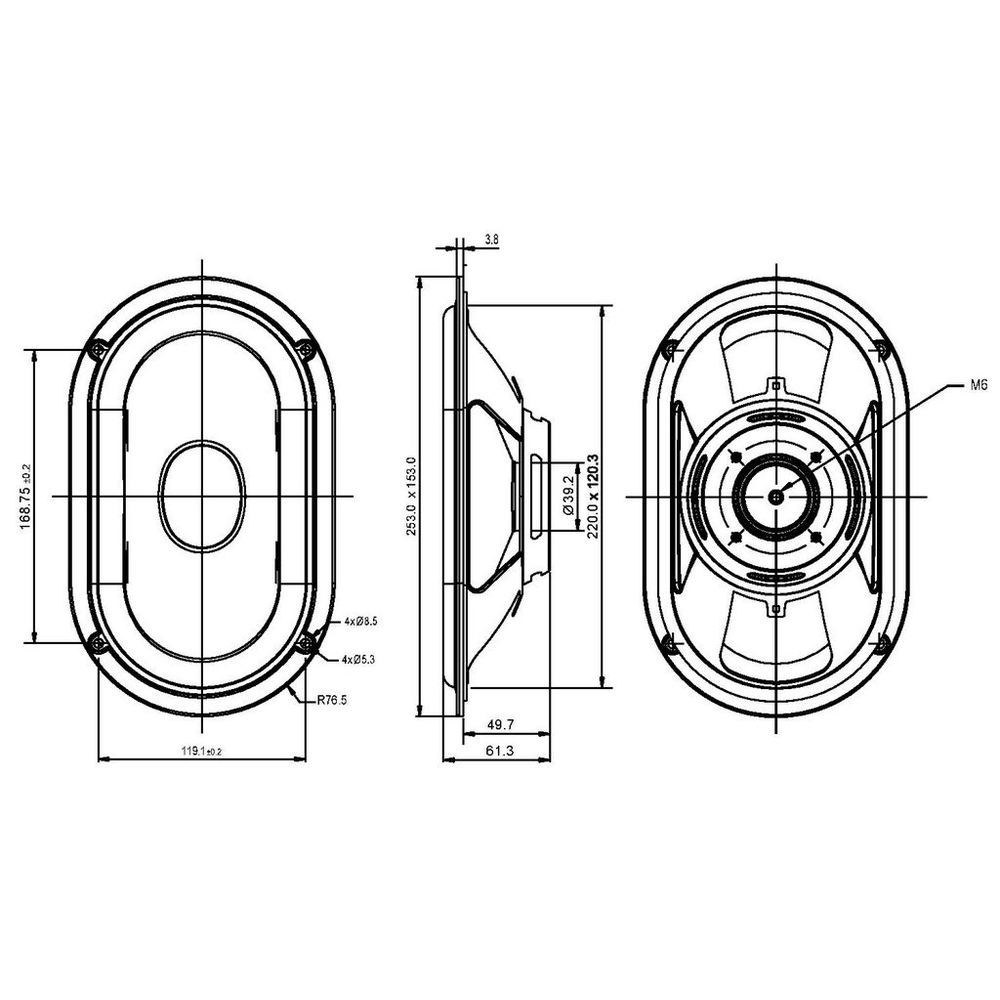

| Faceplate | Not round, 153 × 252.8 mm (see the maker's drawing) |
|---|---|
| Mounting depth | 49.7 mm |
| Weight | 0.282 kg |
| Dimensions | 220 × 120 mm |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
Downloads
- 5×8″ SB15SFCR-00 Datasheet
- SB15SFCR-00 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Some figures here aren't checked against SB Acoustics' datasheet yet. See which
