SB Acoustics

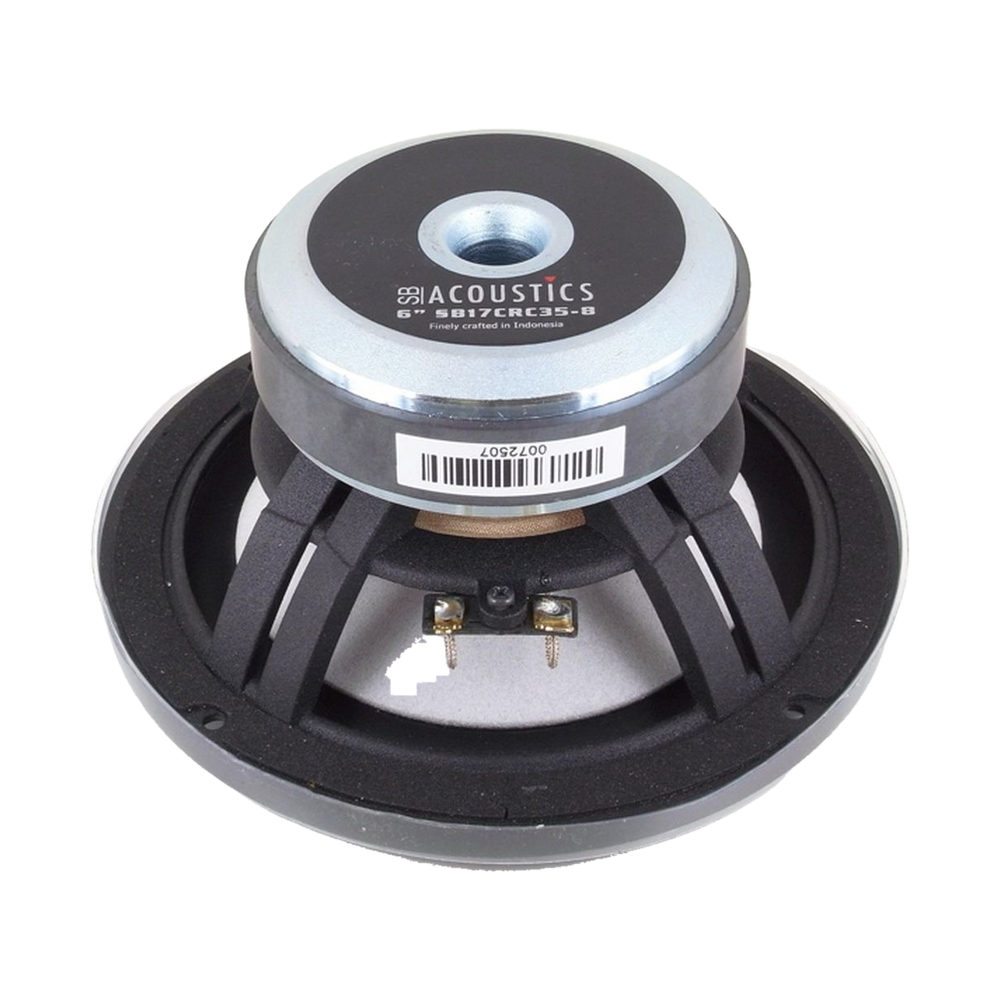

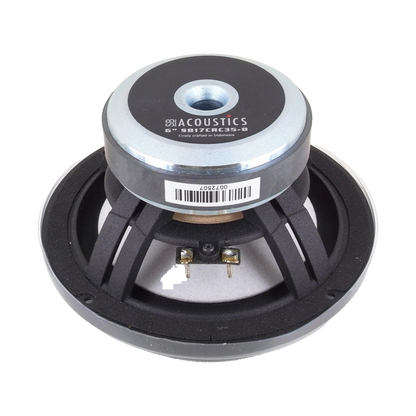

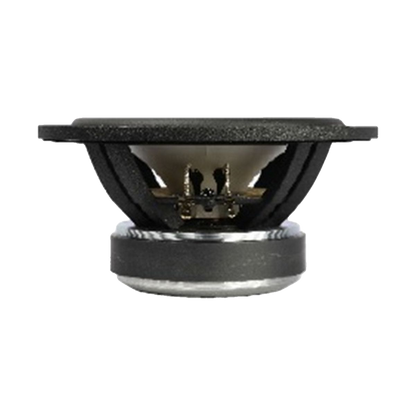

SB Acoustics - 6.5" CRC Mid-Woofer - SB17CRC35-8
SB Acoustics - 6.5" CRC Mid-Woofer - SB17CRC35-8
Regular price
$174.95 AUD
Regular price
Sale price
$174.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

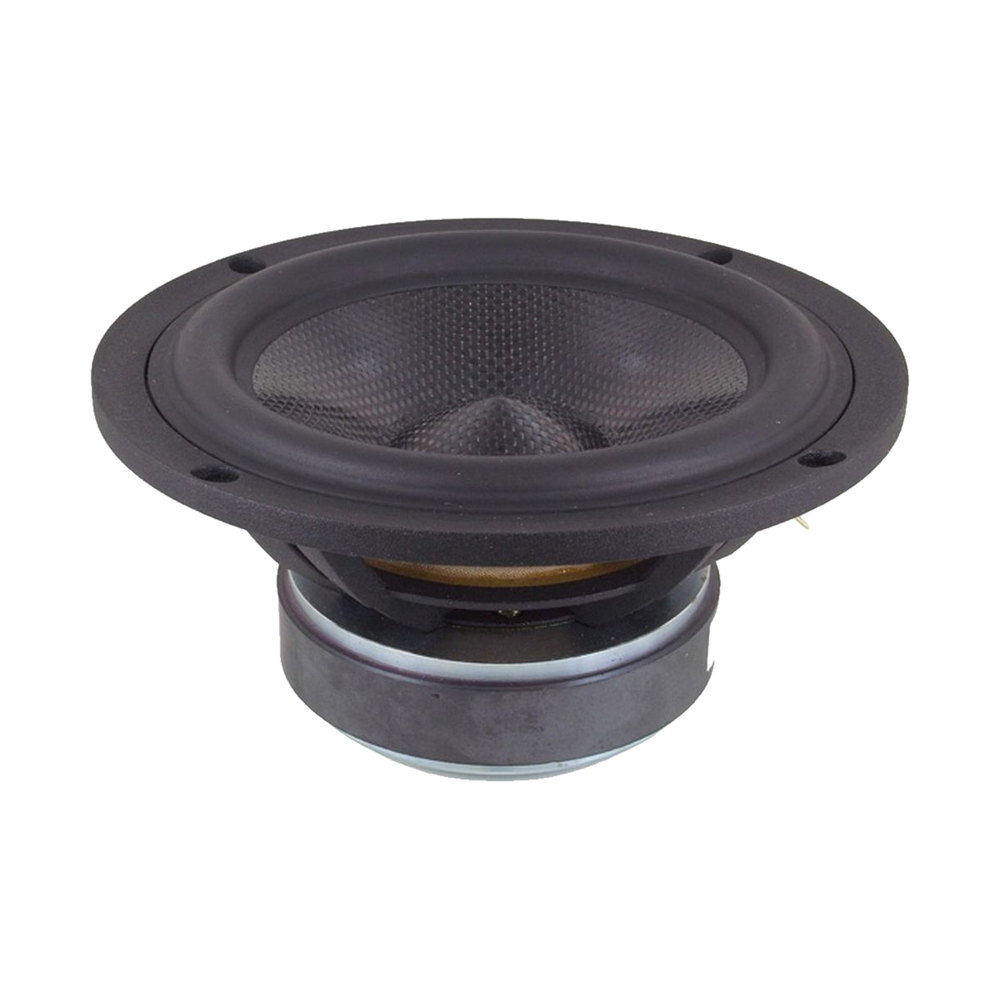

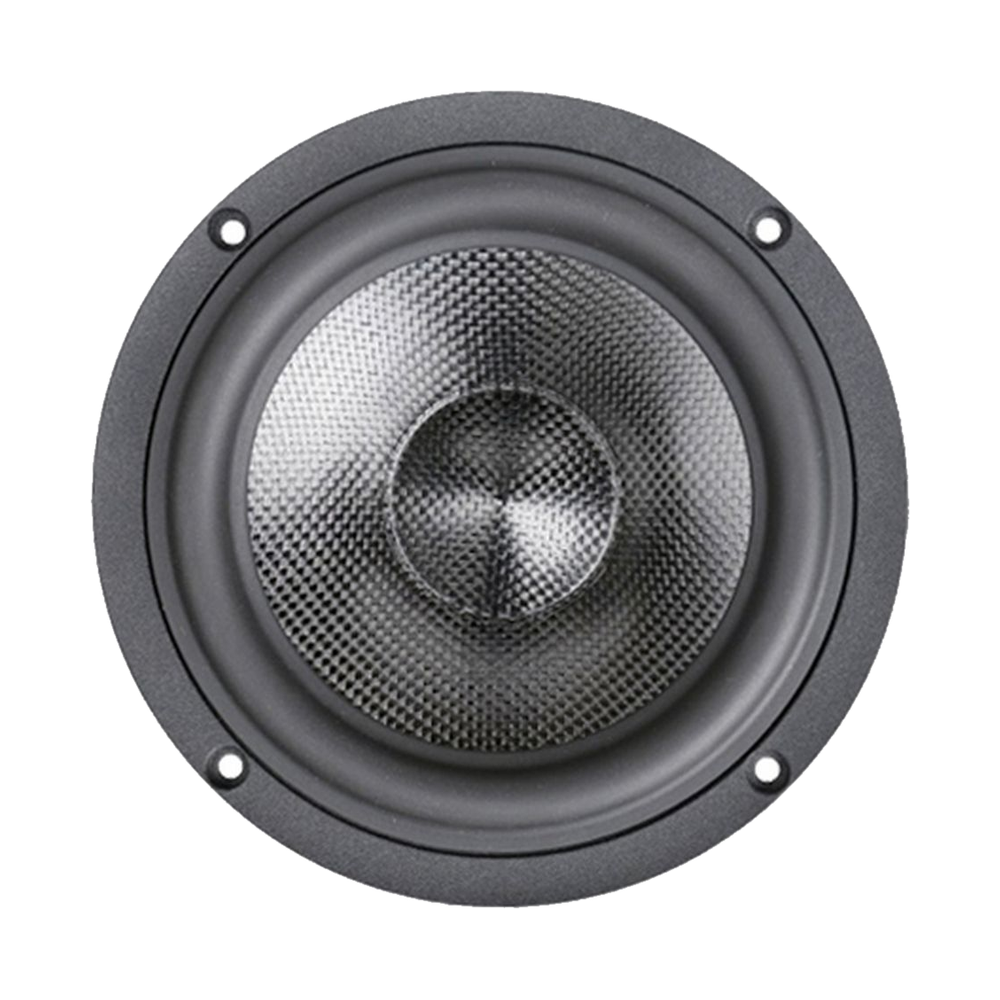

A 6.5" mid-woofer from SB Acoustics with a woven carbon fibre and Rohacell® sandwich cone in a vented cast aluminium chassis. It has a low-damping rubber surround, a CCAW voice coil on a fibreglass former and a copper sleeve on the vented pole piece for low inductance and low distortion.
Features
- Rohacell®/Carbon fibre sandwich cone for optimised stiffness/damping ratio
- Vented cast aluminium chassis for optimum strength and low compression
- Low damping rubber surround for improved transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 60 W |
| Sensitivity | 87 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 28 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Voice coil inductance (Le) | 0.15 mH |
| Mechanical Q (Qms) | 3.9 |
| Electrical Q (Qes) | 0.37 |
| Total Q (Qts) | 0.34 |
| Equivalent volume (Vas) | 48 L |
| Compliance (Cms) | 2.43 mm/N |
| Moving mass (Mms) | 13.3 g |
| Mechanical resistance (Rms) | 0.6 kg/s |
| Force factor (Bl) | 6 T·m |
| Effective piston area (Sd) | 118 cm² |
| Linear excursion (Xmax, one-way) | 5.5 mm |
| Displacement volume (Vd) | 64.9 cm³ |
| Efficiency bandwidth product (EBP) | 75.68 |
Motor
| Voice coil height | 16 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1 T |
| Magnet weight | 0.54 kg |
Mounting
| Overall diameter | 171 mm |
|---|---|
| Mounting depth | 75 mm |
| Flange thickness | 6.5 mm |
| Bolt circle diameter | 159 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 35.5 mm |
| Weight | 1.56 kg |
Materials
| Cone | Carbon |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 6″ SB17CRC35-8 Datasheet PDF, 612 KB
