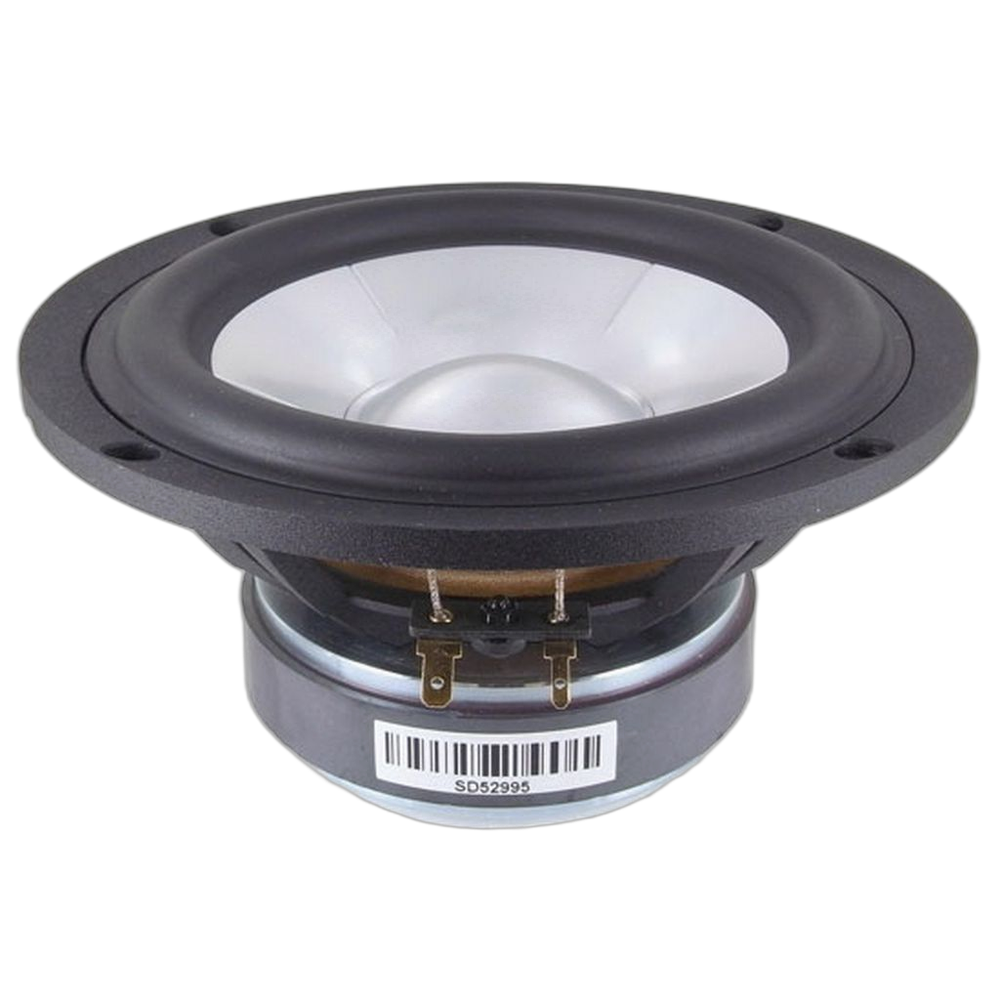

SB Acoustics - 6.5" NAC Mid-Woofer - SB17NAC35-4
SB Acoustics - 6.5" NAC Mid-Woofer - SB17NAC35-4
Regular price
$134.95
Regular price
Sale price
$134.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features

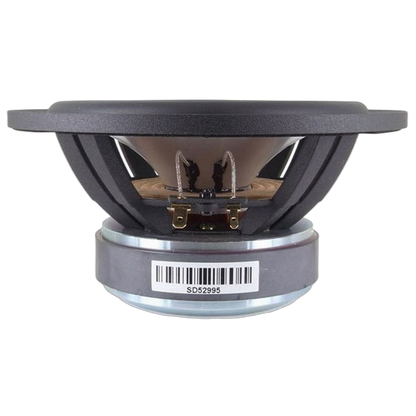

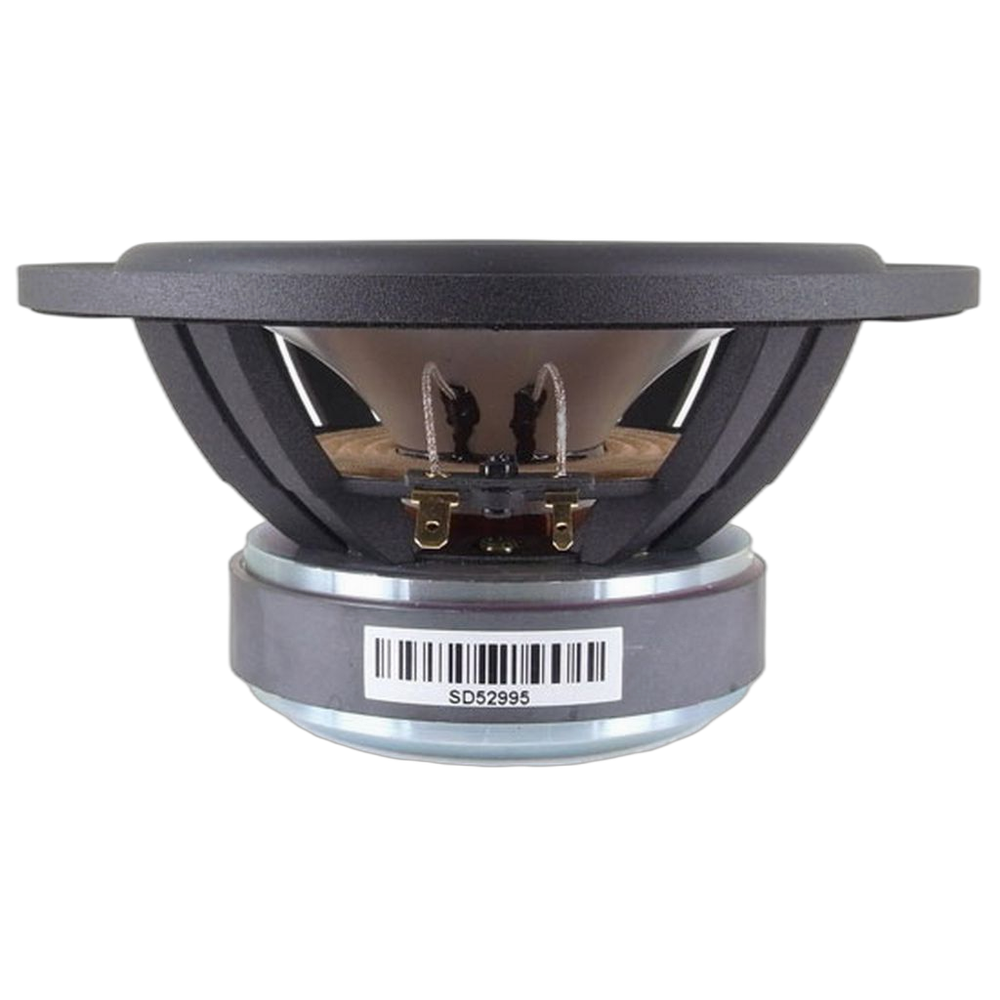

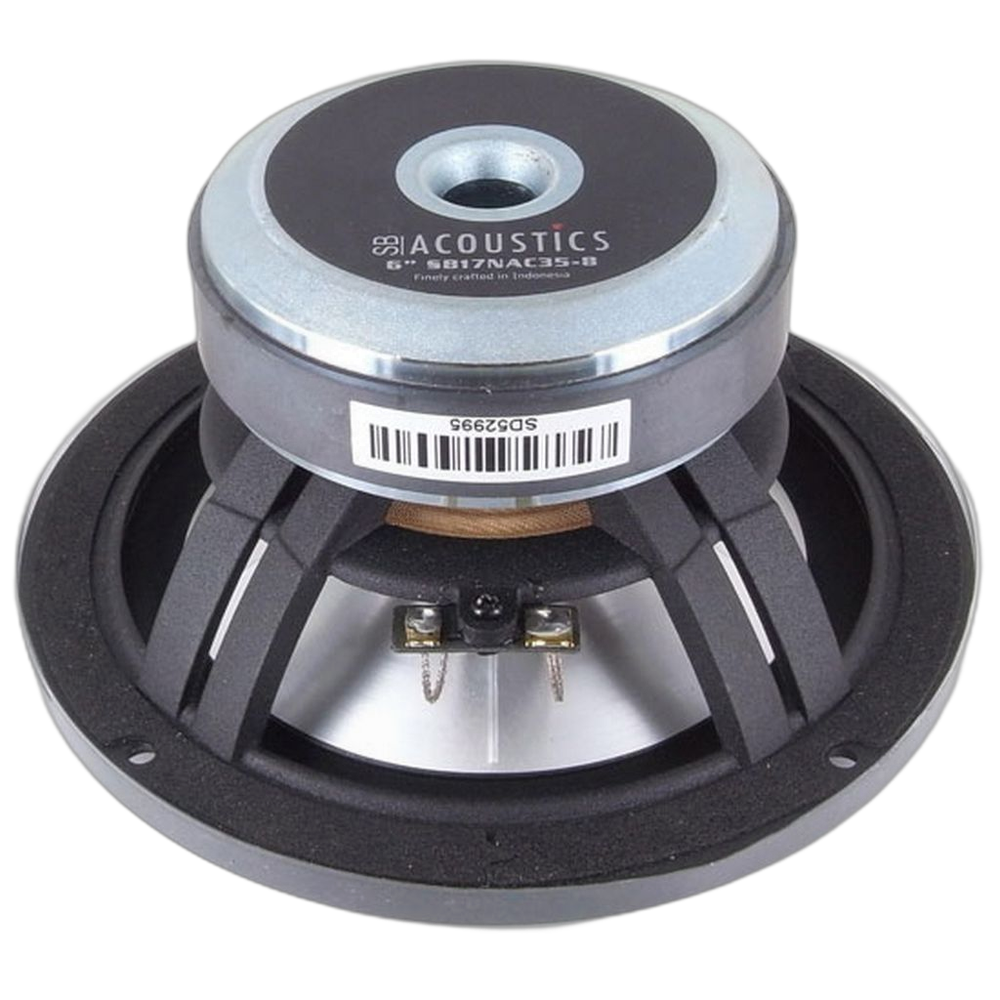

- Vented cast aluminium chassis for optimum strength and low compression

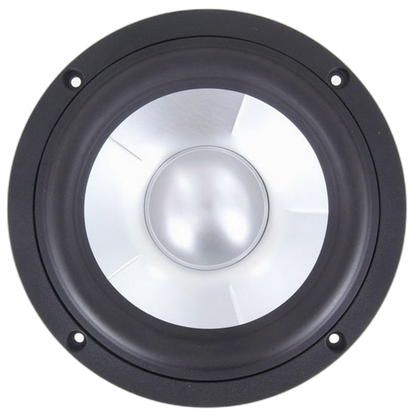

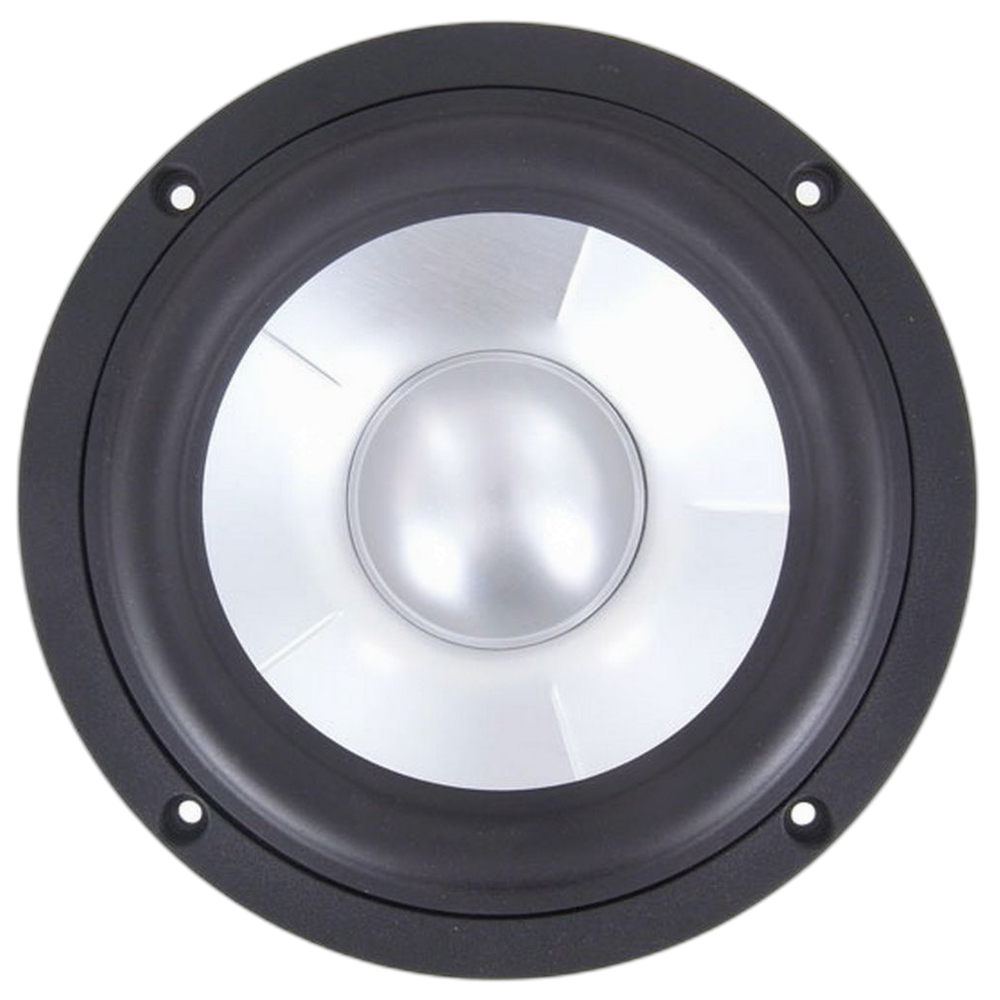

- Geometrically reinforced aluminium cone for optimum piston operation and reduced break-up
- Soft low damping rubber surround for improved transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression

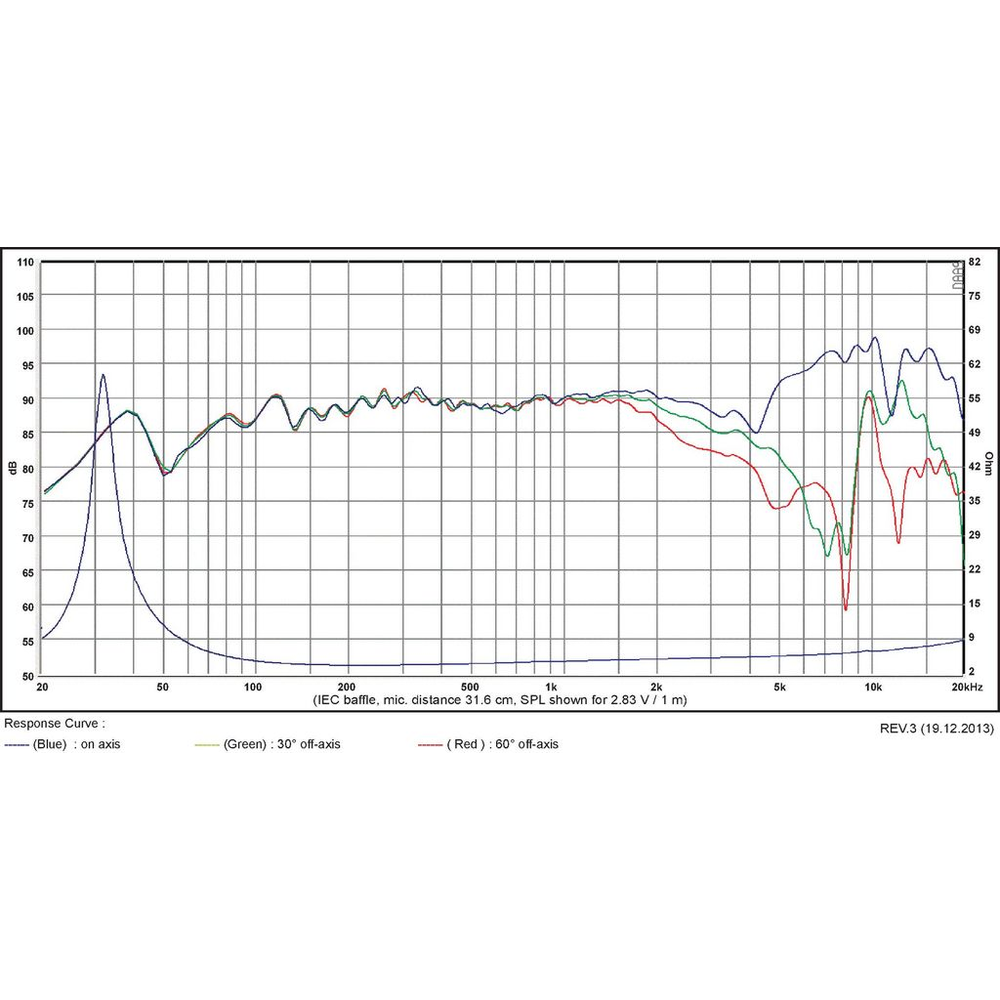

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 60 W |
| Sensitivity | 90 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 32 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Voice coil inductance (Le) | 0.13 mH |
| Mechanical Q (Qms) | 5.95 |
| Electrical Q (Qes) | 0.34 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 33 L |
| Compliance (Cms) | 1.67 mm/N |
| Moving mass (Mms) | 14.8 g |
| Mechanical resistance (Rms) | 0.5 kg/s |
| Force factor (Bl) | 5.2 T·m |
| Effective piston area (Sd) | 118 cm² |
| Linear excursion (Xmax, one-way) | 5.5 mm |
| Displacement volume (Vd) | 64.9 cm³ |
| Efficiency bandwidth product (EBP) | 94.12 |
Motor
| Voice coil height | 16 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1 T |
| Magnet weight | 0.54 kg |

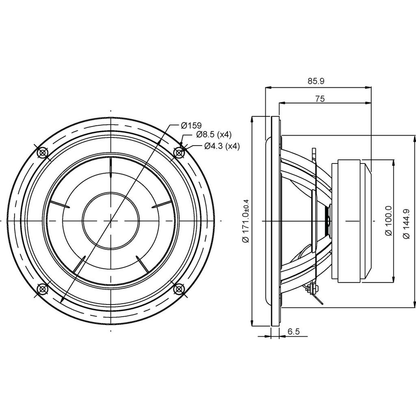

Mounting
| Overall diameter | 171 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 145.9 mm |
| Mounting depth | 75 mm |
| Flange thickness | 6.5 mm |
| Bolt circle diameter | 159 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 35.5 mm |
| Weight | 1.56 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 6″ SB17NAC35-4 Datasheet

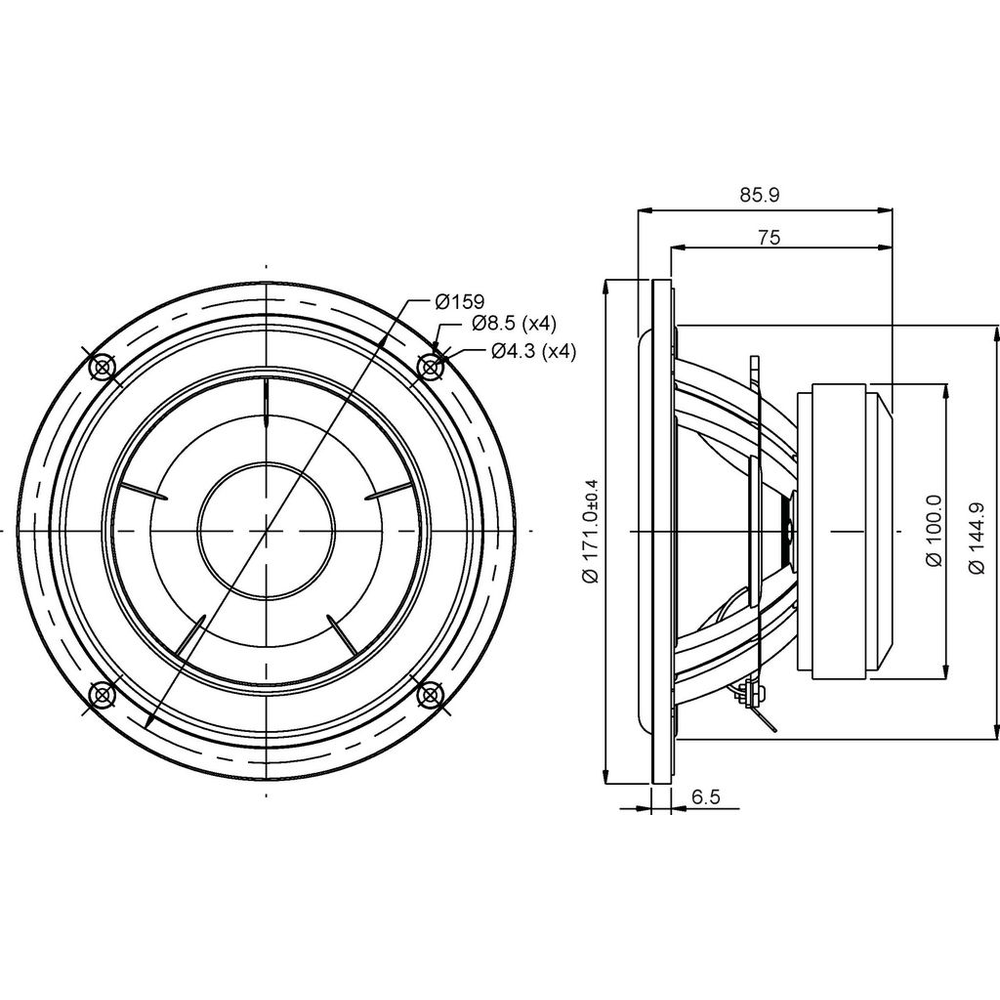

- SB17NAC35-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
