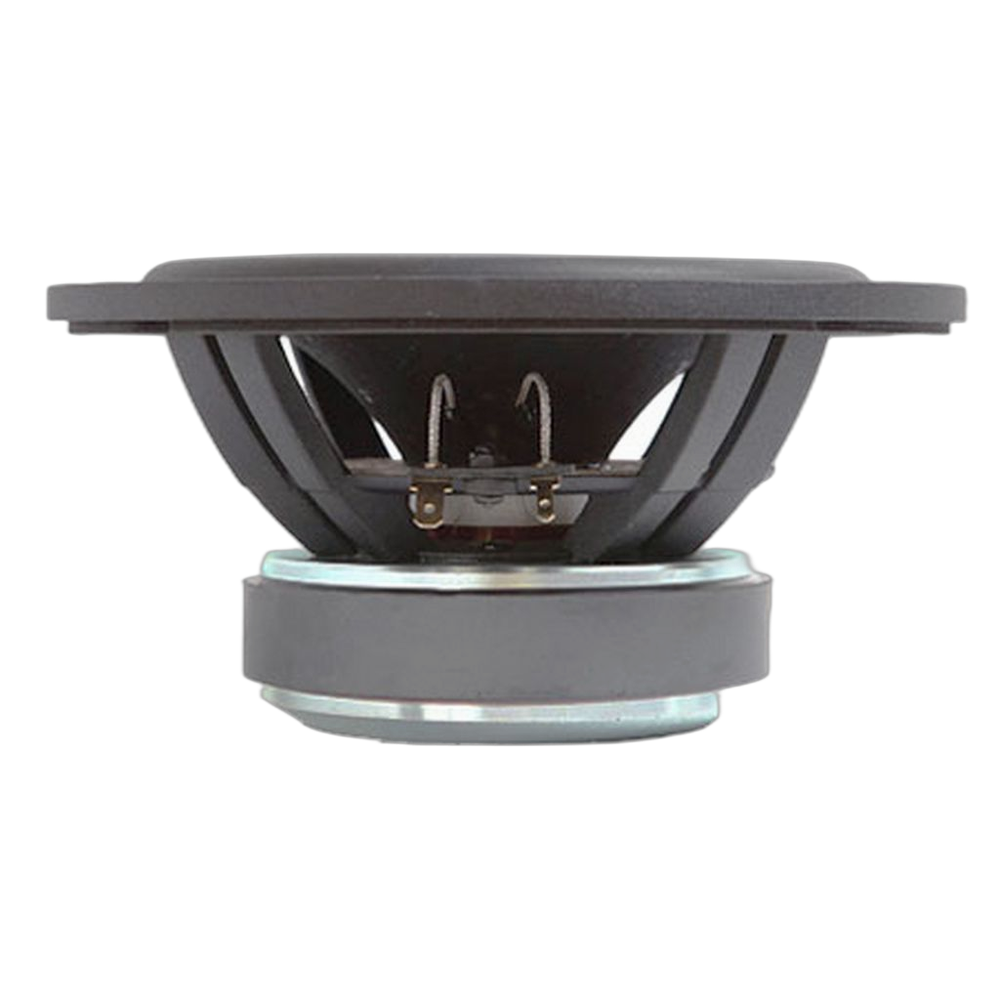

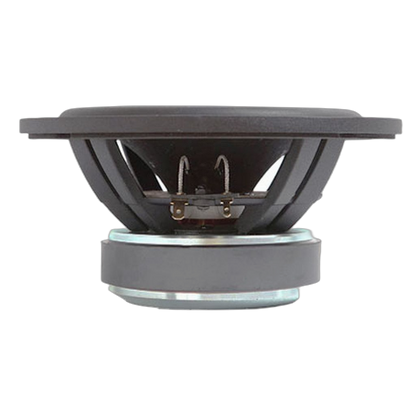

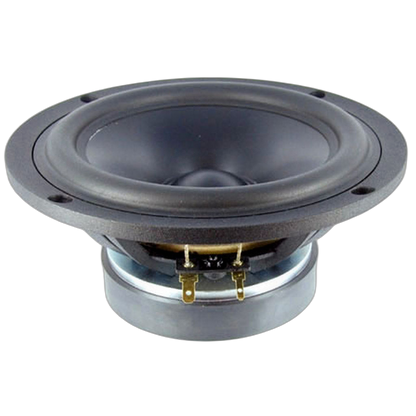

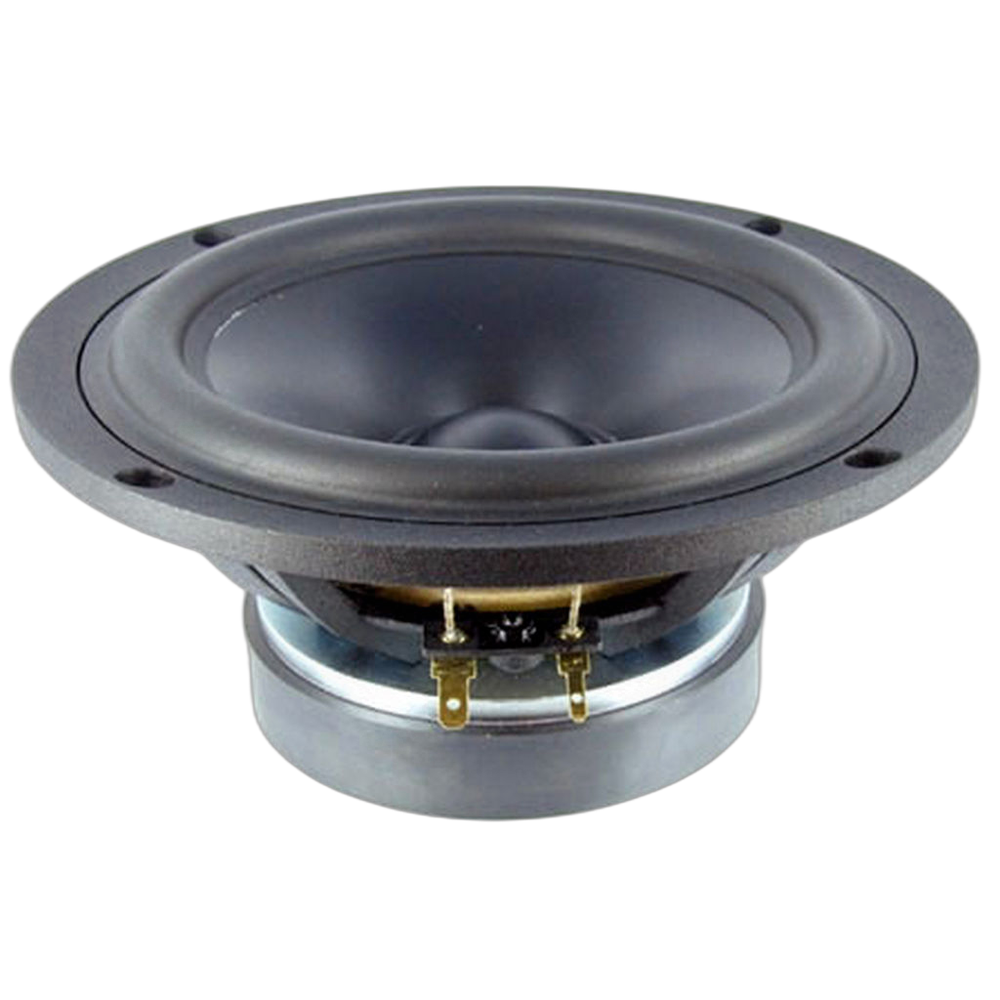

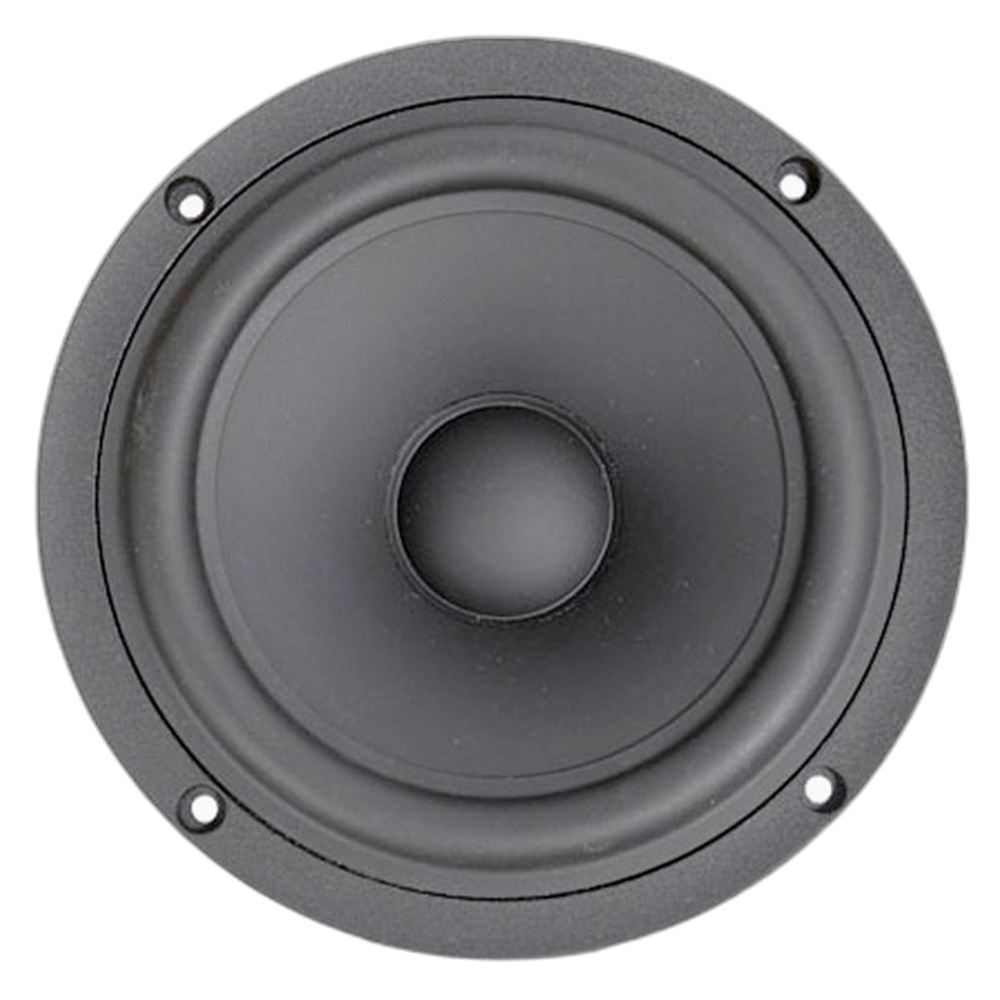

SB Acoustics - 6.5" NRXC Mid-Woofer - SB17NRXC35-4
SB Acoustics - 6.5" NRXC Mid-Woofer - SB17NRXC35-4
Regular price
$104.95
Regular price
Sale price
$104.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Backordered Product. Contact us for lead time
Couldn't load pickup availability
Description
Newly developed Norex non-resonant poly-coated fibre cone. Low damping SBR rubber surround with high exertion and resilience. Open structure cast frame for reduced reflections and compression. Aluminium alloy for light weight, non-magnetic and extra rigidity. Shorting Copper cap on pole piece. Non-inductive 30mm coil former. Suggested Alignments: Sealed box of 8 litres for an F3 of 77Hz. Vented box 14L for an F3 of 55Hz with a 5cm diameter vent by 15cm.
Features
- Vented cast aluminium chassis for optimum strength and low compression
- Proprietary cone material with natural fibres made in-house
- Soft low damping rubber surround for transient response
- Non-conducting fibre glass voice coil former for minimum damping
- Extended copper sleeve on pole piece for low inductance and low distortion
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
- Vented pole piece for reduced compression
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 60 W |
| Sensitivity | 92 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 35 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Voice coil inductance (Le) | 0.13 mH |
| Mechanical Q (Qms) | 5.5 |
| Electrical Q (Qes) | 0.34 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 35.2 L |
| Compliance (Cms) | 1.78 mm/N |
| Moving mass (Mms) | 11.6 g |
| Mechanical resistance (Rms) | 0.46 kg/s |
| Force factor (Bl) | 4.8 T·m |
| Effective piston area (Sd) | 118 cm² |
| Linear excursion (Xmax, one-way) | 5.5 mm |
| Displacement volume (Vd) | 64.9 cm³ |
| Efficiency bandwidth product (EBP) | 102.9 |
Motor
| Voice coil height | 16 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1 T |
| Magnet weight | 0.54 kg |

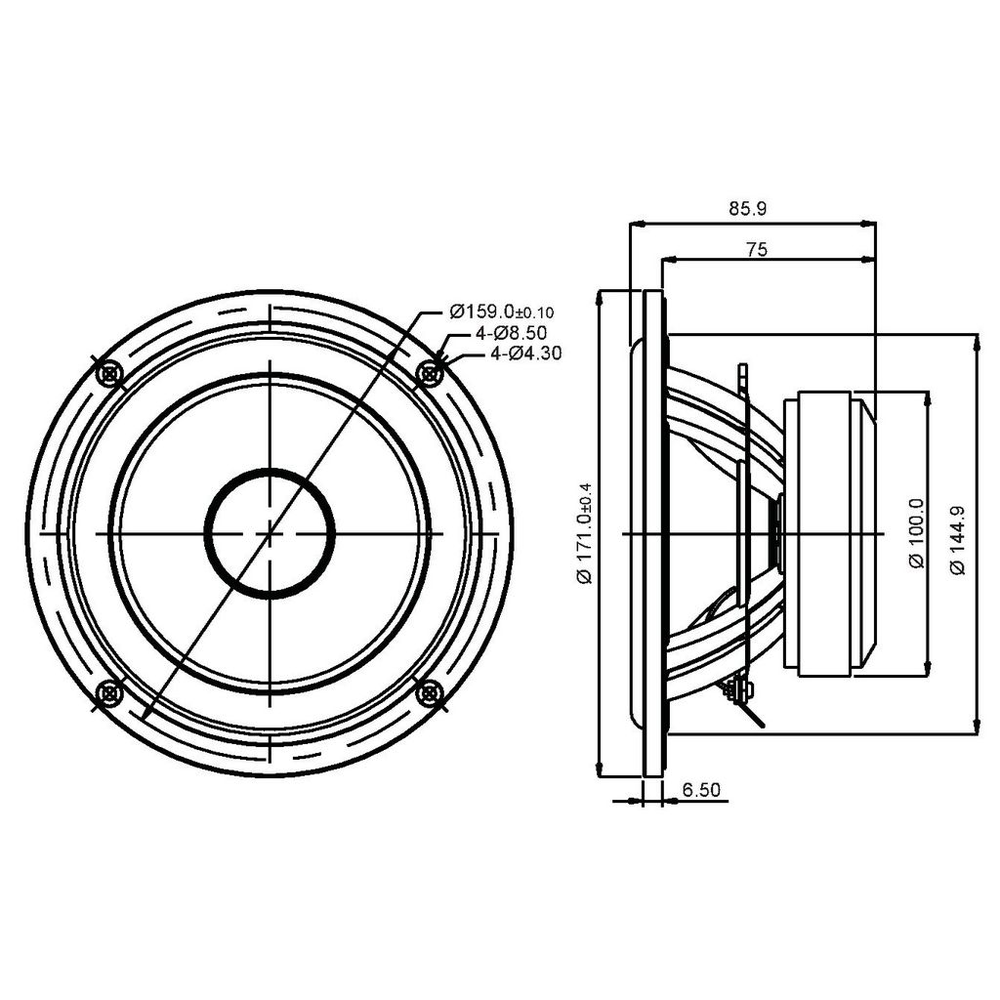

Mounting
| Overall diameter | 171 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 145.9 mm |
| Mounting depth | 75 mm |
| Flange thickness | 6.5 mm |
| Bolt circle diameter | 159 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 35.5 mm |
| Weight | 1.56 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.

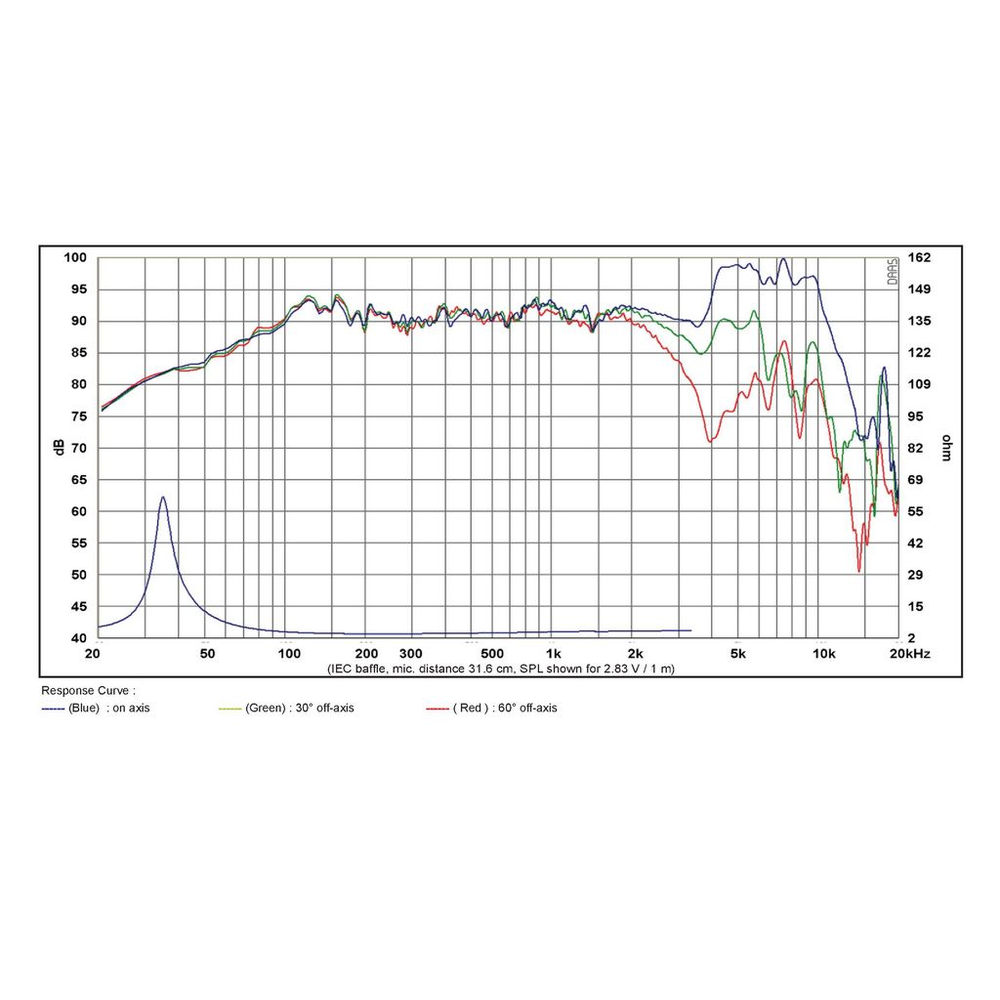

- Sensitivity measured at 2.83V/1m.
Downloads
- 6″ SB17NRXC35-4 Datasheet
- SB17NRXC35-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
