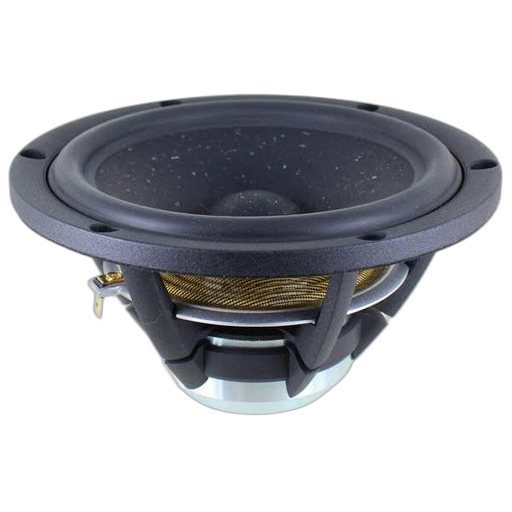

SB Acoustics - 6.5" Satori Mid-Range - MR16P-4

SB Acoustics - 6.5" Satori Mid-Range - MR16P-4

Regular price $279.95 AUD
Regular price Sale price $279.95 AUD
Sale Sold out
Shipping calculated at checkout.

Description:

Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet. Mode balanced cone to reduced break-up.

Features:

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
  • Mode balanced cone to reduced break-up

Specifications:

Code MR16P-4
Description 6.5" Satori midrange
Type Midrange
Size 6.5"
Power 40Wrms
Coil 35.5mmØ
Width 165mmØ
Impedance 4Ω (Re 3.2Ω)
Depth 75.6mm
Mag. 0.13kg
Sens. 92dB
Re 3.2Ω
Qms 4.85
Qes 0.26
Qts 0.25
Vas 47.2L
Sd 119cm²
Cms 2.35mm/N
Fs 31Hz
Mms 11.2g
Zn 0.11mH
Le 0.11mH
Rms 0.45kg/s
Diam. 165mmØ
Series Satori
Materials Papyrus
Impedance (Ohm) 4 ohm
Power (RMS) 0-50 Watt
Colour Black Cone
Bl 5.2Tm
Xmax 6.2mm
Flux (lm) 1.17T
Prms 40W
Grille SAT16-GRL
