SB Acoustics

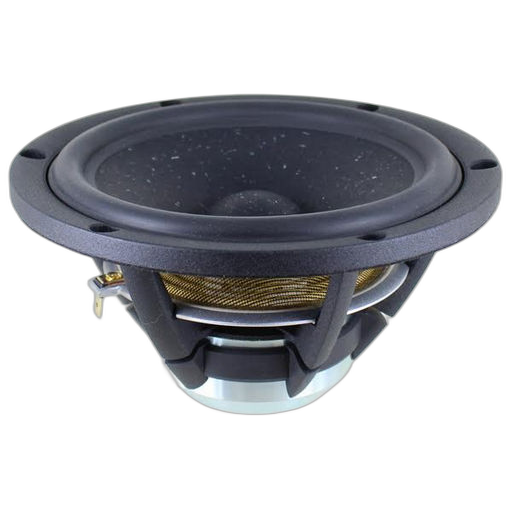

SB Acoustics - 6.5" Satori Mid-Range - MR16P-8

SB Acoustics - 6.5" Satori Mid-Range - MR16P-8

Regular price $314.95
Regular price Sale price $314.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

Features

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimised low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • Low piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet
  • Mode balanced cone to reduced break-up

Specifications

General

Driver type Mid-Range
Nominal size 6.5"
Nominal impedance 8Ω
Series Satori
Power handling (RMS) 30 W
Sensitivity 88 dB
Suggested alignment Either

Thiele/Small parameters

Resonant frequency (Fs) 32 Hz
DC resistance (Re) 6.2 Ω
Voice coil inductance (Le) 0.11 mH
Mechanical Q (Qms) 5.11
Electrical Q (Qes) 0.32
Total Q (Qts) 0.3
Equivalent volume (Vas) 44.3 L
Compliance (Cms) 2.3 mm/N
Moving mass (Mms) 10.6 g
Mechanical resistance (Rms) 0.4 kg/s
Force factor (Bl) 6.5 T·m
Effective piston area (Sd) 119 cm²
Linear excursion (Xmax, one-way) 3.1 mm
Displacement volume (Vd) 36.89 cm³
Efficiency bandwidth product (EBP) 100

Motor

Voice coil height 11.2 mm
Air gap height 5 mm
Magnetic flux density 1.17 T
Magnet weight 0.13 kg

Mounting

Overall diameter 165 mm
Cutout diameter (suggested) ≈ 141.3 mm
Mounting depth 75.6 mm
Flange thickness 7.5 mm
Bolt circle diameter 153.5 mm
Mounting holes 6
Mounting hole diameter 4.3 mm
Voice coil diameter 35.5 mm
Weight 1 kg

Materials

Cone Paper
Surround Rubber
Voice coil former Fibreglass
Basket Cast Aluminium
Magnet Neodymium
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
