SB Acoustics

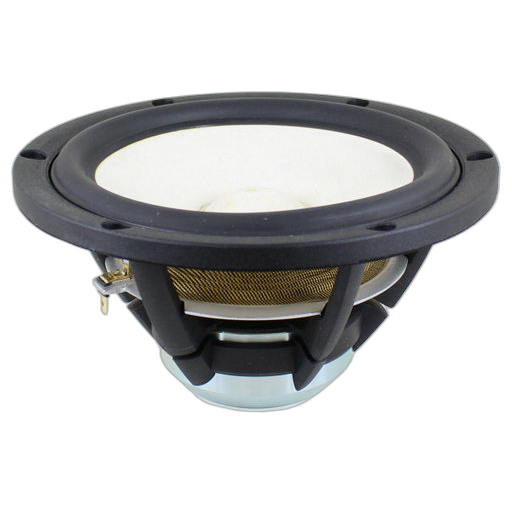

SB Acoustics - 6.5" Satori Mid-Woofer - MW16PNW-8

SB Acoustics - 6.5" Satori Mid-Woofer - MW16PNW-8

Regular price $249.95 AUD
Regular price Sale price $249.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

Features:

  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression
  • Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
  • Soft low damping rubber surround for optimum transient response
  • Advanced BIMAX spider for improved linearity
  • Powerful optimized low distortion neodymium motor system
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and reduced distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires attached 180° apart for improved stability
  • Vented pole piece and coil former for reduced compression
  • High piston to chassis diameter ratio
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

Specifications:

Code MW16PNW-8
Description 6.5" Satori mid-woofer White 8Ω
Type Mid-Woofer
Size 6.5"
Power 60Wrms
Coil 36mmØ
Width 165mmØ
Impedance 8Ω (Re 6.2Ω)
Depth 75.6mm
Mag. 0.13kg
Sens. 88dB
Re 6.2Ω
Qms 4.72
Qes 0.34
Qts 0.32
Vas 49.9L
Sd 119cm²
Cms 2.53mm/N
Fs 29Hz
Mms 12.1g
Zn 0.20mH
Le 0.20mH
Rms 0.5kg/s
Diam. 165mmØ
Series Satori
Materials Papyrus White
Impedance (Ohm) 8 ohm
Power (RMS) 51-100 Watt
Colour White Cone
Bl 6.3Tm
Xmax 12mm
Flux (lm) 1.17T
Page 12
Prms 60W
Grille SAT16-GRL
