SB Acoustics

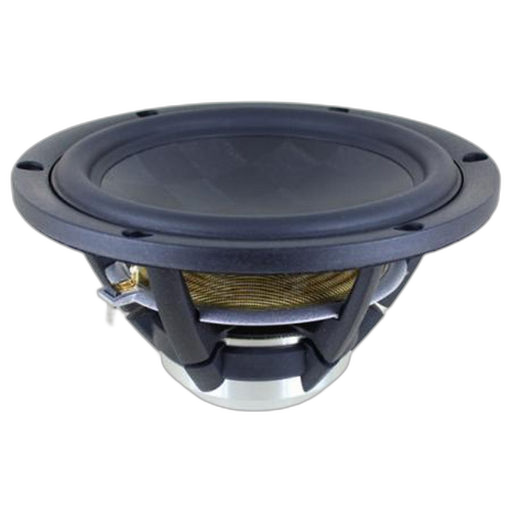

SB Acoustics - 6.5" Satori TeXtreme Mid-Woofer - MW16TX-8

SB Acoustics - 6.5" Satori TeXtreme Mid-Woofer - MW16TX-8

Regular price $429.95 AUD
Regular price Sale price $429.95 AUD
Sale Sold out
Shipping calculated at checkout.

Description:

New in the premium SB Acoustic Satori line is the premium 6½″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme® cone. TeXtreme® is an advanced, super thin carbon fibre fabric that maximises the strength-to-weight ratio. The spread tow technology offers several advantages over regular tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4 ohm and 8 ohm models.

Features:

  • Advanced TeXtreme® cone
  • Vented aerodynamic cast aluminium chassis
  • Soft low damping rubber surround
  • Advanced BIMAX spider
  • Powerful optimized low distortion neodymium motor system
  • Extended copper sleeve on pole piece
  • Non-conducting fibre glass voice coil former
  • Vented pole piece and voice coil
  • Light weight CCAW voice coil
  • Long life silver lead wires

Specifications:

Code MW16TX-8
Description 36mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis
Coil 36mmØ
Depth 75.6mm
Fs 29.3Hz
Impedance 8Ω (Re 6.2Ω)
Impedance (Ohm) 8 ohm
Inch 6.5"
Le 0.20mH
Mag. 0.13kg
Mms 12.3g
Power 60Wrms
Power (RMS) 51-100 Watt
Prms 60W
Qes 0.35
Qms 4.7
Qts 0.33
Re 6.2Ω
Sd 119cm²
Sens. 87.5dB
Series Satori
Size 6.5"
Type Mid-Woofer
Vas 48L
Width 165mmØ
Zn 0.20mH
Rms 0.48kg/s
Flux (lm) 1.17T
Xmax 12mm
Diam. 165mmØ
Cms 2.4mm/N
Bl 6.3Tm
Grille SAT16-GRL
Materials TeXtreme
