SB Acoustics

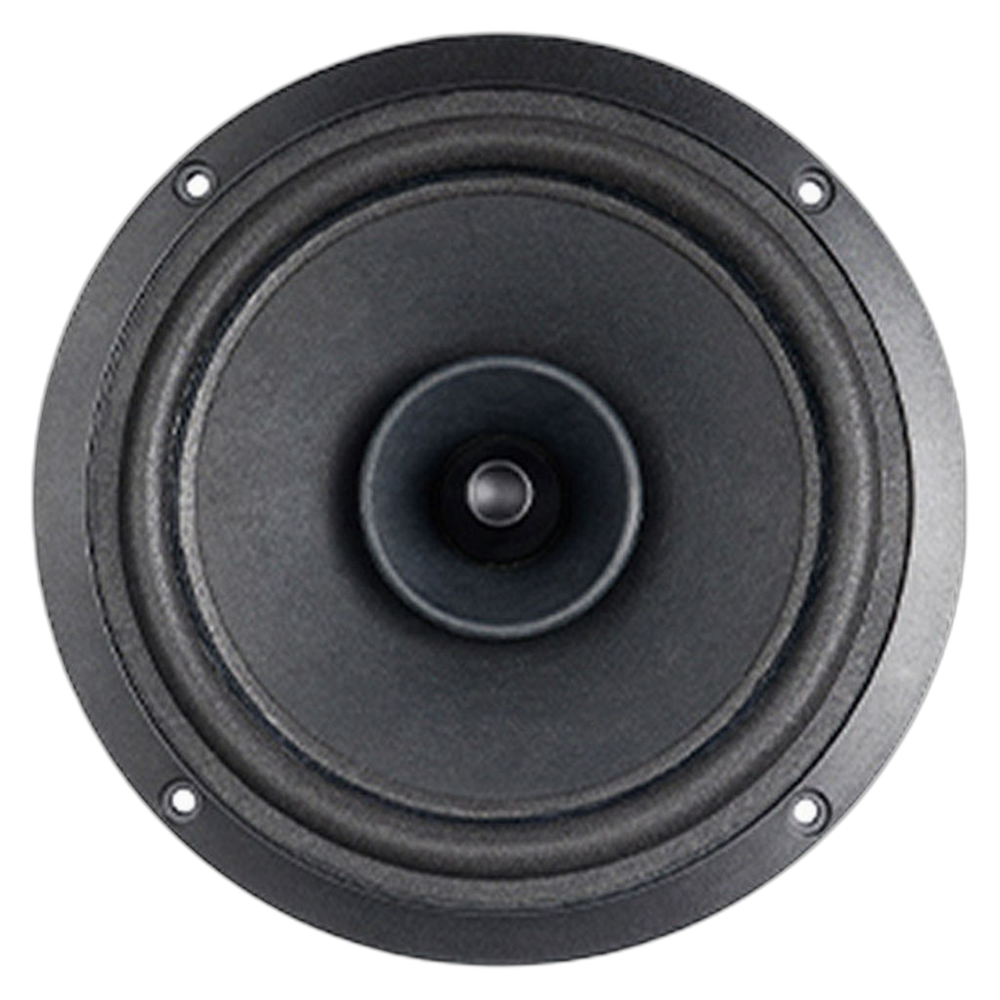

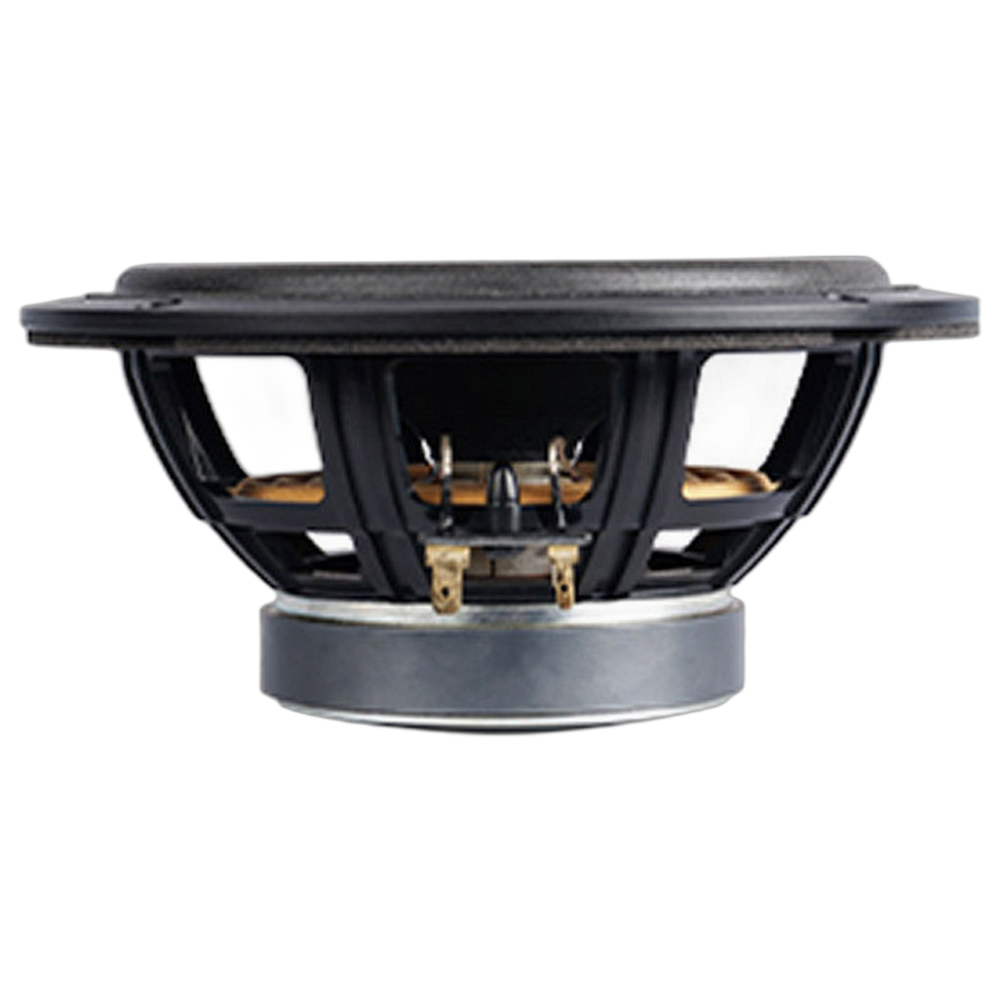

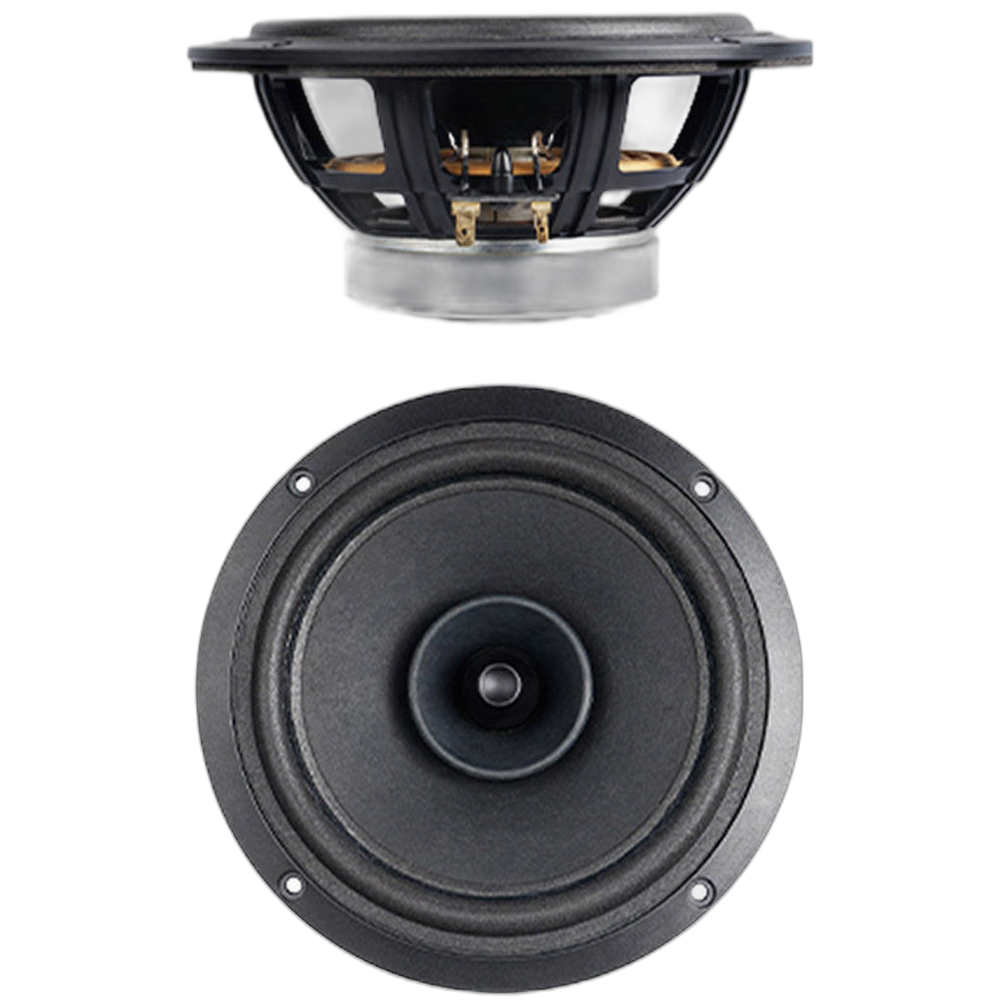

SB Acoustics - 6" FRPC Full Range - SB16FRPC25-7
SB Acoustics - 6" FRPC Full Range - SB16FRPC25-7
Regular price
$64.95 AUD
Regular price
Sale price
$64.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The SB Acoustics 6" SB16FRPC25-7 full-range speaker features a proprietary paper cone with natural fibres, lightweight foam surround, and optimised whizzer cone for smooth high-frequency extension. Its vented spider, reinforced plastic chassis, and extended copper sleeve ensure controlled radiation, durability, and enhanced performance.
Features
- Proprietary cone material with natural fibres made in-house.
- Light weight foam surround.
- Optimised whizzer cone for smooth high frequency extension.
- Phase plug for controlled radiation.
- Vented spider with flexibility control.
- Optimised motor system.
- Vented reinforced plastic chassis.
- Non-conductive coil former.
- Long life lead wires.
- Extended copper sleeve on pole piece.
Specifications
| Bl | 5.4Tm |
|---|---|
| Cms | 1.33mm/N |
| Coil | 25.4mmØ |
| Fs | 44Hz |
| Hole | 144.5mmØ |
| Hole Cutout | 144.5mmØ |
| Le | 0.22mH |
| Mag. | 0.29kg |
| Mms | 9.8g |
| Power | 30Wrms |
| Qes | 0.48 |
| Qms | 9 |
| Qts | 0.46 |
| Re | 5.2Ω |
| Rms | 0.3kg/s |
| Sd | 128cm² |
| Sens. | 91dB |
| Vas | 31L |
| Width | 176mmØ |
| Zn | 7Ω |
