SB Acoustics - 7.5" Satori TeXtreme Mid-Woofer - MW19TX-8
SB Acoustics - 7.5" Satori TeXtreme Mid-Woofer - MW19TX-8
Regular price
$519.95 AUD
Regular price
Sale price
$519.95 AUD
Unit price
/
per
Description:

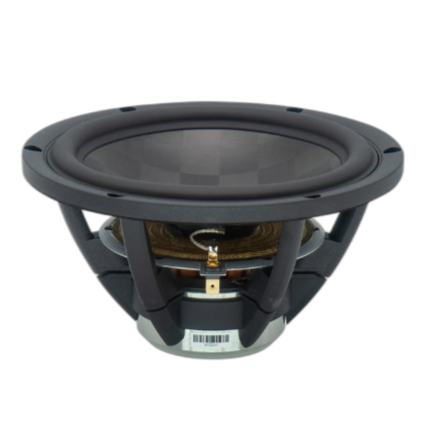

New in the premium SB Acoustic Satori line is the premium 7½″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme® cone. TeXtreme® is an advanced, super thin carbon fibre fabric that maximises the strength-to-weight ratio. The spread tow technology offers several advantages over regular tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). Available in 4 ohm and 8 ohm models.
Features:
- Advanced TeXtreme® cone
- Vented aerodynamic cast aluminium chassis
- Soft low damping rubber surround
- Advanced BIMAX spider
- Powerful optimized low distortion neodymium motor system
- Extended copper sleeve on pole piece
- Non-conducting fibre glass voice coil former
- Vented pole piece and voice coil
- Light weight CCAW voice coil
- Long life silver lead wires
Specifications:
Code | MW19TX-8 |
Description | 39mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis |
Coil | 39mmØ |
Depth | 89.2mm |
Fs | 33Hz |
Impedance | 8Ω (Re 6.0Ω) |
Impedance (Ohm) | 8 ohm |
Inch | 7.5" |
Le | 0.20mH |
Mag. | 0.15kg |
Mms | 15.6g |
Power | 70Wrms |
Power (RMS) | 51-100 Watt |
Price Type | each |
Prms | 70W |
Qes | 0.35 |
Qms | 6.47 |
Qts | 0.33 |
Re | 6.0Ω |
Sd | 158cm² |
Sens. | 90dB |
Series | Satori |
Type | Woofer |
Vas | 53.4L |
Width | 187mmØ |
Zn | 1.2mH |
Rms | 0.5kg/s |
Flux (lm) | 1.1T |
Cms | 1.52mm/N |
Xmax | 13.4mm |
Diam. | 191mmØ |
Bl | 7.5Tm |
Grille | SAT19-GRL |
Materials | TeXtreme |
