SB Acoustics - 8" CACS Woofer - SB23CACS45-4

SB Acoustics - 8" CACS Woofer - SB23CACS45-4

$244.95 AUD
$244.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

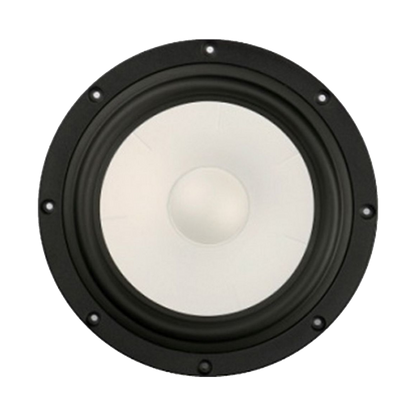

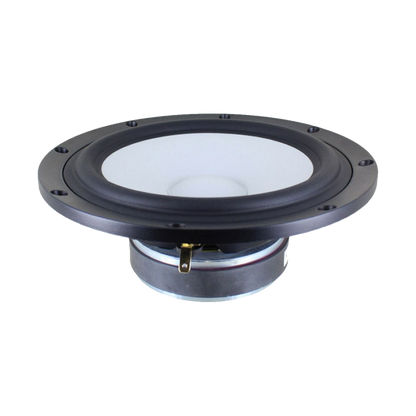

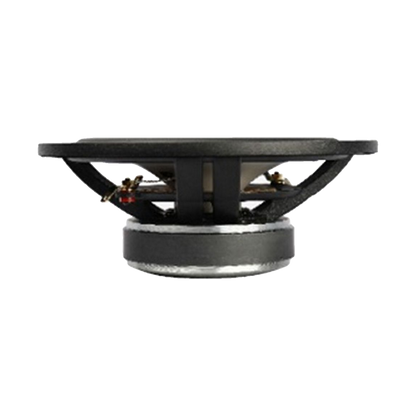

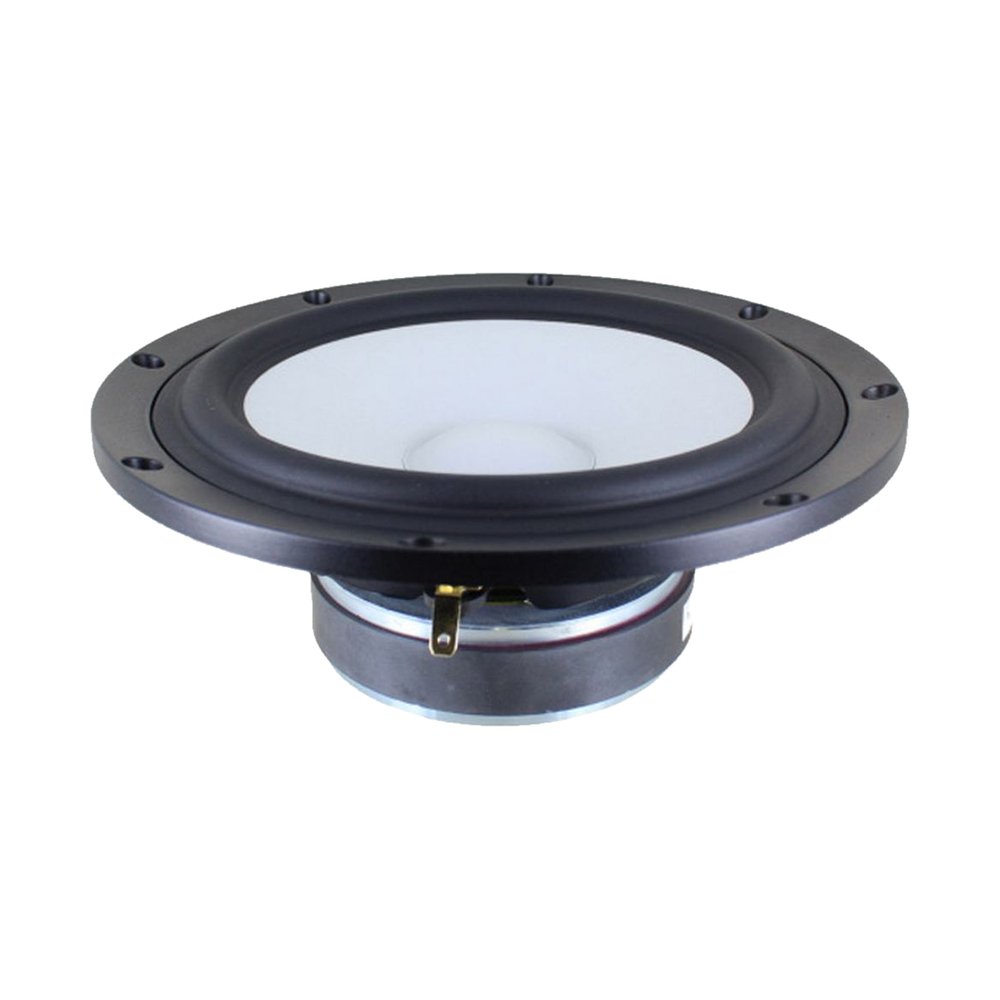

An 8" woofer from SB Acoustics with a white, geometrically reinforced ceramic cone in a shallow, vented cast aluminium chassis. A shorting ring in the motor reduces distortion, and the vented pole piece reduces compression.

Features

  • Soft low damping rubber surround for improved transient response
  • Geometrically reinforced ceramic cone for improved break-up control
  • Shorting ring in motor system for reduced distortion
  • Vented pole piece for reduced compression
  • Vented cast aluminium chassis for optimum strength and low compression
  • Shallow design
  • Non-conducting fibre glass voice coil former for minimum damping
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires

Specifications

General

Driver type Woofer
Nominal size 8"
Nominal impedance 4Ω
Power handling (RMS) 60 W
Sensitivity 90 dB

Thiele/Small parameters

Resonant frequency (Fs) 23 Hz
DC resistance (Re) 3.3 Ω
Voice coil inductance (Le) 0.27 mH
Mechanical Q (Qms) 6
Electrical Q (Qes) 0.35
Total Q (Qts) 0.33
Equivalent volume (Vas) 95 L
Compliance (Cms) 1.43 mm/N
Moving mass (Mms) 33 g
Mechanical resistance (Rms) 0.8 kg/s
Force factor (Bl) 6.7 T·m
Effective piston area (Sd) 216 cm²
Linear excursion (Xmax, one-way) 6.5 mm
Displacement volume (Vd) 140.4 cm³
Efficiency bandwidth product (EBP) 65.71

Motor

Voice coil height 19 mm
Air gap height 6 mm
Magnetic flux density 0.86 T
Magnet weight 0.8 kg

Mounting

Voice coil diameter 45.5 mm
Weight 2.7 kg

Materials

Cone Ceramic
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
