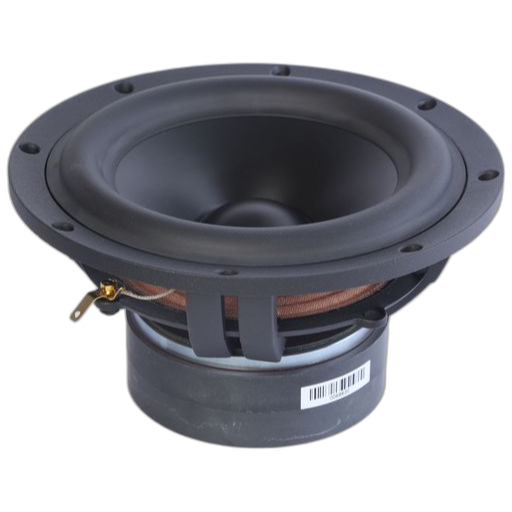

SB Acoustics - 8" MFCL Subwoofer - SB23MFCL45-4
SB Acoustics - 8" MFCL Subwoofer - SB23MFCL45-4
Regular price
$244.95
Regular price
Sale price
$244.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Vented cast aluminium chassis for optimum strength and low compression. Unique mineral filled polypropylene cone material, made in-house with extra stiffness. Extended roll rubber surround for improved transient response and SPL. Vented pole piece and aluminium chassis.
Features
- Long stroke design
- Linear high stability suspension
- Low damping rubber surround
- Long copper voice coil
- Non-conducting reinforced fibre glass coil former
- Very stiff mineral filled Polypropylene cone
- Vented cast aluminium chassis
- Large vented motor system
- Long life silver lead wires
- Optimised for smaller enclosures
Specifications
Specifications
General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 4Ω |
| Series | Poly Cone |
| Power handling (RMS) | 150 W |
| Sensitivity | 87.5 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 27 Hz |
|---|---|
| DC resistance (Re) | 3.3 Ω |
| Voice coil inductance (Le) | 0.73 mH |
| Mechanical Q (Qms) | 7.7 |
| Electrical Q (Qes) | 0.36 |
| Total Q (Qts) | 0.34 |
| Equivalent volume (Vas) | 37 L |
| Compliance (Cms) | 0.59 mm/N |
| Moving mass (Mms) | 59 g |
| Mechanical resistance (Rms) | 1.3 kg/s |
| Force factor (Bl) | 9.6 T·m |
| Effective piston area (Sd) | 210 cm² |
| Linear excursion (Xmax, one-way) | 12 mm |
| Displacement volume (Vd) | 252 cm³ |
| Efficiency bandwidth product (EBP) | 75 |
Motor
| Voice coil height | 32 mm |
|---|---|
| Air gap height | 8 mm |
| Magnetic flux density | 1.03 T |
| Magnet weight | 2 kg |
Mounting
| Overall diameter | 234.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 204.5 mm |
| Mounting depth | 122.1 mm |
| Flange thickness | 8.5 mm |
| Bolt circle diameter | 219 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 45.5 mm |
| Weight | 4.7 kg |
Materials
| Cone | Polypropylene |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 8″ SB23MFCL45-4 Datasheet
- SB23MFCL45-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
