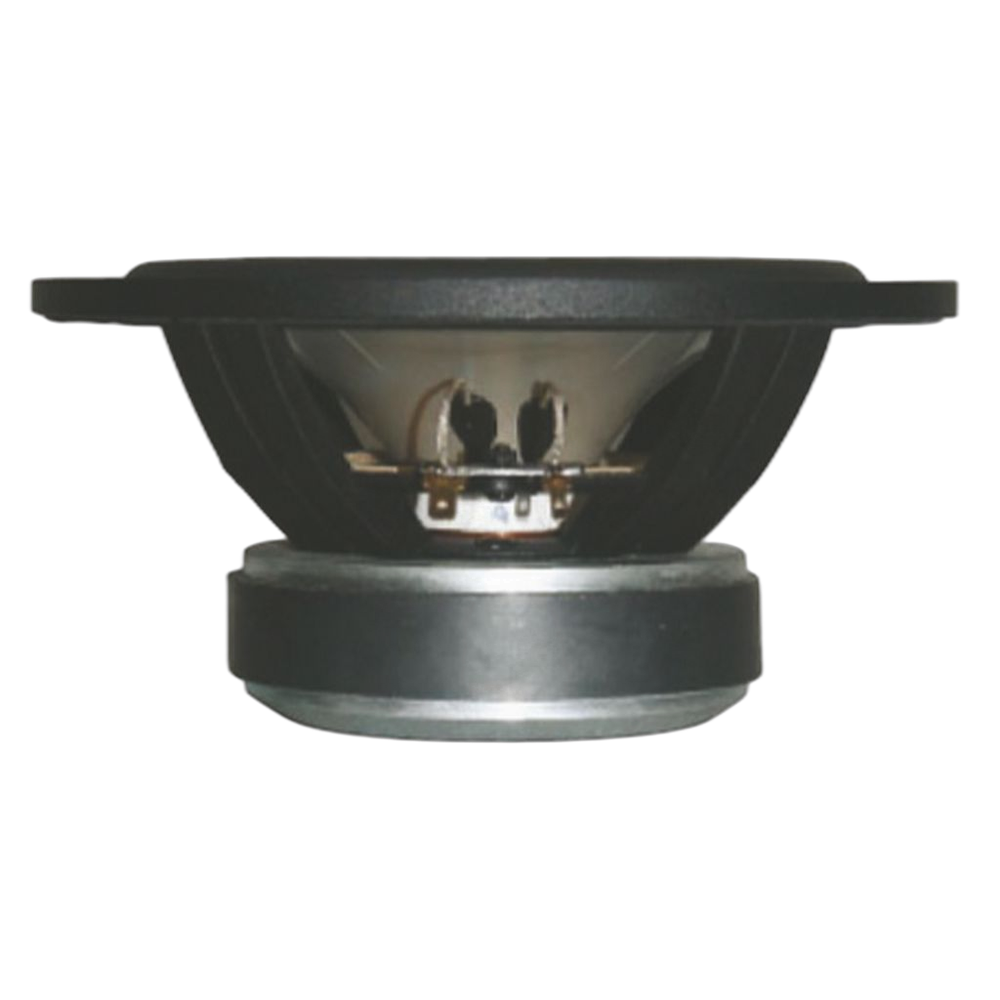

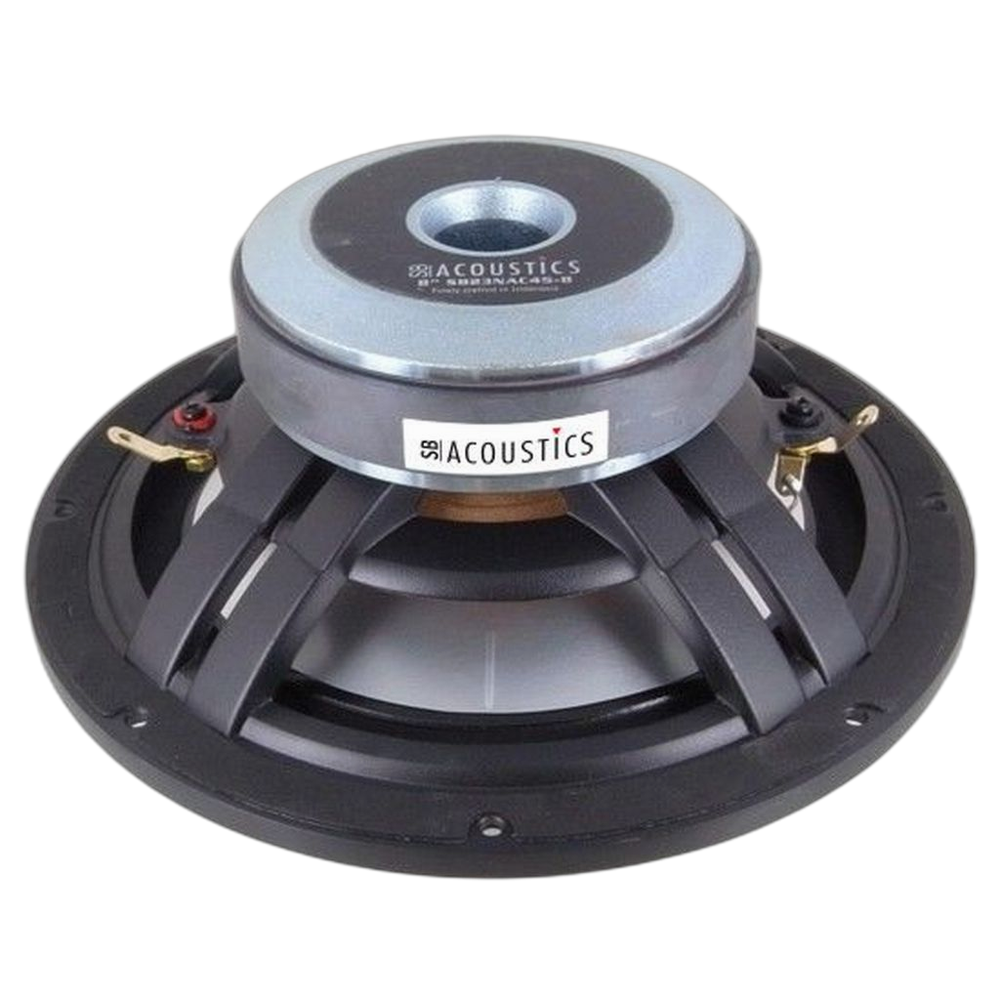

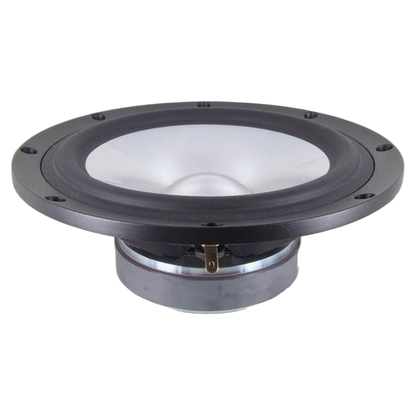

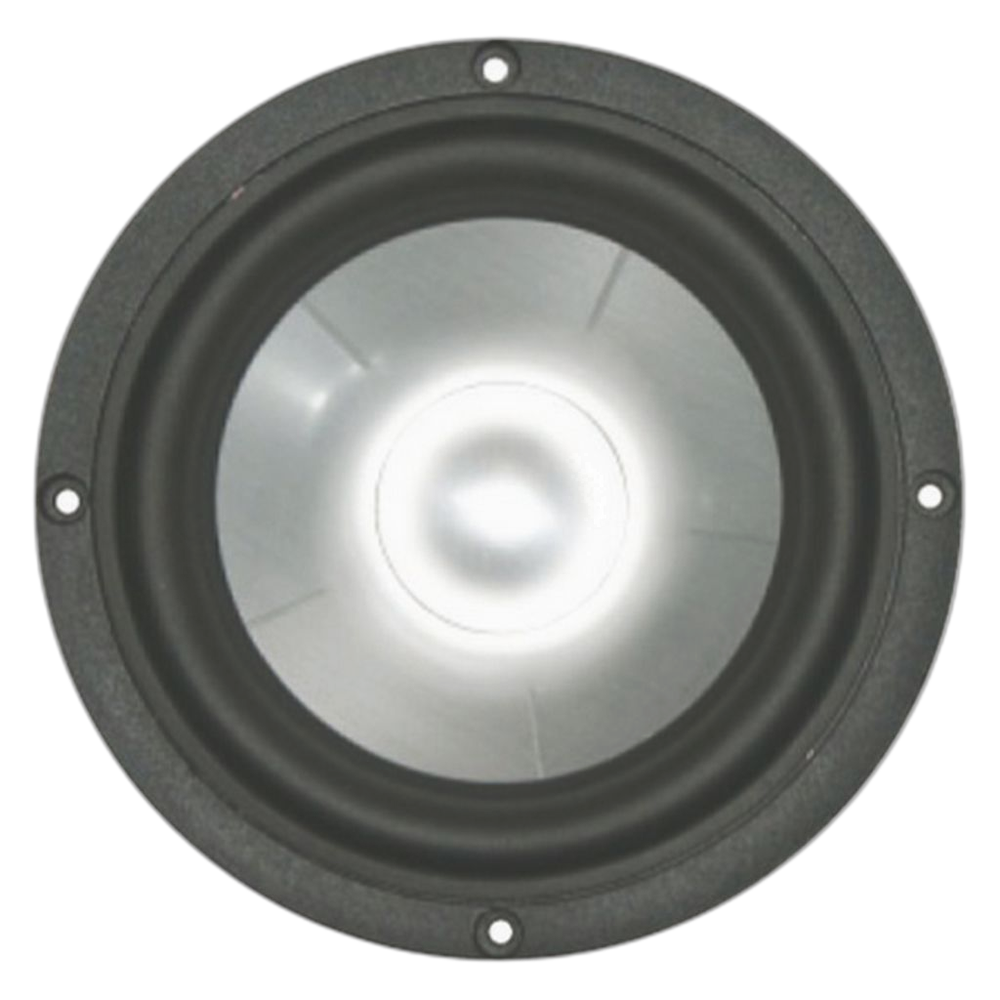

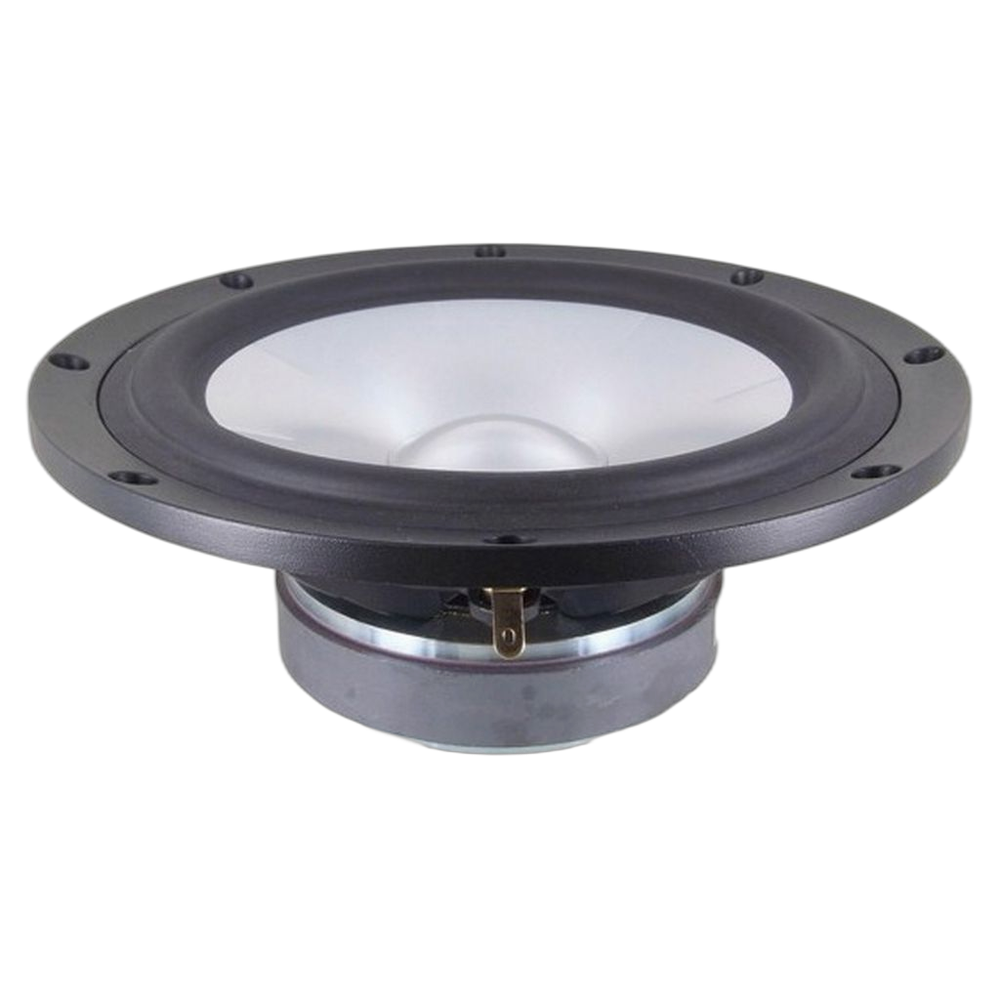

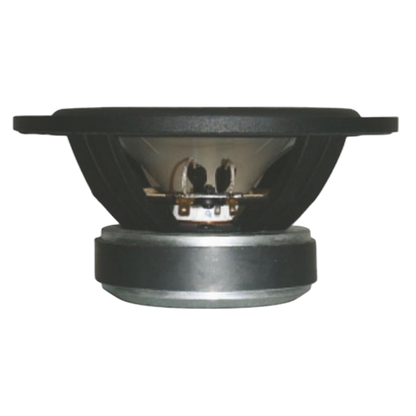

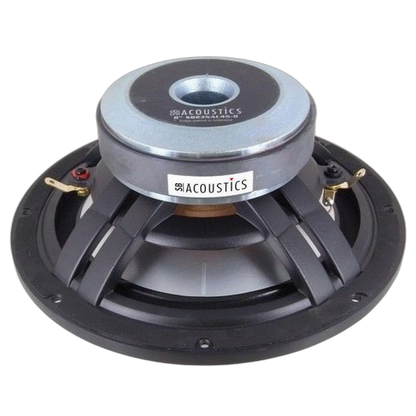

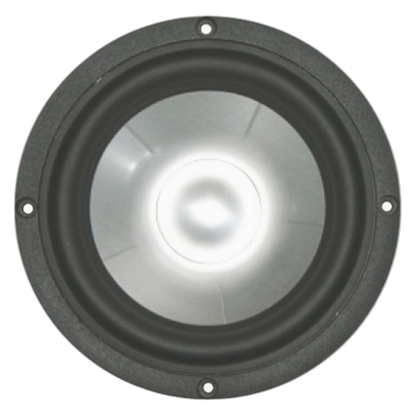

SB Acoustics - 8" NACS Woofer - SB23NACS45-4
SB Acoustics - 8" NACS Woofer - SB23NACS45-4
Regular price
$194.95
Regular price
Sale price
$194.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

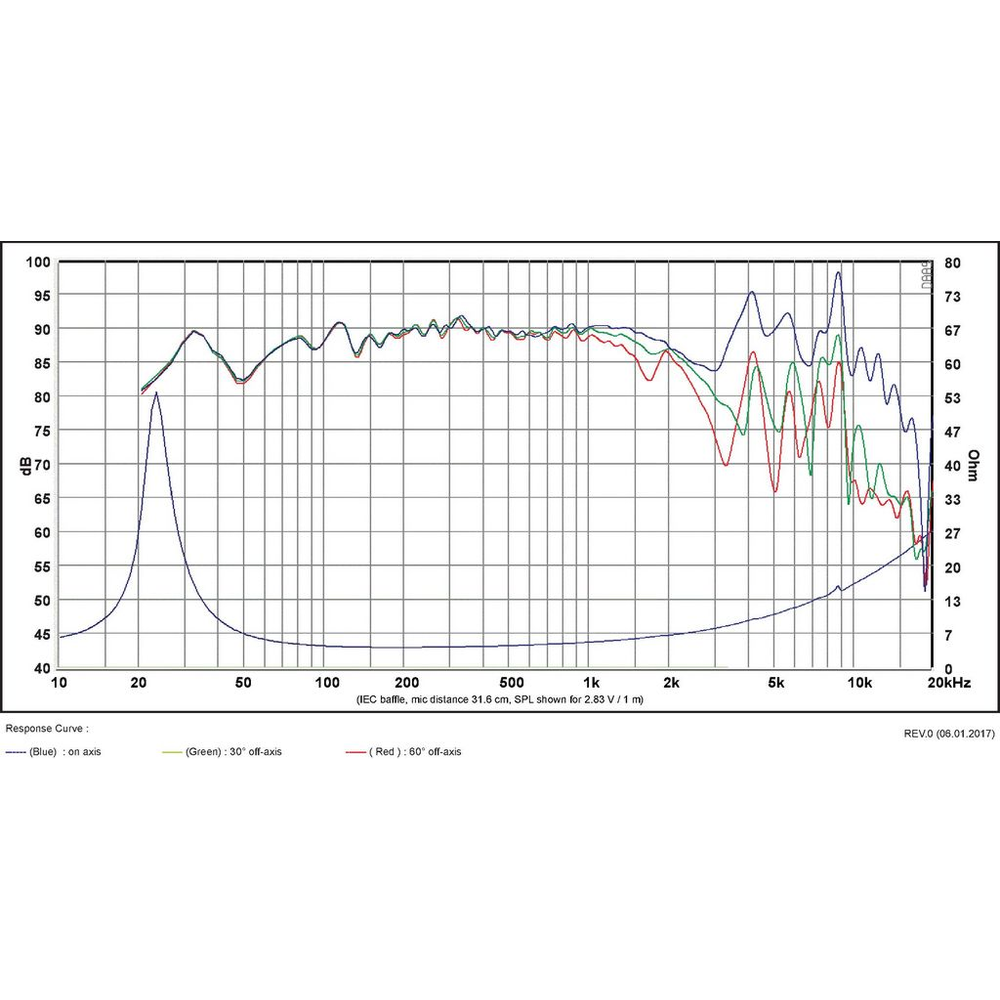

Extended frequency response.
Features
- Soft low damping rubber surround form improved transient response
- Geometrically reinforced aluminium cone for improved break-up control
- Shorting ring in motor system for reduced distortion
- Vented pole piece for reduced compression
- Vented cast aluminium chassis for optimum strength and low compression
- Shallow design
- Non-conducting fibre glass voice coil former for minimum damping
- CCAW voice coil for reduced moving mass
- Long life silver lead wires
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 60 W |
| Sensitivity | 90 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 23 Hz |
|---|---|
| DC resistance (Re) | 3.3 Ω |
| Voice coil inductance (Le) | 0.27 mH |
| Mechanical Q (Qms) | 5.4 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.33 |
| Equivalent volume (Vas) | 95 L |
| Compliance (Cms) | 1.45 mm/N |
| Moving mass (Mms) | 32 g |
| Mechanical resistance (Rms) | 0.9 kg/s |
| Force factor (Bl) | 6.7 T·m |
| Effective piston area (Sd) | 216 cm² |
| Linear excursion (Xmax, one-way) | 6.5 mm |
| Displacement volume (Vd) | 140.4 cm³ |
| Efficiency bandwidth product (EBP) | 65.71 |
Motor
| Voice coil height | 19 mm |
|---|---|
| Air gap height | 6 mm |
| Magnetic flux density | 0.86 T |
| Magnet weight | 0.8 kg |
Mounting
| Overall diameter | 234 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 206.5 mm |
| Mounting depth | 80.7 mm |
| Flange thickness | 8.5 mm |
| Bolt circle diameter | 219 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 45.5 mm |
| Weight | 2.7 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 8″ SB23NACS45-4 Datasheet

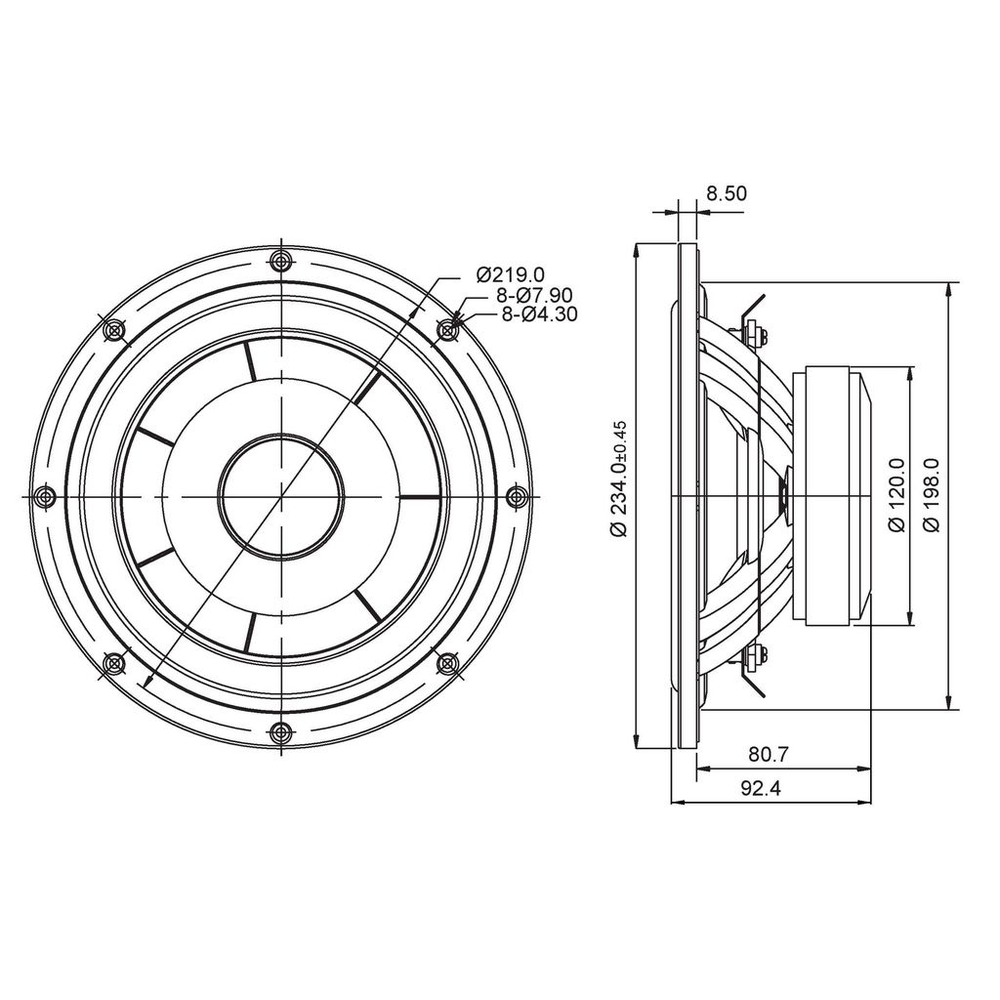

- SB23NACS45-4 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
