SB Acoustics - 8" PFCR Passive Radiator - SB20PFCR-00
SB Acoustics - 8" PFCR Passive Radiator - SB20PFCR-00
Regular price
$44.95
Regular price
Sale price
$44.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

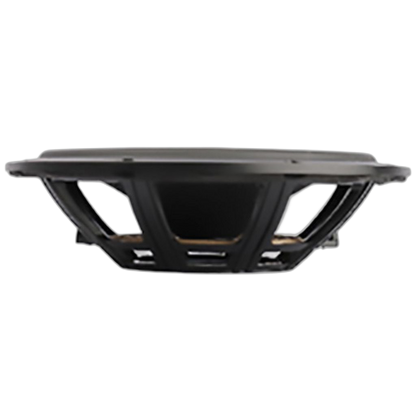

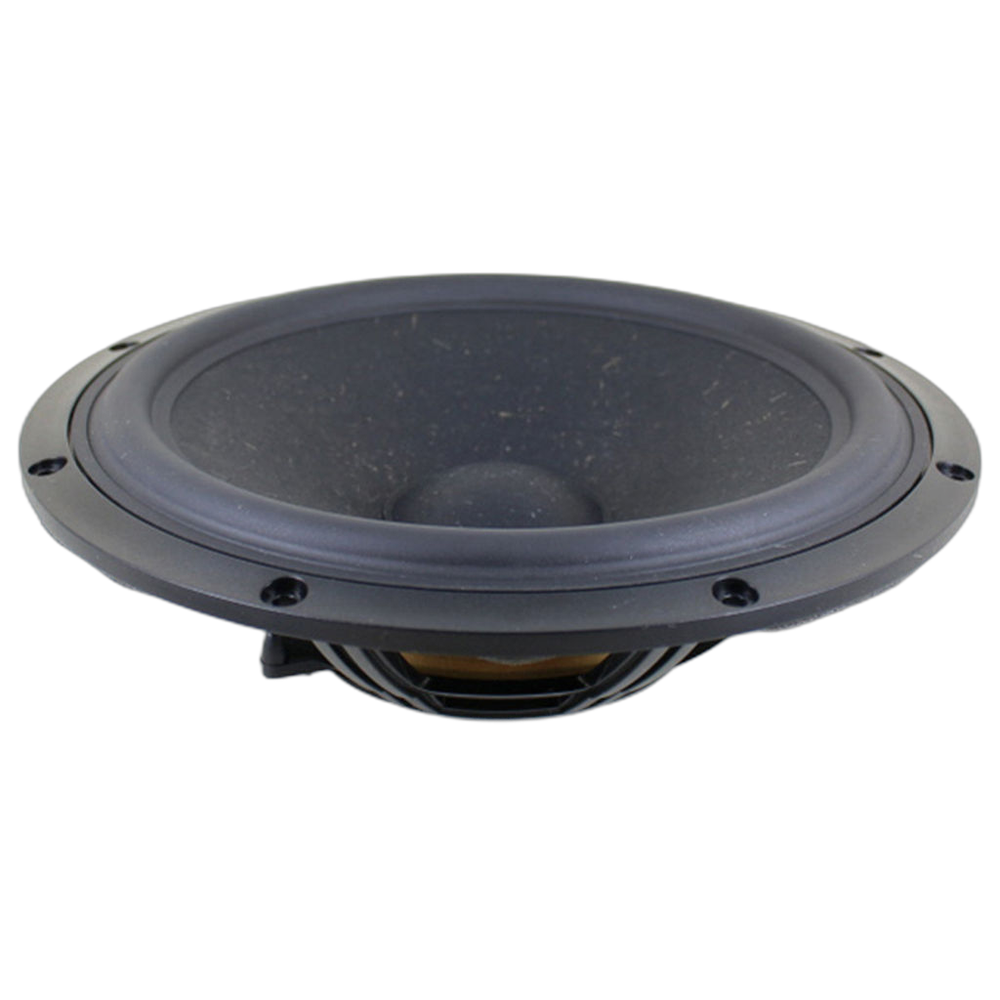

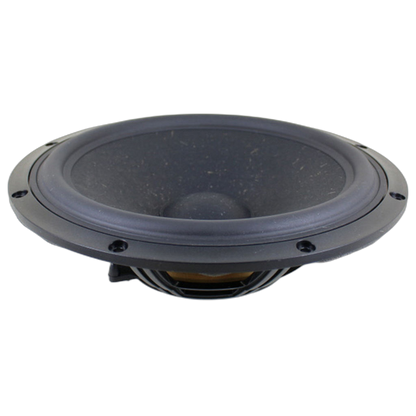

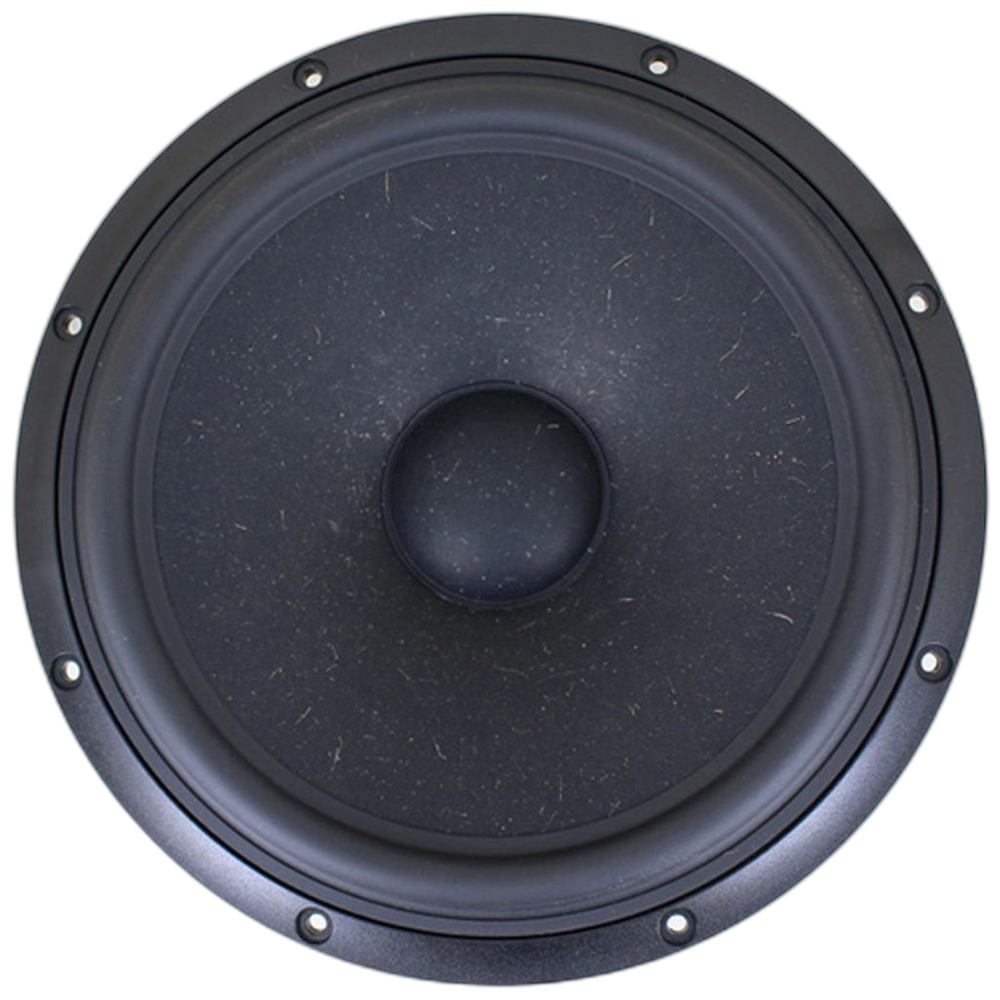

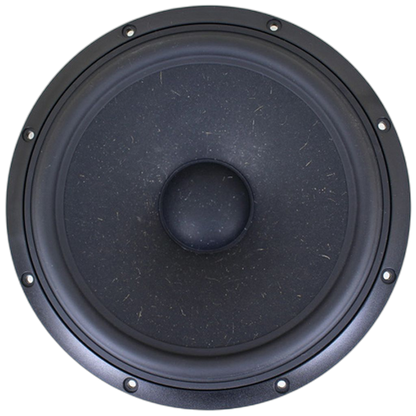

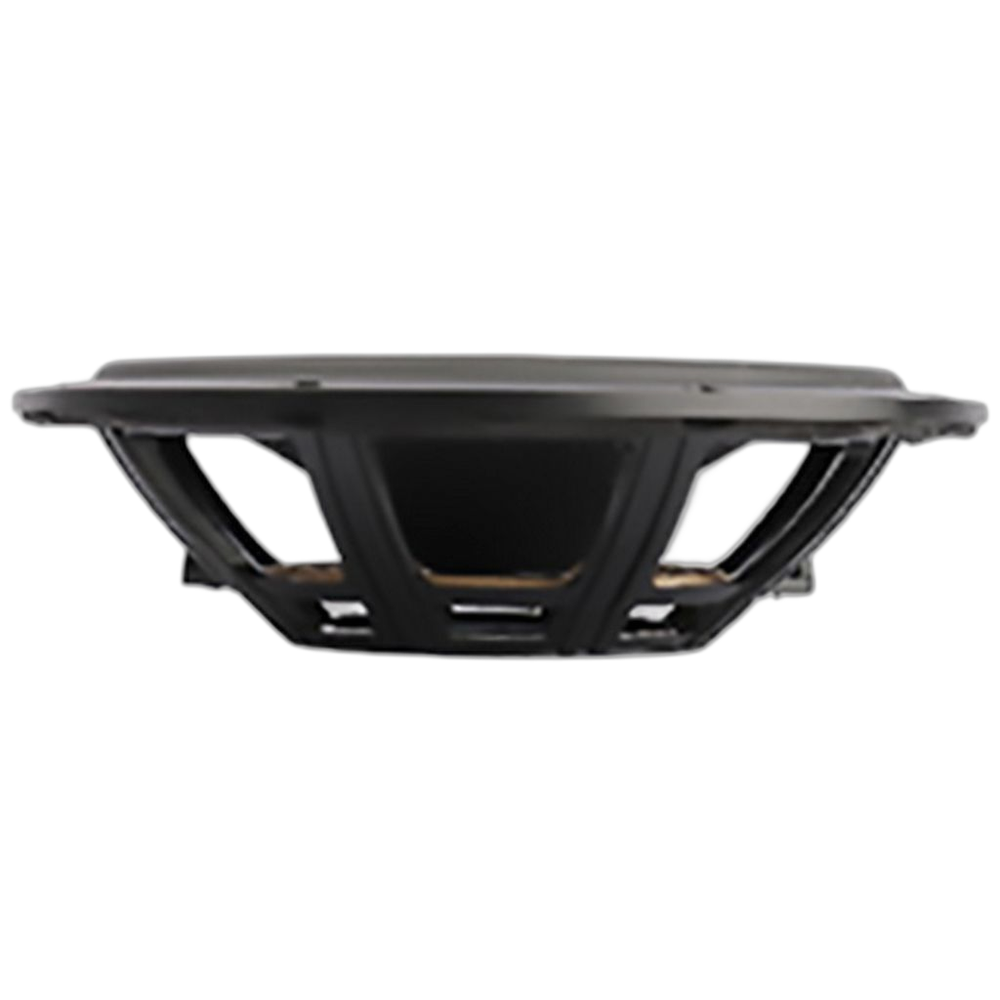

8" Passive radiator with paper cone, rubber surround, square mounting injection chassis.
Features
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibres made in-house
- Soft low damping surround
- Easily adjustable moving mass
- Symmetric suspension
Specifications
Specifications
General
| Driver type | Passive Radiator |
|---|---|
| Nominal size | 8" |
Thiele/Small parameters
| Resonant frequency (Fs) | 20 Hz |
|---|---|
| Mechanical Q (Qms) | 6.8 |
| Equivalent volume (Vas) | 55 L |
| Compliance (Cms) | 0.83 mm/N |
| Moving mass (Mms) | 76.7 g |
| Mechanical resistance (Rms) | 1.4 kg/s |
| Effective piston area (Sd) | 216 cm² |
| Mechanical excursion (Xmech) | 11 mm |

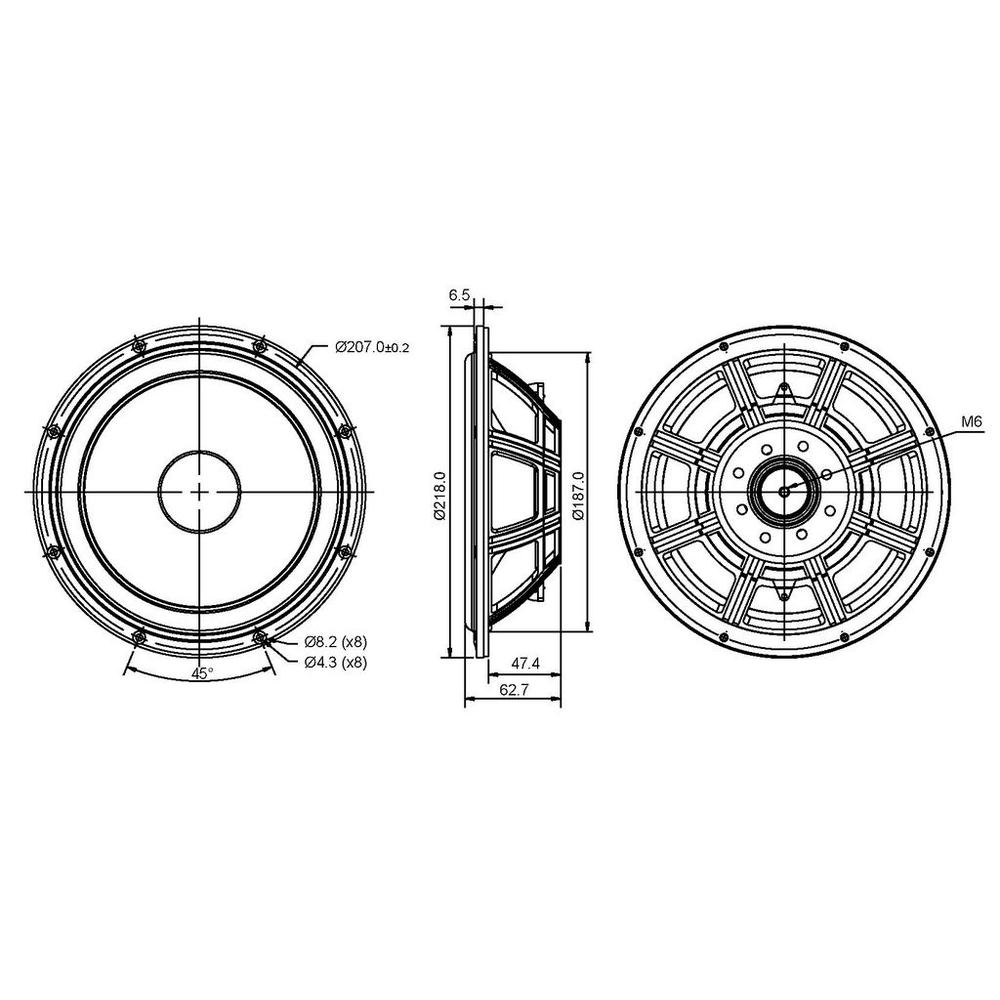

Mounting
| Overall diameter | 218 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 188.0 mm |
| Mounting depth (estimate) | ≈ 50.4 mm |
| Flange thickness | 6.5 mm |
| Bolt circle diameter | 207 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 4.3 mm |
| Weight | 0.24 kg |
Materials
| Cone | Paper |
|---|---|
| Basket | Reinforced Plastic |
Downloads
- 8″ SB20PFCR-00 Datasheet
- SB20PFCR-00 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
