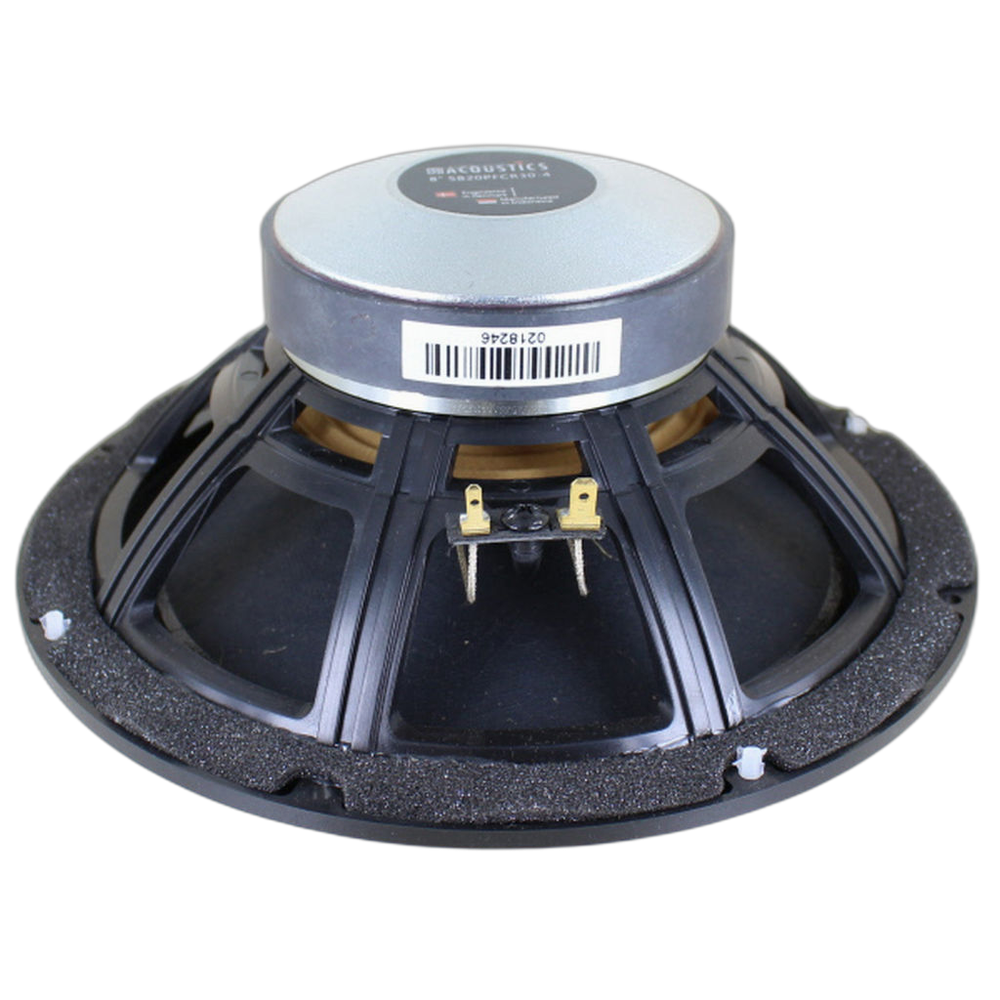

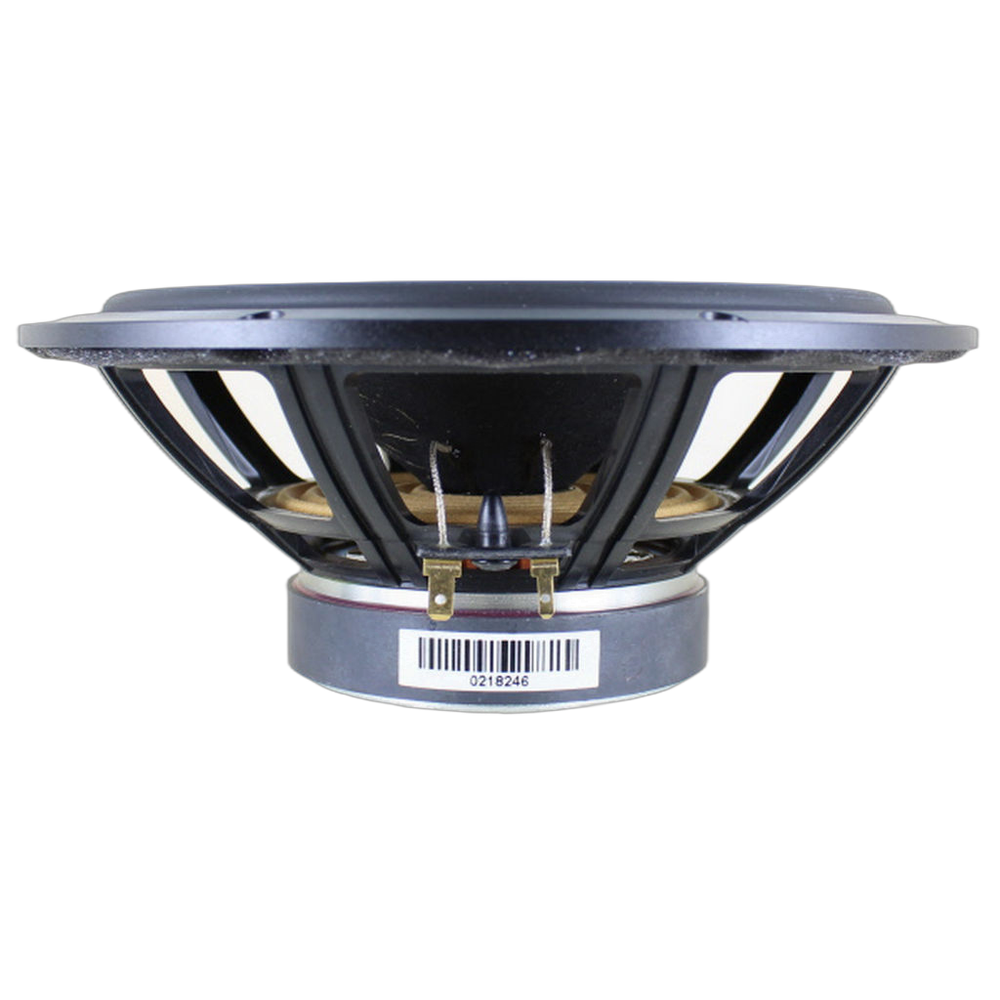

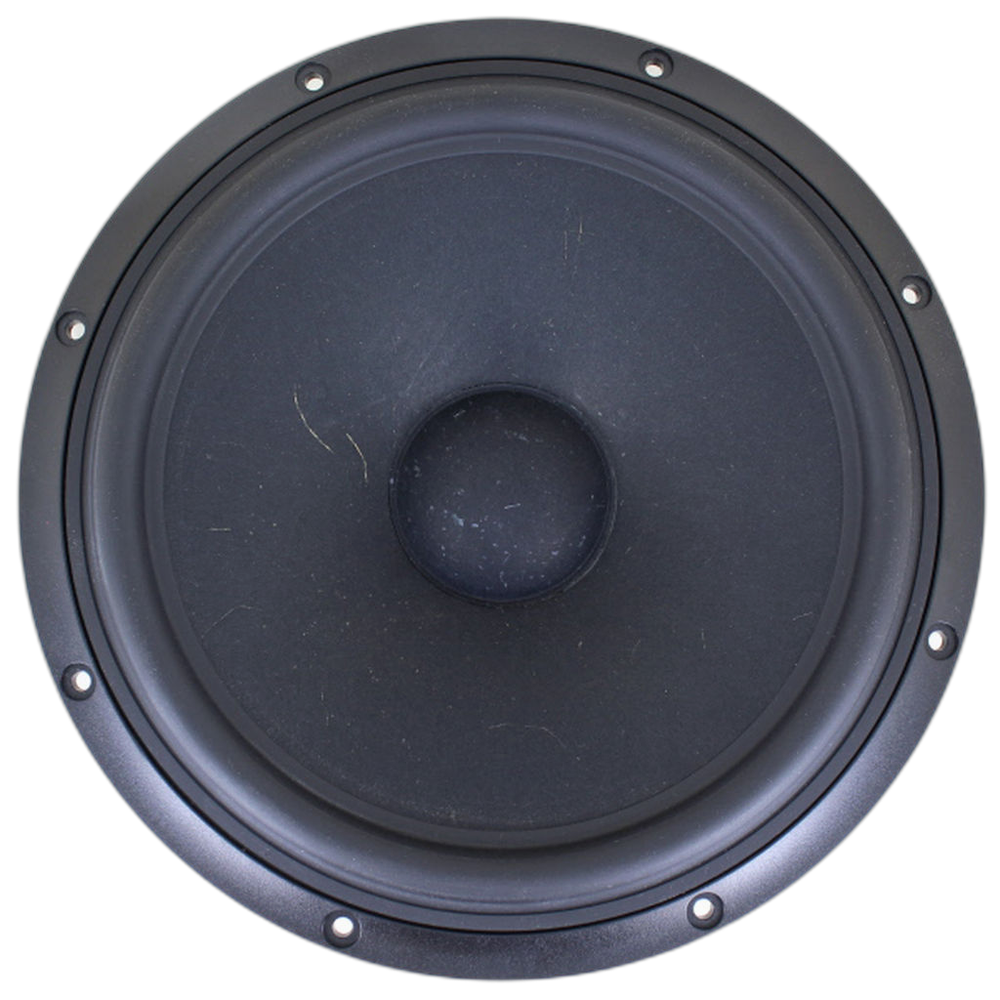

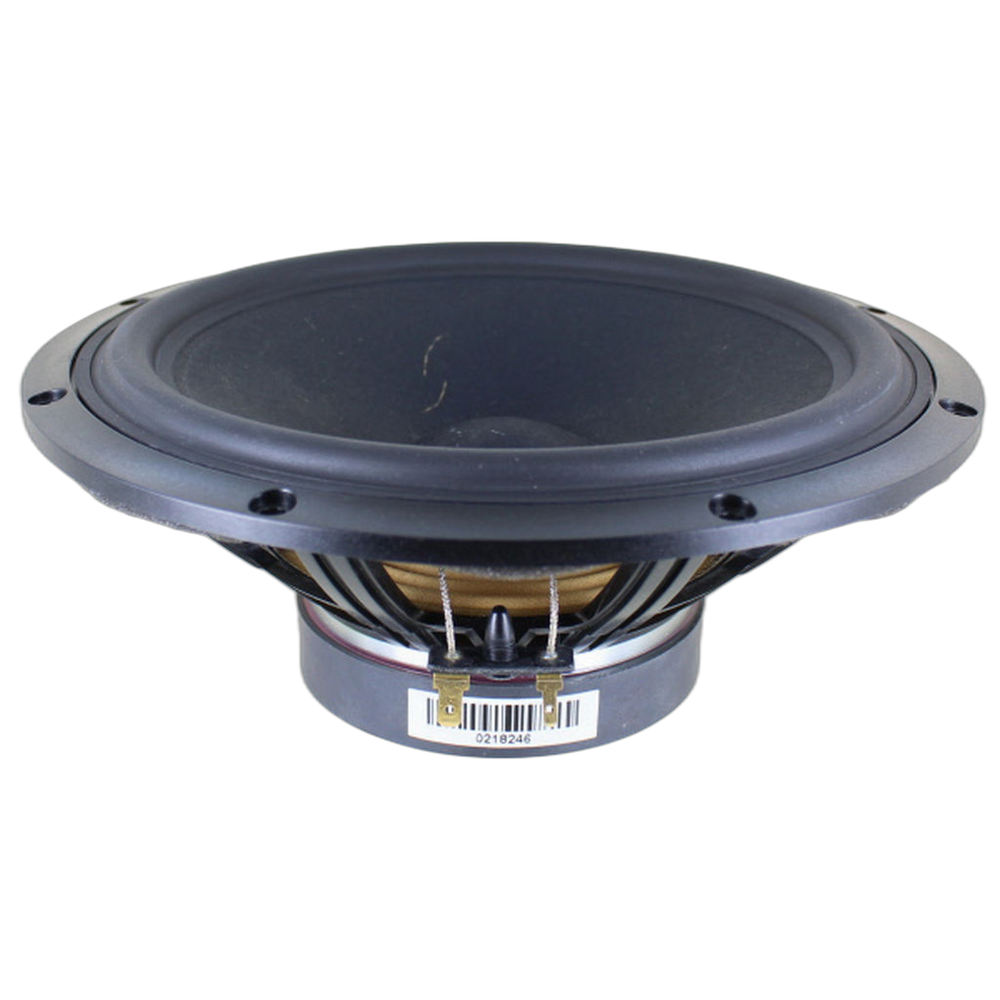

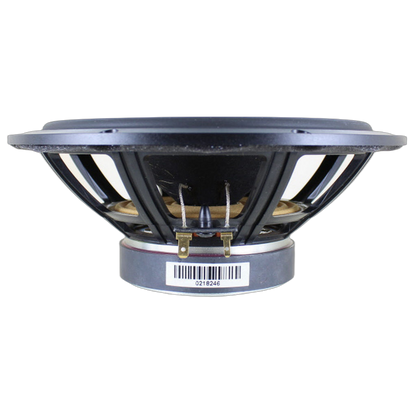

SB Acoustics - 8" PFCR Woofer - SB20PFCR30-8
SB Acoustics - 8" PFCR Woofer - SB20PFCR30-8
Regular price
$65.95
Regular price
Sale price
$65.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

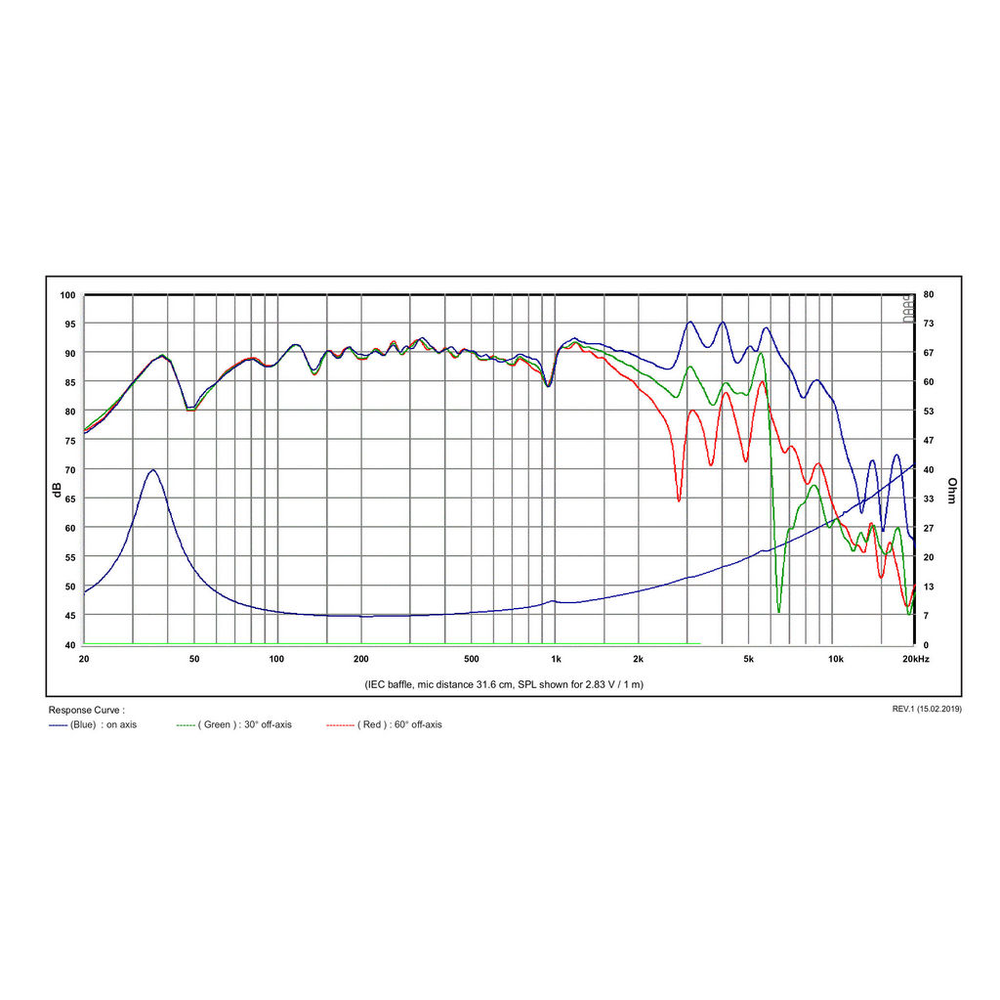

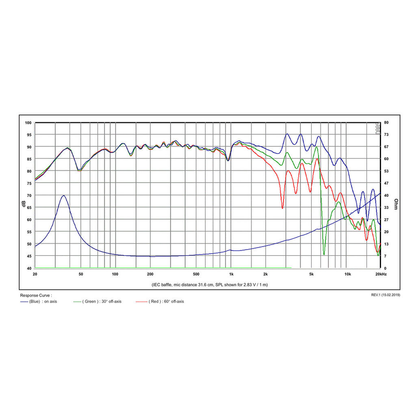

This 8" Norex fibre paper cone woofer is a great value for this build quality and performance. The specifications make it a good choice for many different enclosure types. An extended and smooth frequency response suggests simple crossovers, even none at all.
Features
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibres made in-house
- Soft low damping rubber surround for improved transient response
- Large spider for improved linearity
- Optimised motor system
- Vented coil former for low compression
- Non-resonant long life lead wires
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 50 W |
| Sensitivity | 90.5 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 34 Hz |
|---|---|
| DC resistance (Re) | 5.6 Ω |
| Voice coil inductance (Le) | 0.84 mH |
| Mechanical Q (Qms) | 2.66 |
| Electrical Q (Qes) | 0.43 |
| Total Q (Qts) | 0.37 |
| Equivalent volume (Vas) | 66.2 L |
| Compliance (Cms) | 1 mm/N |
| Moving mass (Mms) | 21.2 g |
| Mechanical resistance (Rms) | 1.7 kg/s |
| Force factor (Bl) | 7.7 T·m |
| Effective piston area (Sd) | 216 cm² |
| Linear excursion (Xmax, one-way) | 5.75 mm |
| Displacement volume (Vd) | 124.2 cm³ |
| Efficiency bandwidth product (EBP) | 79.07 |
Motor
| Voice coil height | 16.5 mm |
|---|---|
| Air gap height | 5 mm |
| Magnetic flux density | 1.2 T |
| Magnet weight | 0.54 kg |

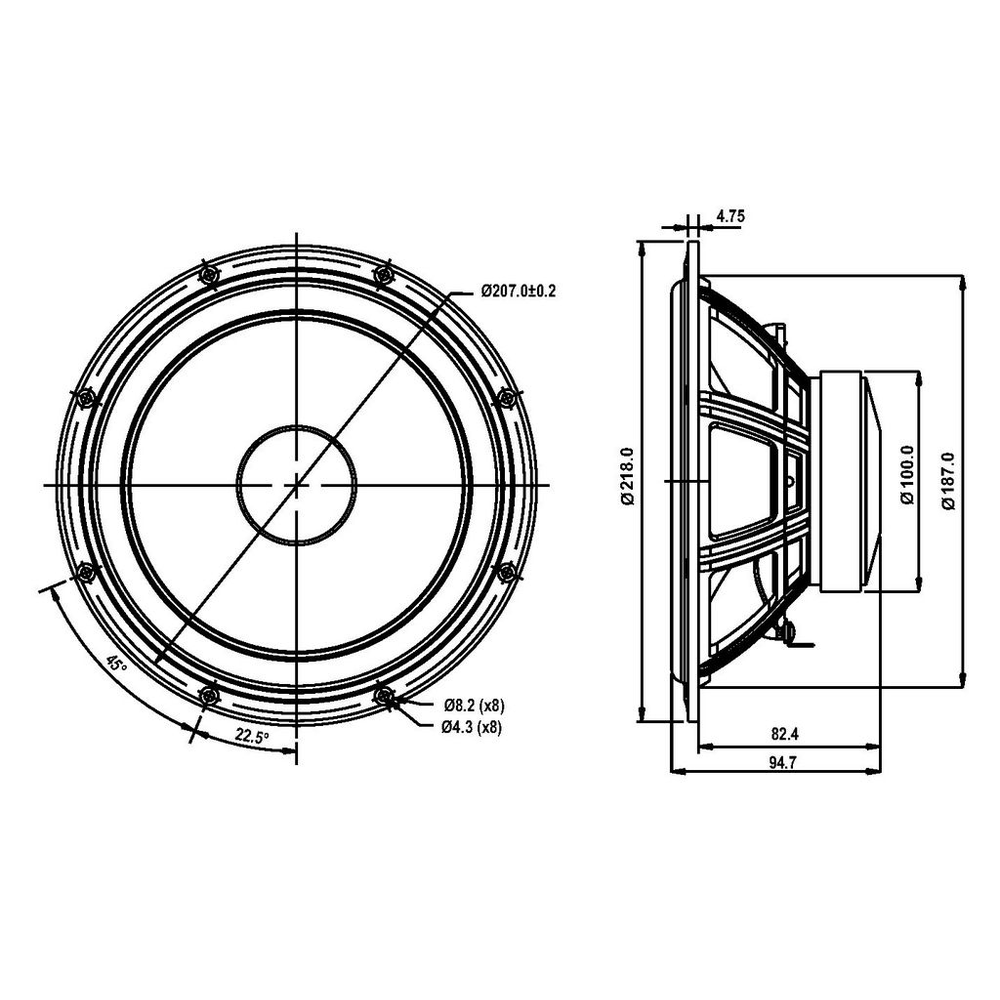

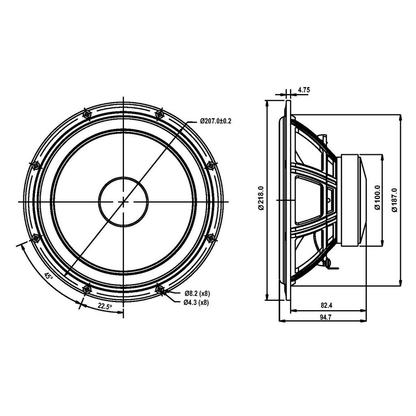

Mounting
| Overall diameter | 218 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 188.0 mm |
| Mounting depth | 82.4 mm |
| Flange thickness | 4.75 mm |
| Bolt circle diameter | 207 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 30.5 mm |
| Weight | 1.42 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Rubber |
| Basket | Reinforced Plastic |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 8″ SB20PFCR30-8 Datasheet
- SB20PFCR30-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
