SB Acoustics

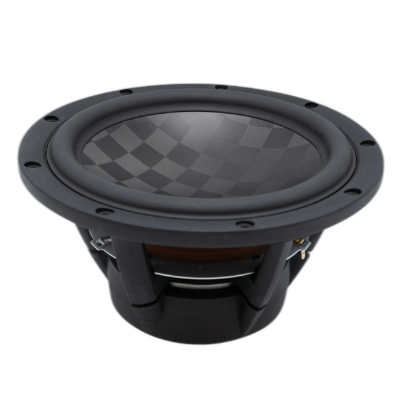

SB Acoustics - 9.5" Satori TeXtreme Woofer - WO24TX-4

SB Acoustics - 9.5" Satori TeXtreme Woofer - WO24TX-4

Regular price $579.95 AUD
Regular price Sale price $579.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

New in the premium SB Acoustic Satori line is the premium 9½″ woofer with ferrite magnet, aerodynamic chassis and woven TeXtreme® cone. TeXtreme® is an advanced, super thin carbon fibre fabric that maximises the strength-to-weight ratio. The spread tow technology offers several advantages over regular tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4 ohm and 8 ohm models.

Features:

  • Advanced TeXtreme(R) cone for improved piston operation.
  • Large optimized motor system with under-cut pole piece and dual shorting rings.
  • Vented aerodynamic cast aluminium chassis for optimum strength and low compression.
  • Soft low damping rubber surround for optimum transient response.
  • Linear symmetric suspension design for improved dynamic performance.
  • Non-conducting fibre glass voice coil former for minimum damping.
  • Long life silver lead wires attached 180° apart for improved stability.
  • Vented pole piece for reduced compression.
  • Low piston to chassis diameter ratio.
  • Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

Specifications:

Code WO24TX-4
Description 9.5" Satori series woofer with advanced Textreme cone, rubber surround, vented aluminium chassis
Colour Black
Coil 50mmØ
Depth 116mm
Diam. 242mmØ
Fs 26.3Hz
Hole 209mmØ
Hole Cutout 209mmØ
Impedance 4Ω (Re 3.3Ω)
Impedance (Ohm) 4 ohm
Inch 9.5"
Le 0.29mH
Mag. 1.36kg
Mms 42.8g
Power 90Wrms
Power (RMS) 51-100 Watt
Prms 90W
Qes 0.37
Qms 5.66
Qts 0.35
Re 3.3Ω
Sd 255cm²
Sens. 91dB
Series Satori
Size 9.5"
Type Woofer
Vas 79L
Width 242mmØ
Zn
Materials TeXtreme
