SB Acoustics - 9.5" Satori TeXtreme Woofer - WO24TX-8
SB Acoustics - 9.5" Satori TeXtreme Woofer - WO24TX-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

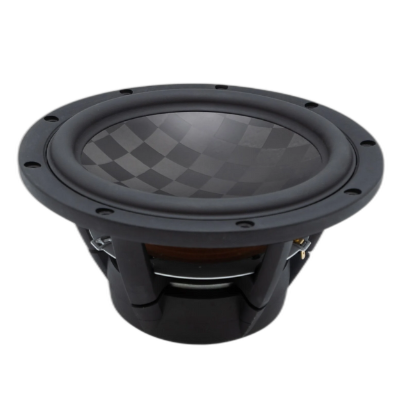

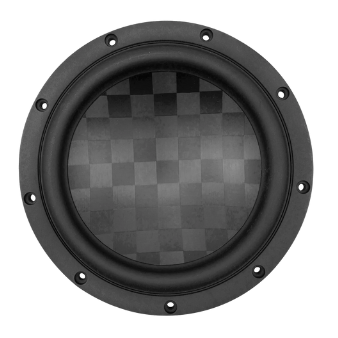

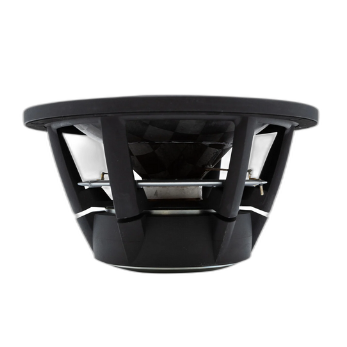

New in the premium SB Acoustic Satori line is the premium 9½″ woofer with ferrite magnet, aerodynamic chassis and woven TeXtreme® cone. TeXtreme® is an advanced, super thin carbon fibre fabric that maximises the strength-to-weight ratio. The spread tow technology offers several advantages over regular tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4 ohm and 8 ohm models.
Features
- Advanced TeXtreme® cone for improved piston operation
- Large optimised motor system with under-cut pole piece and dual shorting rings
- Vented aerodynamic cast aluminium chassis for optimum strength and low compression.
- Soft low damping rubber surround for optimum transient response
- Linear symmetric suspension design for improved dynamic performance
- Non-conducting fibre glass voice coil former for minimum damping
- Long life silver lead wires attached 180° apart for improved stability
- Vented pole piece for reduced compression
- Low piston to chassis diameter ratio
- Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.

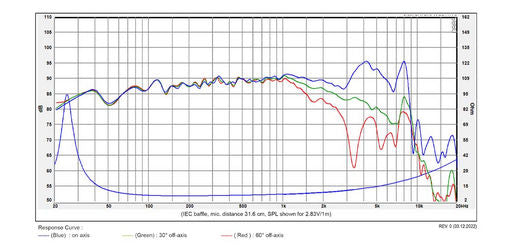

Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 9.5" |
| Nominal impedance | 8Ω |
| Series | Satori |
| Power handling (RMS) | 90 W |
| Sensitivity | 88 dB |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 24.5 Hz |
|---|---|
| DC resistance (Re) | 5.8 Ω |
| Voice coil inductance (Le) | 0.56 mH |
| Mechanical Q (Qms) | 5.67 |
| Electrical Q (Qes) | 0.36 |
| Total Q (Qts) | 0.34 |
| Equivalent volume (Vas) | 88 L |
| Compliance (Cms) | 0.95 mm/N |
| Moving mass (Mms) | 44.2 g |
| Mechanical resistance (Rms) | 1.2 kg/s |
| Force factor (Bl) | 10.45 T·m |
| Effective piston area (Sd) | 255 cm² |
| Linear excursion (Xmax, one-way) | 8.55 mm |
| Displacement volume (Vd) | 218 cm³ |
| Efficiency bandwidth product (EBP) | 68.06 |
Motor
| Voice coil height | 23.1 mm |
|---|---|
| Air gap height | 6 mm |
| Magnetic flux density | 1.12 T |
| Magnet weight | 1.36 kg |
Mounting
| Overall diameter | 242 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 210.8 mm |
| Mounting depth | 116.5 mm |
| Flange thickness | 10.5 mm |
| Bolt circle diameter | 226 mm |
| Mounting holes | 9 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 50 mm |
| Weight | 3.9 kg |
Materials
| Cone | TeXtreme |
|---|---|
| Surround | Rubber |
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- 9½″ SATORI WO24TX-8 Datasheet

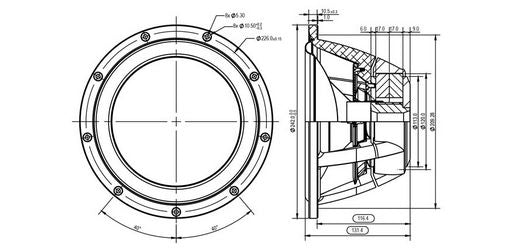

- WO24TX-8 Cutout & Recess Template (NB Audio) Straight off SB Acoustics' spec sheet: flange outline, recess depth, bolt holes. Scaled from SB Acoustics' drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
