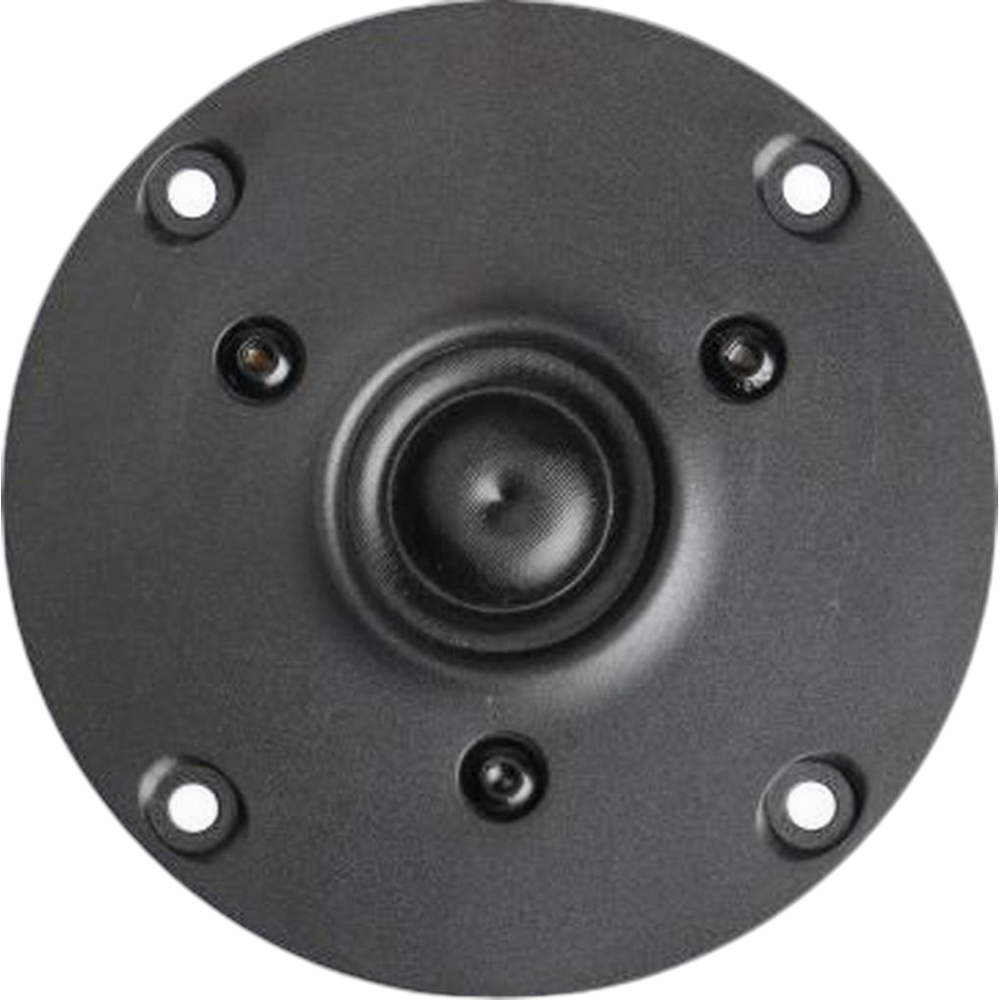

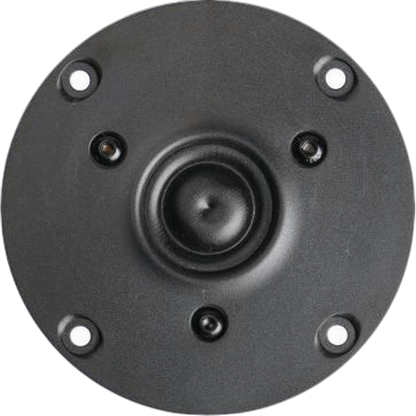

SB Acoustics - ¾" RDC Tweeter - SB21RDC-C000-4
SB Acoustics - ¾" RDC Tweeter - SB21RDC-C000-4
Regular price
$78.95 AUD
Regular price
Sale price
$78.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Non-resonant diaphragm design for minimum high frequency break-up. Dual balanced compression chamber for improved dynamics. Copper cap for reduced voice coil inductance and minimum phase shift. Saturation controlled motor system for low distortion. Non-reflective rear chamber with optimized damping for improved dynamics. Flow optimized vented pole piece for optimum coupling to rear chamber. CCAW voice coil for low moving mass. Long life silver lead wires. Low resonance frequency.
Features
- Non-resonant diaphragm design for minimum high frequency break-up
- Dual balanced compression chamber for improved dynamics
- Copper cap for reduced voice coil inductance and minimum phase shift
- Saturation controlled motor system for low distortion
- Non-reflective rear chamber with optimized damping for improved dynamics
- Flow optimized vented pole piece for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency
Specifications
| Power | 40Wrms |
|---|---|
| Coil | 20.4mmØ |
| Width | 92mmØ |
| Mag. | 0.33kg |
| Sens. | 90dB |
| Re | 3.1? |
| Qms | 2.54 |
| Qes | 1.64 |
| Qts | 1 |
| Sd | 4.6cm² |
| Fs | 760Hz |
| Mms | 0.25g |
| Zn | 4? |
| Le | 0.04mH |
| Diam. | Ref |
| Bl | 1.5Tm |
| Xmax | 1mm |
