SB Acoustics - Rinjani Assembled Crossover Pair
SB Acoustics - Rinjani Assembled Crossover Pair
Regular price
$549.95 AUD
Regular price
Sale price
$549.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A pair of ready-made crossovers for SB Acoustics' Rinjani, the 2½-way floor-stander. They come fully assembled and pre-wired, with slide-on connectors for the drivers, so there's no soldering to do.
Rinjani comes in three versions, and each has its own crossover, tuned by SB for its drivers. Pick the one that matches your tweeter. They aren't interchangeable.

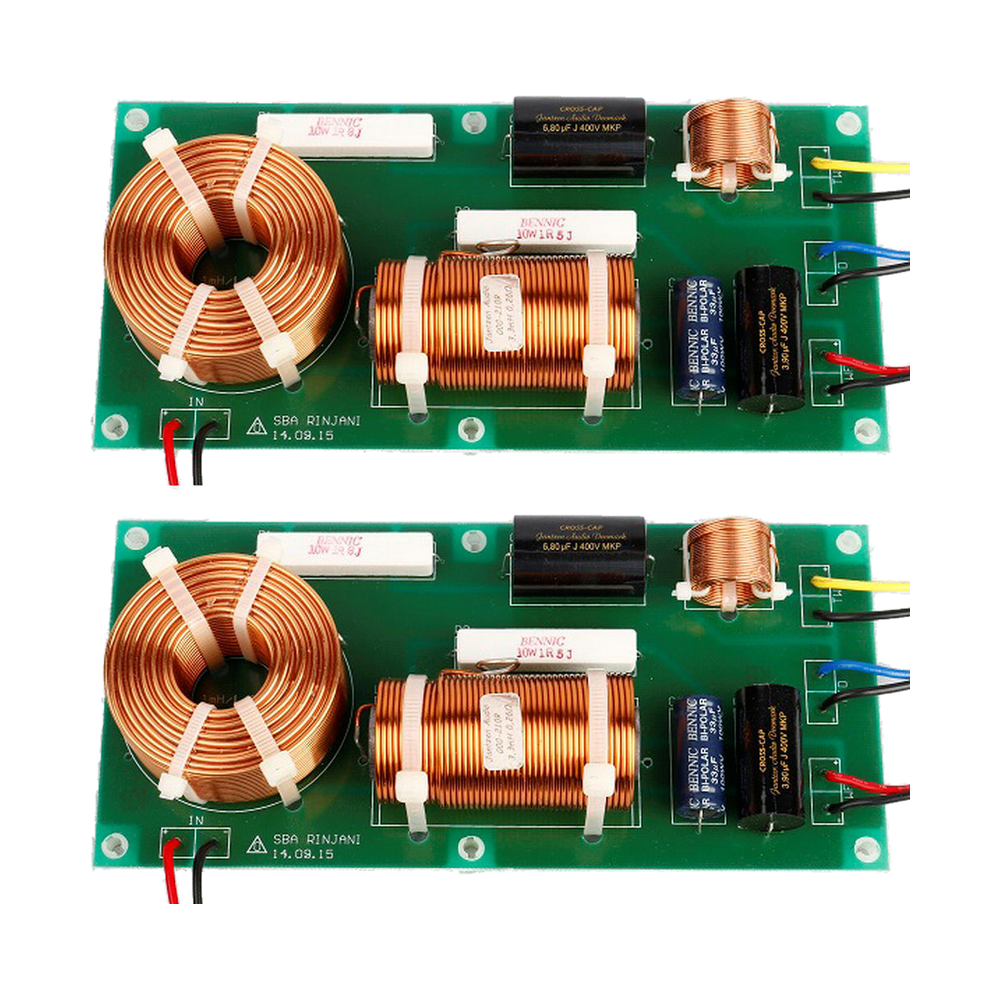

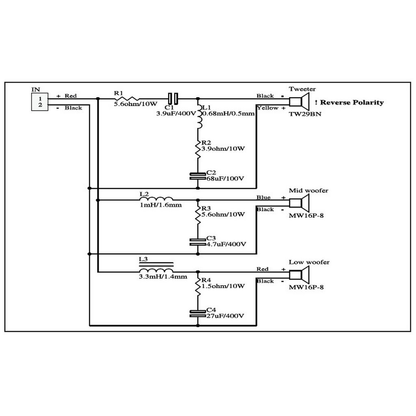

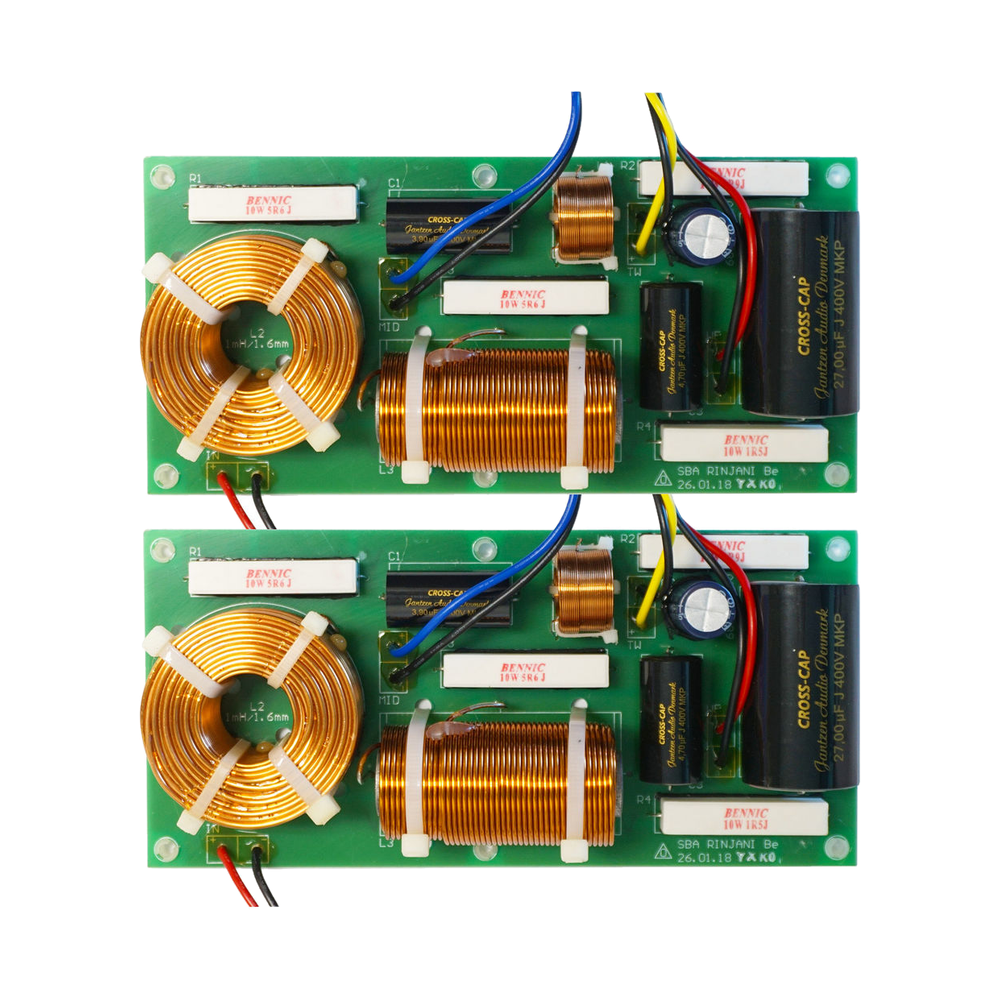

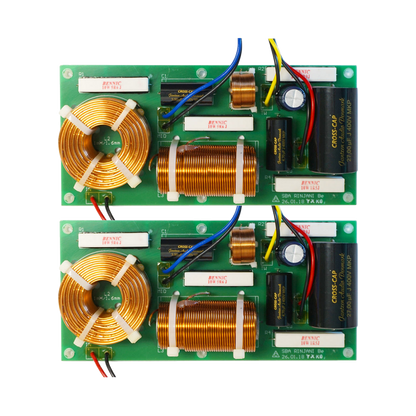

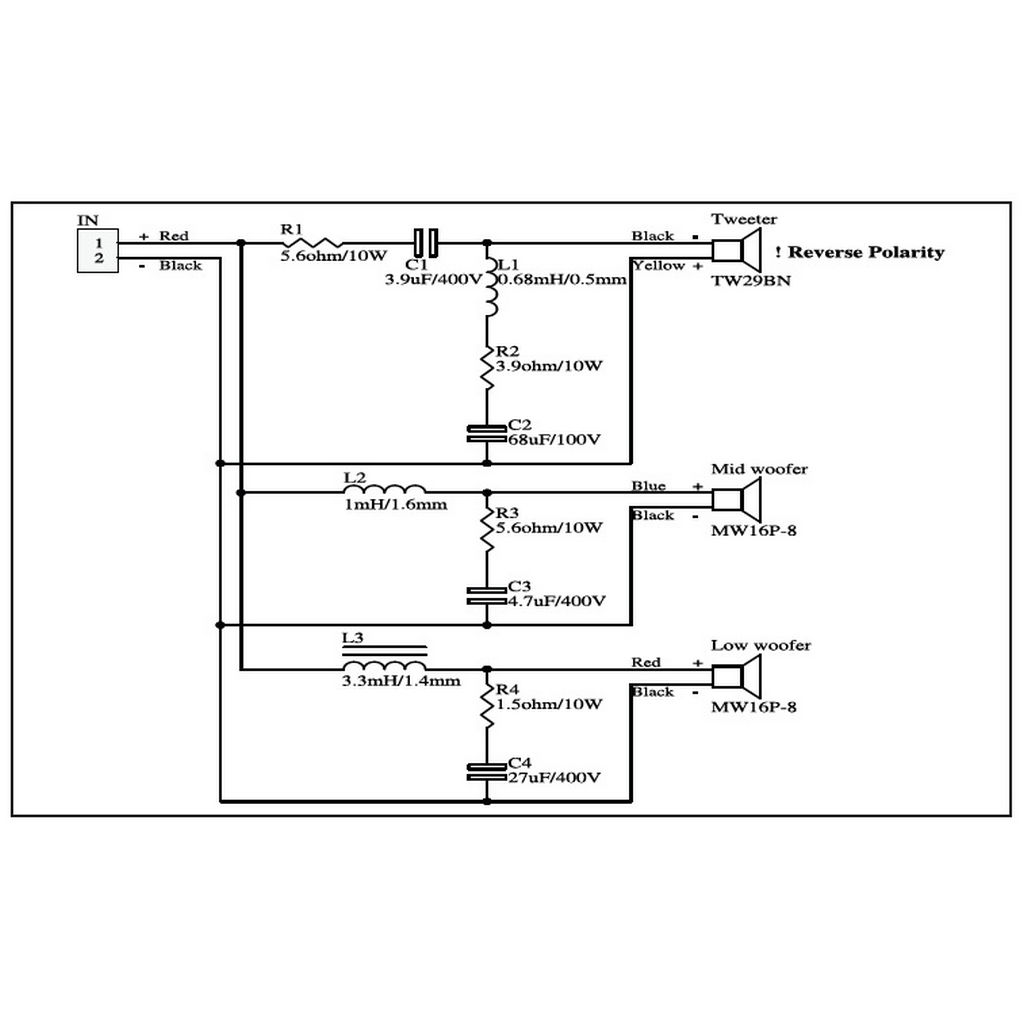

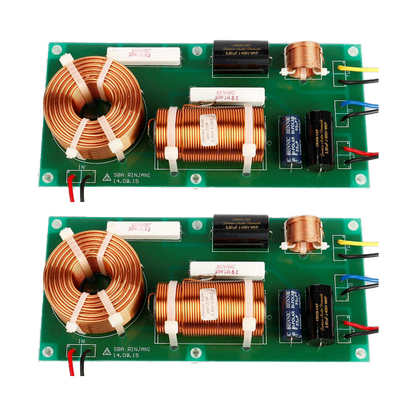

The photos show one version's boards, and SB's schematic for the Beryllium version.
Features
- Sold as a pair, one per speaker
- Fully assembled and pre-wired, with slide-on connectors for the drivers
- Ring dome version: for the TW29R or TW29R-B tweeter and two MW16P-8 (or white MW16PNW-8) per speaker. Crosses over at 3000 Hz
- Beryllium version: for the TW29BN or TW29BN-B and two MW16P-8 or MW16PNW-8 per speaker. Crosses over at 2300 Hz
- TeXtreme version: for the TW29TXN-B-8 and two MW16TX-8 per speaker. Crosses over at 2400 Hz
- Drivers and cabinets are sold separately
Specifications
| Kit | SB Acoustics Rinjani (2½-way) |
|---|---|
| Nominal impedance | 4 Ω |
| Recommended amplifier | 50–200 W |
| Sold as | Pair |
Downloads
Rinjani user manual (SB Acoustics)
Rinjani Be user manual (SB Acoustics)
