SB Acoustics

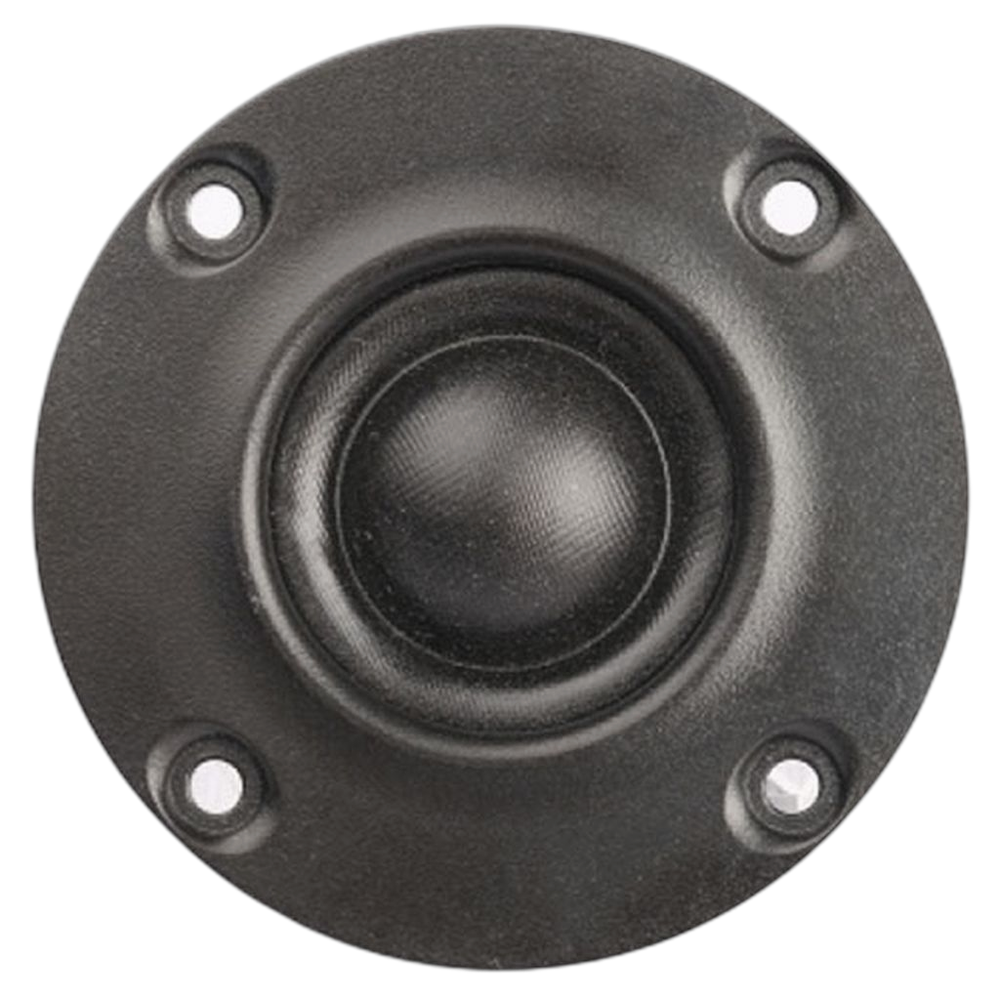

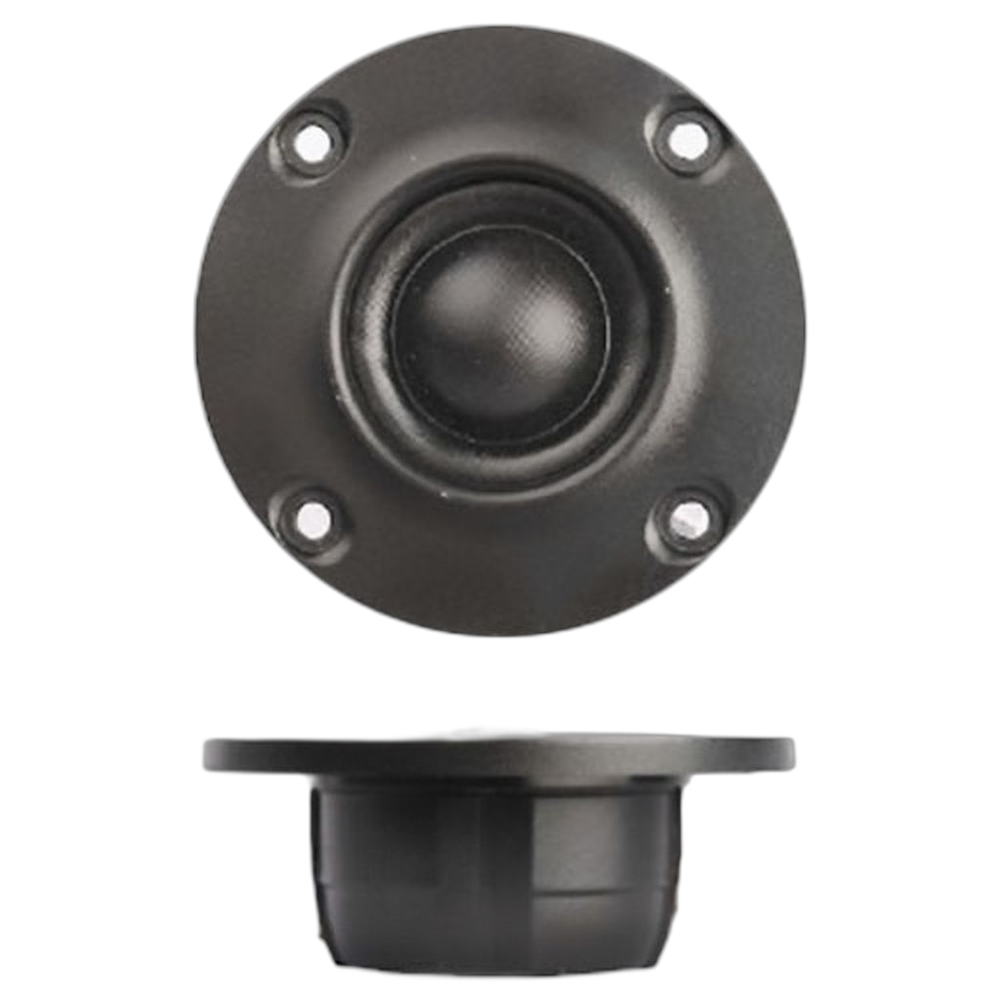

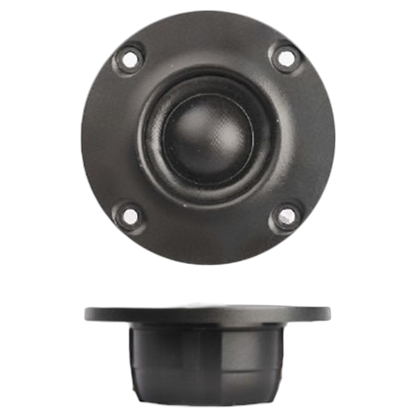

SB Acoustics - ¾" SDCN Tweeter - SB21SDCN-C000-4

SB Acoustics - ¾" SDCN Tweeter - SB21SDCN-C000-4

$64.95 AUD
$64.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

21mm Large surround textile dome, neodymium motor, injection faceplate

Features

  • Large surround dome for increased acoustic output
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Compact low distortion neodymium motor system
  • Non-resonant rear chamber with optimized damping for improved dynamics
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency

Specifications

Coil 20.4mmØ
Fs 850Hz
Le 0.04mH
Mag. 0.01kg
Mms 0.25g
Power 40Wrms
Qes 2.45
Qms 2.44
Qts 1.22
Re 3.1?
Sd 4.9cm²
Sens. 90dB

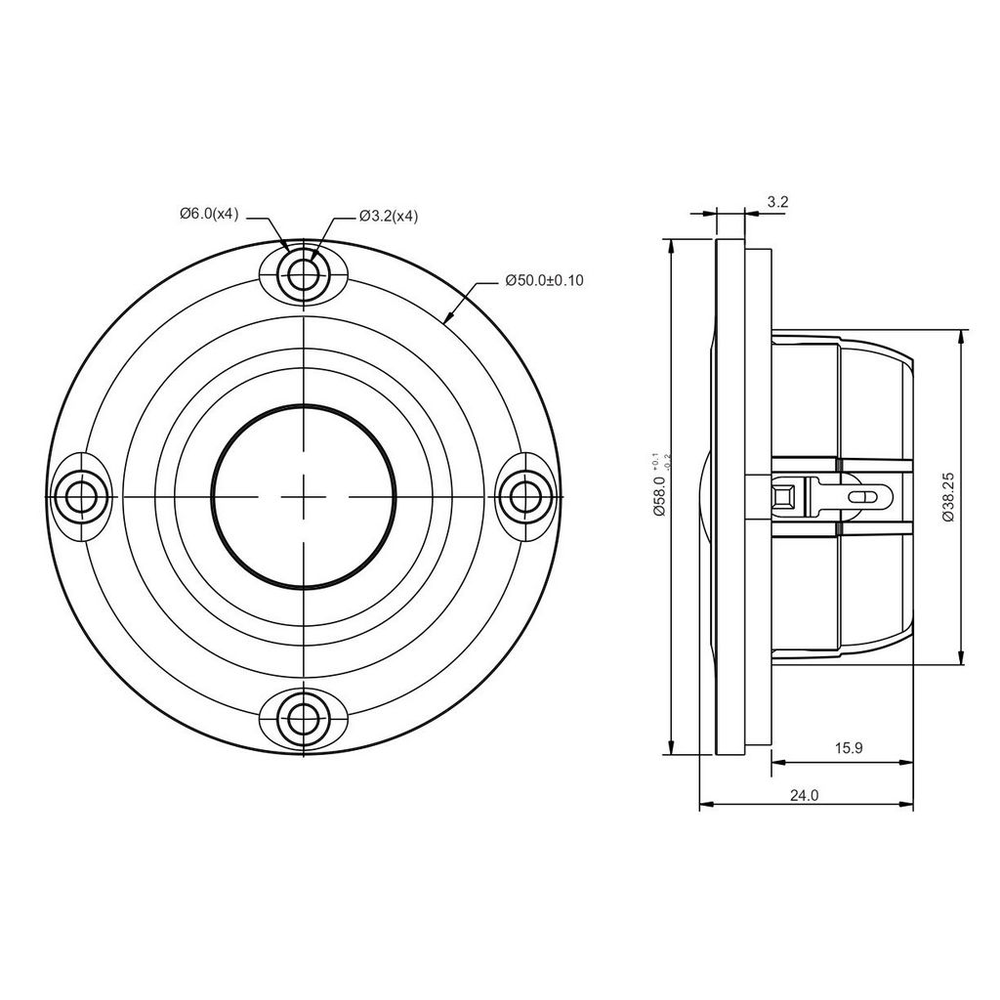

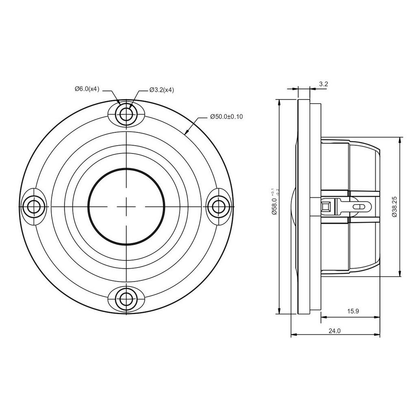

Width 58mmØ
Zn 4?
Bl 1.3Tm
Xmax 0.5mm
Diam. Ref
