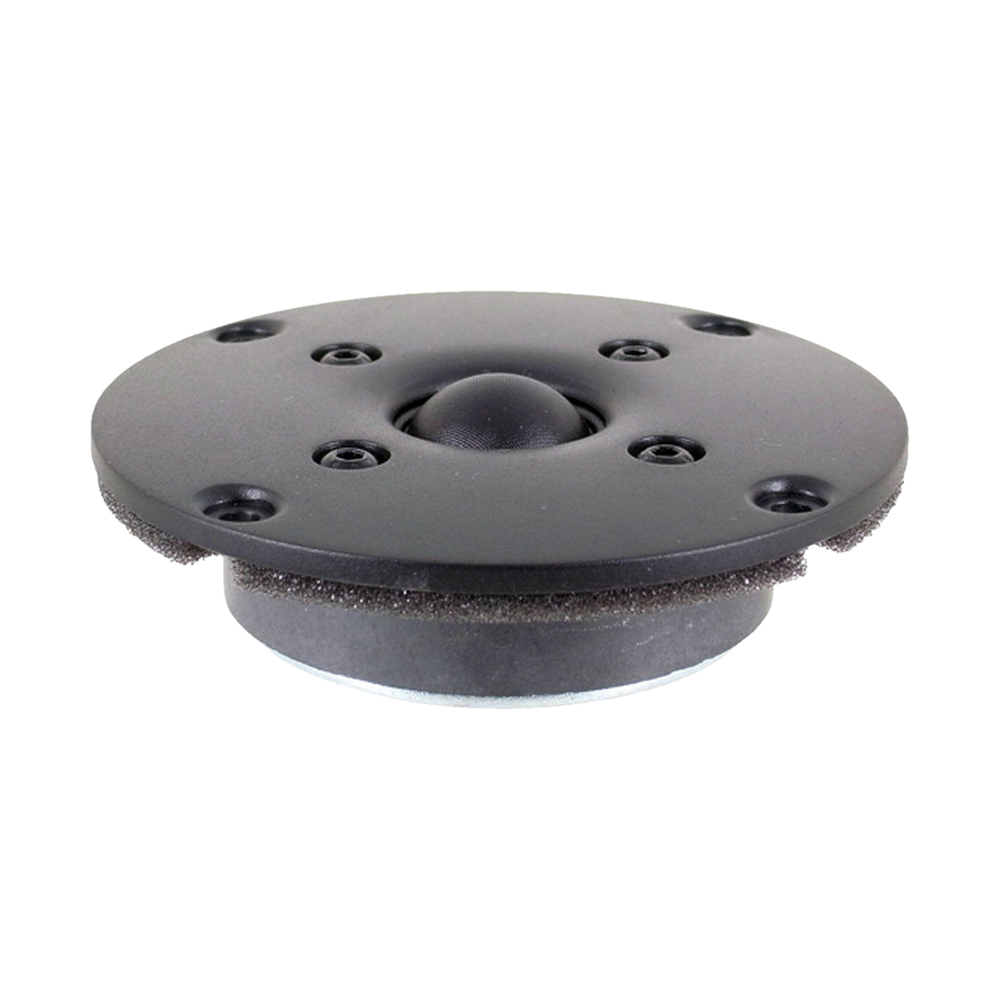

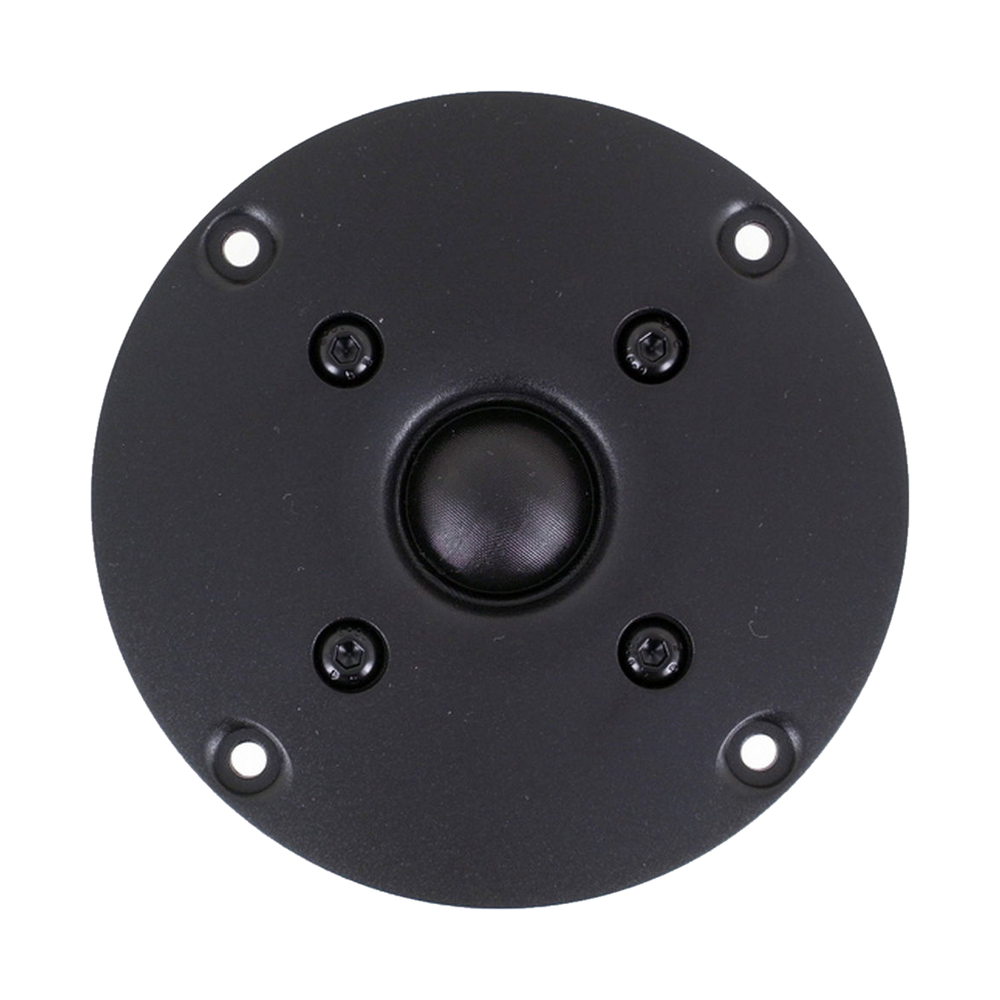

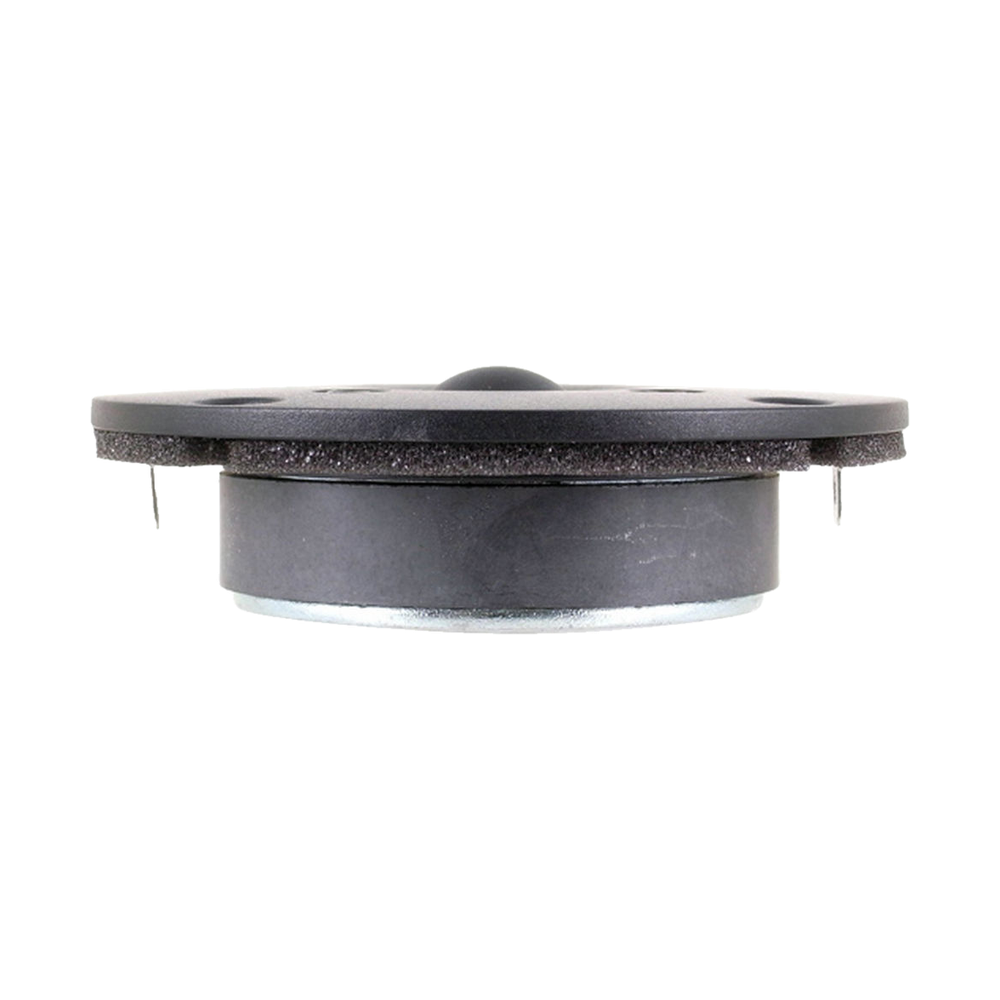

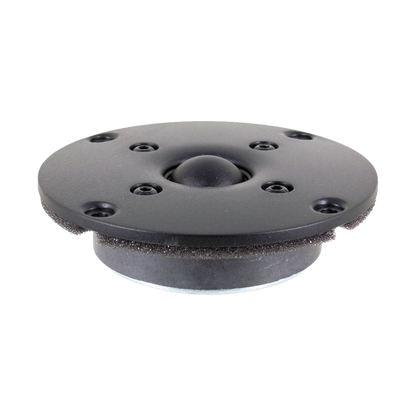

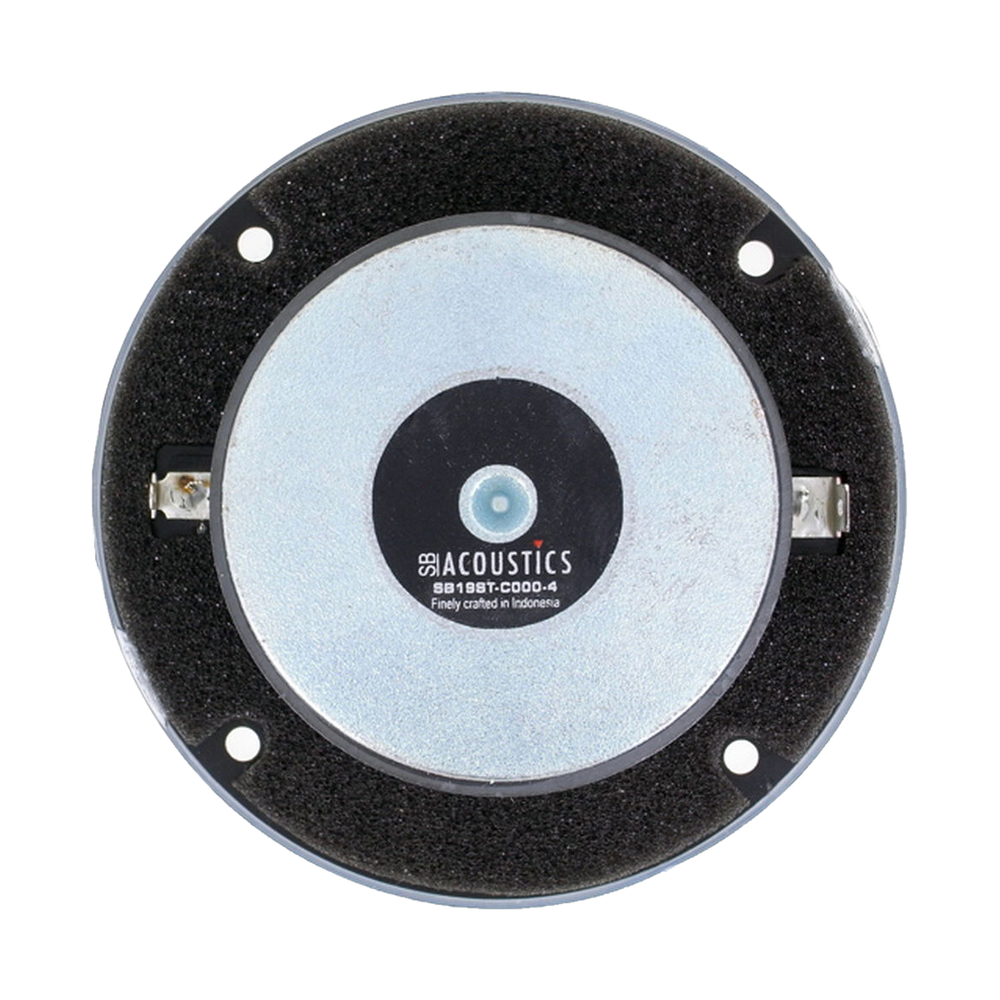

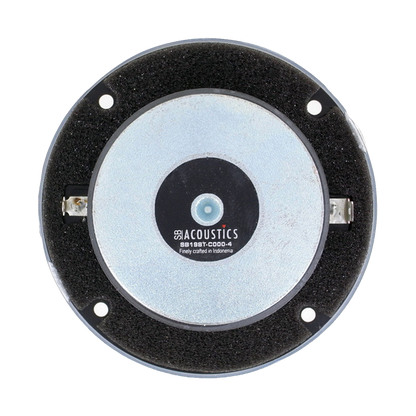

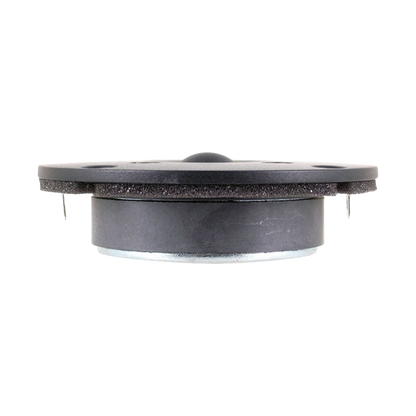

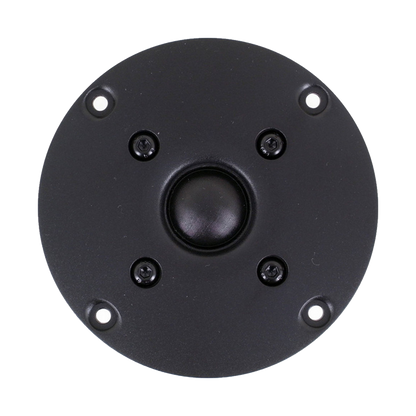

SB Acoustics - ¾" ST Tweeter - SB19ST-C000-4
SB Acoustics - ¾" ST Tweeter - SB19ST-C000-4
Regular price
$38.95
Regular price
Sale price
$38.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Optimised damping in pole cavity to eliminate internal reflection
- Fine weave soft fabric dome for smooth frequency response
- Saturation controlled motor system for reduced distortion
- CCAW voice coil for low moving mass
- Long life silver lead wires
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal impedance | 4Ω |
| Power handling (RMS) | 30 W |
| Sensitivity | 88.5 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 980 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Voice coil inductance (Le) | 0.07 mH |
| Mechanical Q (Qms) | 6.45 |
| Electrical Q (Qes) | 1.5 |
| Total Q (Qts) | 1.22 |
| Compliance (Cms) | 0.1199 mm/N |
| Moving mass (Mms) | 0.22 g |
| Mechanical resistance (Rms) | 0.21 kg/s |
| Force factor (Bl) | 1.75 T·m |
| Effective piston area (Sd) | 3.8 cm² |
| Linear excursion (Xmax, one-way) | 0.6 mm |
| Displacement volume (Vd) | 0.228 cm³ |
| Efficiency bandwidth product (EBP) | 653.3 |
Motor
| Voice coil height | 1.8 mm |
|---|---|
| Air gap height | 3 mm |
| Magnetic flux density | 1.24 T |
| Magnet weight | 0.13 kg |
Mounting
| Overall diameter | 88 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 61.0 mm |
| Mounting depth | 21 mm |
| Flange thickness | 3 mm |
| Bolt circle diameter | 78 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4 mm |
| Voice coil diameter | 19.1 mm |
| Weight | 0.32 kg |
Materials
| Cone | Fabric |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
