SB Acoustics - Tifa 6 Speaker Kit (Plans + Drivers)

SB Acoustics - Tifa 6 Speaker Kit (Plans + Drivers)

Loading the kit's parts and prices…

Description

SB Acoustics' Tifa 6 is an open-source two-way stand-mount: a 6" paper-cone mid-woofer and a 1" soft dome tweeter in a ported box.

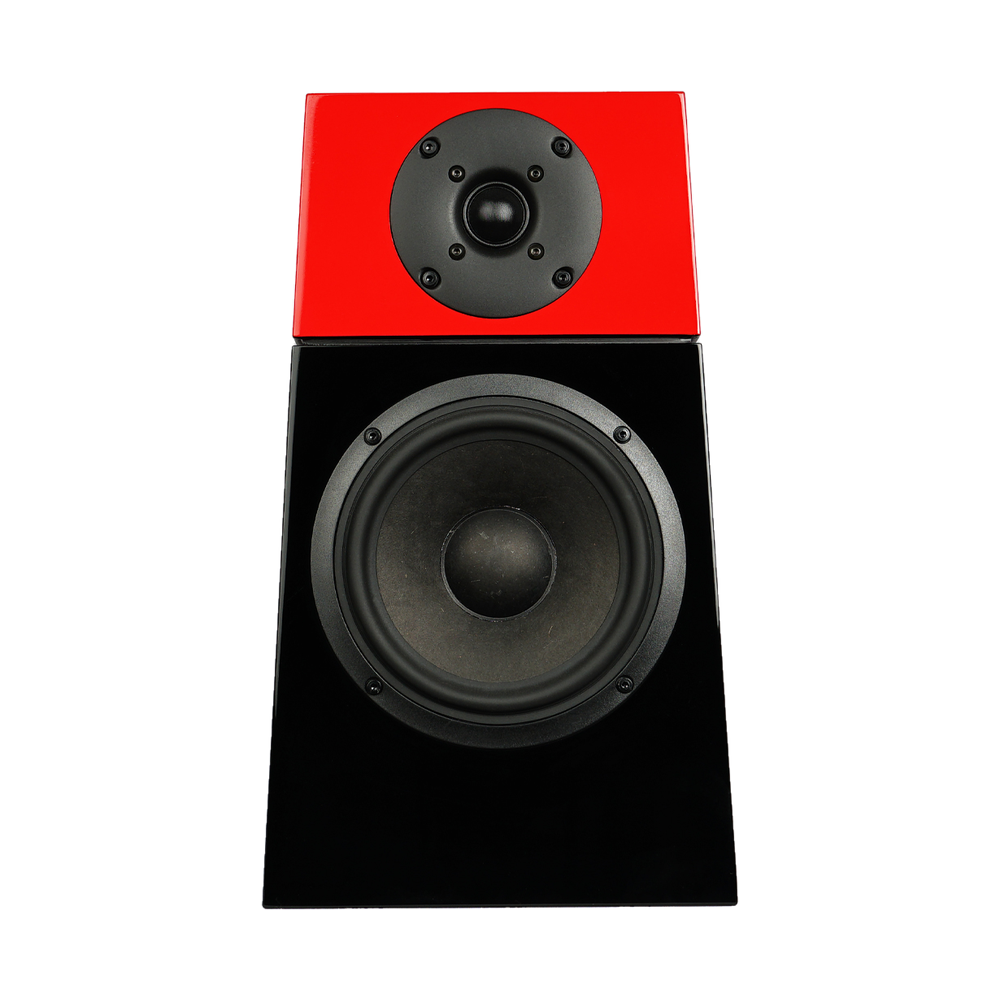

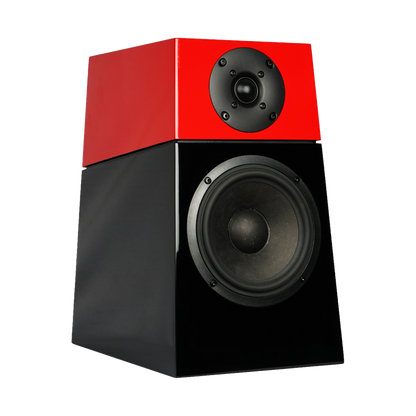

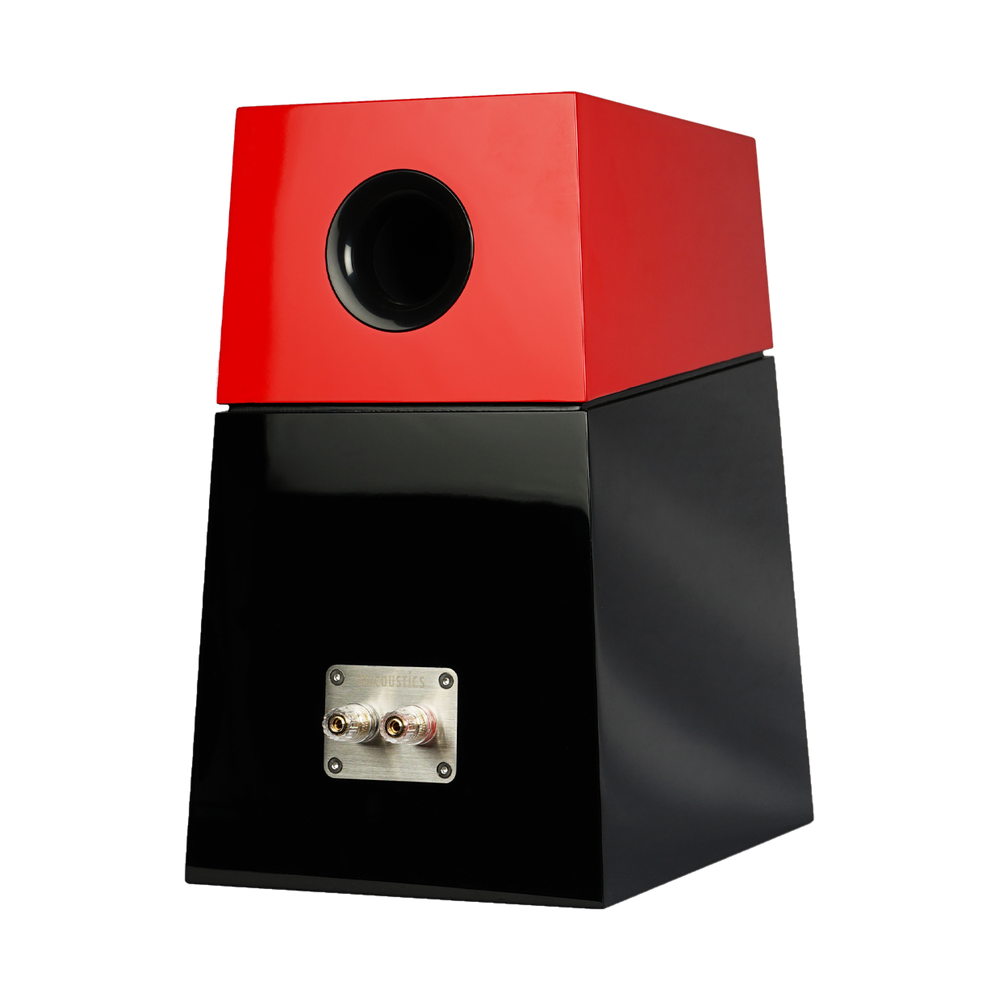

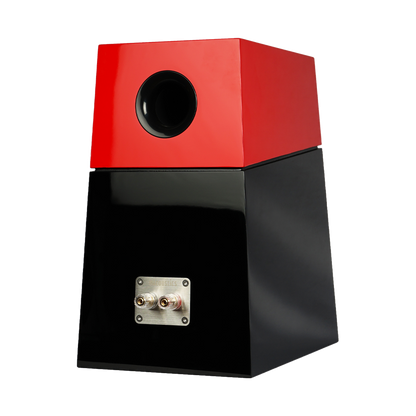

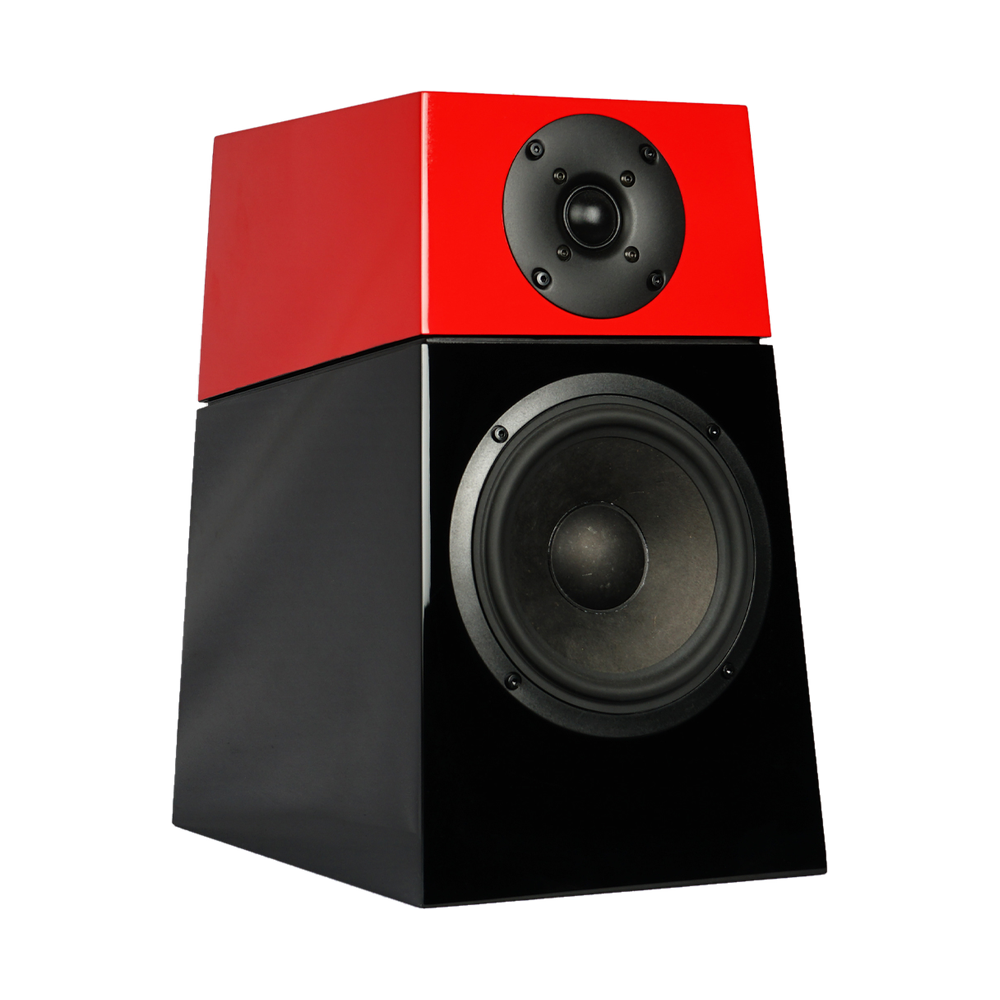

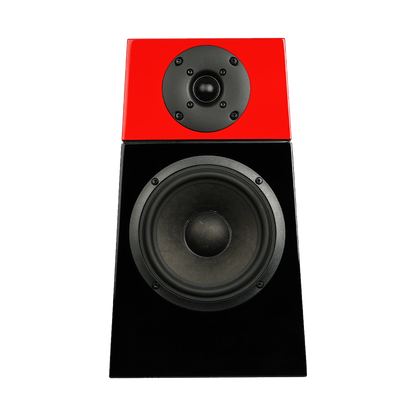

The photos are SB Acoustics' own finished build. We sell the drivers; the cabinet is yours to build.

There's no ready-made crossover for this one. SB publishes the schematic, so you can build it yourself from our crossover parts. Wagner doesn't sell a cabinet for it either: SB's drawing has the dimensions to build your own.

Everything in the kit

Everything below is for a pair of speakers. Each part links to its own page, so you can also buy it a piece at a time.

Qty Part Price
2 SB Acoustics - 1" ST Dome Tweeter - SB26ST-C000-5 tweeter $46.95 each
2 SB Acoustics - 6" PFCR Mid-Woofer - SB16PFCR25-4 6" mid-woofer $51.95 each

Specifications

Frequency Range 36 – 26000 Hz
Sensitivity ( 2.83V / 1m ) 85 dB
Nominal Impedance 4Ω
Max SPL 105 dB
Recommended Amplifier 50 – 150 W
Crossover Frequency 2600 Hz
Enclosure Type Bass reflex
Port tuning Frequency 37 Hz

Downloads

Tifa 6 Cross-over Schematic (SB Acoustics)

Tifa 6 Cabinet Drawing (SB Acoustics)
