SB Audience

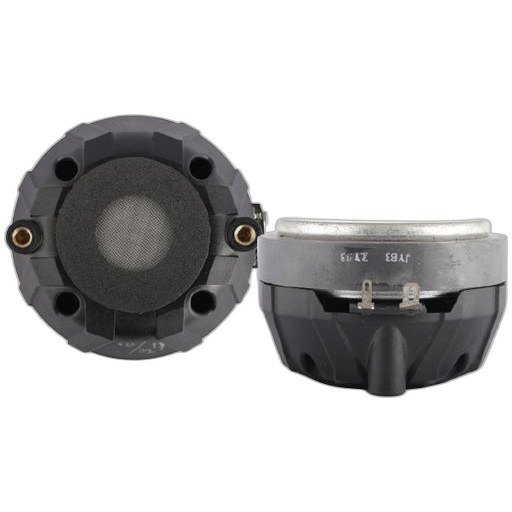

SB Audience - 1" BIANCO Compression Driver - BIANCO-25CD-P
SB Audience - 1" BIANCO Compression Driver - BIANCO-25CD-P
Regular price
$41.95
Regular price
Sale price
$41.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Extremely light weight PEI diaphragm
- Smooth response with airy detailed highs
- High sensitivity and compact design
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | SB Compression |
| Power handling (RMS) | 20 W |
| Power handling (program) | 40 W |
| Sensitivity | 107 dB |
| Frequency range | 1,000 – 20,000 Hz |
| Recommended crossover | 2.5 kHz |
| Phase plug | Radial slits |
| Total exit angle | 9.2° conical |
Thiele/Small parameters
| DC resistance (Re) | 5.5 Ω |
|---|
Motor
| Voice coil height | 1.78 mm |
|---|---|
| Air gap height | 2 mm |
| Magnetic flux density | 1.7 T |
| Voice coil wire | Copper clad aluminium |
Mounting
| Overall diameter | 90 mm |
|---|---|
| Mounting depth | 56.6 mm |
| Volume displaced by driver | 0.29 L |
| Voice coil diameter | 25 mm |
| Weight | 0.84 kg |
| Bolt circle diameter | 76.3 mm |
| Mounting holes | 2 × M6 |
| Exit diameter | 25.4 mm |
Materials
| Cone | PEI |
|---|---|
| Voice coil former | Kapton |
| Magnet | Ferrite |
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is a 2-hour pink noise test from the recommended crossover frequency to 20 kHz. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 1–18 kHz, with the driver mounted on SB Audience's H250 horn.
