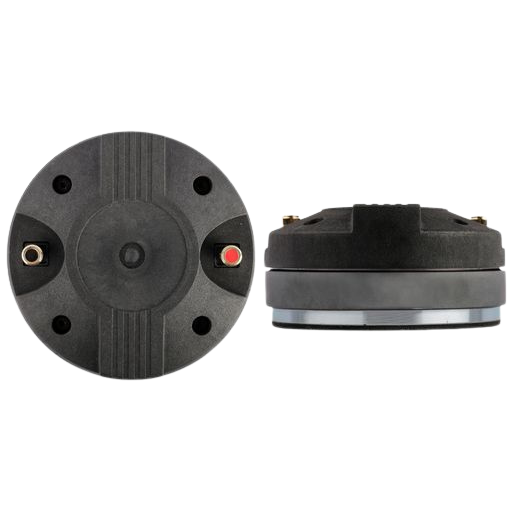

SB Audience - 1" BIANCO Compression Driver - BIANCO-44CD-K
SB Audience - 1" BIANCO Compression Driver - BIANCO-44CD-K
Regular price
$114.95
Regular price
Sale price
$114.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Kapton diaphragm
- Detailed and smooth character
- High SPL
- Extremely light weight diaphragm
- Push Terminal for easy installation
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | SB Compression |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 108 dB |
| Frequency range | 700 – 20,000 Hz |
| Recommended crossover | 1.8 kHz |
| Phase plug | Annular |
| Total exit angle | 10.9° conical |
| Replacement diaphragm | 1P000OPSB005 |
Thiele/Small parameters
| DC resistance (Re) | 6.2 Ω |
|---|
Motor
| Voice coil height | 2.25 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.59 T |
| Voice coil wire | Flat copper clad aluminium |
Mounting
| Overall diameter | 120 mm |
|---|---|
| Mounting depth | 61.5 mm |
| Bolt circle diameter | 76 mm |
| Mounting holes | 4 |
| Volume displaced by driver | 0.59 L |
| Voice coil diameter | 44 mm |
| Weight | 2.22 kg |
| Mounting thread | M6 |
| Exit diameter | 25.4 mm |
Materials
| Cone | Kapton |
|---|---|
| Voice coil former | Kapton |
| Magnet | Ferrite |
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is a 2-hour pink noise test from the recommended crossover frequency to 20 kHz. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 1–18 kHz, with the driver mounted on SB Audience's H250 horn.
