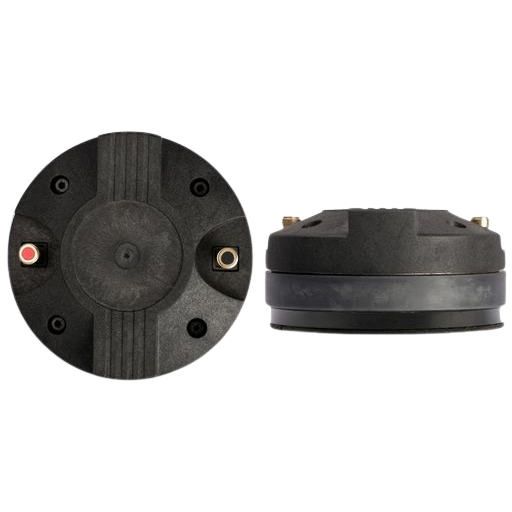

SB Audience - 1" BIANCO Compression Driver - BIANCO-44CD-T
SB Audience - 1" BIANCO Compression Driver - BIANCO-44CD-T
Regular price
$104.95
Regular price
Sale price
$104.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Backordered Product. Contact us for lead time
Couldn't load pickup availability
Description
Features
- Titanium diaphragm
- Detailed and dynamic
- High SPL
- Advanced voice coil with flat copper clad aluminium wire
- Push Terminal for easy installation
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | SB Compression |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 105 dB |
| Frequency range | 700 – 20,000 Hz |
| Recommended crossover | 1.8 kHz |
| Phase plug | Annular |
| Total exit angle | 19.1° conical |
| Replacement diaphragm | 1P000OPSB004 |
Thiele/Small parameters
| DC resistance (Re) | 6.2 Ω |
|---|
Motor
| Voice coil height | 2.25 mm |
|---|---|
| Air gap height | 2.3 mm |
| Magnetic flux density | 1.59 T |
| Voice coil wire | Flat copper clad aluminium |
Mounting
| Overall diameter | 115 mm |
|---|---|
| Mounting depth | 53.8 mm |
| Bolt circle diameter | 76 mm |
| Mounting holes | 4 |
| Volume displaced by driver | 0.48 L |
| Voice coil diameter | 44 mm |
| Weight | 1.7 kg |
| Mounting thread | M6 |
| Exit diameter | 25.4 mm |
Materials
| Cone | Titanium |
|---|---|
| Voice coil former | Kapton |
| Magnet | Ferrite |
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is a 2-hour pink noise test from the recommended crossover frequency to 20 kHz. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 1–18 kHz, with the driver mounted on SB Audience's H250 horn.
