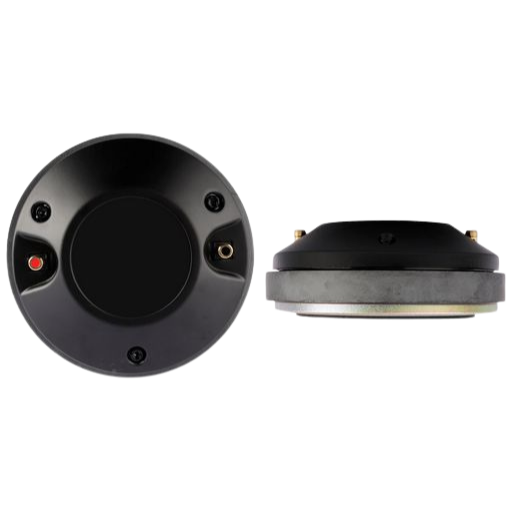

SB Audience - 1.4" BIANCO Compression Driver - BIANCO-75CD-T
SB Audience - 1.4" BIANCO Compression Driver - BIANCO-75CD-T
Regular price
$294.95
Regular price
Sale price
$294.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Titanium composite diaphragm with PEEK surround
- Extended lower frequency range
- High SPL and power handling
- Crisp sound
- Black Kapton VC former for improved power handling
- Voice coil from light weight flat aluminium winding material
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1.4" |
| Nominal impedance | 8Ω |
| Series | SB Compression |
| Power handling (RMS) | 100 W |
| Power handling (program) | 200 W |
| Sensitivity | 109 dB |
| Frequency range | 500 – 20,000 Hz |
| Recommended crossover | 1 kHz |
| Phase plug | Annular |
| Total exit angle | 5.1° conical |
| Replacement diaphragm | 1P000OPSB007 |
Thiele/Small parameters
| DC resistance (Re) | 7 Ω |
|---|
Motor
| Voice coil height | 2.45 mm |
|---|---|
| Air gap height | 3 mm |
| Magnetic flux density | 1.65 T |
| Voice coil wire | Flat aluminium |
| Demodulation | Copper cap |
Mounting
| Overall diameter | 170 mm |
|---|---|
| Mounting depth | 65.4 mm |
| Bolt circle diameter | 102 mm |
| Mounting holes | 4 |
| Volume displaced by driver | 1.16 L |
| Voice coil diameter | 75 mm |
| Weight | 4.4 kg |
| Mounting thread | M6 |
| Exit diameter | 35.6 mm |
Materials
| Cone | Composite Titanium |
|---|---|
| Voice coil former | Black Kapton |
| Magnet | Ferrite |
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is a 2-hour pink noise test from the recommended crossover frequency to 20 kHz. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 1–18 kHz, with the driver mounted on SB Audience's H280 horn.
